High Speed Electronic Programmable Pattern Sewing Machine DS-6040

3 year ago
16 0
Product details

High Speed Electronic Programmable Pattern Sewing Machine DS-6040


Product Description


1. Direct drive motor, quick response to start and stop , improve production efficiency.

2. Better stitch lines, lower noise and lower vibration generated by servo motor in X, Y direction.

3. Rotating machine head sewing, achieve perfect stitch at any angle.

4. Used to detect broken-thread stops the machine as soon as it detects broken line.

5. Feedback for the XY mechanism is incorporated to realize;

  High-speed 2500rpm intermittent feed sewing ;

  working time has been reduced by 20% compared to the conventional models.


Product Specifications
Model: DS-6040
Sewing rang : Sewing rang : 600mm X 400mm
Sewing speed : 2500rpm/min (intermittent feed 3.0mm )
Work holder lift : 25mm (max:30mm)
Stepping foot lift : 20mm
Stepping foot stoke : 4mm(0.1mm-10mm Optional)
Hook : Double size rotary hook
Memory figure number : Max: 99999
Memory count : Each pattern 20,000 needles.
Needle : DP*17 (#16 - #24)
Stitch type : single needle lock stitch
Operation screen : 7 inch LCD touch control panel
Sewing thickness : ≤ 80 mm
Motor: 750W direct drive servo motor
Voltage : Single-phase 220-240V
Memory device : USB
Weight : 250kgs

Product Images

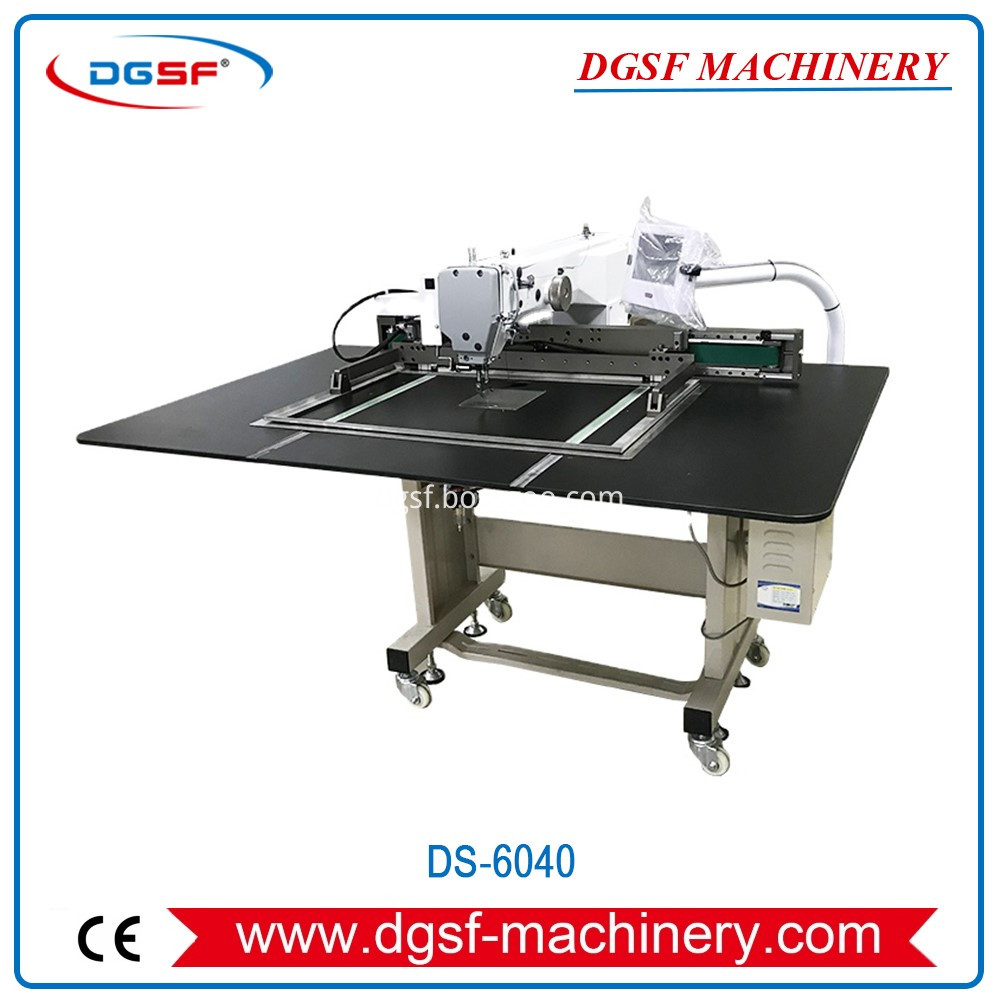

Programmable Pattern Sewing Machine
