This is an embedded fanless industrial computer, integrated with core i3 i5 i7, Intel Celeron, or Intel Pentium on the motherboard. The mini PC comes with dual LAN(2* RJ45) and dual com(2* RS232), widely used in banking, finance, securities, telecommunications, industrial control, and other fields. This dual LAN mini PC supports to be installed with Windows 7, Windows 8, Windows 10, Linux, Ubuntu or Centos, etc., so can be used as an ordinary mini desktop computer or personal computer for home, office, business, students, etc. In addition, with the rich interfaces of 1* HDMI, 1* VGA, 2*RJ45, 2*RS232, 2*USB 3.0, and 2*USB 2.0, there is an easy interconnection between devices.
Product Details
CPU: Intel Celeron J1800 J1900 N2830 N2930 3205U J4105 J4125 N4100
Intel Pentium N3530 N3540 3805U
Intel Core i3 4010Y 4010U 5005U
Intel Core i5 4200U 5200U 5287U
Intel Core i7 4500U 5500U
BIOS: American
Memory(RAM): 1* Single Channel SODIMM, DDR3L 1033/1333/1600MHz
2GB/4GB/8GB/16GB optional(Only 5th CPU supports 16GB RAM)
Hard Disk: 1* mSATA SSD+1*2.5" SSD/HDD
32GB/64GB/128GB/512GB/1TB SSD optional, 160GB/500GB/1TB HDD optional
Ethernet port: 2 x RJ45 10/100/1000Mbps Realtek 8111F Gigabits Ethernet
WIFI: Module with dual antenna
Power: Input: AC 100-240V 50-60Hz, Output: DC 12V-3A 36W/5A 60W
OS Supported: Win 10/8 /7 Linux, Ubuntu, Openelec, etc.
Features: Support Wake UP on LAN, S5 RTC Wake Settings(Power on at a set time), PXE Boot, Restore on AC powe loss(Auto Power on).
Cooling System: Fanless passive cooling with heat sink
Chassis Material: Aluminum Alloy
Operating Temperature : -20~65℃
Storage Temperature: -20~85℃(15℃-35℃ Recommended)
Relative Humidity: 10%~90% (without condensation)

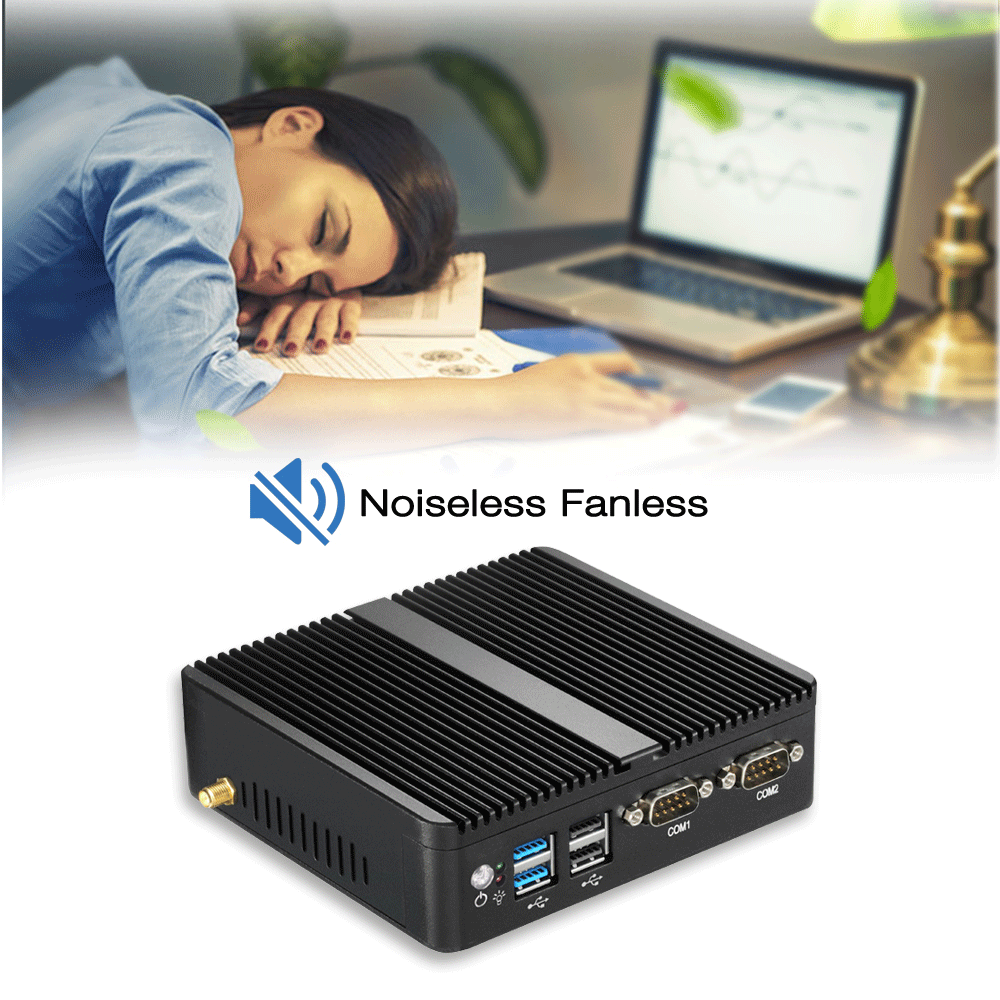

It is a fanless mini PC with passive cooling system, so it works silently and keeps running 7/24 hours.
This micro mini PC can be used as a mini desktop or personal computer. It is your office assistant and home entertainment tool. And it supports dual display with HDMI+VGA, synchronous or independent.
The mini industrial PC runs more stably than our ordinary desktop computer for industrial automation, educational multimedia, shopping malls, hotels, parking lots, projection, digital signage, ATMs, vending machines, KIOSK, robots, medical care, client terminals, etc.
