Product details

Product Introduction

Alloy pipe is a kind of seamless steel pipe, its performance is much higher than that of general seamless steel pipe, because this type of steel pipe contains more Cr, its high temperature resistance, low temperature resistance, corrosion resistance performance is much better than other Steel pipe , so the alloy pipe is widely used in petroleum, aerospace, chemical, electric power, boiler, military and other industries.

ASTM A519 grade 4130 seamless steel pipe

The good strength and its hardenability make alloy 4130 steel seamless round tubing a good fit for applications that deal with structural employment. If this low alloy steel is manufactured using specification ASTM A519, they are either hot finished or they may be cold finished. If the ASTM A519 Grade 4130 Pipe is to be a part of mechanical tubing, they could be strand cast or cast in ingots. 4130 Alloy Steel Seamless Pipe is customarily contrived by hot working steel. If imminent, these hot worked tubular pipes are subsequently cold finished in order to construct the solicited dimensions, shape or properties. Pipes are commonly furnished in any one of the following shapes - square, round, rectangular as well as sections of a specific nature. To circumscribe the portions of the elements specified, a heat analysis could be employed. The 4130 Chromoly Steel Pipe could be coated with a film of oil before the performance of any shaping operation. Coating is applied on these pipes to hinder rust if specified by the buyer.

Product Specification

Item	Cold Rolled / Cold Drawn alloy steel seamless pipe
Standard	JISG3467-88, JISG3458-88, GB3087, GB6479-2000, GB9948-2006, GB5310-95, GB9948-88, ASME SA210, ASME SA213, ASTM SA335, ASTM A335/A335m, ASTMA213/A213m, DIN 17175, AISI A519
Model No	12Cr1MoV, P2(10CrMo910), T91, P91, P9, T9, Cr5Mo, 15CrMo, P11, P12, 13CrMo44, 25CrMo, 30CrMo, 40CrMo, 12CrMo, X12CrMo91, 12Cr2Mo, 4130/4140
Description	Surface	black painted, PE coated, galvanized
	Length	6m, 5.8m, 11.8m, 12m, or as required
	Wall Thickness	1-120mm
	Outer Diameter	6-1200mm
Trade terms	Payment terms	T/T,L/C
	Price terms	FOB,CIF
Package	Standard export seaworthy package or as required.
Delivery time	Prompt delivery or as the order quantity.
Export to	Alloy steel pipe applies to petroleum,chemical industry, electric power, boiler, high temperature resistant, low temperature resistant,corrosion resistant seamless steel pipe used.Alloy steel pipealso can made according to the customer.
Container size	20ft GP:5898mm(Length)x2352mm(Width)x2393mm(High) 24-26CBM 40ft GP:12032mm(Length)x2352mm(Width)x2393mm(High) 54CBM 40ft HC:12032mm(Length)x2352mm(Width)x2698mm(High) 68CBM
Contact	If you have any question,please feel free to contact me.

AISI A519 4130, 4140 Seamless Alloy Steel Pipe

Chemical Composition:

Standard	Steel Grade	C(%)	Si(%)	Mn(%)	S(%)	P(%)
A519	1010	0.05-0.15	0.15-0.35	0.3-0.6	≤0.050	≤0.040
	1020	0.15-0.25	0.15-0.35	0.3-0.6	≤0.050	≤0.040
	1045	0.43-0.50	0.15-0.35	0.6-0.9	≤0.050	≤0.040
	4130	0.28-0.33	0.15-0.35	0.4-0.6	≤0.040	≤0.040
	4135	0.32-0.39	0.15-0.35	0.6-0.9	≤0.040	≤0.040
	4140	0.38-0.42	0.15-0.35	0.7-1.0	≤0.040	≤0.040

Other Specification:

End Shape	Beveled end, plain end, vanished, or adding plastic caps to protect the two ends as per customer's requirements
Surface Treatment	Oiled, Galvanized, Phosphate etc
Technique	Cold drawn & cold rolled
Application	1. Automotive and mechanical pipes
	2. Petroleum cracking pipes
	3. High Pressure Boiler Pipe
	4. Low and middle pressure fluid transportation pipeline
	5. Chemical fertilizer equipment pipes
	6. Heat exchanger pipes
Delivery Conditions	1. BK (+C)	No heat treatment after last cold forming process.
	2. BKW (+LC)	After last heat treatment there is a light finishing pass (cold drawing)
	3. BKS (+SR)	After the final cold forming process the tubes are stress relieve annealed.
	4. GBK (+A)	After the final cold forming process the tubes are annealed in a controlled atmosphere.
	5. NBK (+N)	After the final cold forming process the tubes are annealed above the upper transformation point in a controlled atmosphere.
Package	1. Bundle Packing.
	2. Plain end or vanished as per customer's request.
	3. Wrapped in waterproof paper.
	4. Sackcloth with several steel strips.
	5. Pack in heavy tri-wall boxes.

ASTM A355 Seamless Alloy Steel Pipe

Chemical Composition:

	Grade	ASTM A335 P5	ASTM A335 P9	ASTM A335 P11	ASTM A335 P22	ASTM A335 P91
Element	UNS Designation	K41545	S50400	K11597	K21590	K91560
Carbon	0.15 max	0.15 max	0.05 – 0.15	0.05 – 0.15	0.08 – 0.12	V at 0.18 – 0.25
Manganese	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	0.30 – 0.60	N at 0.030 – 0.070
Phosphorous, max	0.025	0.025	0.025	0.025	0.020	Ni at 0.40 max
Sulfur, max	0.025	0.025	0.025	0.025	0.010	Al at 0.02 max
Silicon	0.50 max	0.25 – 1.00	0.50 – 1.00	0.50 max	0.20 -0.50	Cb at 0.06 – 0.10
Chromium	4.00 – 6.00	8.00 – 10.00	1.00 – 1.50	1.90 – 2.60	8.00 – 9.50	Ti at 0.01 max
Molybdenum	0.45 -0.65	0.90 – 1.10	0.44 – 0.65	0.87 – 1.13	0.85 – 1.05	Zr at 0.01 max

Mechanical Properties:

Mechanical properties	P1,P2	P12	P23	P91	P92,P11	P122
Tensile strength	380	415	510	585	620	620
Yield strength	205	220	400	415	440	400

Tensile Requirements:

Tensile Strength, min., psi		P-5	P-9	P-11	P-22	P-91	P91 shall not have a hardness not exceeding 250 HB/265 HV [25HRC].

	ksi	60	60	60	60	85
	MPa	415	415	415	415	585
Yield Strength, min., psi
	ksi	30	30	30	30	60
	MPa	205	205	205	205	415

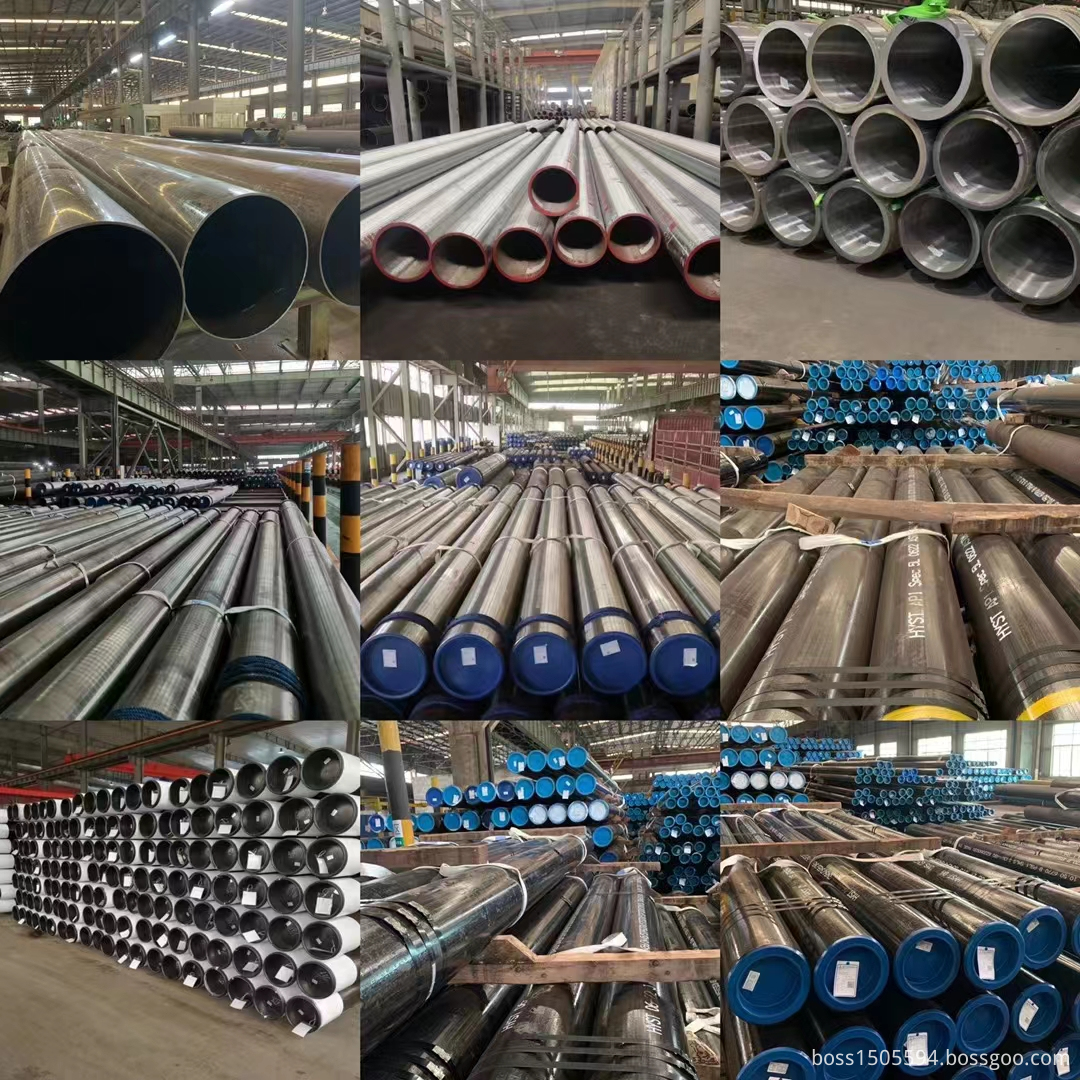

Product Display
