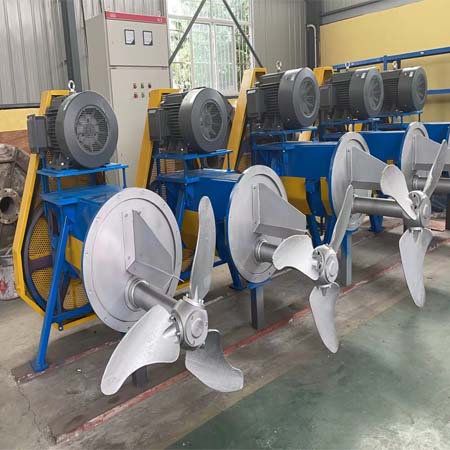

Adjustable Impeller Pulp Agitator
The agitator is a suspended pulp tank agitator, which is suitable for stirring pulp with different concentrations in pulp tower, round pulp tank and square pulp tank. It is hung on the pool wall with flanges and fixed without cement foundation. It occupies a small area, is easy to install, and has low power. designed for all kinds of fibers in chests or storage towers up to a consistency of 6.5%.
Agitator Feature
1. Advanced design of the blade, strong thrust, and the angle can be adjusted according to different concentrations and types of pulp, so it has a wide range of applications;
2. Mechanical seal can be used;
3. The slurry is evenly stirred, and the unit energy consumption is low.
Agitator Structural principle
It is mainly composed of six parts: impeller, transmission unit, packing seal unit, belt drive unit, frame unit, mounting ring and protective cover.
1. Impeller
It is composed of impeller seat, blade and ball head cover. There are positioning pins and bolts between the blade and impeller seat. By adjusting the combination of positioning pin holes, the blade angle can be adjusted.
2. Transmission unit
It is composed of bearing housing, bearing, main shaft, bushing, water throwing ring and spacer. The bearing seat and the bearing support the main shaft. The shaft sleeve is fitted to the corresponding packing of the main shaft to protect the main shaft. The spacer is fitted to the part where the main shaft extends into the stock tank to prevent corrosion of the main shaft.
3. Packing sealing unit
It is composed of stuffing chamber, packing, water distribution ring, gasket and gland. The gasket can only be removed when replacing the packing with slurry, and the packing can be replaced by tightening the packing chamber.
4. Belt drive unit
It consists of motor, motor pulley, host pulley, V-belt, motor bottom plate and screw. The motor transmits power to the spindle through a belt.
5. Rack unit
It is processed by welding square tube and steel plate. It is used to fix the bearing housing and the screw of the belt drive unit, and the front flange is connected with the mounting ring.
6. Mounting ring
The installation ring is divided into a steel slurry tank installation ring and a cement slurry tank installation ring. If the slurry tank is made of steel, use the former one, and if the slurry tank is made of cement, use the latter one.
7. Protective cover
It is welded by sieve plate and bent plate, and is used to protect the pulley and the main shaft.
Huatao Supply all the spare parts and Pulp cleaning equipment, Pulp screening equipment for Paper mills.
Stock preparation: Conveyor belt, Pulper, D Pulper, hydrapulper, Cleaner, HD Cleaner, LD clenaer, Pressure screen, Screen basket, Hole type screen basket, Slot screen basket, , Pressure Screen, Cleaner,Fine Screen, Vibrating Screen, High Consistency Cleaner, Low Consistency Cleaner, Reject Separator, Float Purger, Fiber Fractionating Screen, Washer, Disc thickener, Refiner, DDR, Refiner disc, Refiner plate, Screen plate, and so on.
Paper machine spare parts: PMC - Paper machine clothing, forming fabric, dryer screen, press felt, polyester fabric, SS wire mesh, shrinking mesh, Dewatering elements, Breast roll, Guide roll, Forward roll, Vacuum couch roll, Drive roll, Curved roll, Calender roll, Pope reel, Rewinder, Slitter machine, Sizing machine, Calender machine, Cylinder mould, Dryer cylinder, and so on.
