Product details

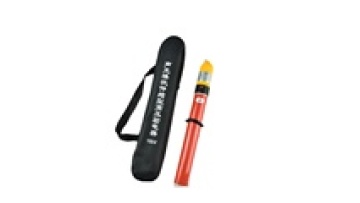

Long Length Anti-Interference Telescopic Electroscope

Check whether the high-voltage lines and equipment have electricity to ensure the safety of the staff.
Features:
The electroscope is composed of two parts: a power inspection indicator and a fully insulated telescopic operating rod. It has a light structure, beautiful appearance, high sensitivity and clear indication. The indicator adopts integrated circuit full shielding technology and has built-in overvoltage protection. It can be used both indoors and outdoors, day and night.
Function:
With full circuit self-checking function;
It has the ability to withstand a certain impact and free fall; Ability to resist in-phase or out-of-phase interference;
It has the ability to distinguish AC induced voltage;
It has the ability to prevent short circuit and electric spark intrusion.

Detailed Data

Item number	Voltage class (kv)	Effective insulation length(mm)	Starting voltage(kv)
23106	10	≥700	≤3
23107	35	≥900	≤12
23108	110	≥1300	≤30
23109	220	≥2100	≤60

High Voltage Electroscope 3 Jpg

To support the Transmission work, Marshine Power has Tubular Gin Pole, Come Along clamp, wire rope pulley block, nylon sheave hoisting tackle, hydraulic cable puller and tensioner ,conductor installation devices all are OEM and professionally produced per ISO 9001:2008, which are being sold to over more than 50 countries in the world. Some items like emergency restoration tower and crossing structure, we can customized, and the safety tools and accessories, are not demanded the MOQ. You can freely help you out either Tech issue or Products requirements. Pls approach us. Thanks.
