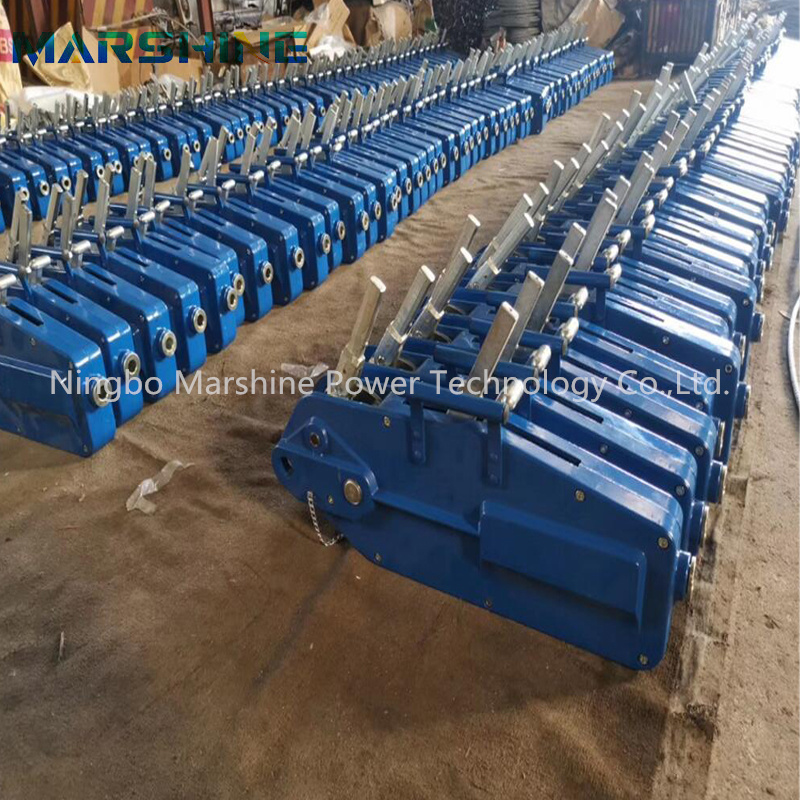

Manual Wire Rope Winch Hand Operated Tackle Block
1. Made of aluminum alloy.
2. forward handle or the backward handle for pulling wire rope in different direction
3. operated in accordance with lever
4. Wire rope winch with 20m galvanised steel wire rope
Main Specifications
Item Number
14183
14184
14185
Model
HSS408
HSS416
HSS432
Rated Lifting Weight (kN)
8
16
32
One Stroke (mm)
≥40
≥40
≥16
Diameter of Steel Wire Rope (mm)
Φ8
Φ11.6
Φ16
Standard Length of Steel Wire Rope (m)
20
20
20
Net Weight (kg)
6.8
13
25
Pull Force to Lift Rated Load (N)
≤343
≤400
≤441
Packing Size (mm)
420×106×250
530×126×315
660×160×360
