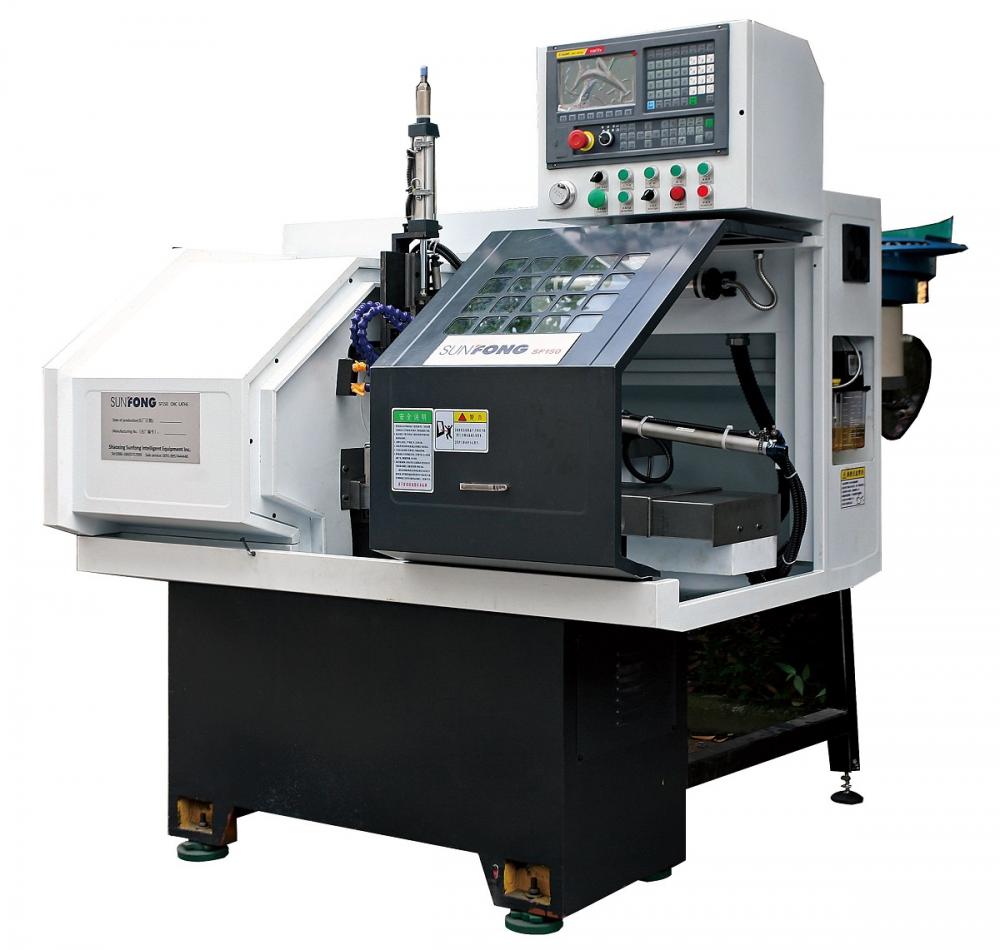

Automatic Load and Unload system CNC Machine

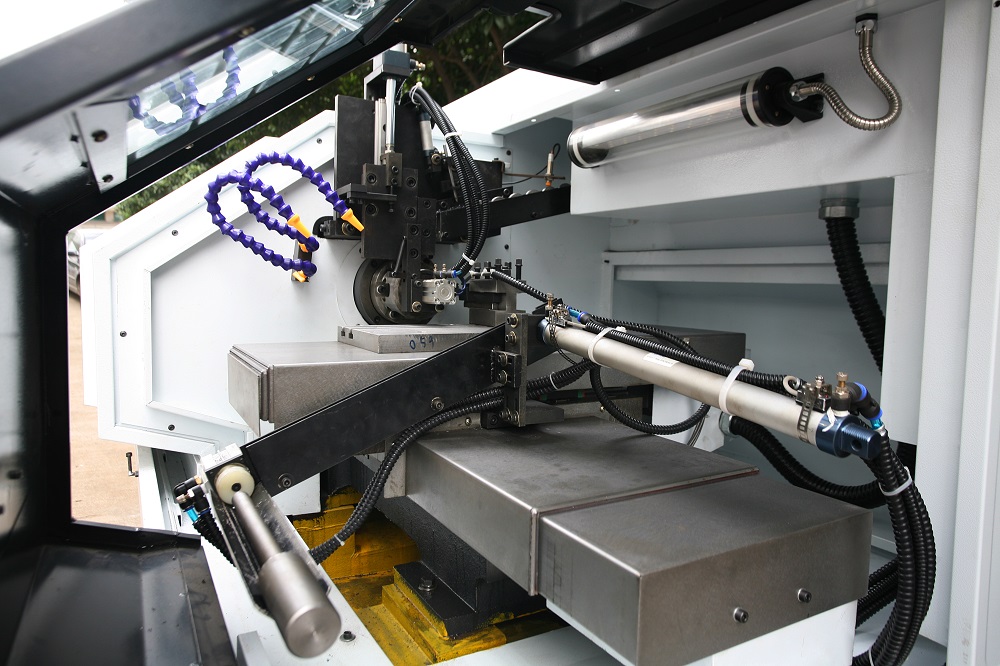

In the face of the backward degree of automation of processing equipment and the lack of skilled workers, the current batch machining industry urgently needs intelligent and unmanned processing equipment. The supporting loading and unloading mechanism is designed for the CNC lathe to realize the automatic loading and unloading of the motor rotor. Starting from the overall design scheme, the author deeply expounds the economic loading and unloading system supporting the NC machine tool, and its structural and functional requirements for the processing object, machine tool, silo and manipulator itself. From the actual production, the author puts forward his own design point of view. This loading and unloading system has flexible and reliable action, relatively simple structure, and relatively economical products. It not only improves the degree of equipment automation, but also reduces the labor cost.
SPECIFICATIONS
BASIC DATA
SF-150
MAX.SWING OVER BED
350mm
MAX.TURNING LENGTH
300mm
X-AXIS TRAVEL(AROSS)
560mm
Z-AXIS TRAVEL(LONGITUDINAL)
300mm
RAPID FEED(X&Z AXIS)
15000mm/min
SPINDLE MOTOR POWER-GSK
4kw
SPINDLE BORE
65mm
MAX.BAR CAPACITY
40mm
SPINDLE SPEED RANGE
50-3000rpm
TOOL SIZE(CROSS SECTIONAL)
20*20mm
POSITIONING UNCERTAINTY(P)
X:0.01mm Z:0.01mm
NET WEIGHT
1100KG
GROSS WEIGHT
1240KG
SIZE(LENGTH x WIDTH x HEIGHT)
1950mm x1250mm x1650mm
