Mini PC Intel Core i7 Processor Windows 7/8/10
Mini pc Core i7 highly reliable, fanless, noise-free, energy efficient, rugged Small Desktop Computers designed for a large variety of demanding applications. intel nuc i7 designed without cooling fans the rugged extruded aluminum chassis acts as a heat sink to dissipate internal heat and provide quiet noise free operation. A breakthrough in mini pc nuc i7 thanks to the rugged design, compact dimensions, and high functionality.
New Desktop Mini PC Intel Core i7 6567U Specifications:
Basic Information:
CPU
Intel Core i7-6567U
TDP
15W
BOIS
AMI BIOS, ACPI supported
Chipset
Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5904 - 7th Generation
Intel Processor Fami
Memory
1* SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB
DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333
OS

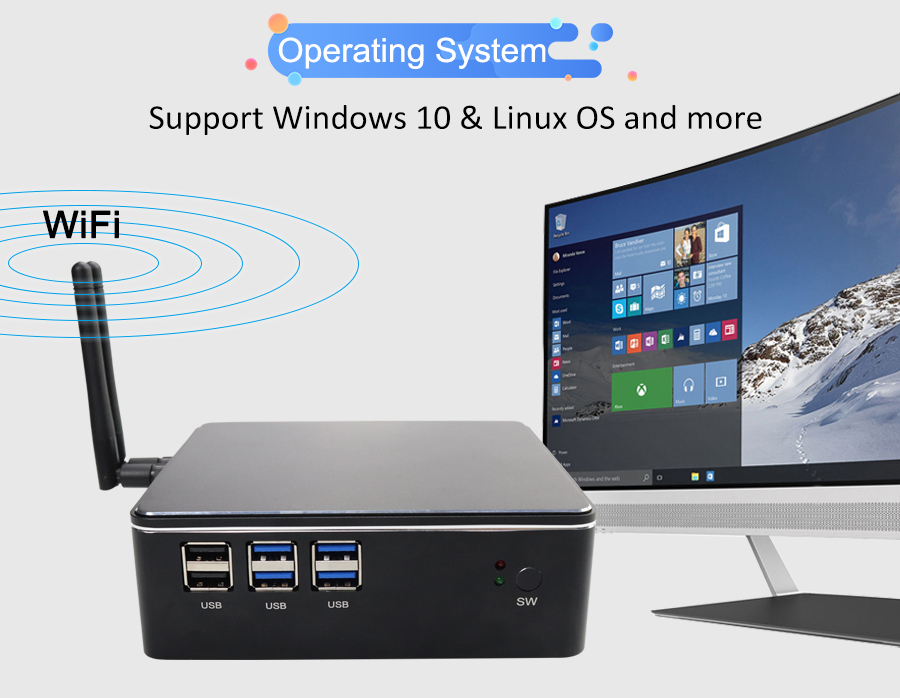

Windows 7/Windows 8/Windows 10/Linux
Audio
ALC662 sound chip, 6-channel, Intel Panther Point HDA
Network
RTL8168E PCI-E Gigabit Ethernet NIC
10/100/1000 BaseT LAN
PXE
Yes
Video
Refer to CPU
Input/output port
Switch
1 x Power On/Off Switch
Power
1 x DC In
LED
2 x LED
USB
2 x USB2.0, 4 x USB3.0
Display
1 x HDMI, 1 x VGA
LAN
1 x RJ45 Intel Giga LAN
Audio
1 x MIC, 1 x Audio
Others
1 x Kensington Lock
Storage
MSATA
2*M-SATA3.0 slot for MSATA SSD, support 6Gb/s,
SATA
1*SATA3.0 slot for SATA HDD or SSD, support 6Gb/s,
Wi-Fi
Module
1 x mini PCIE-half port for Wi-Fi & Bluetooth module
Antenna
2 x inner RF cables and 2 x external antennas,
Power and Working Environment
Input
DC100-240V AC/50-60Hz
Output
DC +12V~+19V, recommend 12V/5A
Operating Temperature
0/70 Centigrade(32F~140F)
Storage Temperature
-20/+85 Centigrade
Relative Humidity
10%~90% (non-condensing)
Product Dimension & Details
Size
130*130*40mm
Weight
Net 1.0kg, Gross 2.5kg
Shell
Black color aluminum alloy(any customized color for bulk order)

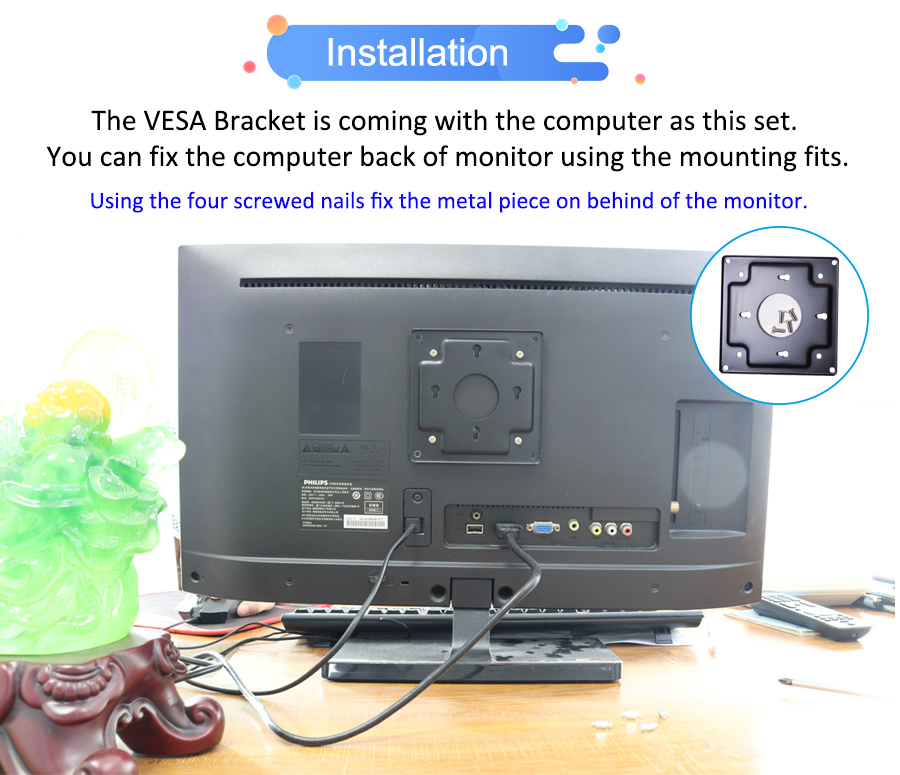

Mounting
4 Mounting holes on case
Cooling Mode
Fan
Function

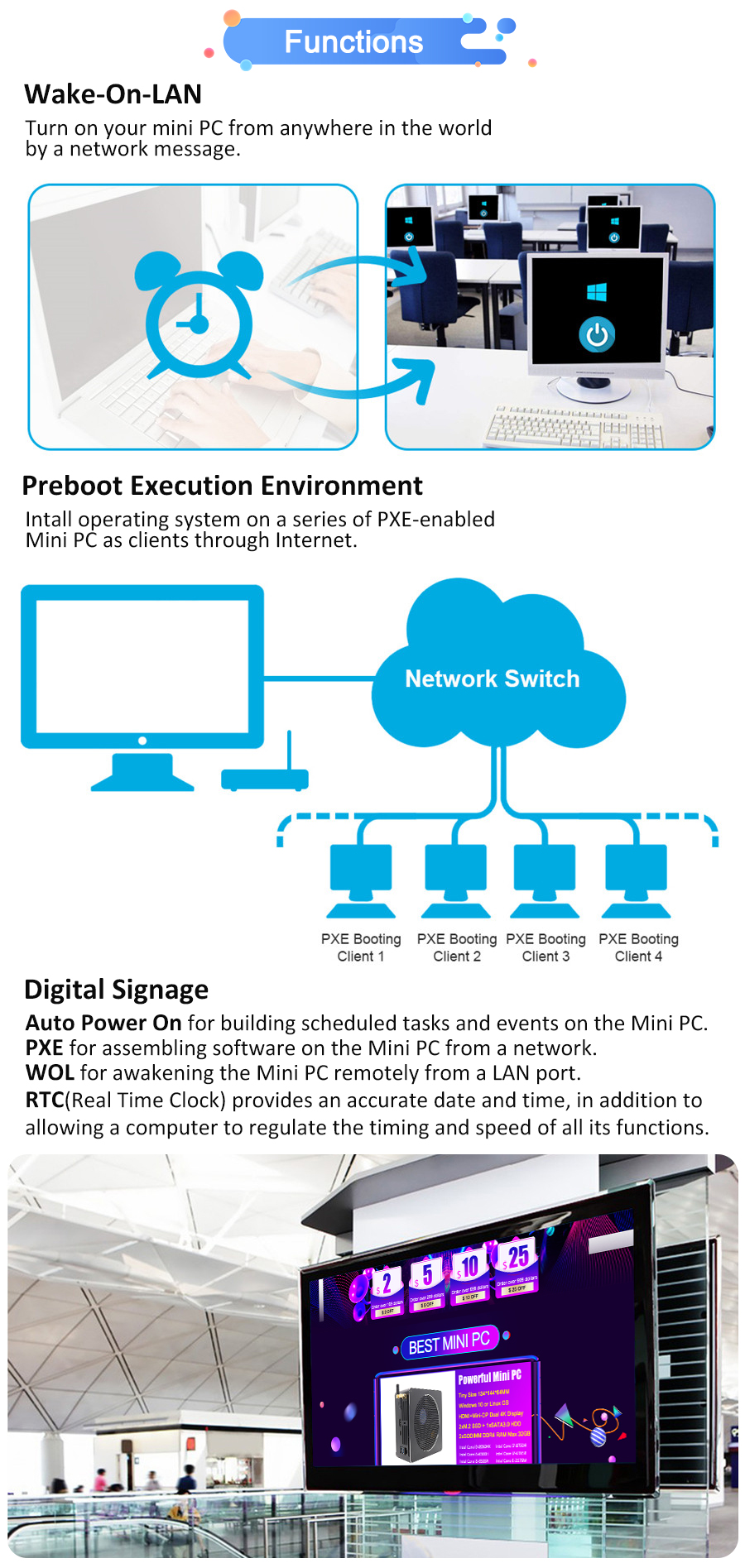

AWAL, WOL, RTC,

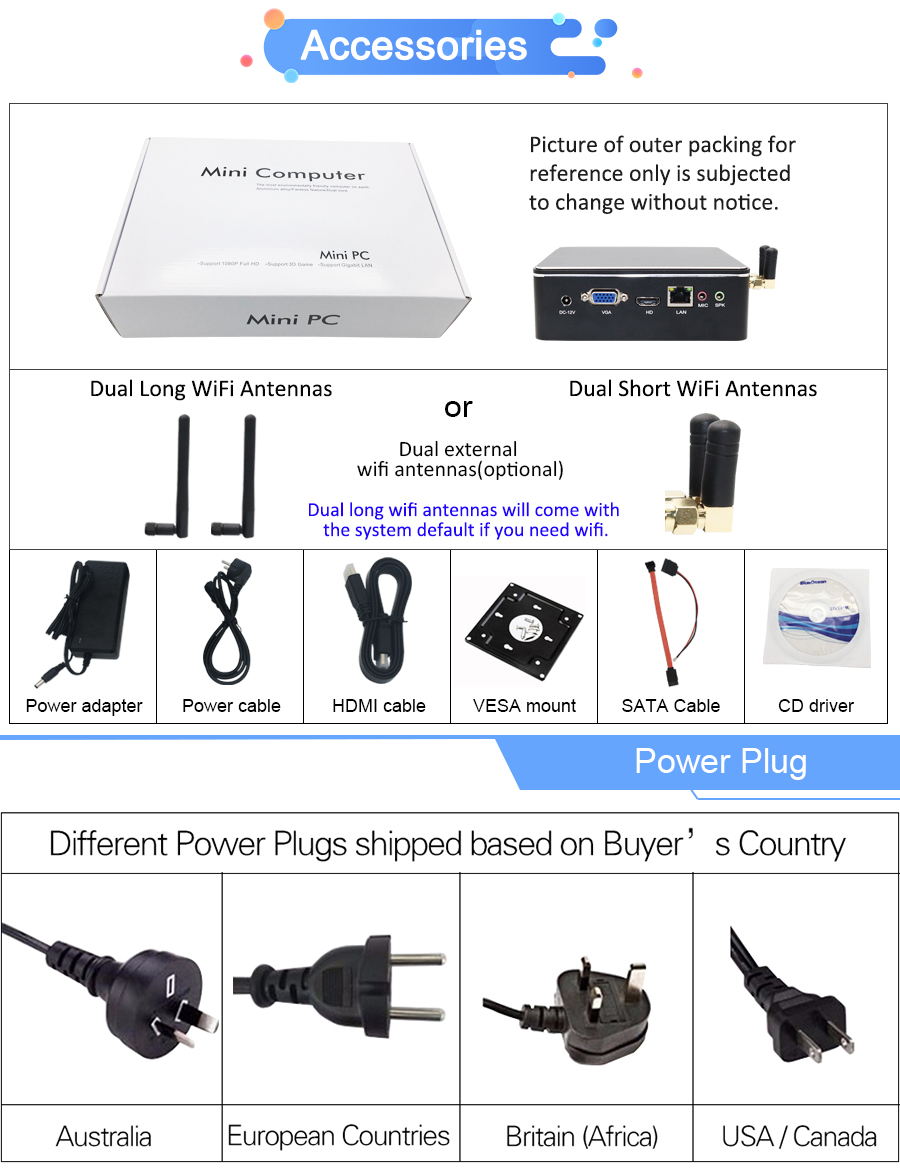

Package Content
Standard
1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag,
Optional
Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
If you are interested in the product, contact 2bvideo.com for more information for more information
