Fanless Mini PC low consumption TDP only 10W save much energy and eco-friendly. Can stand vertically by a metal bracket coming with the computer as default accessories. Fanless pc strong heat dissipation, cool touch. Built-in large-diameter cooling air, larger air volume, double cooling pipes, rear air outlet design. Quieter, removes heat faster, intel nuc fanless keeps the body at a normal temperature, refuse to get hot, keep cool for a long time, and enjoy a comfortable experience.

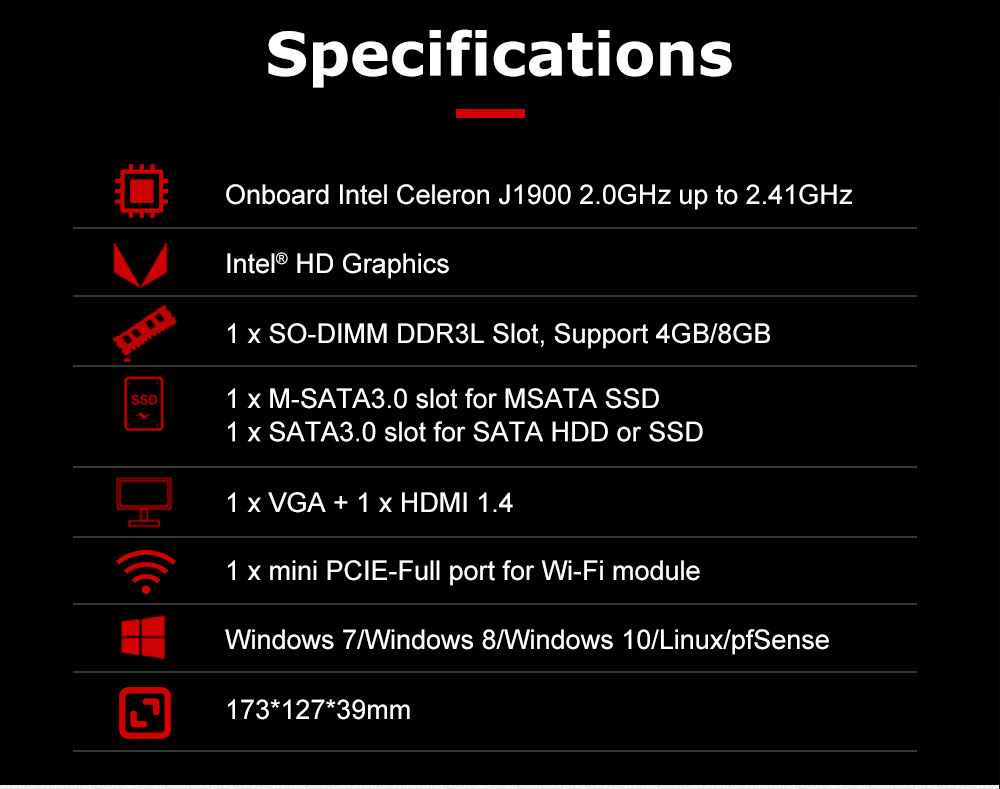

Basic Information:
CPU
Onboard
Intel Celeron J1900
TDP
10W

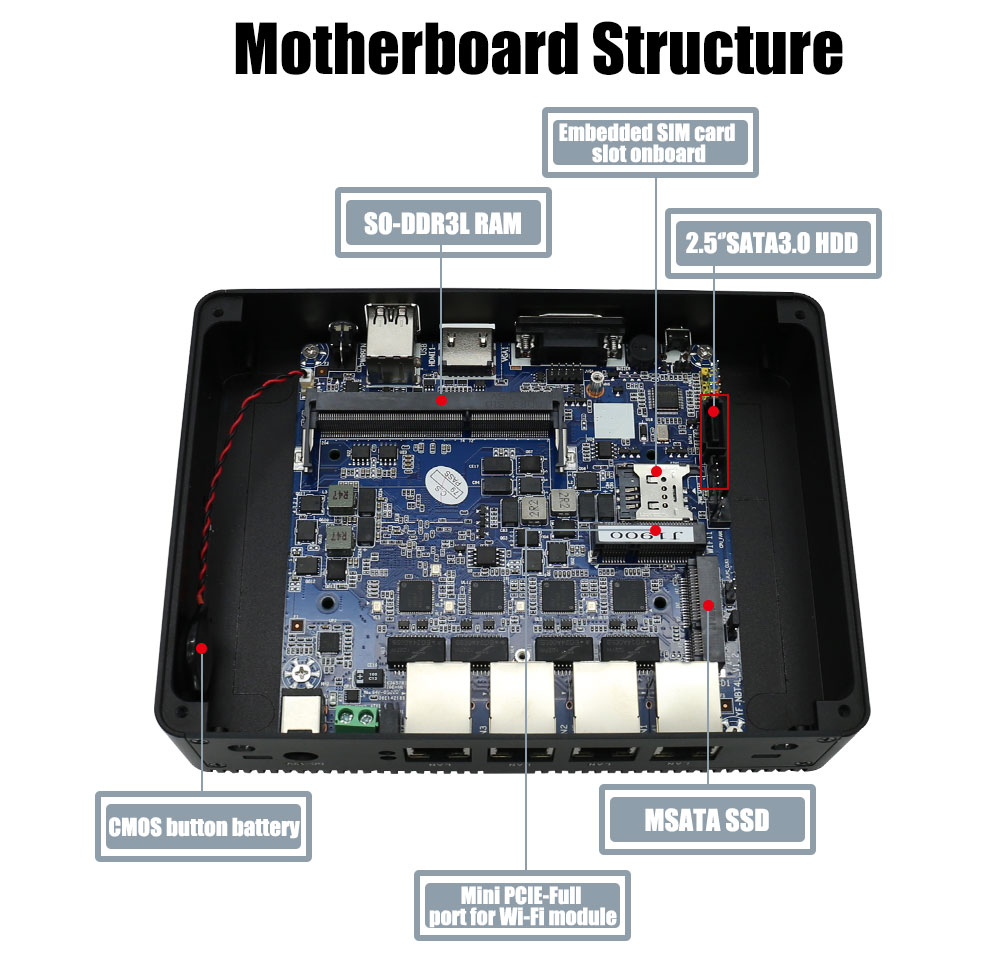

Motherboard
Size
120 x 120 mm
customized size
BOIS
AMI BIOS,
ACPI supported
Chipset
Intel
Bay Trail-M/D - Bay Trail
Memory
1 x SO-DIMM
DDR3L Slot
Support 2GB/4GB/8GB
DDR3L-1066/1333/1600
OS
Windows
7/Windows 8/Windows 10/Linux/pfSense
Network
4
x Onboard Intel I211 Gigabit Network Connection
Video
Intel® HD
Graphics

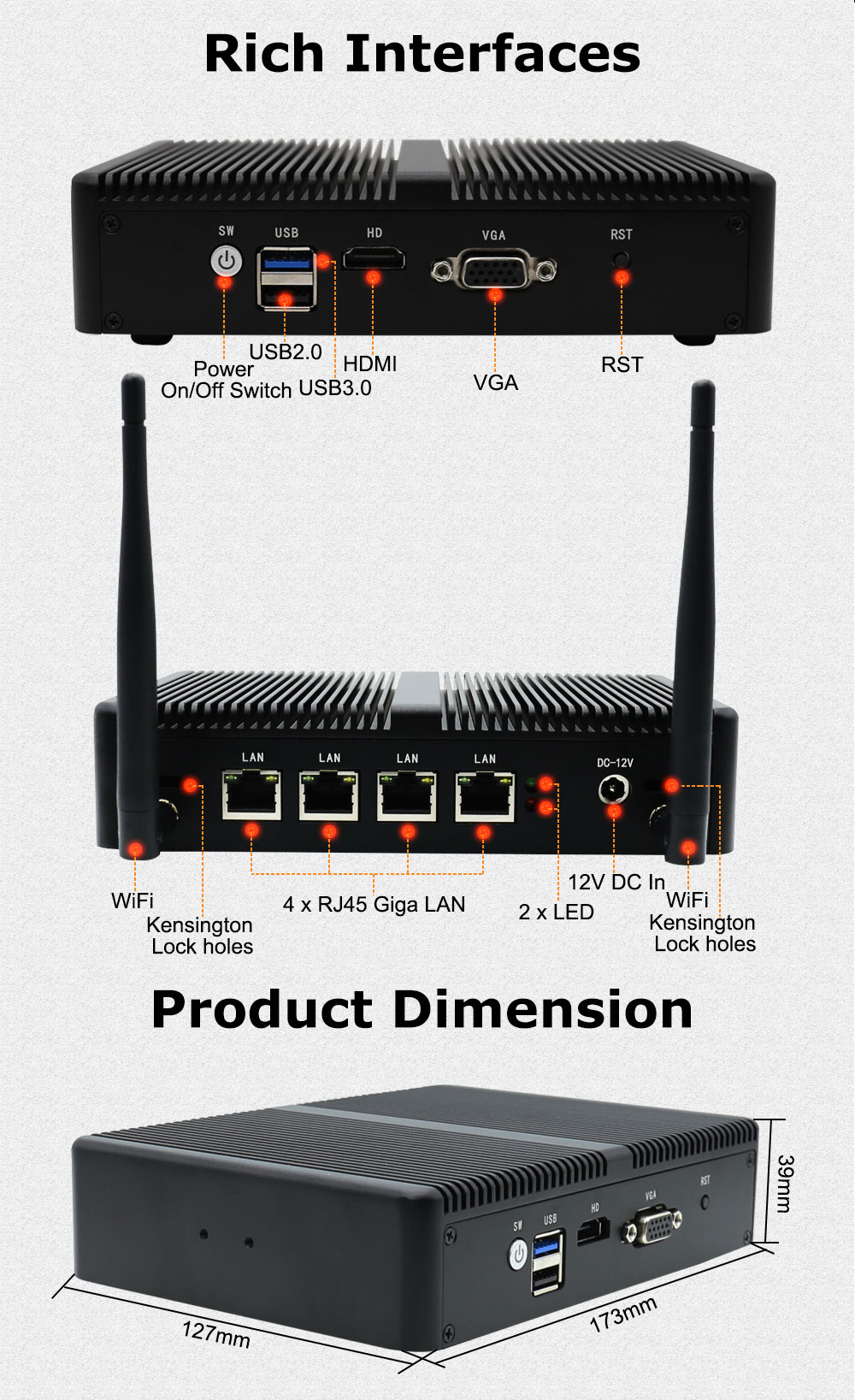

Input/output port
Switch
1 x Power
On/Off Switch
Power
1 x 12V DC
In
LED
2 x LED
USB
2 x USB2.0,
1 x USB3.0
Display
1 x VGA
COM
1 x RJ45
COM
LAN
4 x RJ45 Giga
LAN
Others
1
x embedded SIM Card slot(back of PCB)
1
x mini PCIE-full port for 3G/4G module(back of PCB)
Storage
MSATA
1 x M-SATA3.0
slot for MSATA SSD, support 6Gb/s
SATA
1 x SATA3.0
slot for SATA HDD or SSD, support 6Gb/s
Power and Working Environment
Input
DC100-240V
AC/50-60Hz
Output
DC +12V~+19V,
recommend 12V/5A
Operating
Temperature
0/+70
Centigrade
Storage
Temperature
-20/+85
Centigrade
Relative
Humidity
0%~90%
(non-condensing)
Product Dimension & Details
Size
173*127*39mm
Weight
Net 0.8kg, Gross
1.2kg
Shell
Black color
aluminum alloy(any customized color for bulk order)
Cooling
Mode
Fanless
Functions
Auto power
on, Wake-On-LAN, PXE, RTC

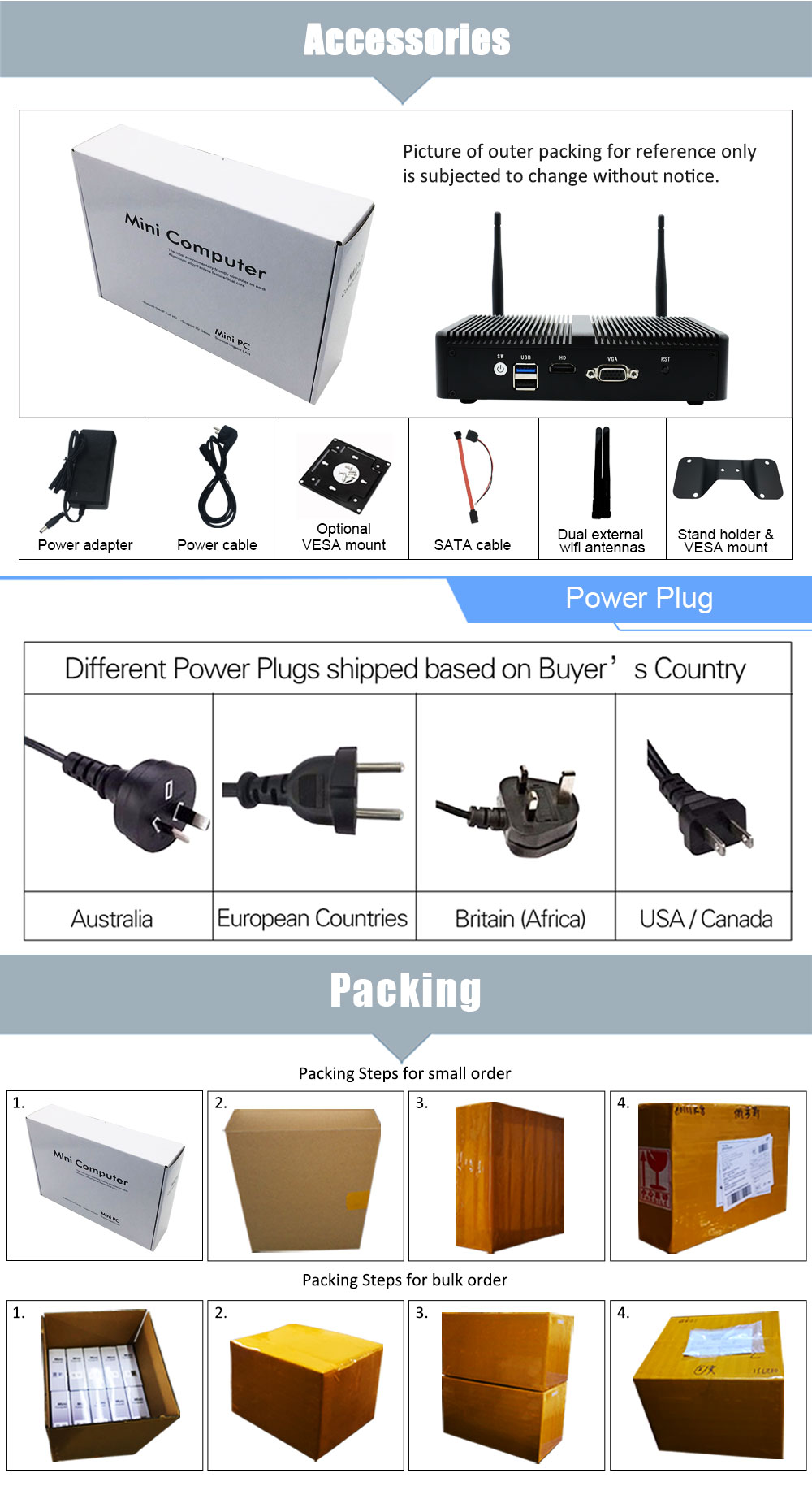

Package Content
Standard
1xMini PC, 1xPower Adapter,
1xPower Cord, 1xScrews Bag, 1xBracket
Optional
1xUser Manual, 1xVESA
mount
Product Highlight

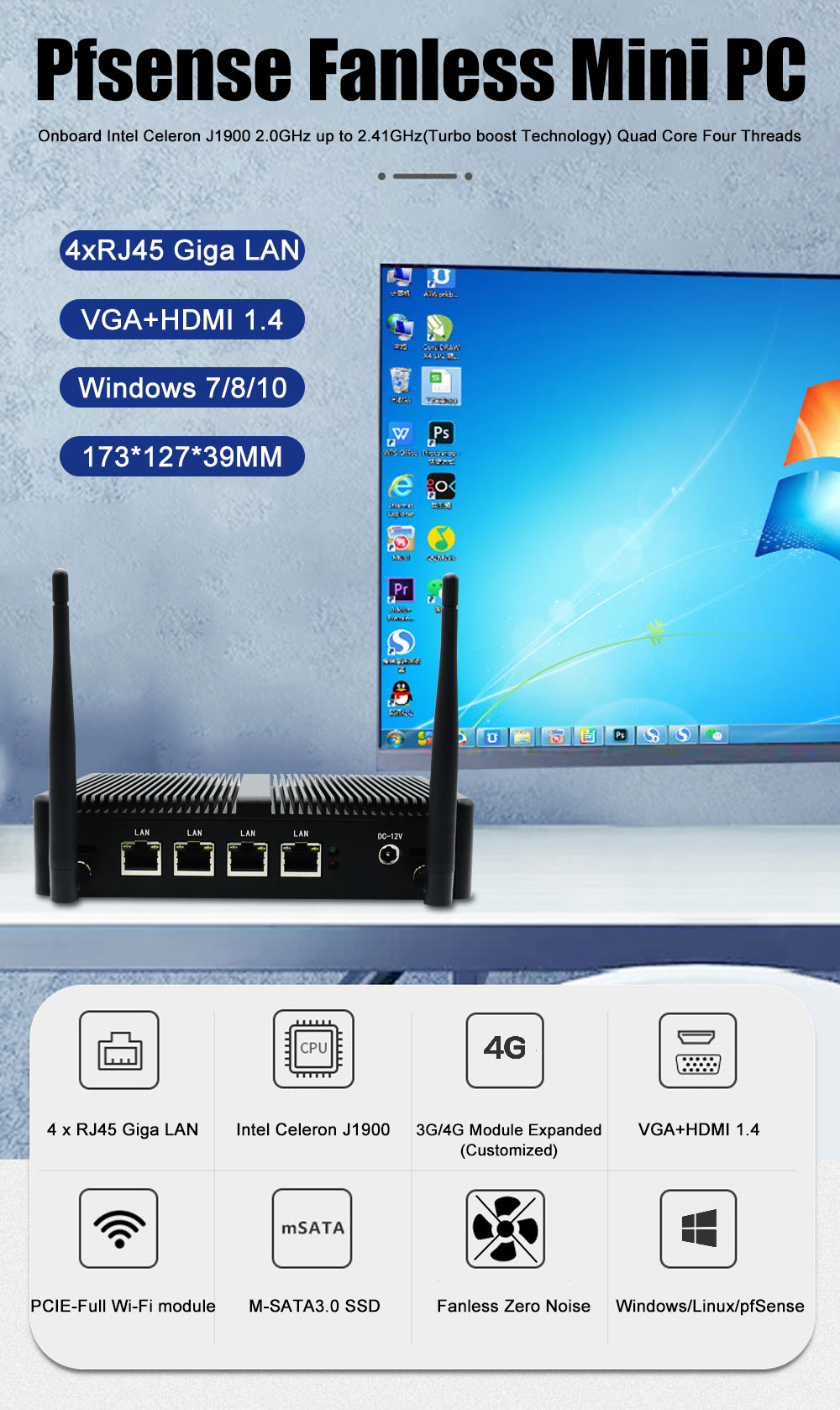

- 4 x Intel I211 gigabit LANs, support Windows 7/8/10, Linux and pfSense OS.
- Applied in Firewall, Network Server, Network Security, VPN Router etc.
- Full Aluminum Alloy Black color shell, Exquisite production craft on outside design with high quality, slim design 173*127*39MM.
- Fanless system without cooling fan, no any noise, work as long as 24 hours.
- Low consumption TDP only 10W save much energy and eco-friendly.

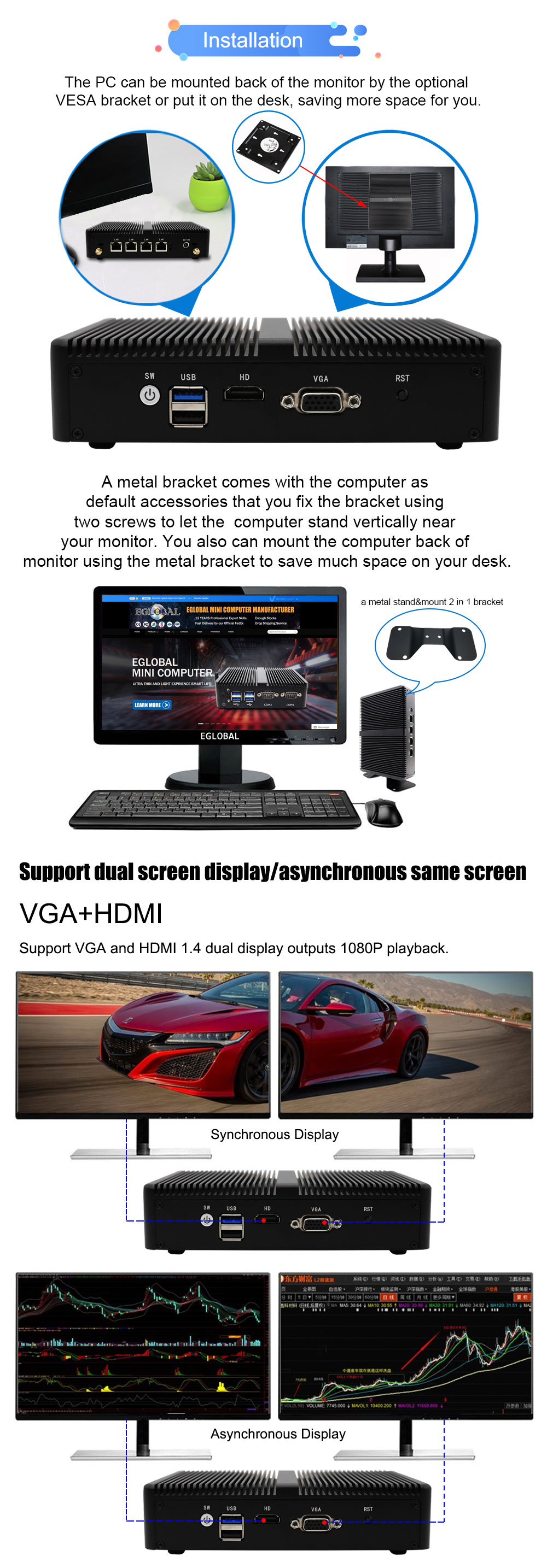

- Can stand vertically by a metal bracket coming with the computer as default accessories.
- Can be mounted back of monitor or wall by optional VESA mount.
Model: M3-J1900L4
CPU: Onboard Intel Celeron J1900 2.0GHz up to 2.41GHz(Turbo boost Technology) Quad Core Four Threads
If you are interested in the product, contact 2bvideo.com for more information for more information
