5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

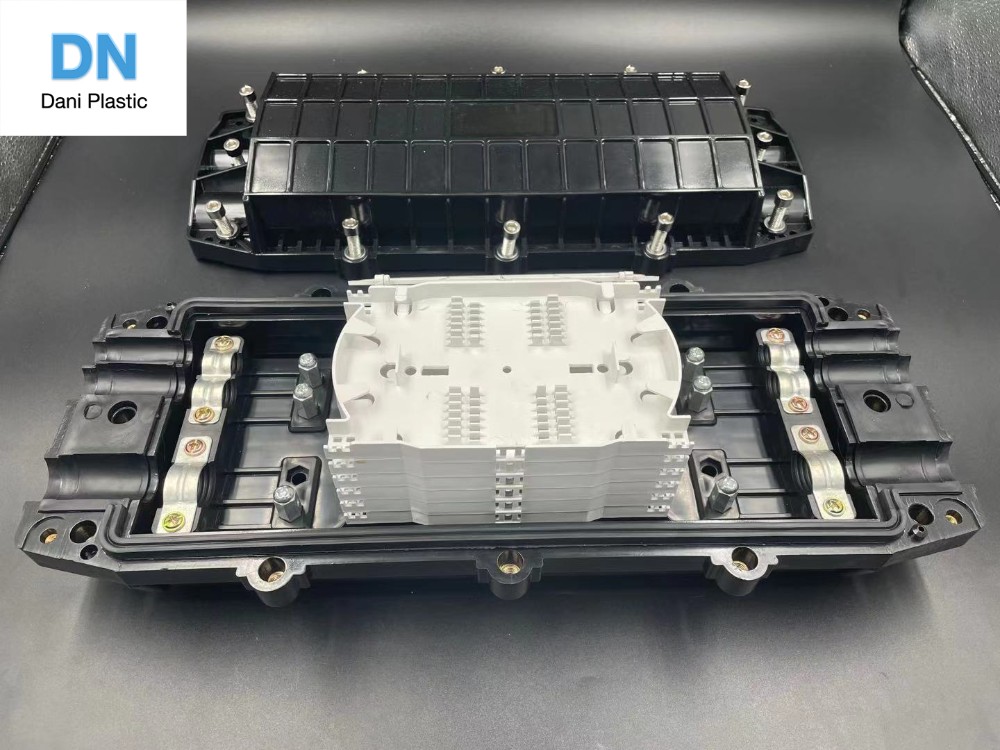

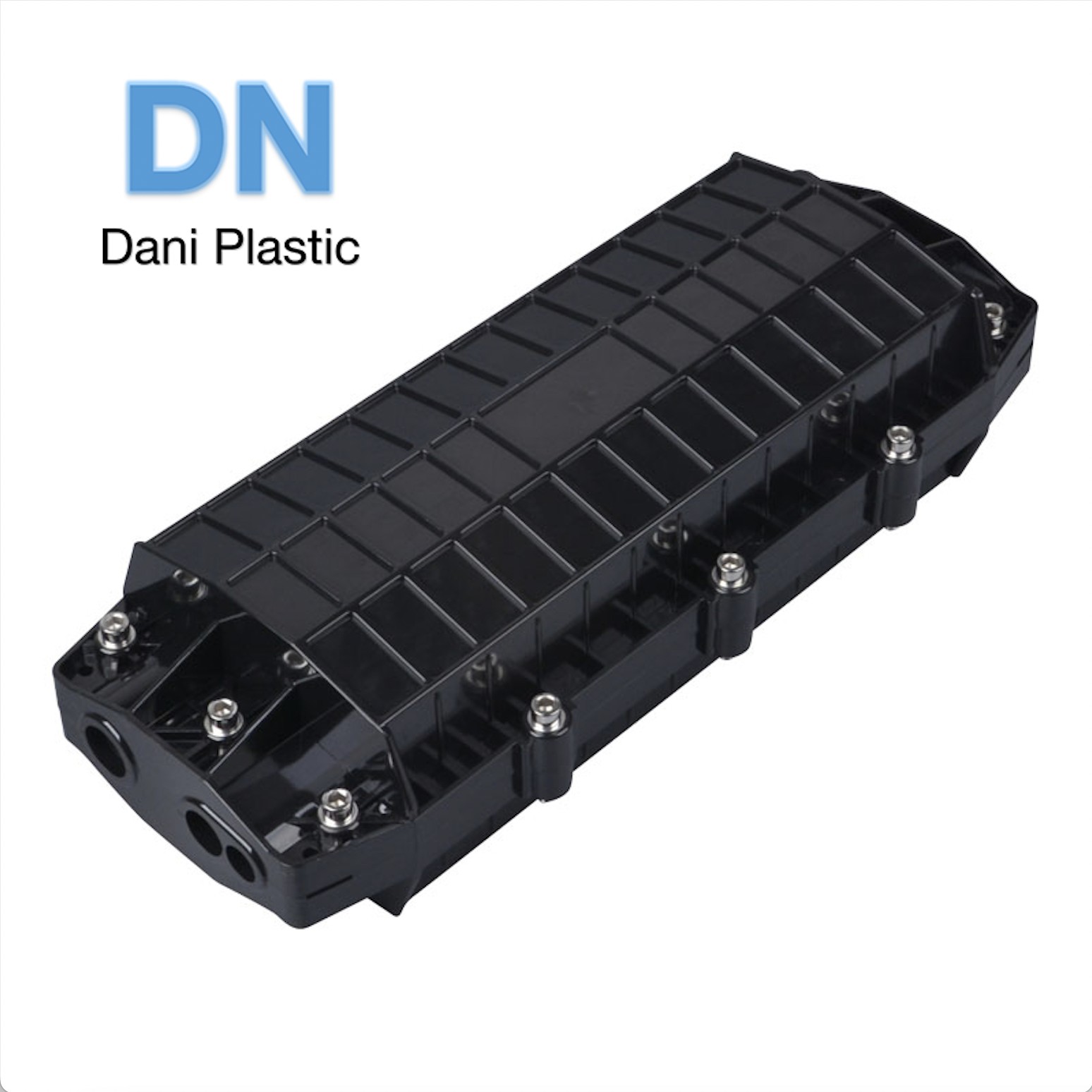

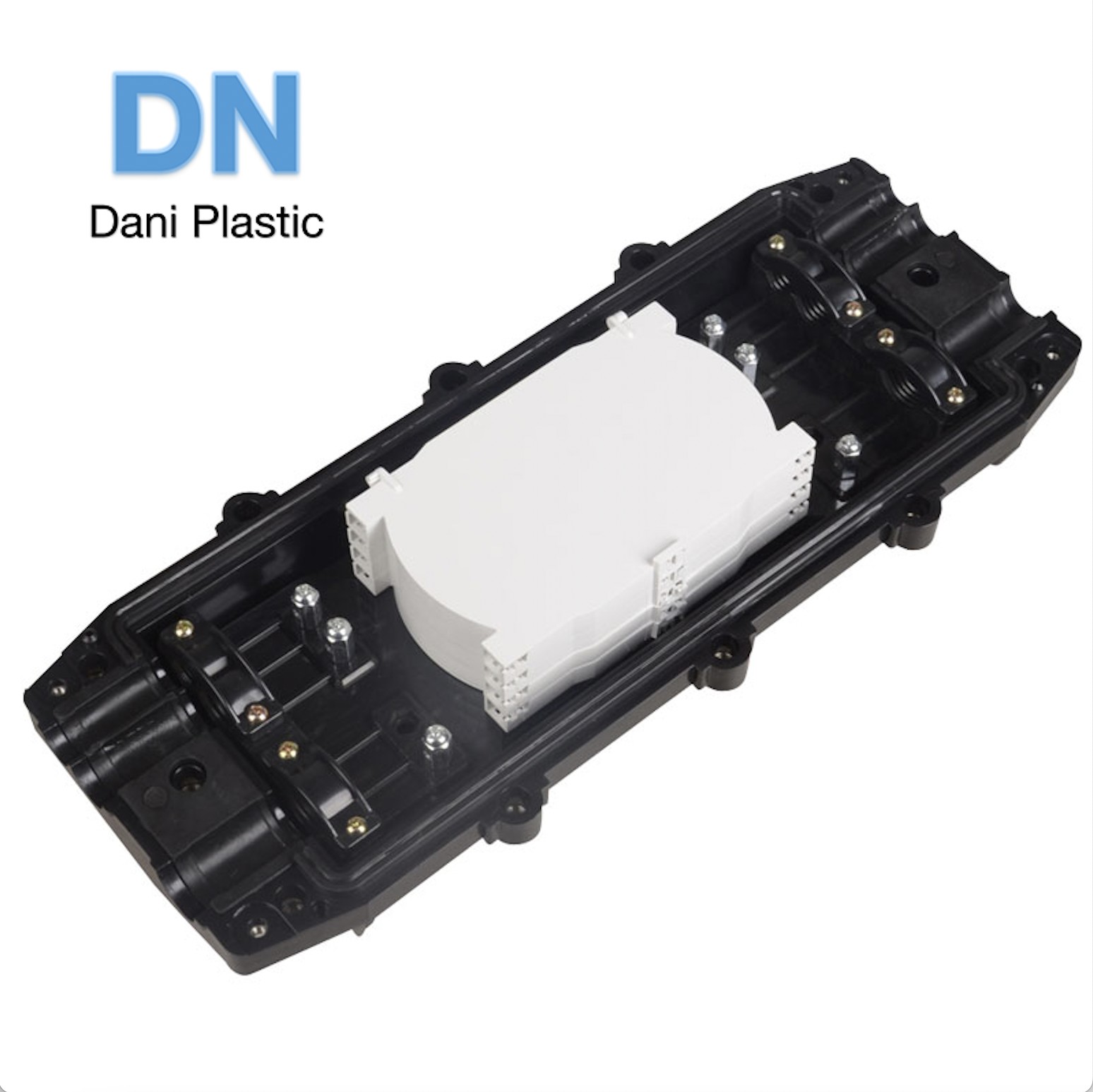

96/144C Fiber Optic Splice Closure
| 96/144C Fiber Optic Splice Closure | |||
| Item No | Description | ||

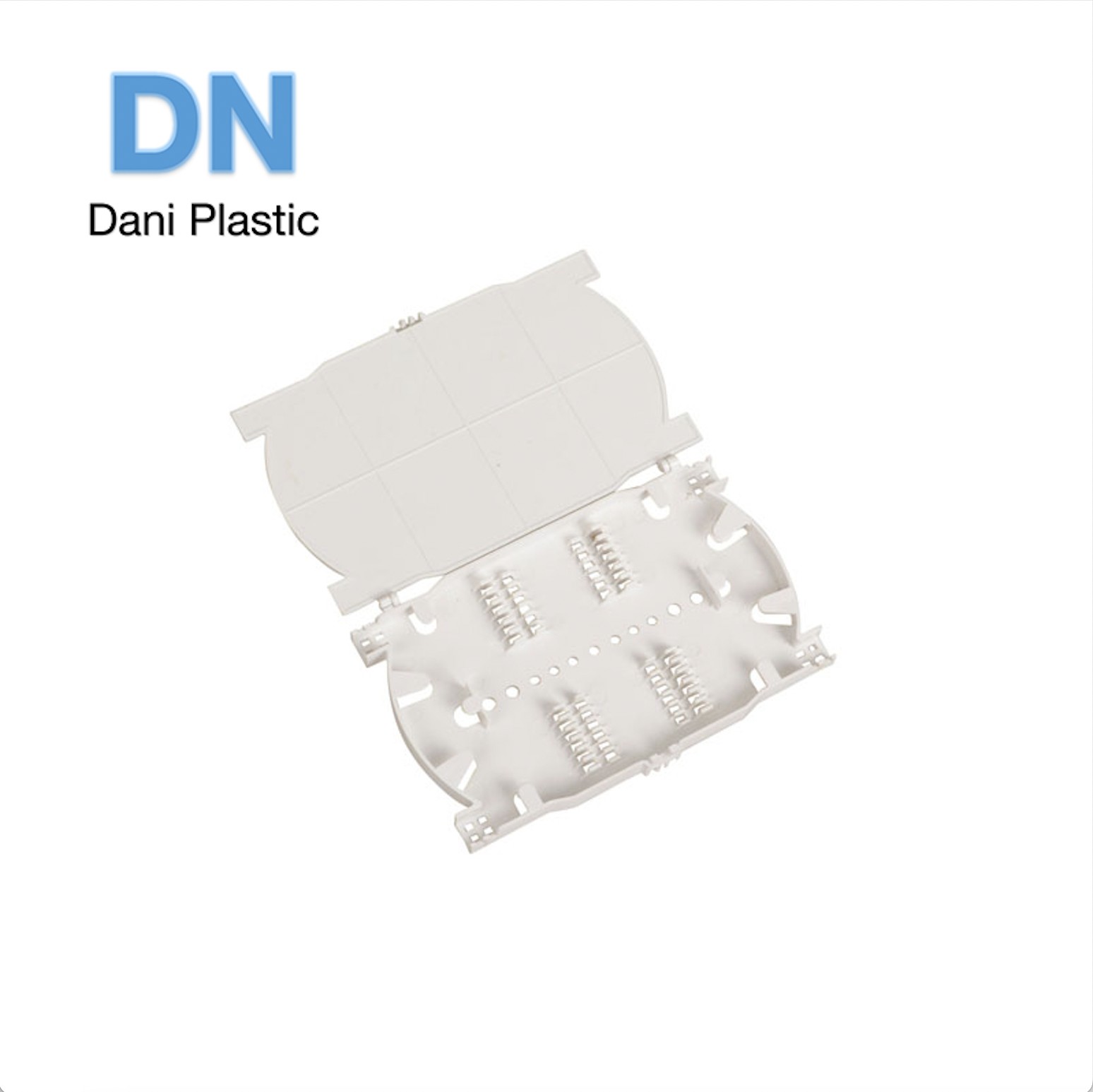

| DN-F014-96C | With 4PCS 24C Splicing Tray | ||
| DN-F014-144C | With 6PCS 24C Splicing Tray | ||
| Environmental Requirement | Main Tchnical Data | ||
| Working Temperature | -40℃~+75℃ | Insertion Loss | ≤0.2dB |
| Relative Humidity | ≤85℃(+30℃) | UPC Return Loss | ≥50dB |
| Atmospheric Pressure | 70KPa~106KPa | APC Return Loss | ≥60dB |
| Product Parameter | |||
| Size（mm） | 430mm*️190mm*140mm | ||
| Material | PC/PP/ABS | ||

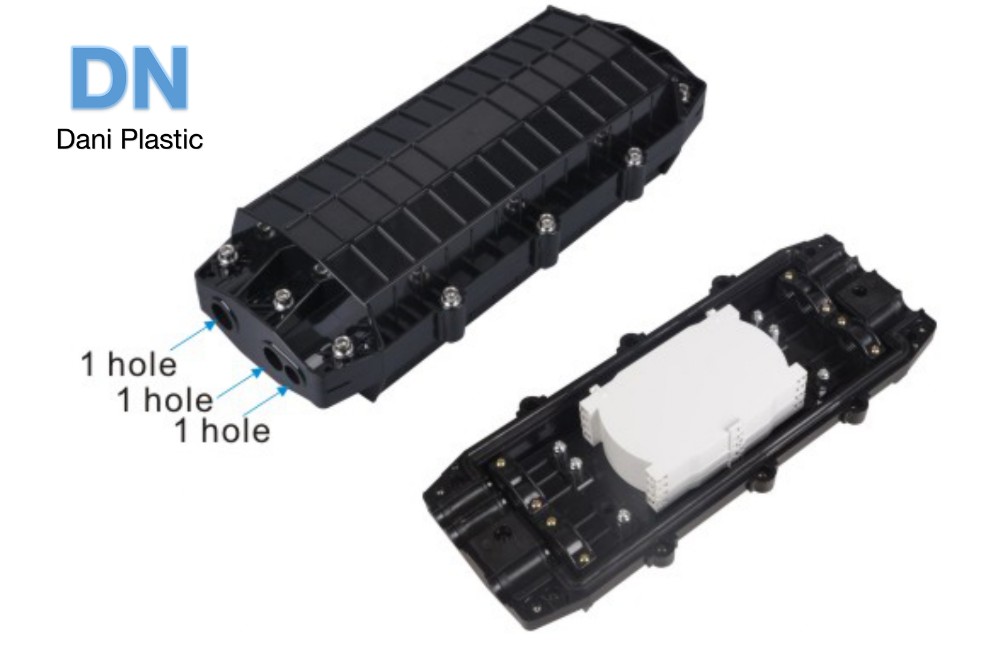

| Ports | 3 inlet 3 outlet | ||
| Capacity | 24--144 | ||
| Waterroof | IP65 | ||
| Unit Weight（KG） | 2.45KG | ||
| Packing Quantity | 10 | ||
| Carton Size（cm） | 45*42*72 | ||
| Rough Weight（KG） | 28KG | ||
| Volume(m³) | 0.136m³ | ||
Product Details
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:
Fiber Optic Splice Closure,
Fiber Optic Distribution Box ,
Fiber Optic Termination Box,
Fiber Optic Cabinet,
Cable Manger,
Fiber Optic Patch Panel
