5). The splice closure has a wide application range, with good sealing performance, easy installation, produced with high strength engineering plastic housing, with anti-aging, corrosion resistance, high temperature and high mechanical strength and so on.

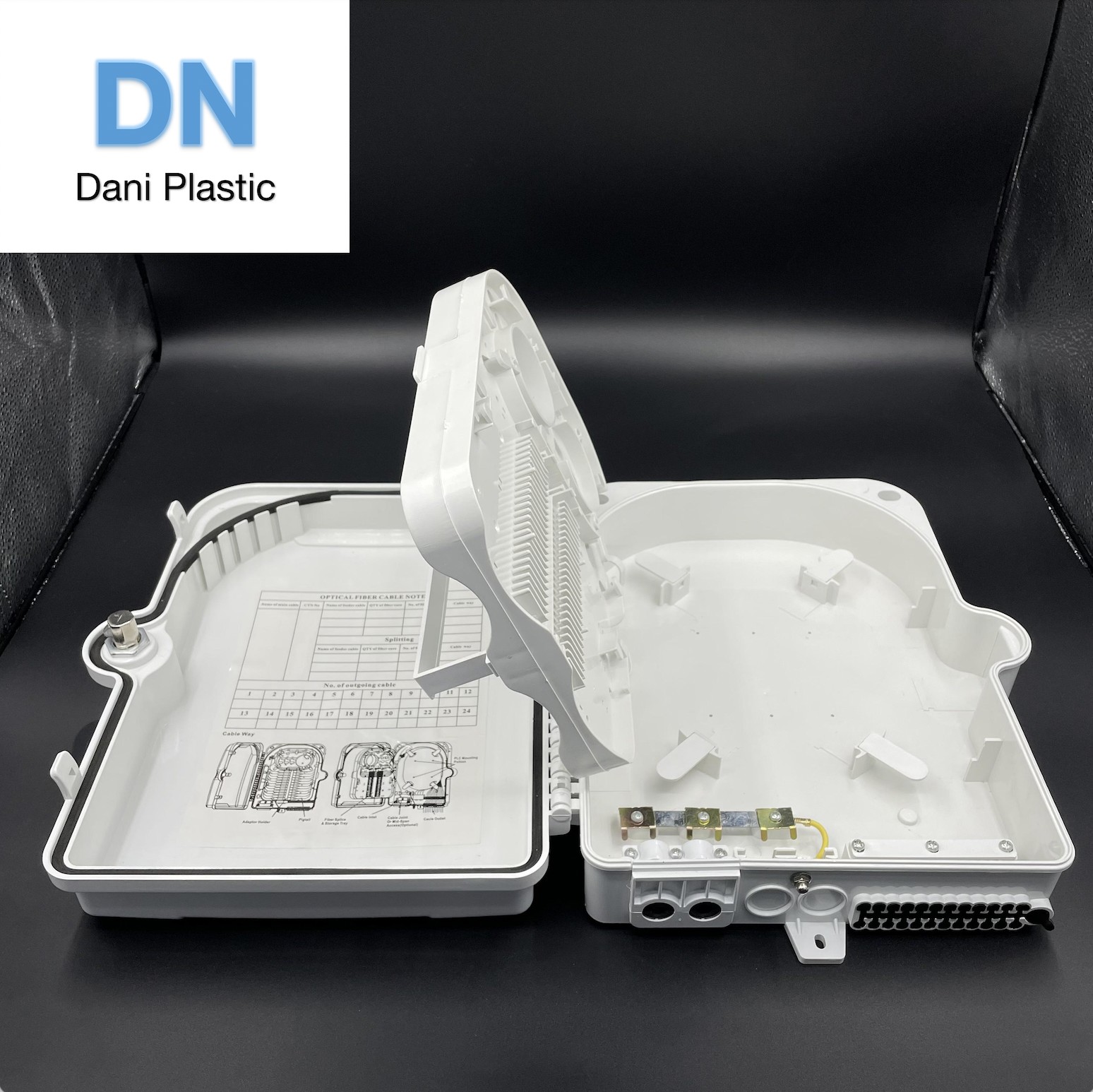

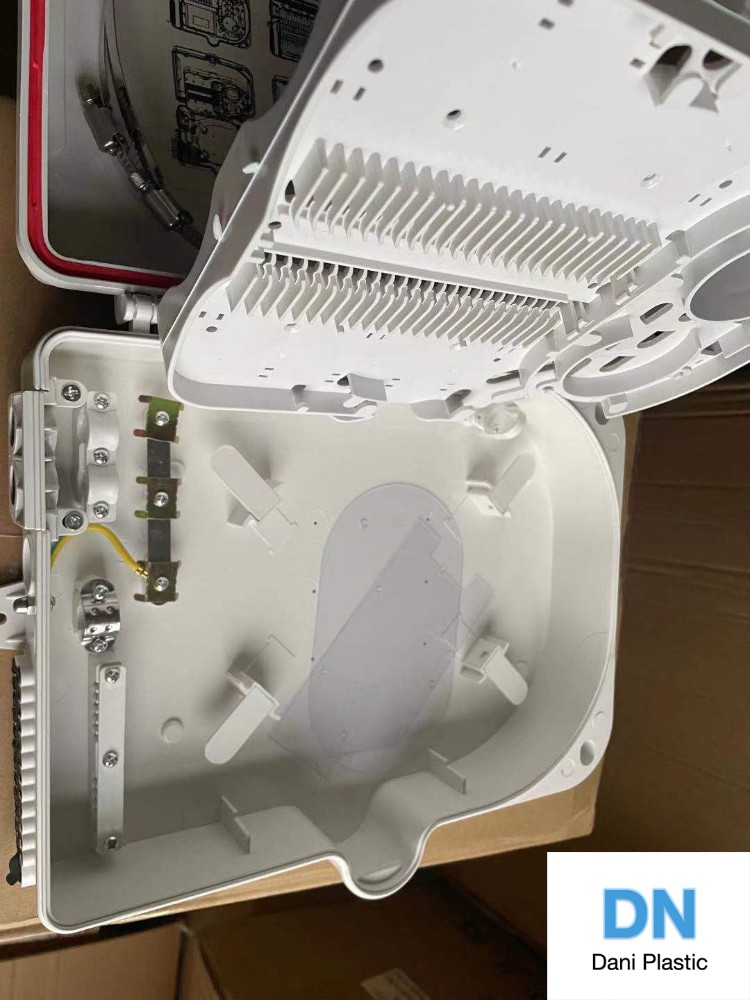

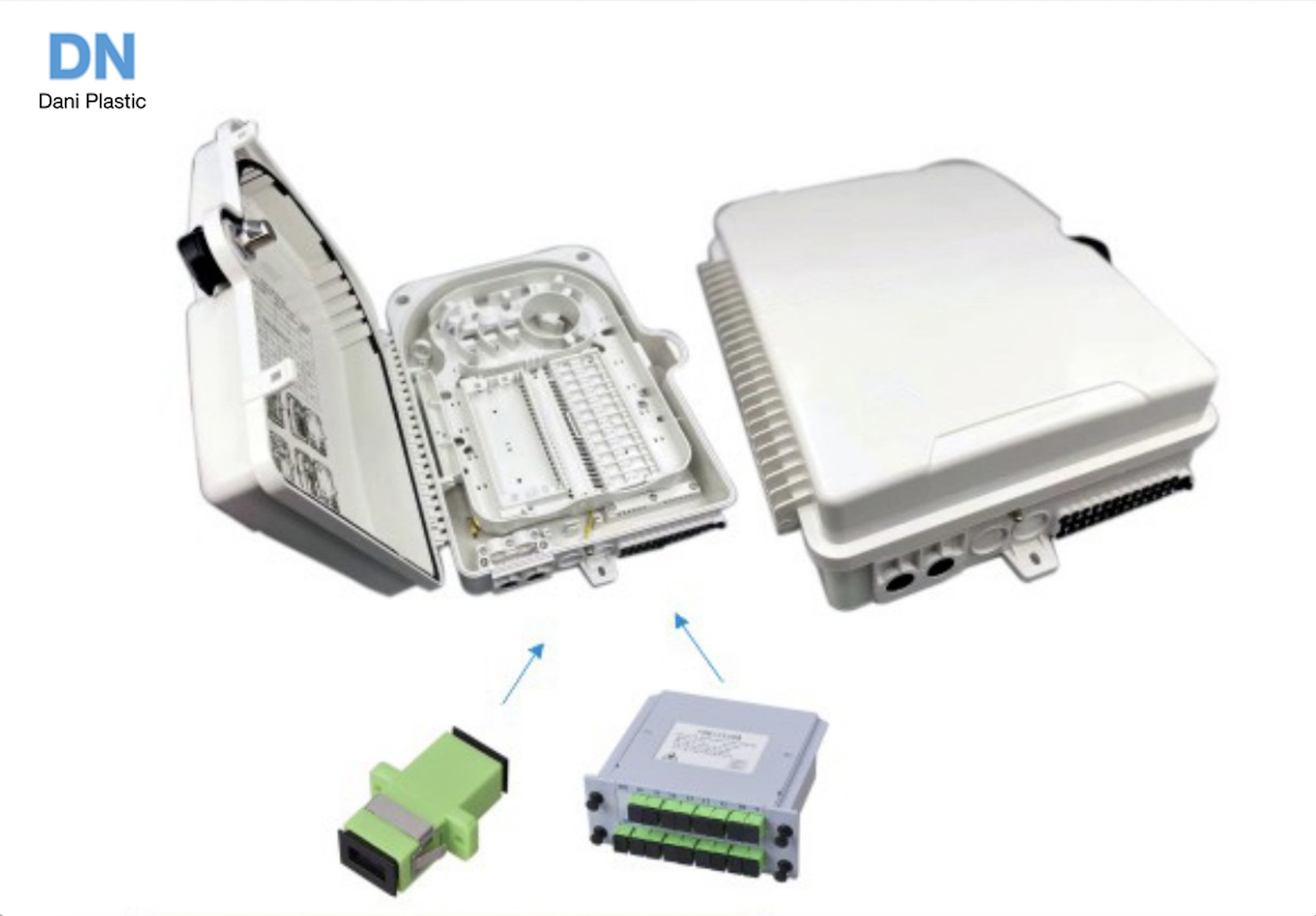

24 Cores Outdoor FTTH Box
| 24 Cores Outdoor FTTH Box | |||
| Item No | Description | ||
| DN-F212-SC | With 24PCS SC Simplex Adaptor | ||
| DN-F212-PLC | With 2PCS 1*8PLC Or 1PCS 1*16PLC | ||
| Environmental Requirement | Main Tchnical Data | ||
| Working Temperature | -40℃~+75℃ | Insertion Loss | ≤0.2dB |
| Relative Humidity | ≤85℃(+30℃) | UPC Return Loss | ≥50dB |
| Atmospheric Pressure | 70KPa~106KPa | APC Return Loss | ≥60dB |
| Product Parameter | |||
| Size（mm） | 300mm*️275mm*100mm | ||
| Material | ABS | ||
| Capacity | 24 | ||
| Colour | White，Black or Grey | ||
| For Both Cable Gland and Rubber Input | |||
| Waterroof | IP65 | ||
| Unit Weight（KG） | 1.15KG | ||
| Packing Quantity | 10 | ||
| Carton Size（cm） | 60*33*57 | ||
| Rough Weight（KG） | 16.5KG | ||
| Volume(m³) | 0.121m³ | ||
Product Details
