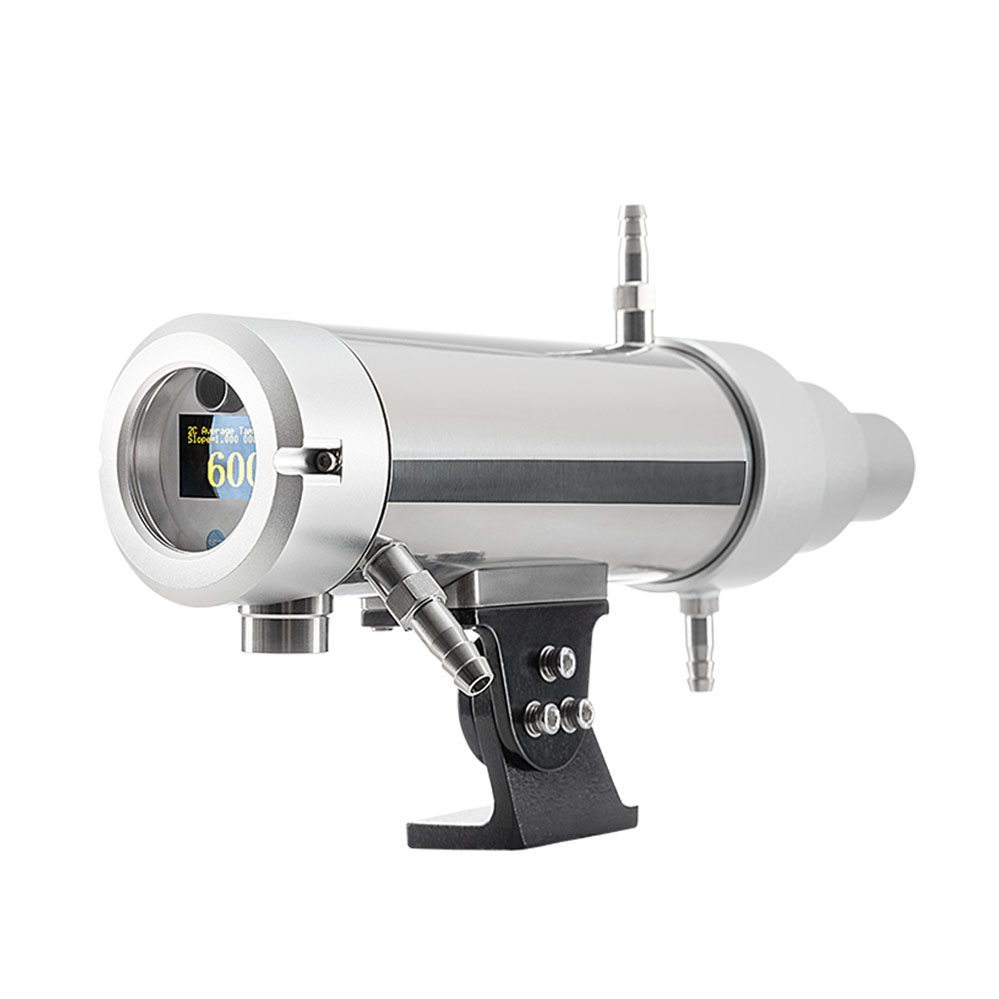

This is a high-precision two-color ratio fixed IR pyrometer equipped with solid cover, stainless steel movement, equipped with stainless steel protection sleeve, IP65 protection grade, a built-in constant temperature heater and whole-process temperature compensation function allow this industrial pyrometer more applicable to accurate temperature measurement in various industrial occasions. This series accuracy pyrometer have the function of switching between one-color and two-color modes and is rarely affected by emissivity of the measured object, and displayed temperature is basically unchanged even if the target signal decays 95%. This 2-color pyrometer use adjustable focus lens, with high-brightness green LED light source or visual eyepiece aiming, and clearly display the position and size of the measured target. This series infrared thermometer use industrial-grade OLED screen as the display interface, which is user-friendly.
Measuring range：450℃～2500℃
Detector：InGaAs/InGaAs（Laminated Indium Gallium Arsenic）
Distance coefficients：200：1
Measuring Distance：Standard Focus length：0.35m adjustable to infinity，Near focus distance：0.2m～0.5m
Accuracy：±0.5%T℃（T is measured temperature）
Resolution：0.1℃
Repeat Accuracy：±2℃
Response time：Fasted 5ms, adjustable in 5ms-99.99s
Wavelength1：（0.9～1.7）μm
Wavelength 2：1.7μm
High accuracy, highly stable Two color Infrared Pyrometer, applied to metallurgical industry（rod and wire mills, Hot rolling mills）, foundry, cement kiln, induction heating, heat treatment, heating furnace, vacuum furnace, monocrystalline silicon, polysilicon, semiconductor and other industrial temperature measurement.
Standard：0.35m adjustable to infinity，
Near focus distance：0.2m～0.5m
Model
STRONG-GR-4525
Measuring Range
450℃～2500℃
Detector
InGaAs/InGaAs（Laminated Indium Gallium Arsenic）
One-color mode Wavelength
1.7μm
Two-color mode Wavelength
Applications
Distance coefficients
200：1
Focal length
Accuracy
±0.5%T℃（T is measured temperature）
Resolution
0.1℃
Repeat Accuracy
±2℃
One-color mode: Calibration coefficient
0.100～1.000, Adjustable in 0.001 increments
Two-color mode: Calibration coefficient
0.850～1.150, Adjustable in 0.001 increments
Response time
Fasted: 5ms，adjustable in 5ms-99.99s
Display mode
Industrial-grade self-luminous OLED display screen
Aiming method
Visual green spot (default) or eyepiece aiming, alternative
IP Rating
IP65
