Product introduction

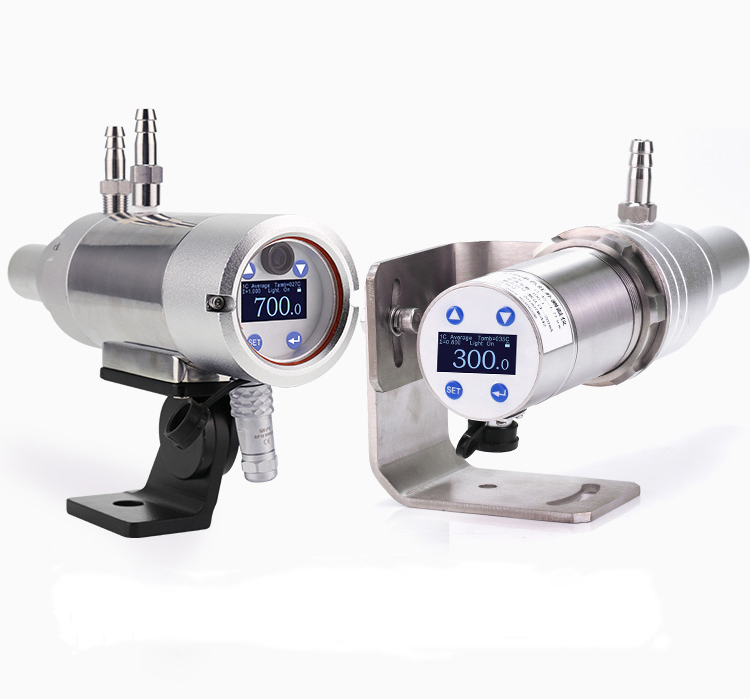

MARS series one color pyrometer or temperature detector is a measuring instrument specially used in high temperature industry, which has a high-performance, intelligent, one color infrared pyrometer with compact structure and powerful functions. 304 stainless steel movement (movement diameter is only 50mm), optional with purge and cooling function of 304 stainless steel protective water jacket makes it very strong.

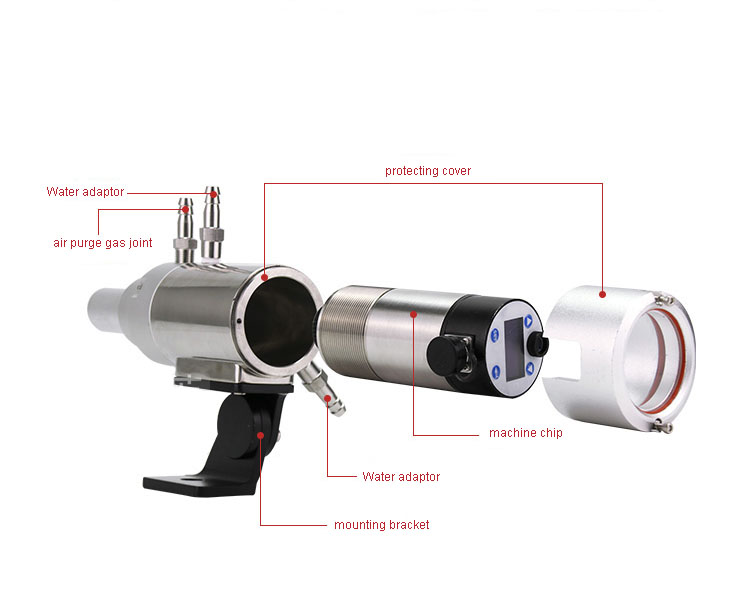

Main Components:Steel movement, water jacket,OLED display,protecting cover, water adapter, air purge gas joint, water adaptor,mounting bracket.
It can be widely used in forging industry, steel mill heat treatment, induction heating, vacuum furnace, high temperature furnace, monocrystalline silicon, polycrystalline silicon and other industrial temperature measurement.
Features of Mars series Infrared pyrometer
Temperature range covering 200℃～3000℃.
Temperature measurement accuracy up to 0.5%.
Repeat accuracy 2℃，Resolution 0.1℃.
Response time 5ms～99.99s adjustable.
Manual adjustable focus lens,Standard focus distance
0.35m to infinity.
Near focus distance 0.2m～0.5m adjustable.
Detector with PID constant temperature control, with full-range
Temperature compensation, avoiding ambient temperature on
measuring accuracy.

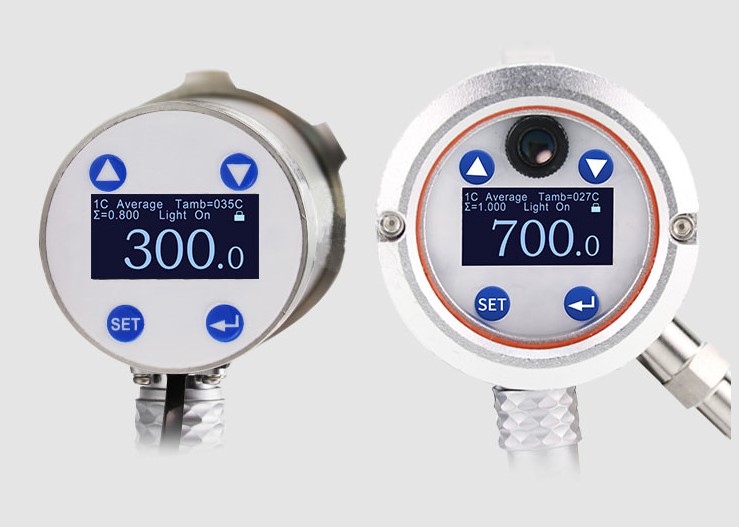

Use industrial OLED screen as display interface.
with friendly man-machine interface.
Rich external interface: programmable 4 kinds of analog output options,
1 channel alarm output, 1 channel level output and 1 channel RS485
communication interface.
Special design narrow band infrared color filter, to minimize detector’s emissivity variation.
The design of hardware and software watchdog and hardware EMI filtering can improve the system stability.
Risistance to 2500VDC pulse group interference.
Support thermometer bus cascade up to 26 sets, Via PC realize networked control.
Principle of One Color Infrared Pyrometer
At present, one color pyrometers on the market are mostly narrow-band pyrometers.The principle of temperature measurement is to determine the temperature of an object by the amount of radiation energy occurring within a narrow wavelength range.with measuring an average temperature in an area, values is affected by emissivity, lens contamination and background radiation.
The amount of radiant energy emitted by an object is related to its emissivity. The higher the emissivity, the more infrared energy the object emits.The emissivity of an object is related to the state of the object surface. The surface roughness, the degree of brightness and darkness, and different materials all affect the emissivity. Therefore, when using a monochromatic pyrometer, there is often a table of emissivity of different materials.
250 ~ 3000°C InGaAs detector characteristic curve, signal dynamic range 2.1 million times
Changes in emissivity, lens contamination, and the effects of background radiation are
related to the choice of wavelength. Choose special wavelength range can enable the one color pyrometer overcome the interference of transmission medium as much as possible. Such as the influence of water vapor, various gases and other substances.Choose short wavelength can minimize the influence of emissivity.

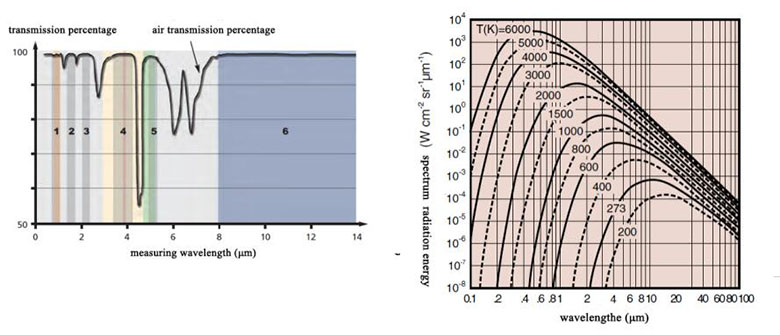

Different types of detector selected under different atmospheric
Window1
Si
Window2
Ge, InGaAs
Window3
PbS,ExInGaAs
Window4
PbSe,Thermopile
Window5
Thermopile
Window6
Technical Parameters
Nonferrous metal processing、
Multiple annalog output 16bit （4mA～20mA，0mA～20mA，0V～5V，0V～10V option）Resolution 0.1℃，Current loop output maximum load 600Ω, Voltage output allowed current 10mA
Alarm output：Upper limit、Lower limit alarm，with photocouple relay has unlimited service life，On resistance≤1Ω，maximum allowed voltage: AC42V or DC60V，Maximum allowed current:100mA，Response time: 2ms.
RS485 output，capable parameter modification, data recording and query function
Model
MARS-EXG-2012
Measuring Range
200℃～1200℃
Detector
InGaAs（Extended Indium gallium arsenic）
Wavelength
(1.45～2.1) μm
Applications
Induction heating、coating
Distance coefficients
100：1
Accuracy
±0.5%T℃（T is measured temperature）
Resolution
0.1℃
Repeat Accuracy
±2℃
One-color coefficient
0.100～1.000, Adjustable in 0.001 increments
Response time
Fasted: 5ms，adjustable in 5ms-99.99s
Output
Display mode
Industrial-grade self-luminous OLED display screen (default) or visual eyepiece aiming
Aiming method
Built-in visible high brightness green light or eyepiece aiming
IP Rating
IP65
Applications
The measured object has a large measuring area (fully capable of filling the target field of view), a flat surface (without bending), a measuring direction less than 30 degrees, a stable physical and chemical state on the surface of the measured object (not in the process of oxidation, gasification or liquefaction), less dust in the optical channel, and no obstruction or attenuation.
Technical Parameter of MARS-G series
Model
MARS
-G-2511
MARS
-G-3014
MARS
-G-3520
MARS
-G-3525
MARS
-EXG-2012
Measuring range（℃）
250～1100
300～1400
350～2000
350～2500
200～1200
Detector
InGaAs(Indium gallium arsenic)
InGaAs（Extended Indium gallium arsenic）
Working wavelength
（1.45～1.7）μm
（1.45～2.1）um
Mostly application
Heat treatment、Galvanized wire、Nonferrous metal processing、annealing furnace
Induction heating、heat treatment、monocrystalline、
polycrystalline、vacuum furnace、high temperature furnace
Nonferrous metal processing、
Induction heating、coating
Distance coefficient
60：1
100：1
200：1
100：1
Measuring coefficient
Standard focus distance0.35m to infinity adjustable，near focus distance 0.15m to 0.5m adjustable
Measuring accuracy
±0.5%T℃（T as temperature measuring value）
Temperature resolution
0.1℃
Repeat accuracy
±2℃
One-color coeffient
0.100～1.000，Adjustable in 0.001 increments
Response time
5ms～99.99s，capable adjustable
Signal processing
Peak value、valley value、Average value，ambient temperature too haigh and too low alarm，power down protection and others function etc.
Output
Multiple annalog output 16bit （4mA～20mA，0mA～20mA，0V～5V，0V～10V option），
Resolution 0.1℃，Current loop output maximum load 600Ω, Voltage output allowed current 10mA
Alarm output：Upper limit、Lower limit alarm，with photocouple relay has unlimited service life，
On resistance≤1Ω，maximum allowed voltage: AC42V or DC60V，Maximum allowed current:100mA，Response time: 2ms
RS485 output，capable parameter modification, data recording and query function
Display mode
With self-illumination industrial gread OLED display screen
Power supply
DC（20～30）V，power consumption：5W（24V@200mA），With over voltage, over current, short circuit protection，With Built-in EMI filter、can resist 2500VDCpalus group interferance.
Ambient temperature compensation
Built-in ambient temperature compensation, almost unaffected by ambient temperature changes.
Aiming mode
Built-in visible high brightness green light or eyepiece aiming
Interface
With fully sealed plug
Service environment
-20℃～+60℃，without water cooling；-20℃～+200℃，with water cooling
IP rate
IP65
