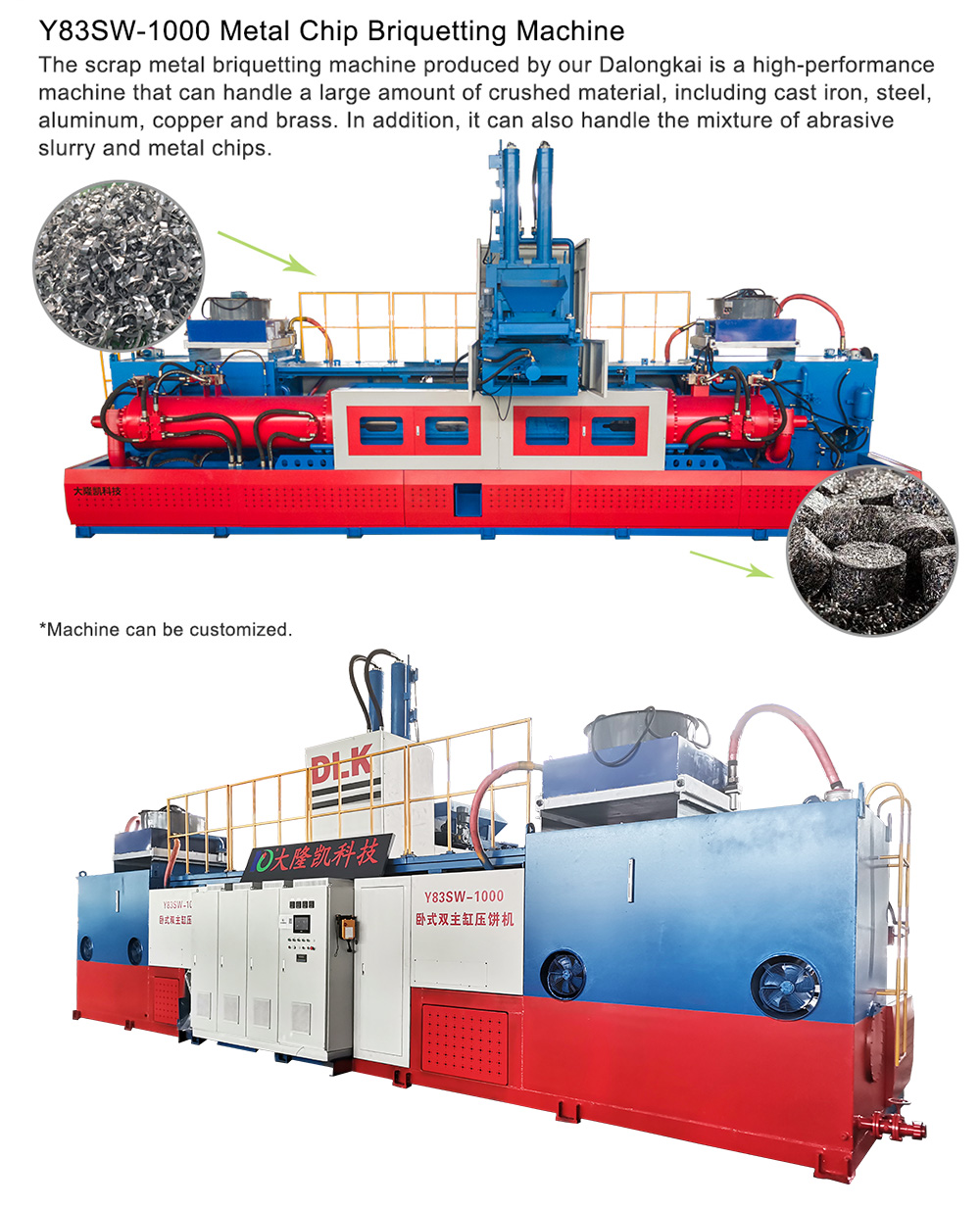

Introduction of the metal briquetting machine
This Y83 series metal scrap briquetting machine is a type of machine that is used to compress and convert metal scrap into compact and dense briquettes. This metal block making machine is designed to process various types of metal scrap, including aluminum, copper, brass, steel, and iron. The metal scrap is fed into the machine, where it is compressed and compacted using high force. The resulting metal blocks are then stored and transported for recycling or disposal. The use of a metal scrap briquetting machine helps to reduce the volume of metal scrap, making it easier to handle and transport, while also reducing the environmental impact of metal scrap disposal.
Technical Parameters
|
NO. |
Parameter name and content |
Remark |
||||
|
1 |
Main Pressure Cylinder |
Model |
YG600/530 |
Qty. |
1pc |
780 Ton |
|
Normal Force |
7800kN |
Stroke |
1795mm |
|||
|
2 |
Fast Cylinder |
Model |
YG320 |
Qty. |
1pc |
220 Ton |
|
Normal Force |
2200kN |
Stroke |
1800mm |
|||
|
3 |
Secondary Pressure Cylinder |
Model |
YG600/590 |
Qty. |
1pc |
780 Ton |
|
Normal Force |
7800kN |
Stroke |
600mm |
|||
|
4 |
Fast Cylinder |
Model |
YG320 |
Qty. |
1pc |
220 Ton |
|
Normal Force |
2200kN |
Stroke |
600mm |
|||
|
5 |
Pressure Cylinder |
Model |
YG180/120 |
Qty. |
2pc |
140 Ton |
|
Normal Force |
700kNx2 |
Stroke |
1200mm |
|||
|
6 |
Pushing Cylinder |
Model |
YG125/80 |
Qty. |
1pc |
30 Ton |
|
Normal Force |
300kN |
Stroke |
1000mm |
|||
|
3 |
Hydraulic System Working Pressure |
<25MPa |
|
|||
|
4 |
Block Size |
φ300x280～380mm |
|
|||
|
5 |
Block Density (Steel) |
≤4200kg/m³ |
|
|||
The parameters in the above table are for reference only.
Features
1. The electrical part adopts imported PLC automatic control system, which has strong anti-interference ability and low failure rate.
2. The body adopts the overall steel structure, which has high strength and good stability, and does not need to install anchor screws.
3. The machine adopts hydraulic transmission, highly professional integral valve block, and large flow diameter, which reduces the pressure loss of the system and eliminates the drawback of leakage.
4. The use of cartridge valve, electro-hydraulic proportional valve and unique oil circuit design make the hydraulic system perfect, even if it works under long-term heavy load, the system will not be powerless.
Application
This Y83 double master cylinder briquetting machine can press various granular and powdered cast iron, aluminum, copper, magnesium, titanium and molybdenum into high-density briquettes without adding any additives, which can be directly put into the furnace for smelting, greatly Reduced costs.
