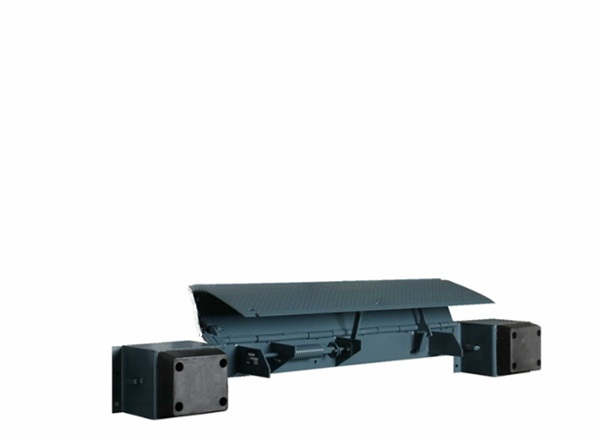

Hydraulic edge of dock leveler is a kind of simple design electrical automatic loading dock levelers used in warehouse. To install a regular hinged loading dock leveler, you need make a concrete pit beforehand to place the dock leveler into it. Normally such dock leveler pits need be prepared while building the warehouse. So, for some existing warehouses, there is no such pit and it is difficult to make it because the warehouse floor is already finished. In such case, if you want to install fixed dock levelers to improve your loading goods efficiency, it will be a method to install hydraulic edge of dock levelers. It can be directly installed onto the loading dock platform from exterior facade with expansion bolts or welding with embedding bolts or anchors. It is very easy and quick to finish the installation of a hydraulic edge of dock leveler. It is suggested for loading goods with pallet trucks, carts or trolley.
 |
 |

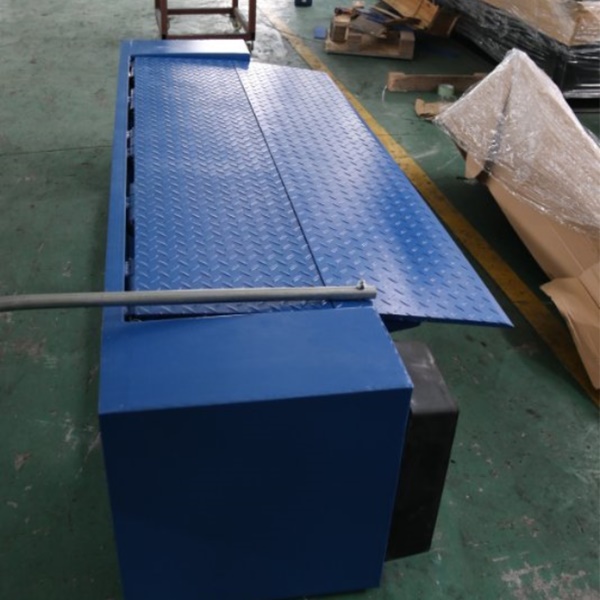

Embossed platform and lip plate

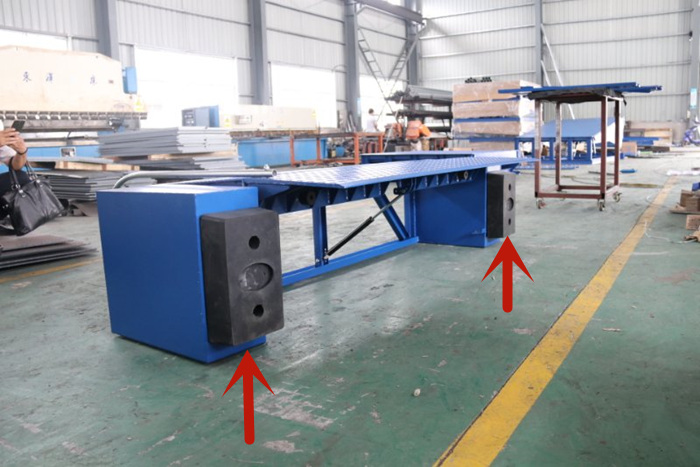

Rubber dock bumper at two sides
Hydraulic motor

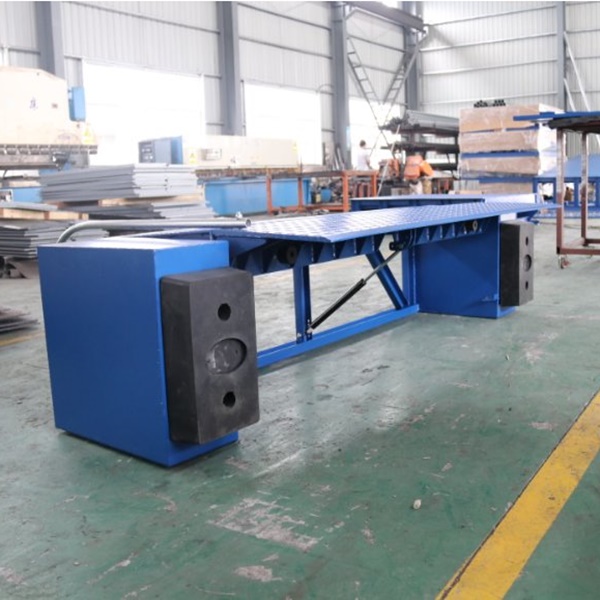

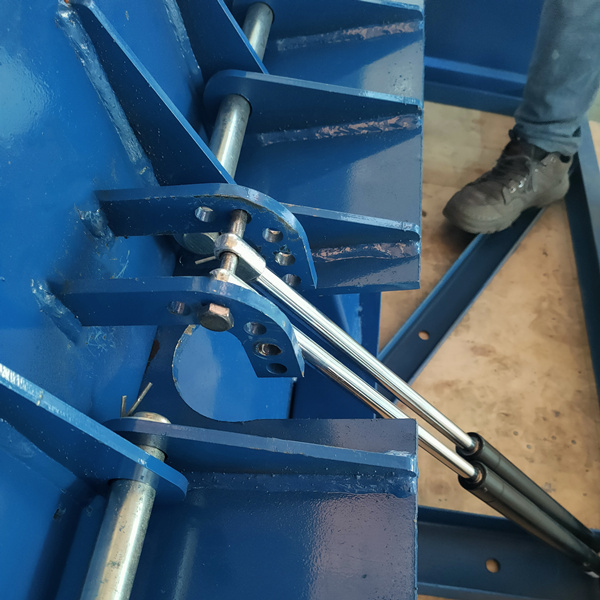

Reinforcing ribs under platform and lip
| ITEM | DATA | REFERENCE PHOTOS |
| Size |
Standard length: 2000mm Customized length according to your need. |
|
| Loading Capacity |
Load capacity: 9000kg (20000lbs) |
|
|

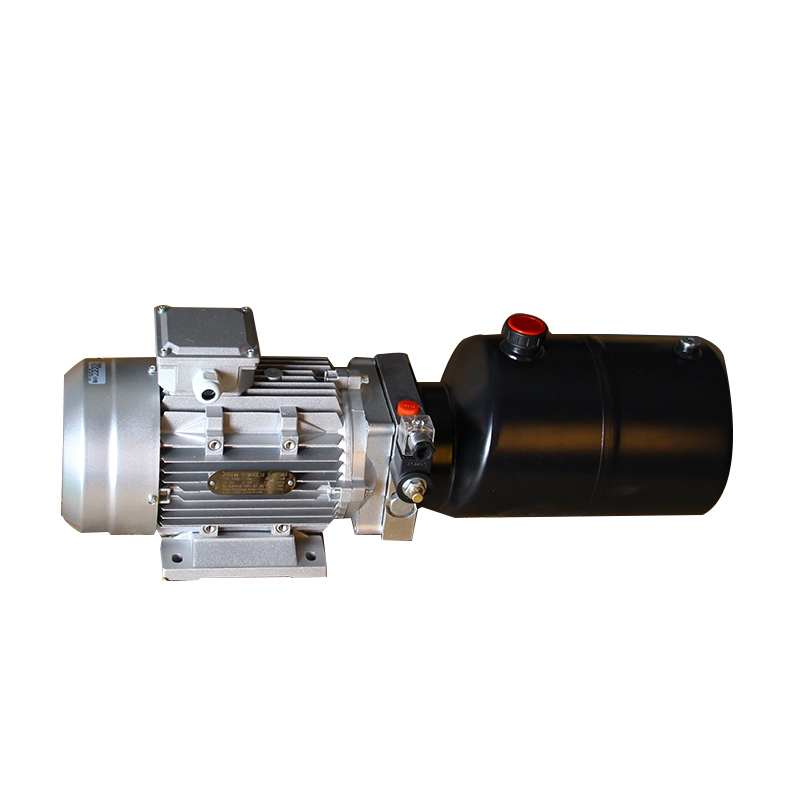

Hydraulic Motor |
1. Power supply ：3-phase 380±10%V or 1-phase 220±10%V,50/60HZ
2. Output power：0.75KW-1.1KW; 3. Top China brand or Germany brand, or Italy brand; 4. Overheating self-protection function. 5. With electromagnetic valve for emergency stop function. |
|
|
Hydraulic Sealing and cylinder |
Japanese brand NOK. Even after work of many years, it will not leak oil. This reduce the maintenance to minimum and improve work life. |
 |
|
Control Panel |
Multiple-function controller, with three functional parts:
|
 |
| Platform |
1. Surface sheet:6mm-8mm thick according to loading capacity; 2. Whole-piece steel sheet, rather than welded joined sheet like competitors, with much higher strength and work life; 3. Underneath support: high-density steel tube or C-channel to support the surface sheet.; 4. Surface treatment: blasting and powder coating, with high rust proof performance. Special embossed treatment, to make it antiskidding and improve the safety of forklifts passing. |
|
| Front Lip |
1. Material: 12-14mm thick steel sheet; 2. Surface treatment: blasting and powder coating. Special embossed treatment, to make it antiskidding and improve the safety of forklifts passing. |
|
| Dock Bumper |
1. One pair for each dock leveler;
2. Wear-proof high-strength rubber material; 3. To be fixed onto side support box beforehand. |
|
| Painting color | Blue, Dark Grey, Black, Green, or customized |

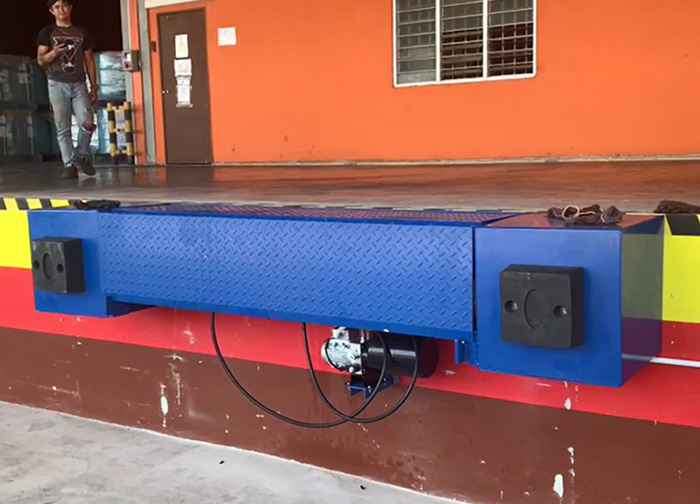

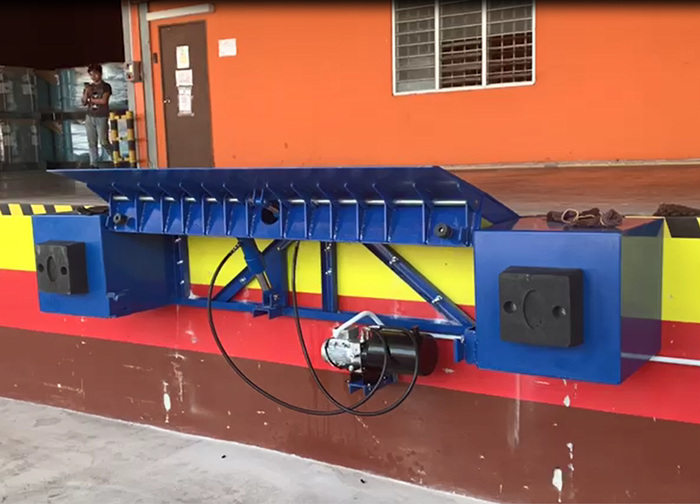

Project Cases：
 |
 |
