Flow calibration column called flow calibration, calibration, correction flow measuring tube column for the determination of
metering pump flow.
Calibration column
The flow calibration column is widely used in the calibration of metering pump and dosing device. It can accurately calibrate the output flow of metering pump. The flow calibration column is also called flow calibration tube, calibration column and calibration tube. The main material is plexiglass, UPVC, PVDF and stainless steel. The connection modes include internal thread, external thread and flange.
Usage method
When the utility model is used, the liquid level in the calibration column is firstly injected into the medium, and the liquid level of the medium is consistent with the maximum scale of the calibration column. Then close the other inlet valve, open the calibration between the column and the pump valve, the pump only from the calibration column extraction medium, and then open the pump timing, carefully check the calibration volume of liquid in the column number reduced within the specified time, and then compared with the theoretical volume number, according to the score of precipitation pump at work is accurate measurement according to the situation, and then adjust the pump precision.
The flow calibration column produced by our company can be made into different volume models according to the customer requirement model, connection mode can also be customized according to customer requirements, the production of the main column now calibration with organic glass and stainless steel three material, can satisfy most of the corrosion resistance requirements.
Model selection
The type of flow calibration column is determined according to the flow rate and calibration time of the pump. For example, the pump flow is 60L/H, customers need to calibrate 0.5-1 min flow, then the calculation of flow per minute should be 60L/60=1L, then you can choose to use the volume of 1L calibration column.
Product parameters
|
Model NO. |
Capacity(ml) |
Dia(mm) |
Height(mm) |
Connection (can be customized) |
|
ABD-100 |
100 |
32 |
280 |
Female 1/2" |
|
ABD-200 |
200 |
40 |
320 |
Female 1/2" |
|
ABD-300 |
300 |
50 |
320 |
Female 1/2" |
|
ABD-400 |
400 |
50 |
400 |
Female 1/2" |
|
ABD-500 |
500 |
63 |
350 |
Female 1/2" |
|
ABD-1000 |
1000 |
63 |
455 |
Female 1/2" |
|
ABD-2000 |
2000 |
75 |
805 |
Female 3/4" |
|
ABD-3000 |
3000 |
110 |
640 |
Female 1" |
|
ABD-4000 |
4000 |
110 |
760 |
Female 1" |
|
ABD-6000 |
6000 |
110 |
1000 |
Female 11/2" |
|
ABD-8000 |
8000 |
140 |
935 |
Female 11/2" |
|
ABD-10000 |
10000 |
140 |
1110 |
Female 2" |
If you are interested in the product, contact 2bvideo.com for more information for more information
The information of 2bvideo.com limited shown above is provided by the user or collected on the network. Video 2B does not guarantee the authenticity,accuracy and legitimacy of 2bvideo.com limited information. Video 2B does not involve legal relationships and disputes between users arising from transactions other than secured transactions on this website. Disputes shall be settled by you through negotiation. If you are the person in charge or relevant employee of this enterprise, if you find that the enterprise information is incorrect or want to manage thiscompany, please contact us jacklee1558@gmail.com, after you claim the enterprise, you can obtain management permission, publish supplyand demand information, bring consulting orders, and remove page advertisements.
Main Product:

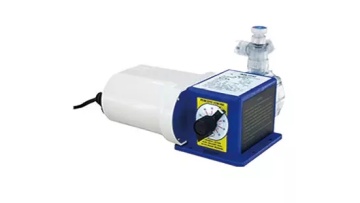

Solenoid Dosing Pump,
