Product details

High Efficiency Fluid Bed Dryer

Main Features

1. Pharmaceutical Powder Dryer: The loading and unloading are quick, light and clean, meet the requirements of GMP.
2. Amoxicillin Powder Dryer: Turn to the Ex-type of Fluidized bed dryer , Erbang set the explosion release vent on the machine .once the explosion happened , the machine (Western Powder Dryer) will release the explosion to outside automatically and safely ,it will make very safe condition to the operator .
3.No dead corner .
4.For the loading material , we have choices on vacuum feeding , lifting feeding ,negative feeding and manual feeding for customer .
5. This machine adopts PLC automatic control, all the operation according to the requirements of the user to set the process parameters automatically, can print all the process parameters, the original record is true and reliable. In full compliance with the GMP requirement of pharmaceutical production.
6. For the bag filter , we choose anti-static filtering cloth . Adopting double chamber filtering bags system, remove dust completely.
7. For the machine ,we have CIP and WIP for customer to choose .
8. Adopting multi-fluid nozzle, it guarantees that the formed granule is uniform and the content of powder is very low.

9.The processes of mixing , granulating and drying are completed in one step inside the machine.

Principle
The fresh air is filtered by the two or three filters and then enter into the heating system for heating . After heated , the hot air enter into the drying chamber and blow up the material in the bowl of the FBD and let the material into fluidization conditions .during this period , the material is dried . When customer use the machine , they can set the procedure and parameters according to the process requirements , and then start the machine .

Structures
1. INLET AHU
The inlet AHU consists of Primary filter(G4), Post filter (F8), high efficiency filter(H13 )and heater with accurate temperature control. The inlet air flow, speed and pressure is variable and controllable. For the heater , it can be steam radiator ,electrical heater , gas furnace and so on .
2. MAIN BODY STRUCTURE

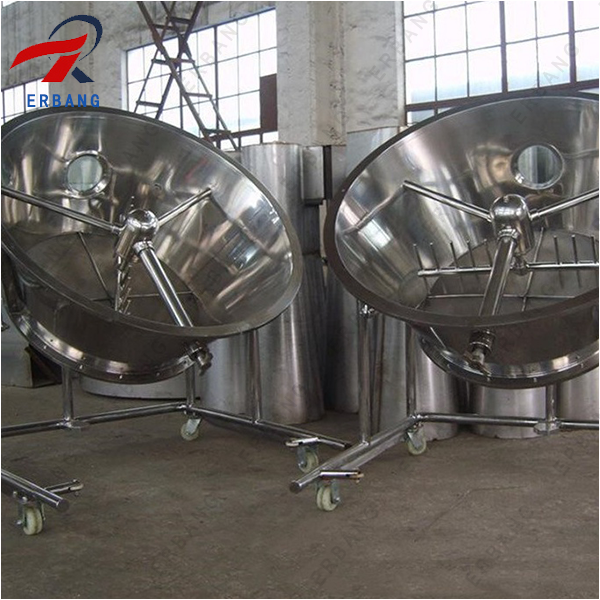

The main body structure consists of bottom bowl, movable product bowl with trolley , fluidized chamber, expansion chamber/filter housing. The bottom bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.
3. PRODUCT FILTER
The double structured bag filter in two pieces (in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.
4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protect environment.

Product Characteristics

☆ Fluid bed to achieve fast heat transmission of medium

☆ Seal negative pressure operation, there is no dust

☆ Because of using anti-static material as filter, it is safe in operation

☆ The equipment has no dead corner so it is easy to clean fully and there is no cross pollution

High Efficiency Fluid Bed Dryer Applications

Medicine Powder Drying Machine is main used for drying powder or granules from pharmaceutical, foodstuff, chemical and other industries.

Item		Unit	3	5	30	60	120	200	300	500
Container of raw material	diameter	Mm	300	400	700	950	1200	1400	1600	1800
Container of raw material	volume	L	12	22	100	220	420	670	1000	1500
capacity	min	Kg/batch	1.5	4	15	30	80	100	150	250
capacity	max	Kg/batch	4	6	36	72	140	240	360	600
fan	power	Kw	2.2	4	5.5	11	18.5	22	30	45
Steam consumption		Kg/batch	12	23	70	140	211	282	366	465
Compressed air		M3/min	0.3	0.3	0.3	0.6	0.6	0.9	1.1	1.6
Temperature		℃	Room temperature to 120℃
Collect rate		%	≥99
Content of final moisture		%	≈0.2
Noise		dB	≤75dB(A) (main machine is separated from fan)
Height of main machine		Mm	2200	2400	2800	3000	3300	3800	4000	4600
