Product details

Product Description

Introduction
Rebar (Reinforcing Bar) is a ferrous steel deformed bar which is used for reinforcement, strengthening & holding concrete. It is
usually formed with a surface which is patterned (known as a deformed steel bar) to make a better adherence with the concrete spilled
around it. No specific or special patterns are there for deforming, however, the number, spacing, and the height of the marks are
standardized and integrated into the primary debar. In addition, there are plain bars which are used in the most specific and
definite ways, only.
Owing to the fact that rebar holds the concrete in a compact state, it is known as a tensioning material. when it comes into the
compression, concrete is a very tough and strong material, but it almost has no strength where it comes to carrying tensile loads.
To overcome this, rebar casts in concrete to carry the loads.
Production Process of Rebar
1. Carbon or alloy Steel is melted to the liquid form,
2. The liquid steel is pulled by s small round opening to make the rebar formed.
3. The producer will make the curve and grooves to make sure the metal will stay stable in place inside the structure.
4. The rebars ends are mostly covered by plastic caps in order to avoid accidental injure to construction workers.

Types of Rebar
* Carbon Steel Rebars
* Stainless Steel Rebars
* European Rebars
* Epoxy-Coated Rebars
* Welded Wire Fabric
* Galvanized Rebars
* Sheet-Metal Reinforcing Bars
* Expanded Metal or Wire Mesh Rebars
* Glass-Fiber-Reinforced-Polymer (GFRP) Rebars

Standards, grades and size
* The standards are recognized by the following:
* The producer’s mill letter or symbol will be rolled into the rebar.
* The bar size is rolled into the rebar and appears as a digit.
* The rebar grade will be indicated (40, 60, 75, 80, 100, 120).
* Obviously, the markings and specifying do more than badge the deformations. Indeed, each marking system shows the details regarding manufacturing and specifications of each reinforcing bar.

Diameter 10mm Rebars Steel Rod, Diameter 6mm Rebars Steel Rod and Diameter 8mm Rebars Steel Rod are all commonly used Steel bar sizes.

Product Specification

Product Name	12m 6mm HRB400 Deformed Steel Rebar for Construction
Technical Methods	Hot-rolled
Grade	HRB400
Third Party Inspection	SGS BV MTC
Sample	Sample Freely
Standard	GB1449-2007,BS4449-1997/2009,DIN488-4,BST500S,ASTM A615,GR40,GR60
Size	6mm,8mm,10mm,12mm,14mm,16mm,18mm,20mm,22mm,25mm,28mm,32mm,36mm,40mm,50mm
Length	6-12m or according to customer's requirement or in coil
Diameter	8-25mm
Chemical Composition	C:0.21-0.23,Si:0.25-0.47,Mn:0.62-1.34,S:0.013-0.043,P:0.03-0.031
Section Shape	Spiral Shap,Herringbone Shap,Crescent Shap
Ends	Plain end/Beveled,protected by plastic caps on both ends, cut quare,grooved,threaded and coupling,etc.
Surface Treatment	1. Galvanized 2. PVC,Black and color painting 3. Transparent oil,anti-rust oil 4. According to clients requirement

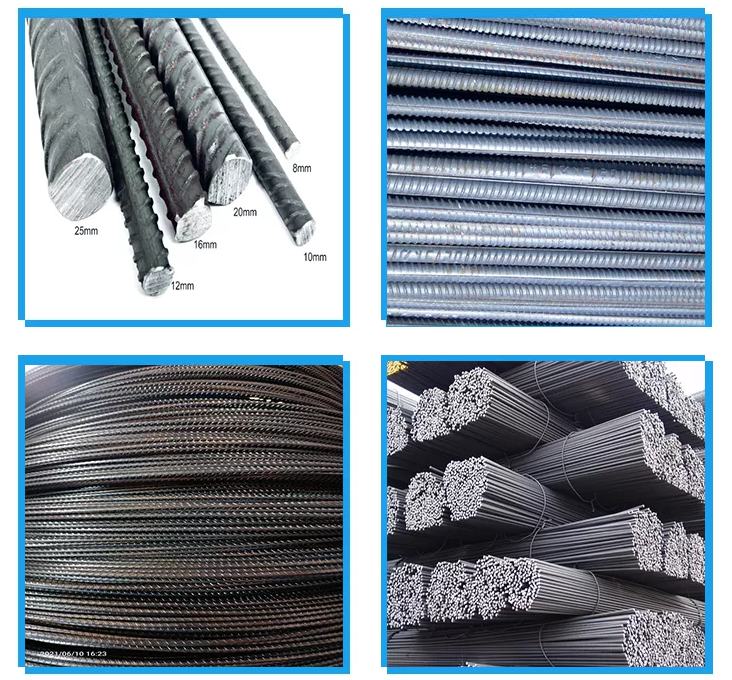

Product Display

deformed rebar steel

Product Size

Diameter (mm)	Weight (kg/m)	12m Weight (kg/pc)	Quantity (pc/ton)
6	0.222	2.665	375
8	0.395	4.739	211
10	0.617	7.404	135
12	0.888	10.662	94
14	1.209	14.512	69
16	1.580	18.954	53
18	1.999	23.989	42
20	2.468	29.616	34
22	2.968	35.835	28
25	3.856	46.275	22
28	4.837	58.047	17
30	5.553	66.636	15
32	6.318	75.817	13
40	9.872	118.464	8
45	12.494	149.931	7
50	15.425	185.1	5

Production Process

Pre-engineering→Standing→Casting→Hot-rolling→Cold-rolling→Annealing→Finish work→Warehousing

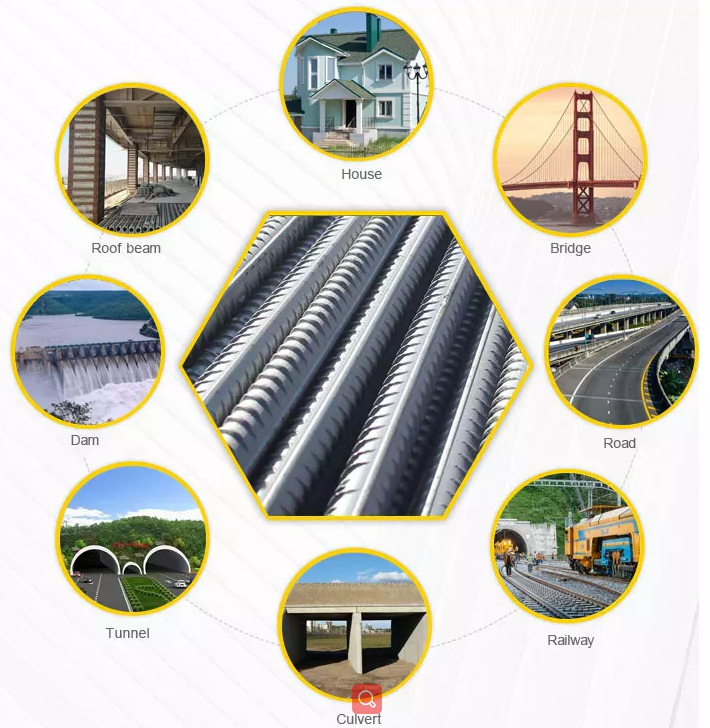

Product Application

Rebar is widely used in building, bridge, road and other civil engineering construction.
From highway, railway, bridge, culvert, tunnel, flood control, dam and other public facilities,
to the building foundation, beams, columns, walls, plates, screw steel are indispensable
structural materials. With the deepening of China's urbanization, the demand for rebar is
strong for infrastructure construction and the booming development of real estate.

steel rebar

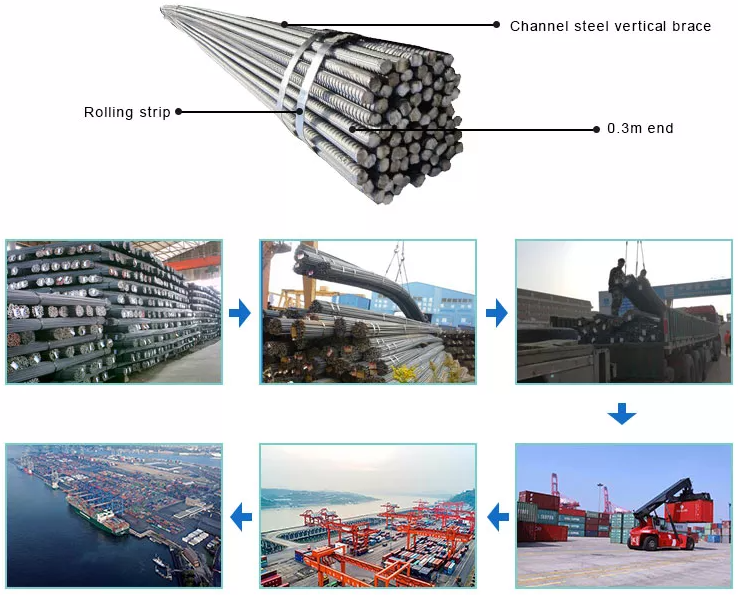

Packing & Delivery

rebar.

Our Certifications

FAQ

Q: Are you a manufacturer?
A: Yes , we are a rebar manufacturer, We have own factory, which is located in Shandong,China. We have a leading power in producing and exporting Round bar, ribbed bar, twist bar etc. We promise that we are what you are looking for.
Q:Can we visit your factory ?
A:Warmly welcome once we have your schedule we will pick you up .
Q: Do you have quality control?
A: Yes, we can accept BV, SGS third inspection .
Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
Q: How long is your delivery time?
A: Generally it is 7-14 days if the goods are in stock. or it is 25-35 days if the goods are not in stock, it is according to quantity.
Q:How can we get the offer?
A:Please offer the specification of the product,such as material,size,shape,etc.So we can give the best offer.
Q:Can we get the some samples?Any charges?
A:Yes,you can get available samples in our stock.Free for real samples,but customers need to pay the freight cost.
Q: How do you make our business long-term and good relationship ?
A: 1.We keep good quality and competitive price to ensure our customers' benefit.
2.We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
