Side Wall Sole Stitching Machine LX-668H

3 year ago
165 0
Product details

Side Wall Sole Stitching Machine LX-668H


Product Description


LX-668H Sole Stitcher with different design of 35-degree angle ox-horn, special for sandal shoes and casual shoes inseam or side seam stitching after attaching pad;


1. With the patent of invention, Applicable for large size side seam stitching and outsole edge lock stitching of sports shoes and casual shoes, for both of shoe bottom and shoe side .

2.With ox horn gear drive.

3. All parts were made by CNC machine, all parts is of great quality.

4. Use electron motor to control the speed, it is easy to change the speed, and break controlled by computer.

5. This machine thread hook use gear to drive, durable and waterproof,

6. This machine's thread hook, gear cover, ring and so on are imported from ZUOWEN in Jason.

Product Specifications
Model LX-668H
Sewing speed Stepless speed regulation
Stitching track Lockstitch double thread
Stitching length 1-8mm
Stitching thickness 1-3mm
Needle model CP*5,21#,23#,25#,27#
Needle number 1
Hook number 1
Thread model 0#-20#
Motor 50-60HZ 0.55KW
Voltage 380V/220V
N.W. 150KG
G.W. 180KG
Machine size(LxWxH) 1000L*600W*1250H(mm)
Packing size(LxWxH) 1200L*720W*1450H(mm)
HS.code 84522900
Country of origin Made in China

Product Images

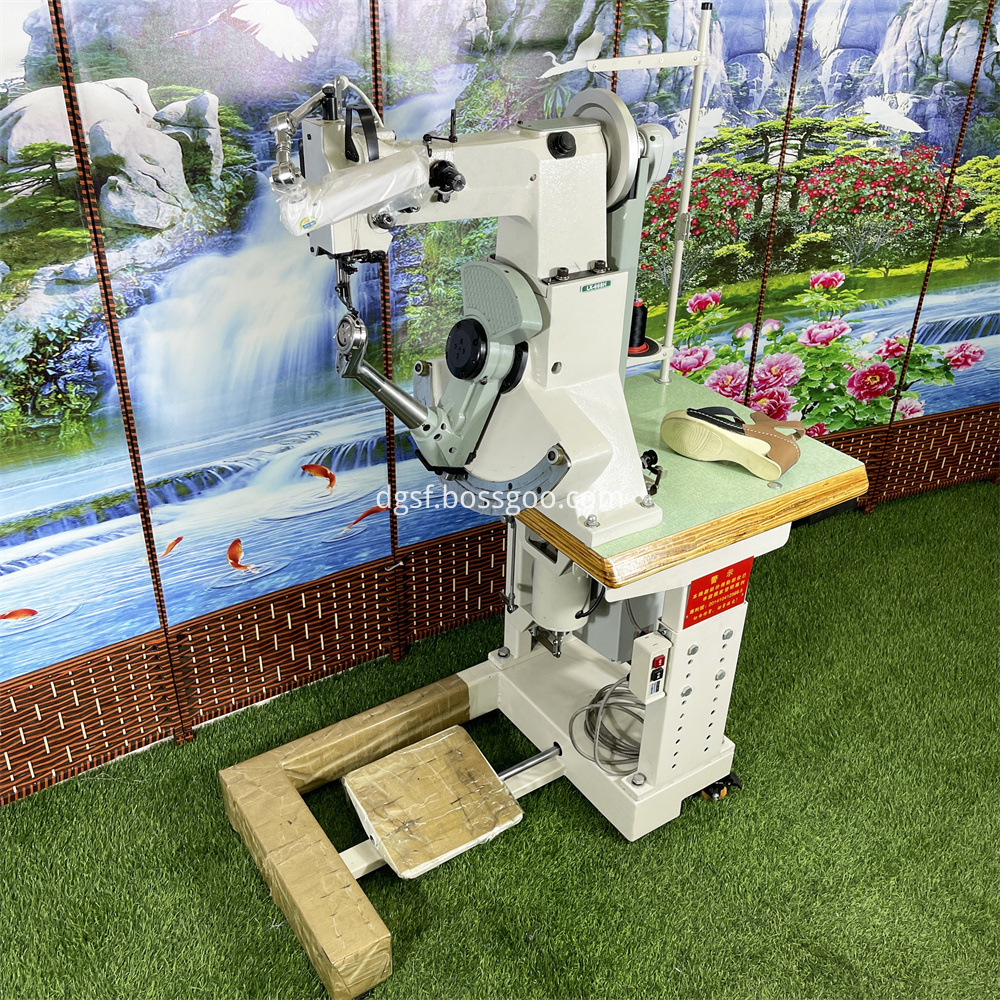

Side Wall Sole Stitching Machine 1 Jpg

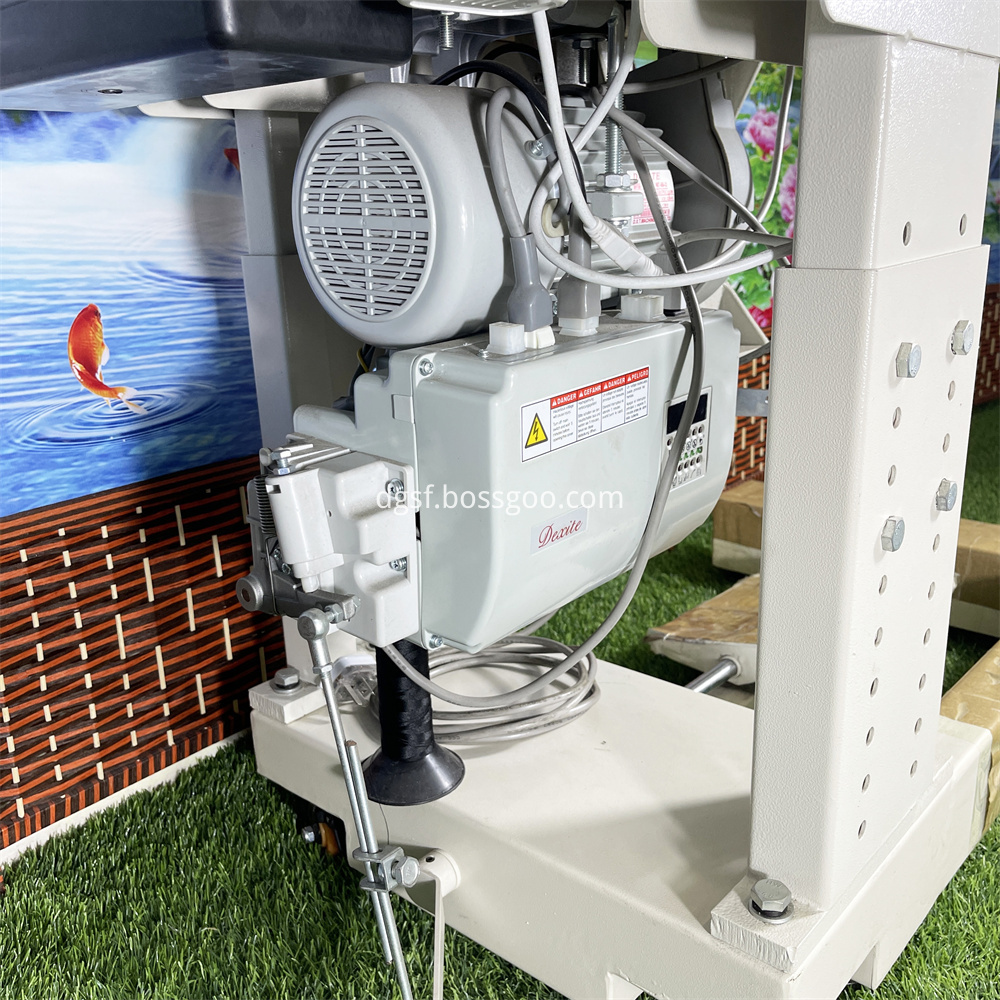

Side Wall Sole Stitching Machine 2 Jpg

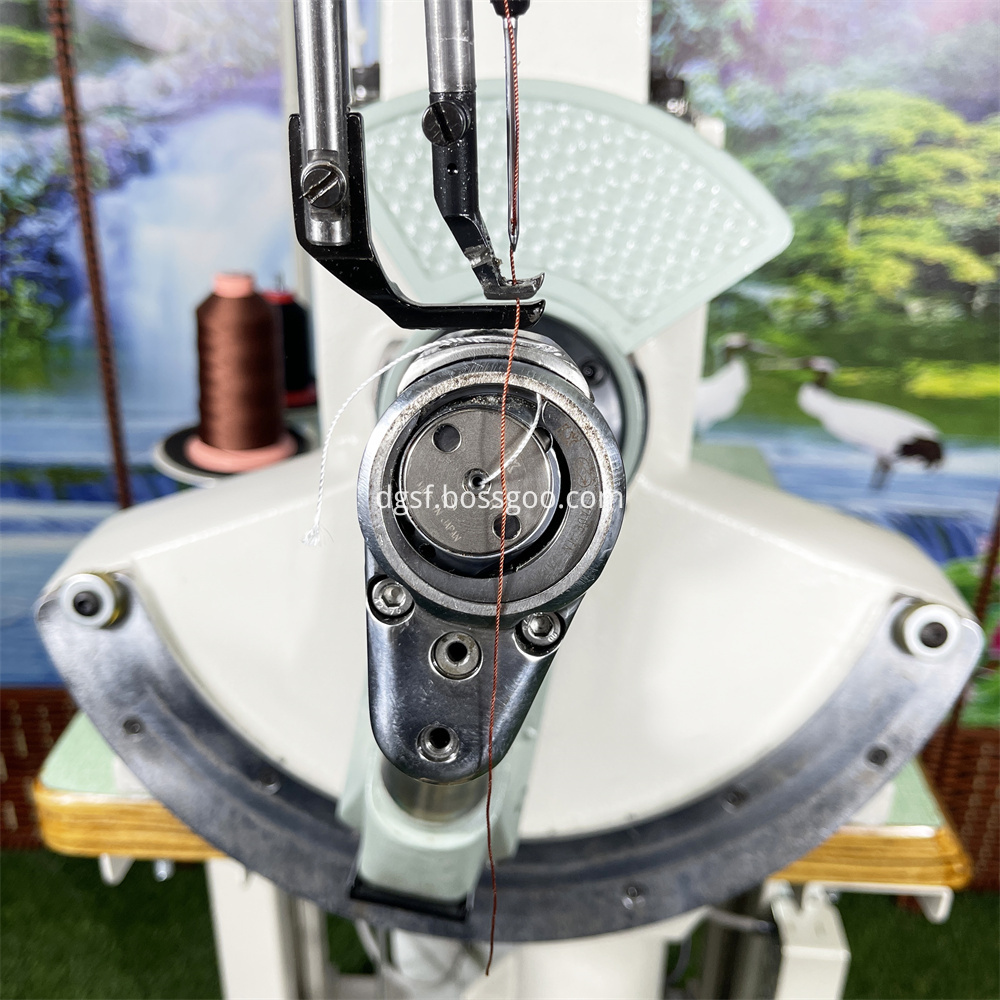

Side Wall Sole Stitching Machine 3 Jpg

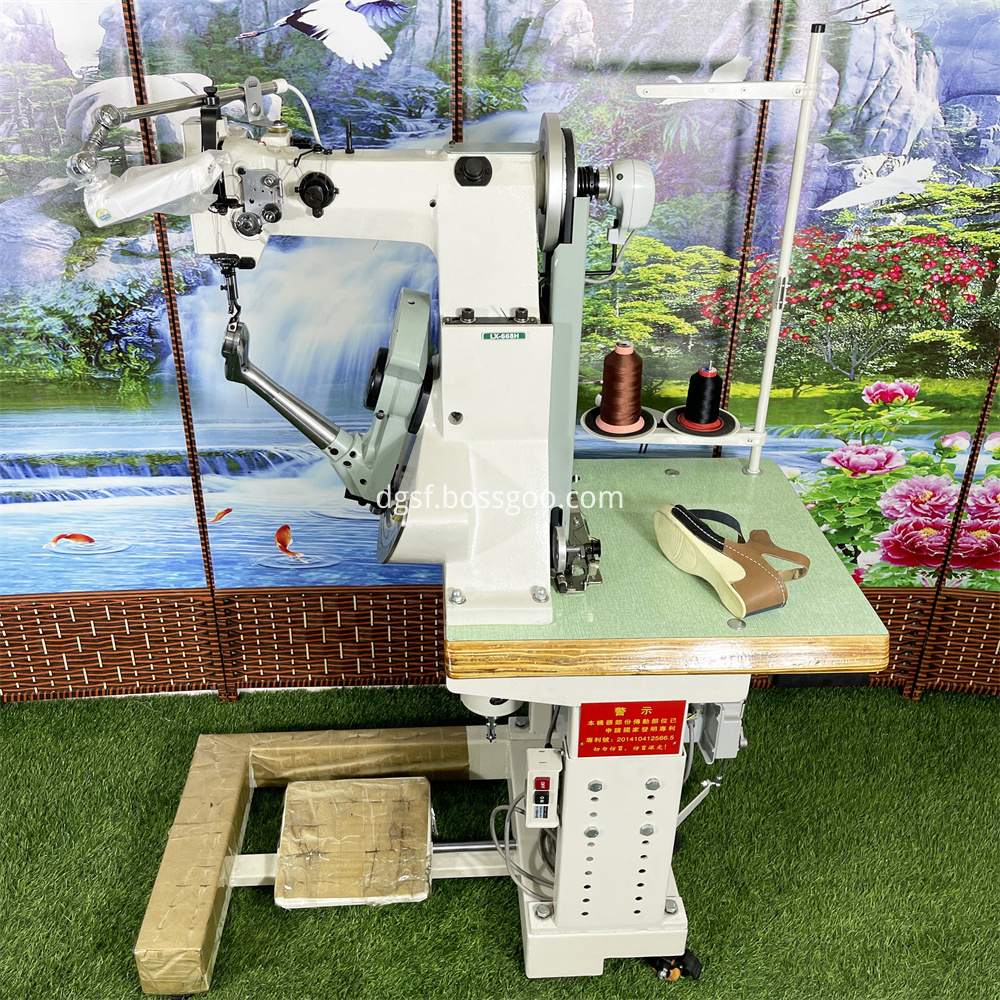

Side Wall Sole Stitching Machine 4 Jpg

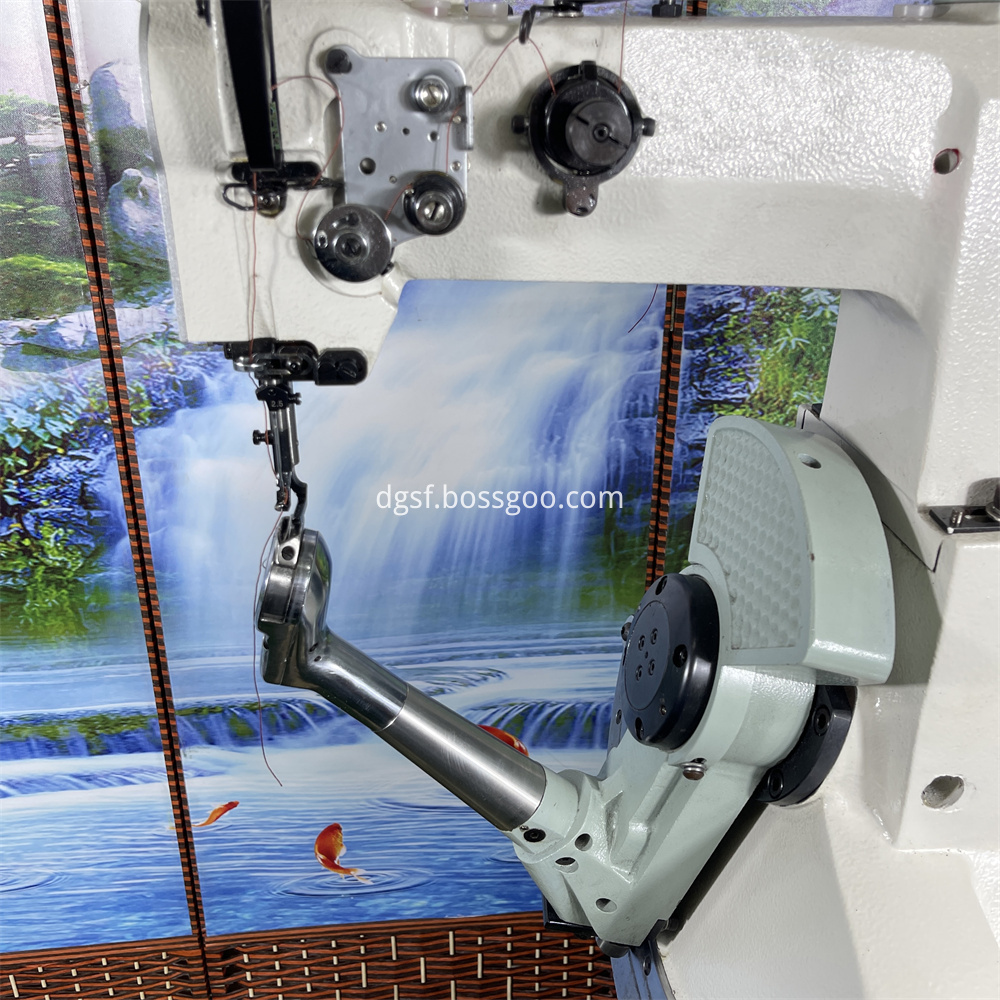

Side Wall Sole Stitching Machine 5 Jpg

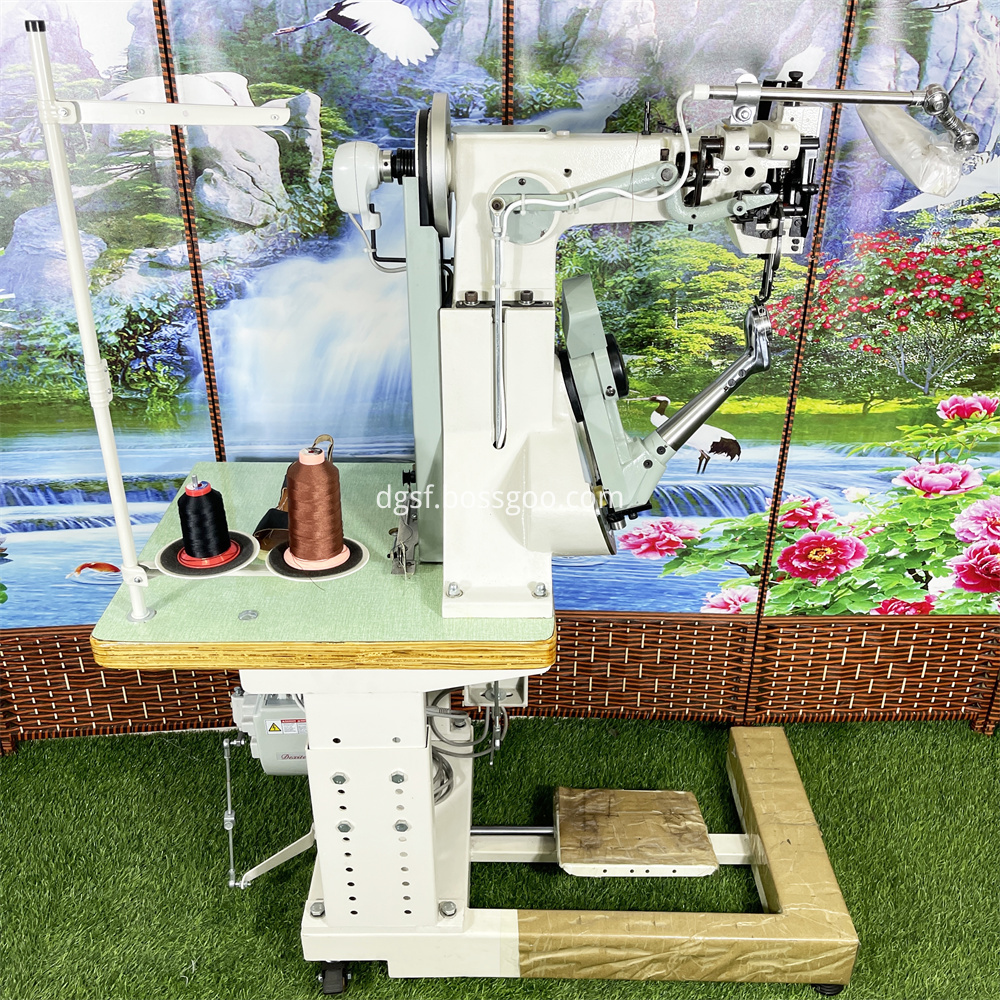

Side Wall Sole Stitching Machine 6 Jpg

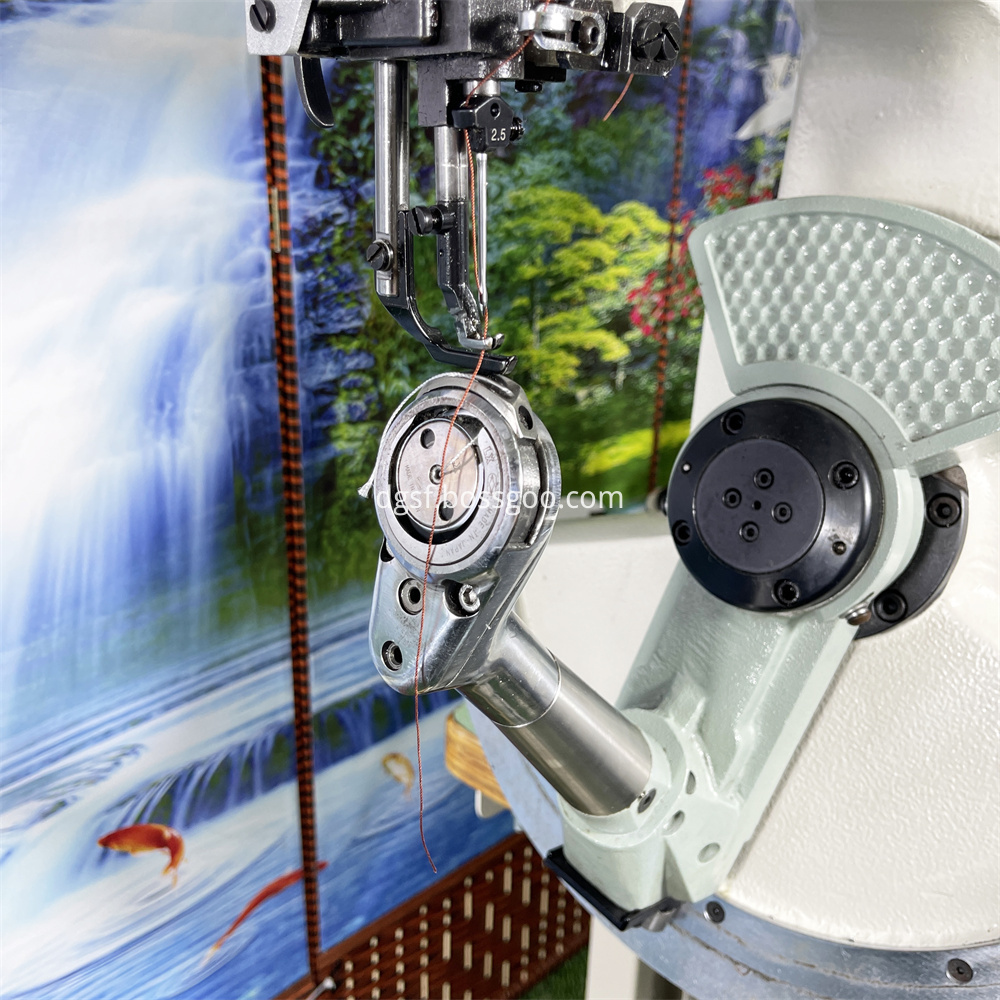

Side Wall Sole Stitching Machine 7 Jpg

Side Wall Sole Stitching Machine 8 Jpg

Side Wall Sole Stitching Machine 9 Jpg

Side Wall Sole Stitching Machine 10 Jpg

Side Wall Sole Stitching Machine 11 Jpg

Side Wall Sole Stitching Machine 12 Jpg
