3A110-06 Airtac Type Pneumatic Air Pilot Valve 3/2
Pneumatic air pilot valves control compressed air within pneumatic systems; they are used to signal valves, cylinders or other pneumatic devices. Pneumatic air pilot valves are either single or dual air pilot control with or without priority; the priority function ensures a default position should two pilot control signals arrive at the same time.
Technical Data of 3A100 Series Pneumatic Air Pilot Valve:
|
Model
|
3A110-M5
|
3A120-M5
|
3A110-06
|
3A120-06
|
|
Fluid
|
Air (to be filtered by 40μm filter element)
|
|||
|
Acting
|
exterior control
|
|||
|
Port Size
|
M5
|
1/8''
|
||
|
Orifice Size
|
3A110-06, 3A120-06: 10.2mm² (Cv=0.6)
|
|||
|
Valve Type
|
3 way 2 position
|
|||
|
Operating Pressure
|
0.15 to 0.8 MPa (21 to 114 psi)
|
|||
|
Proof Presure
|
1.2 MPa (175psi)
|
|||
|
Temperature
|
-20 to +70℃
|
|||
|
Body Material
|
Aluminum Alloy
|
|||
|
Max Frequency
|
5 cycle / sec
|
|||

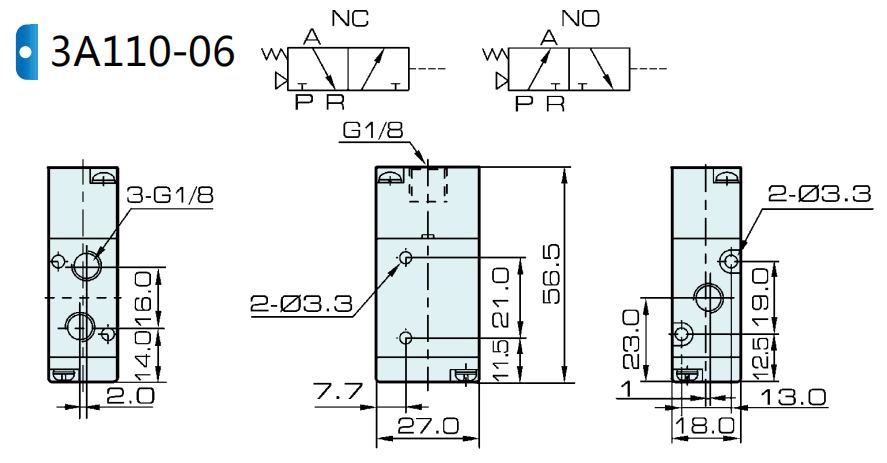

Dimension of 3A110-06 Air Pilot Pneumatic Valve:
Production Video of Pneumatic Valves:
More Pneumatic Products for you to choose:

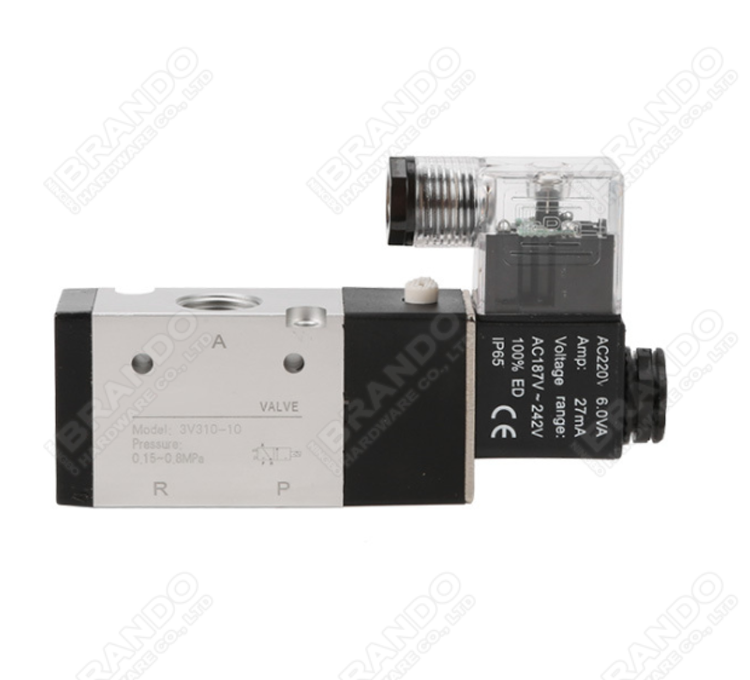

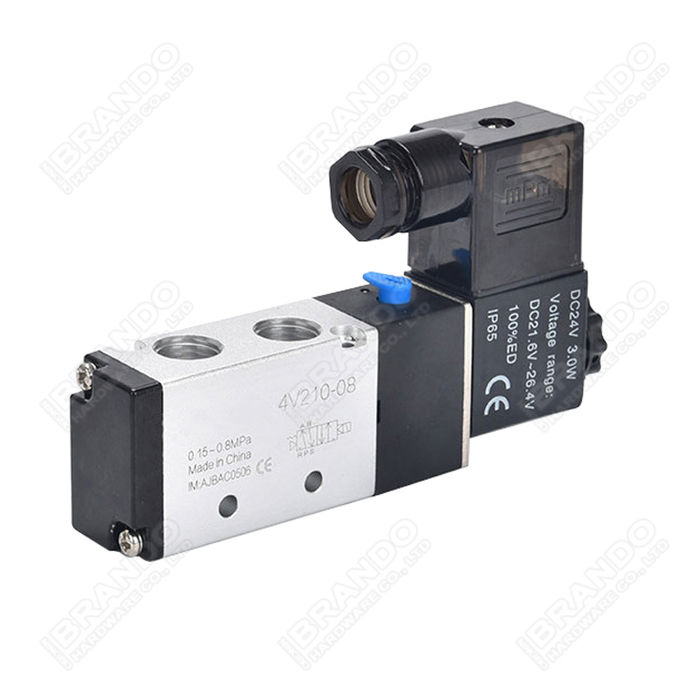

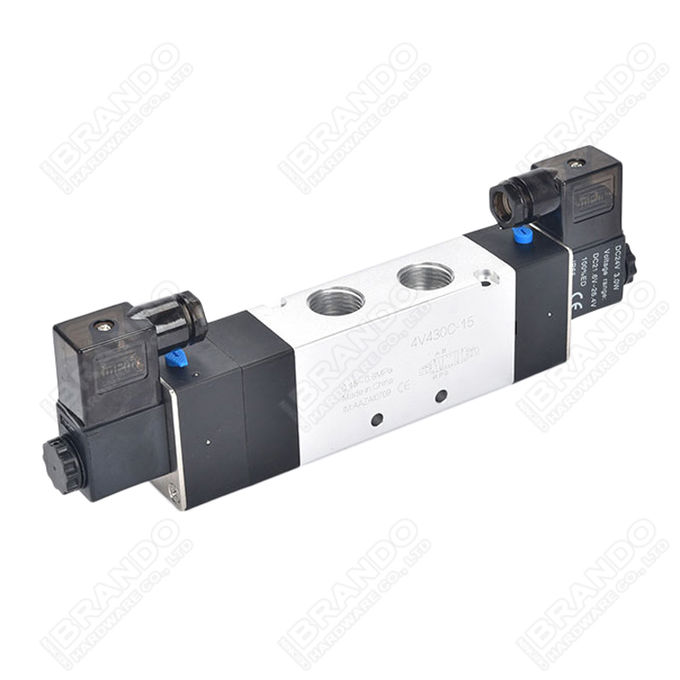

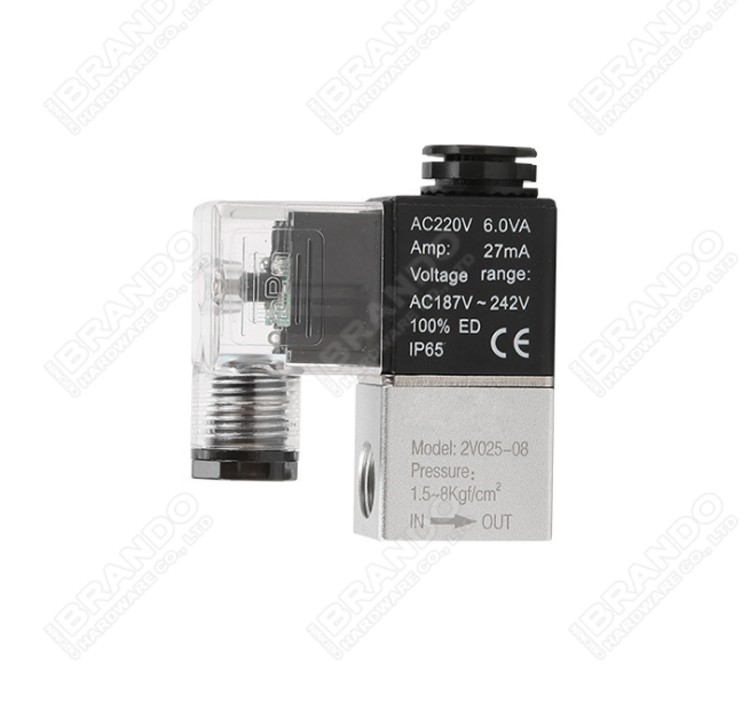

| 2/2 Way Pneumatic Valve | 3/2 Way Pneumatic Valve | 5/2 Way Pneumatic Valve | 5/3 Way Pneumatic Valve |
 |
 |
 |
 |
|

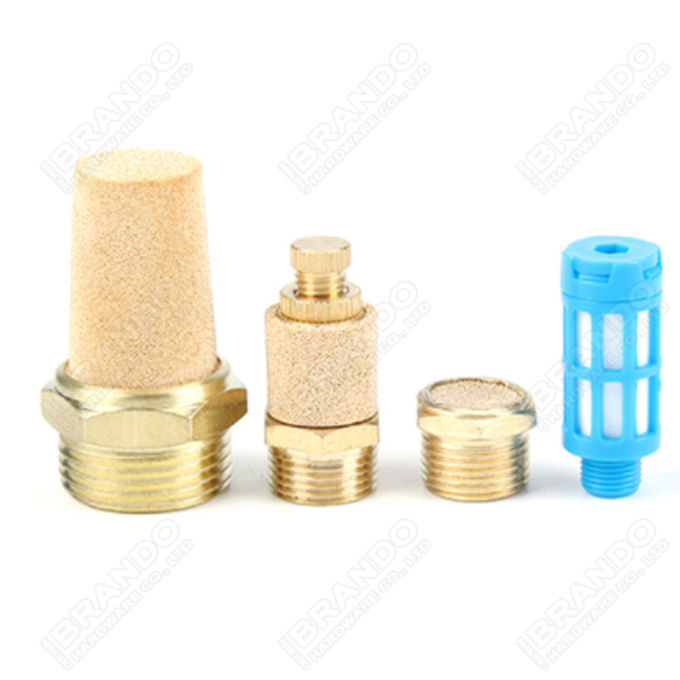

Pneumatic Silencer |

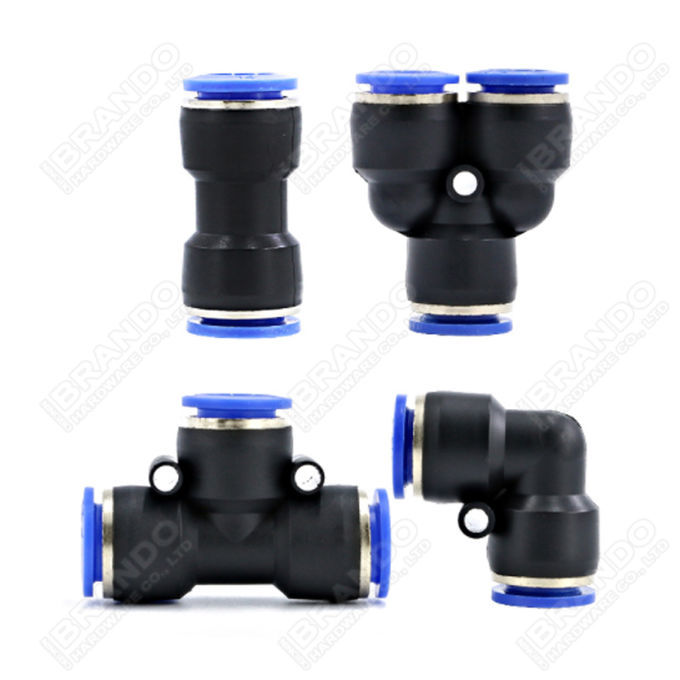

Pneumatic Hose Fitting | Pneumatic Cylinder |

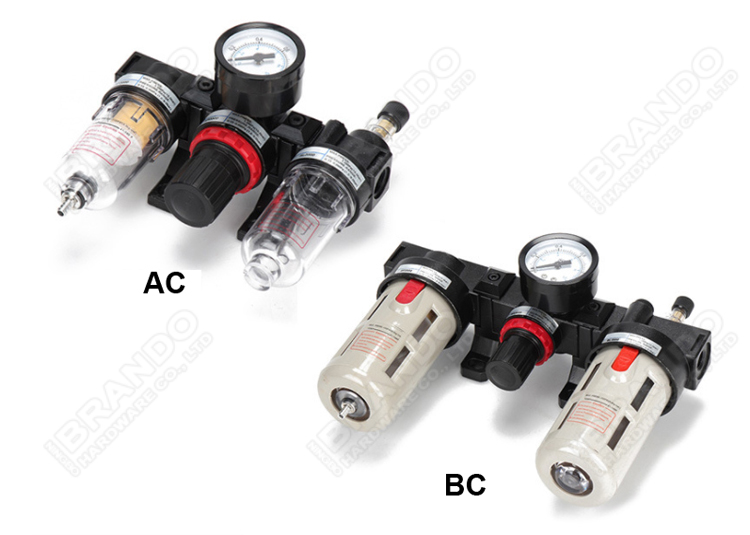

Air Filter Regulator Lubricator |
 |
 |
 |
|
