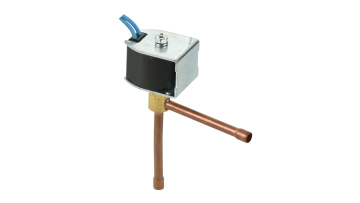

Sanhua Type FDF4A10 Solenoid Valve For Ice Maker
This is the detailed page of the SANHUA type FDF4A10 series normally closed refrigeration solenoid valve. Order Number: FDF4A10, Material: Copper, Type (position number): Two-way, connection form: welding, flow direction: indicated by arrow, usage: control refrigerant circulation, orifice size: φ4 (mm), working temperature : -30°C to +50C °C, the number of positions: 1, the use of pressure: 3.5 (mpa), the diameter of the nozzle: 1/4'' inch or φ6.35mm, the way of operation: pilot type. FDF series NC solenoid valves are primarily used for refrigerant control in refrigeration, air conditioning and heat pump systems. It has the characteristics of small size, low power consumption and high reliability. Applicable refrigerant: R22, R134a, R407C, R404A, R410A, etc.
Technical data of Sanhua Type FDF4A10 Solenoid Valve For Ice Maker:
Seat
(mm)
≦300
Model
Actuation
Function
CV
Endoleak (ml/min) 2.1MPa
Operating pressure difference (MPa)
Tube Size (mm)
Max
Min
FDF2A94
Direct
NC
Ф1.9
0.09
3.4
0
φ6, φ6.35
FDF4A10
Pilot
Ф4
0.35
≦500
3.4
0.01
φ6, φ6.35
FDF6A58
Ф5.8
0.65
≦500
3.4
0.01
φ8
General specifications of SANHUA Type FDF NC series refrigeration solenoid valve:
Series
FDF solenoid valve
Applicable refrigerant
R22, R407C, R410A, etc
Applicable medium temperature
-30ºC (-22°F) ~ +120ºC (248°F)
Applicable ambient temperature
-30ºC (-22°F) ~ +50ºC (122°F)
Maximum working pressure
4.5MPa (45 Bar)
Relative humidity
below 95%
Normal voltage
AC220V, AC110V, DC24V
Application
Dehumidifier, ice machines, air conditioners, heat pumps, etc

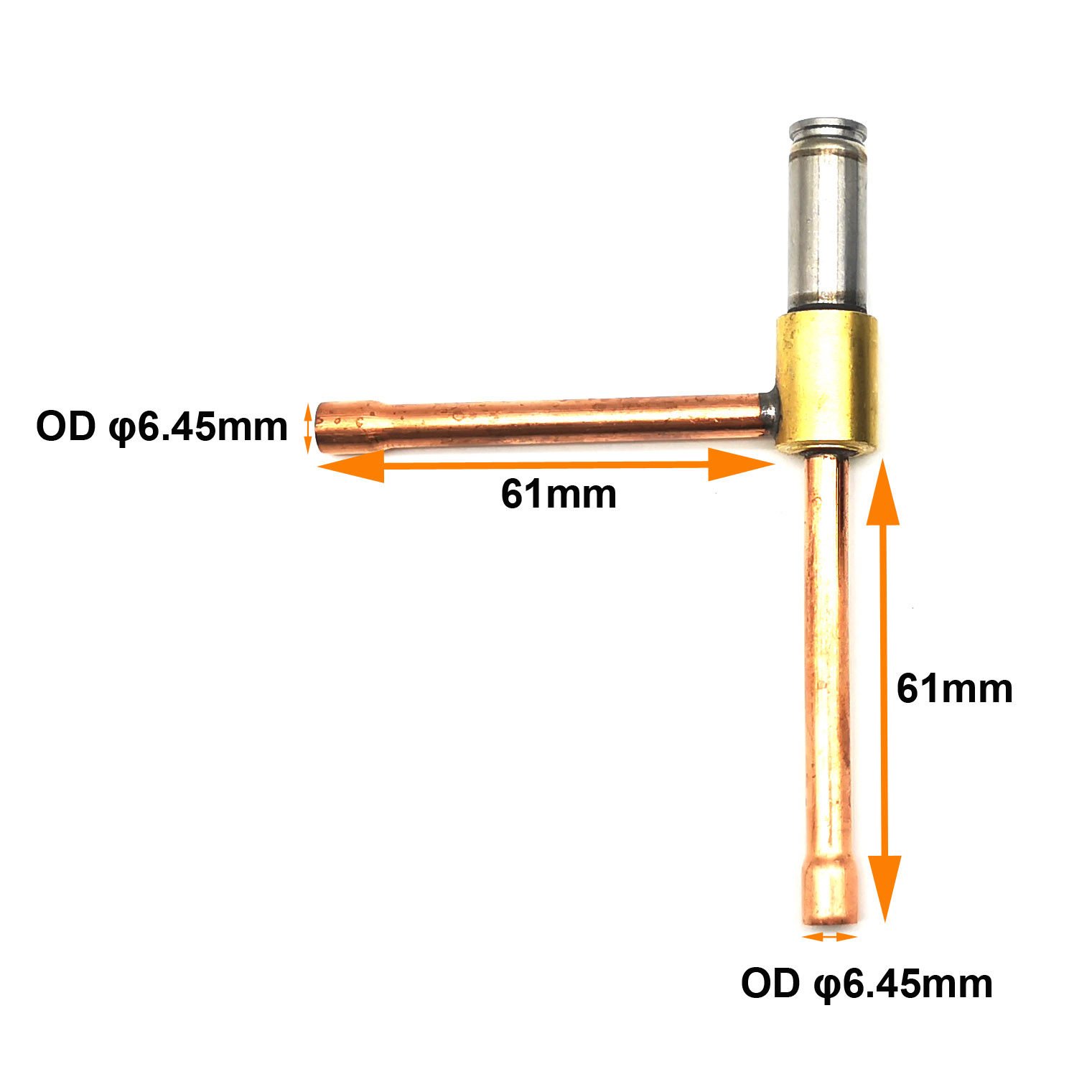

Overall dimension of Sanhua Type FDF4A10 Solenoid Valve 1/4'' 6.35mm tube OD:

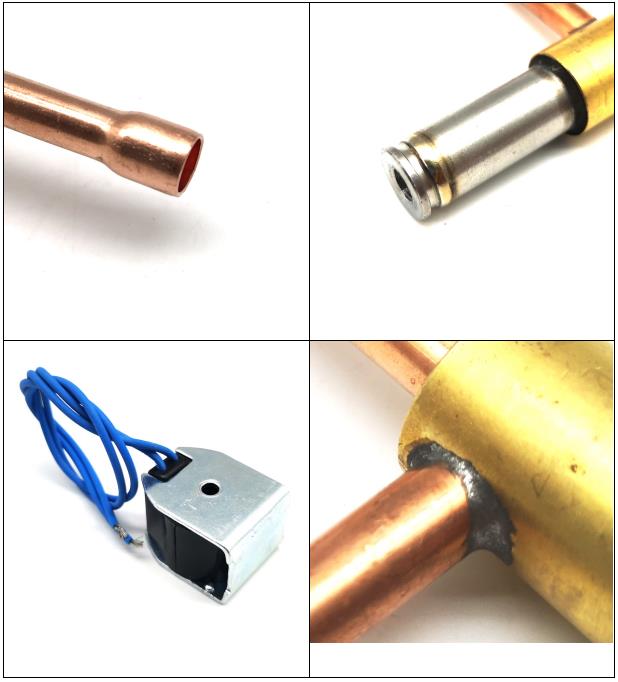

Details display of 4mm Seat Normally Closed Pliot Solenoid Valve:

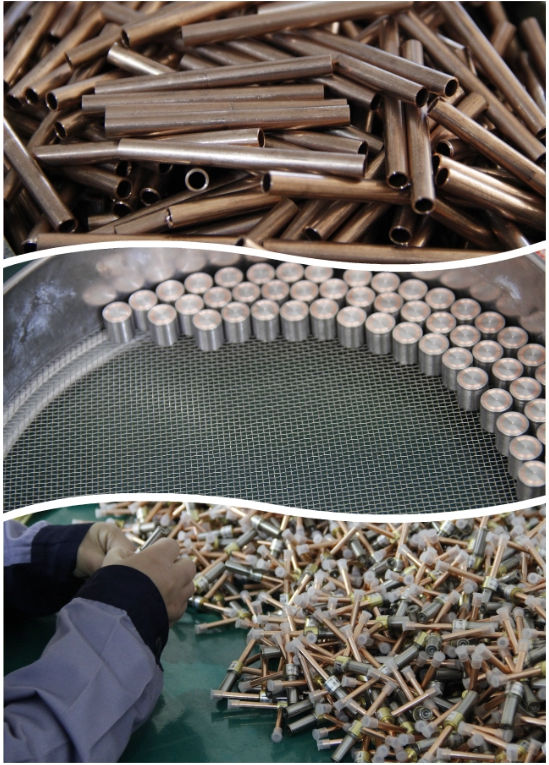

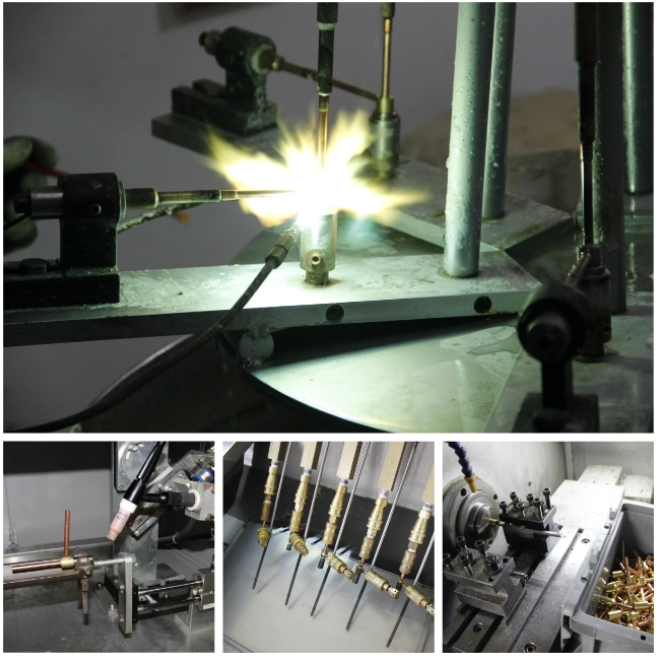

Producing process of Sanhua Type FDF4A10 Refrigeration Solenoid Valve:

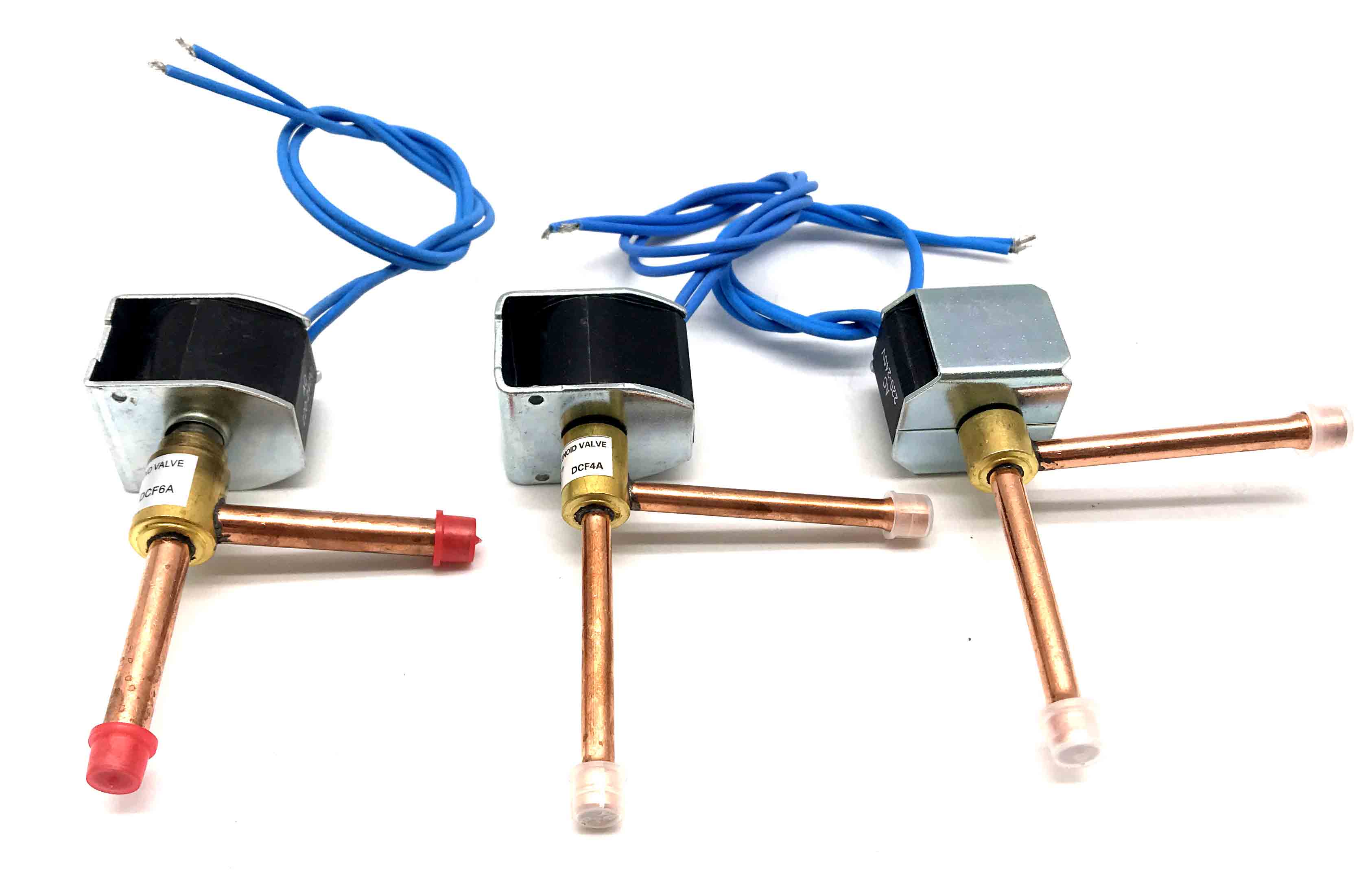

Other FDF series NC solenoid valve for your reference:
Precautions of FDF series NC solenoid valve Sanhua type:
1. For the matching features of the system, please confirm the test first.
2. For air conditioners equipped with solenoid valve, more than 100 mesh filters should be installed before and after installing the solenoid valve.
3. When assembling welded pipe, the valve body temperature shall not exceed 120℃.
4. Keep valve dry and clean during installation.
5. Solenoid valve body and coil must be used together.
6. After the coil and valve body are assembled, it is necessary to fasten them in place.
7. Before using the product, please confirm whether the model and voltage meet the system matching requirements, so as to avoid the coil burning due to improper use.
8. The instruction is included in the package of the product. If you have any questions, please contact the sales staff.
