Technical specification of the paper corner applicator:

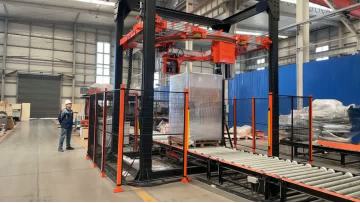

Rotary arm wrapper
|
Max load size(mm) |
1200 (L)×1200(W) ×2200(H)mm |
|
Packing efficiency |
20-40 loads / hour |
|
Rotary arm speed |
3-15rpm |
|
Conveyor |
CUSTOMER PREPARE |
|
Power supply |
2.0KW 380V 50HZ 3Phase |
|
Max load capacity |
2000kgs |
|
Wrapping requirement |
Bottom wrapping up to 2/3 of pallet, top wrapping 15cm higher than the height of pallet |
|
Working ambiance |
Indoor, normal temperature |

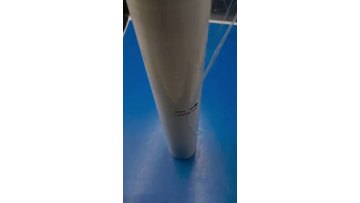

Stretch wrapping film: Core size: 3``
Film width: 500mm
Diameter: max 260mm
Thickness: 20-35μm
Rotary arm stretch wrapping machine 1 set
3.1 driving device for rotary arm 1set
3.2 Film carriage 1 set
3.3 Machine main frame 1set
3.4 Film delivery device 1set
3.5 Film auto feeding and cutting device 1set
3.6 Pneumatic control system 1set
3.7 Electrical control system 1set
