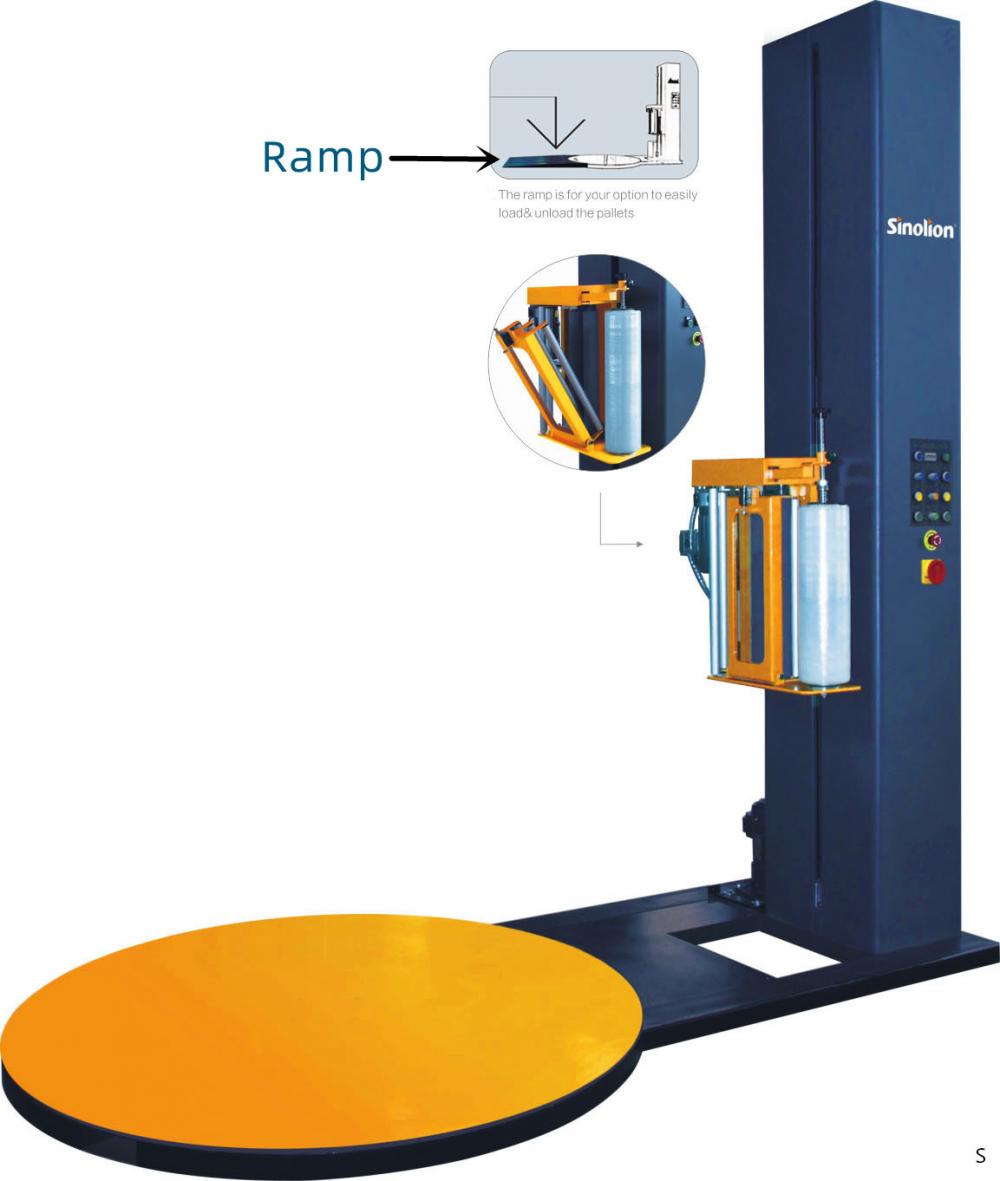

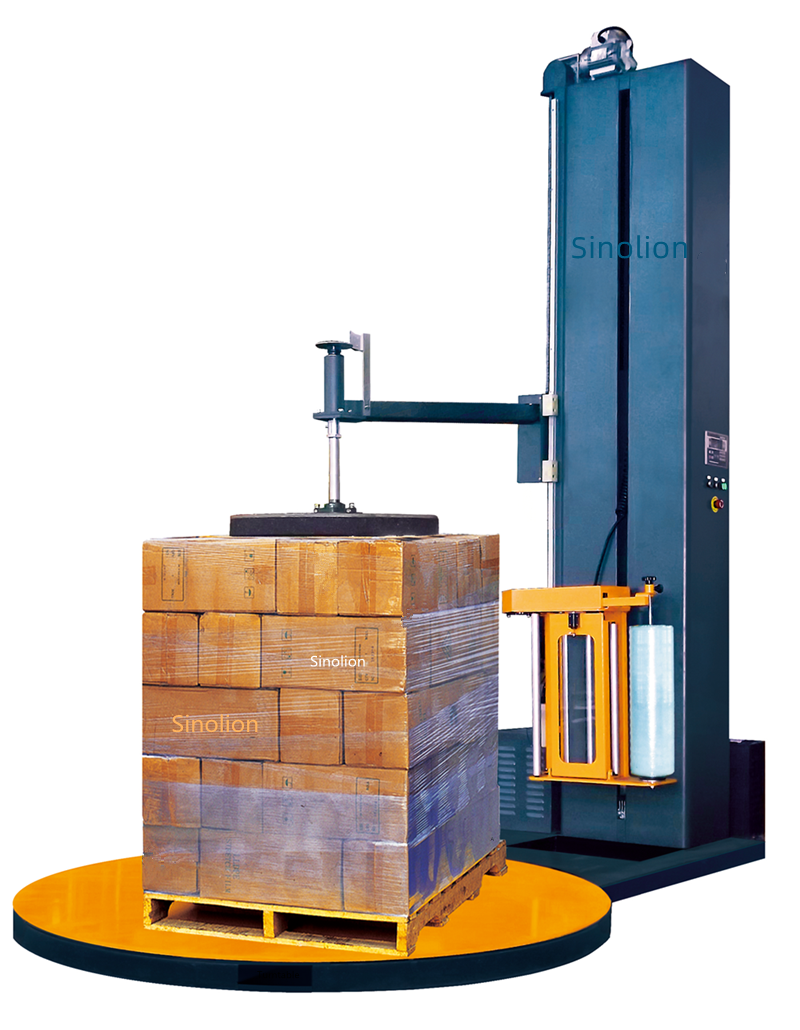

T Series Pallet Wrapping Machine--T200F automatic Pre-Stretch Wrapping Machine --Professional film packing machine with automatic cutter film system. This packaging machine has been used in various packaging areas widely. Packing cases: Partner with Coca Cola, Pepsi-Cola, Canon, LG, Panasonic etc.
Machine introduction
Pallet packaging machine is used to wrap stretch film around a loaded pallet. Stretch film provides protection while the products are being transported& stored. Stretch wrapper is widely used in chemical industry, electronic industry, home appliances, foodstuff etc.
Technology specification
|
Item |
Specification |
|
Wrapping size |
500-1400mm (L) *500-1400mm (W) |
|
Packaging height |
Max.2800mm (2400/1800mm available) |
|
Work efficiency |
20-40 loads/H |
|
Turntable speed |
0-12RPM (adjustable, soft start & stop) |
|
Bearing |
Max. 2000kgs |
|
Turntable size |
D=2000mm, H=78mm (Diameter 1650mm, 1800mm Available) |
|
Film carriage |
Driven pre-stretch carriage, move up and down on side of the tower |
|
Stretch ratio |
Up to 1:3.5 (1:1.5, 1:2.5 Available) |
|
Tower |
Double chain design. Lifting speed adjustable |
|
Control system |
PLC |
|
Weight |
600kgs |
|
Dimension |
2745mm*1650mm*2860mm |
|
Power |
Turntable 0.75kw; film carriage 0.35kw; tower: 0.37kw; 220V 50HZ 1Phase |
|
Remarks: Some parts of the machine can be exchanged according to customer requirements. Option I: Standard low profile ramp. Option II: Weight scale |
|
