Small Stainless Steel Ribbon Blender

Small Stainless Steel Ribbon Blender

3 year ago

27 0

JIANGYIN CITY XUAN TENG MACHINERY EQUIPMENT CO.,LTD

 3 year year

Product details

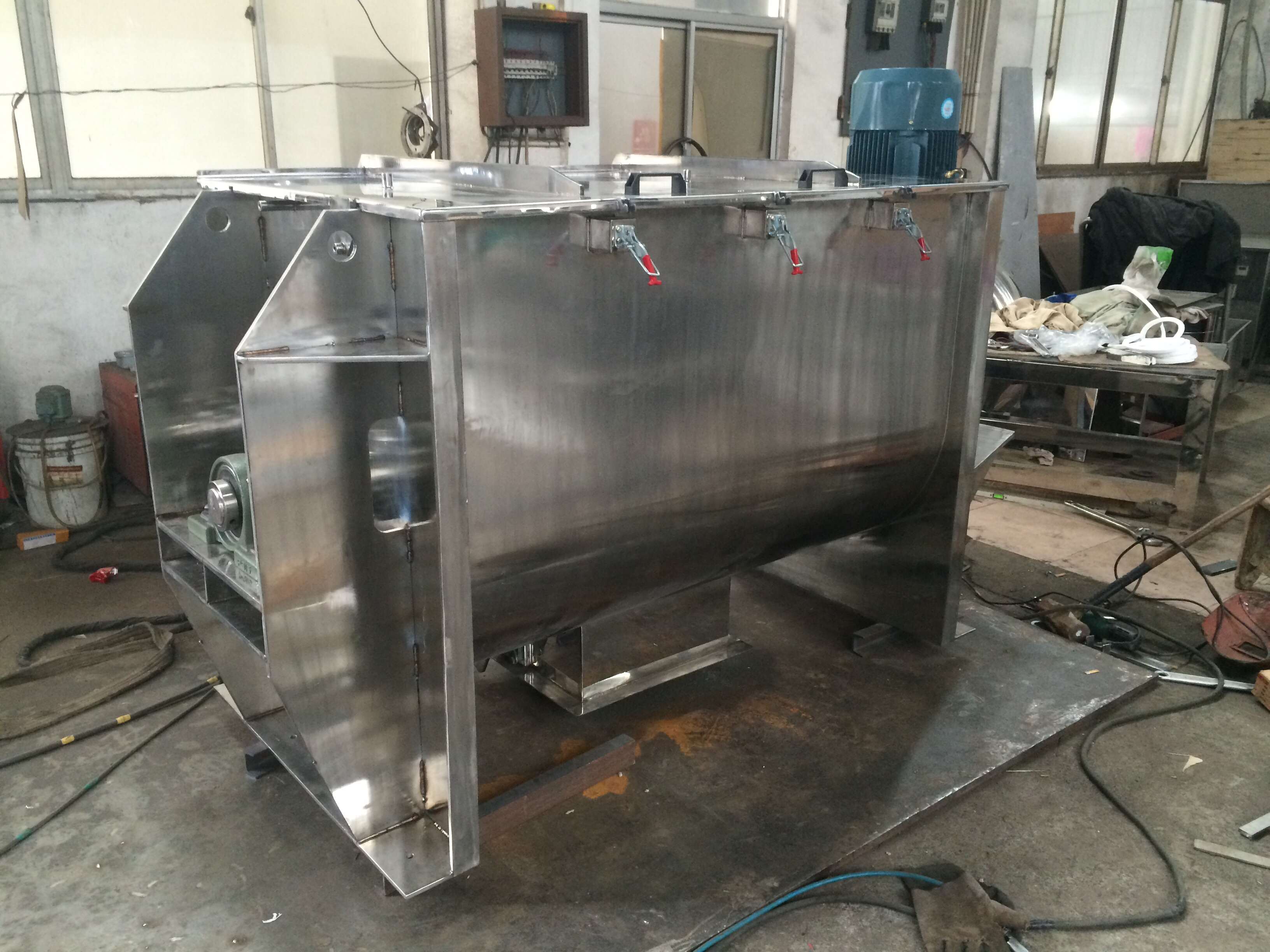

The horizontal ribbon mixer machine is made of stainless steel 304 or stainless steel 316 as required. The mixing machine is composed of U-shaped container, spiral band mixing blade and transmission parts.The outer spiral belt coiling form in the mixing container matches the rotation direction to push the materials from both ends to the middle, while the inner spiral belt pushes the materials from the middle to both ends, forming convection mixing, so that the materials can be mixed evenly in a relatively short time. The blending machine equipment can be applied to dry powder, particle, liquid and low viscosity slurry.

WLDH Horizontal Ribbon Blender

Main Application
WLDH Horizontal Ribbon Mixer is a pioneer product researched and a new high-efficiency mixer. It is widely used in the solid-solid (powder material) and solid-liquid (powder material & fluidity material) mixing in the field of chemical industry, pharmacy, foodstuff industry, etc.

Working Method
WLDH series mixer is mainly comprised of mixing barrel , spiral ribbon and driven parts. The spiral ribbon is made of two layers.That is, the inner ribbon makes the material move outwards, while the external ribbon makes the material move inwards which forms a good circulation of material. Ribbon moves so circumferentially that the mixer could achieve fine mixing efficiency in a very short time.

Model	Total volume (M3)	Loading coefficient	Power (KW)	Overall size (mm)	Weight (kg)
WLDH-0.1	0.1	0.4-0.8	3	1190×740×770	330
WLDH-0.3	0.3	0.4-0.8	4	2030×630×980	720
WLDH-0.5	0.5	0.4-0.8	7.5	2320×730×1130	980
WLDH-1	1	0.4-0.8	11	2800×920×1320	1700
WLDH-1.5	1.5	0.4-0.8	11	3180×1020×1550	1800
WLDH-2	2	0.4-0.8	15	3310×1120×1640	2100
WLDH-3	3	0.4-0.8	18.5	3750×1290×1820	3000
WLDH-4	4	0.4-0.8	22	4220×1400×1990	3980
WLDH-5	5	0.4-0.8	22	4220×1500×2100	4620
WLDH-6	6	0.4-0.8	30	4700×1610×2260	6180
WLDH-8	8	0.4-0.8	37	4420×2150×2470	8200
WLDH-10	10	0.4-0.8	45	5520×2960×2720	8920
WLDH-12	12	0.4-0.8	45	5720×3010×2840	9520
WLDH-15	15	0.4-0.8	55	5840×3540×2940	9950

mixer machine

mixer machine 001_08

V SHAPE MIXER 1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry. 2.V-shaped mixing container.A stirring stick can be added for mixing materials containing a small amount of water.

mixer machine

3D SWING MIXER 1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry.2.Three-dimensional swing mixing, the best mixing effect and the highest uniformity.

CH TROUGH SHAPE MIXER 1.Horizontal trough mixer, suitable for mixing powdery or pasty materials.2.By driving of mechanism of the mixer, the S stir paddle turns the target material to and fro to mix it evenly.

DOUBLE CONE MIXER 1.Suitable for mixing dry material powder in pharmaceutical, food and chemical industry. 2.Double cone mixing container.A stirringstick can be added for mixing materials containing a small amount of water.

mixer machine

Jiangyin Xuanteng machinery equipment Co.,ltd is located in the site of taihu lake with the economic prosperity and beautiful scenery,jiangyin city,jiangsu province,China. We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulator and drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery. The enterprise sticks to the business purpose of "to the quality of survival,to the efficiency of development".Being pioneers,creative and striving to improve product quality. P03 001 17

1. who are we?

We are based in Jiangsu, China, start from 2015,sell to Domestic Market(20.00%),Southeast Asia(12.00%),North

America(10.00%),Western Europe(10.00%),South America(8.00%),Central America(5.00%),Oceania(4.00%),Mid East(3.00%),SouthernEurope(3.00%),Northern Europe(2.00%),Eastern Europe(2.00%),Africa(1.00%),South Asia(1.00%),Eastern Asia(1.00%). There are total about 5-10 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment;

3.what can you buy from us?
Pulverizer,Mixer,Sifting machine,Granulator,Drier

4. why should you buy from us not from other suppliers?

We specializes in producing pharmaceutical machinery,food machinery ,chemical machinery .Like pulverizer,sifter,mixer,granulatorand drier machine. We are a professional manufacturing factory with research,development and sales of medicine machinery.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DDU,Express Delivery；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese
