Application and characteristics
1. This mixer machine is widely used in pharmaceutical, chemical, food and other industries, used for mixing powder or wet materials, so that different proportions of materials mixed evenly.
2. The contact between the blending machine and the material is made of stainless steel, the clearance between the blade and the barrel is small, and the mixing has no dead Angle.
3. The sealing device is installed at both ends of the stirring shaft and the tank body to prevent material leakage.
4. Unidirectional spherical thrust bearings and radial thrust bearings are installed at both ends of the stirring transmission shaft, which can effectively prevent the radial channeling caused by the load in the stirring process.
5. The mixing machine has the characteristics of compact structure, simple operation, beautiful appearance, small footprint, convenient cleaning, good mixing effect, and can be set time control. Comply with GMP requirements.

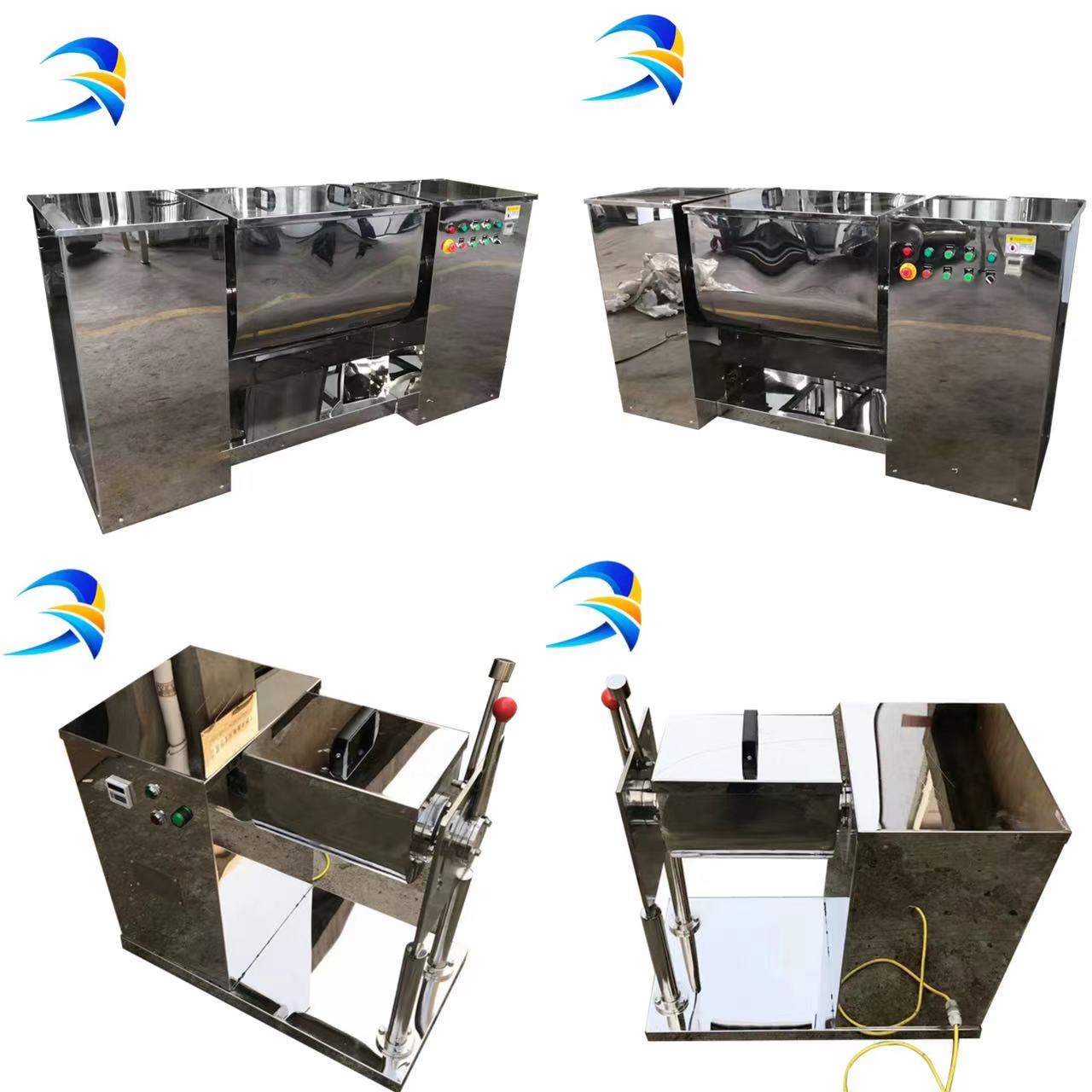

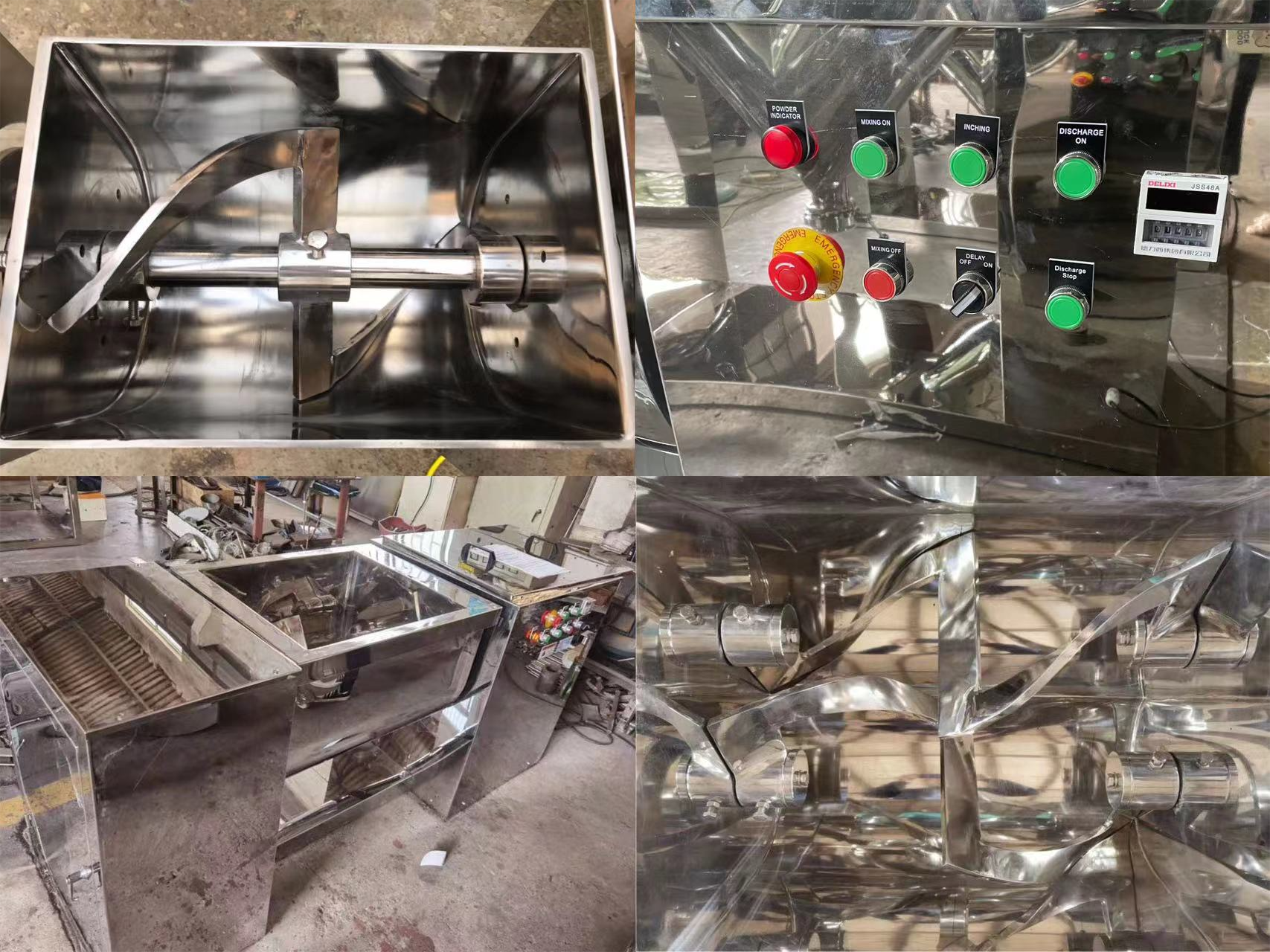

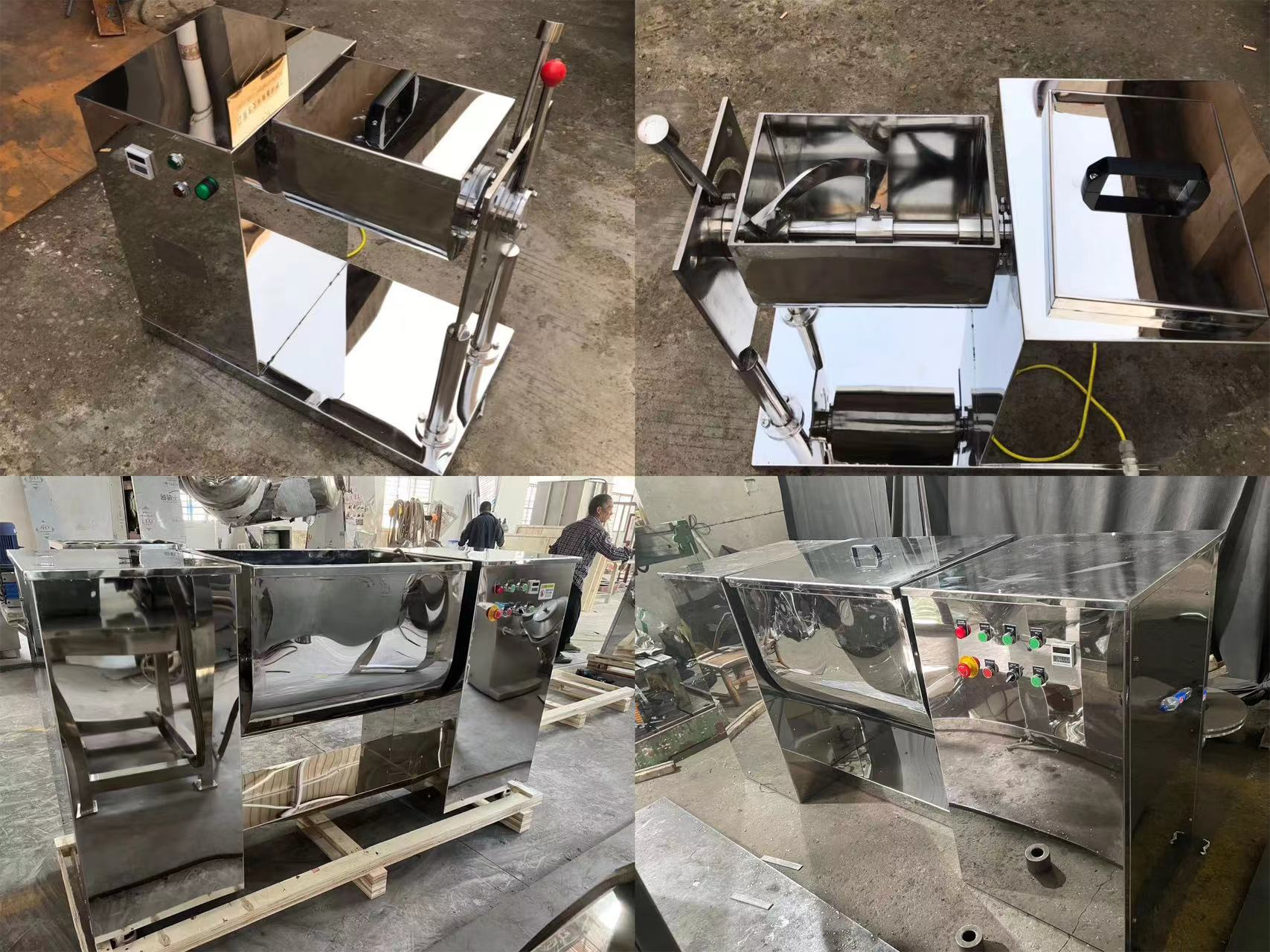

PRODUCT DISPLAY
|
Model
|
CH-5
|
CH-10
|
CH-20
|
|
Volume(L)
|
5
|
10
|
20
|
|
Mixing speed(r/min)
|
24
|
24
|
24
|
|
Inclined angle(° )
|
105
|
105
|
105
|
|
Mixing motor(KW)
|
0.2
|
0.25
|
0.37
|
|
Dumping motor
|
Manval
|
Manval
|
Manval
|
|
Over size (mm)
|
500*200*400
|
570*230*420
|
680*380*550
|
|
Weight(kg)
|
40
|
45
|
65
|
|
MODEL
|
CH-50
|
CH-100
|
CH-150
|
CH-200
|
CH-300
|
|
Paddle shape
|
S double paddle
|
S single paddle
|
S single paddle
|
S single paddle
|
S single paddle
|
|
Working volume (L)
|
100
|
100
|
150
|
200
|
300
|
|
Mixing speed (r/min)
|
24
|
24
|
24
|
24
|
24
|
|
Stir angle ( ° )
|
< 105
|
< 105
|
< 105
|
< 105
|
< 105
|
|
Mixing power (KW)
|
2.2
|
2.2
|
3
|
4
|
5.5
|
|
Dumping power (KW)
|
0.55
|
0.55
|
0.55
|
0.75
|
1.1
|
|
Weight (kg)
|
350
|
350
|
410
|
450
|
520
|
|
Overall size L× W× H (mm)
|
1400× 580 × 1000
|
1400× 580 × 1000
|
1600× 600 × 1150
|
1700× 650 × 1200
|
1800× 700 × 1250
|
