Medicine Tablet Drying Oven
1. Company Introduce:
From dryer, mixer to granulator, from unit machine to production line, we have them all. Erbang Drying is a professional manufacturer of industrial drying machine, mixing machine and granulating machine. Our flagship products include the hot air dryer, vibration fluid bed dryer, belt dryer, vacuum dryer, one dimensional mixer, two dimensional mixer, three dimensional mixer, and high speed granulator and so on. These high-performance machines have extensive applications within industries such as food, medicine and chemical. Sustained development and a strong emphasis on research and technology have bolstered our quality standards. we seek to achieve the highest level of customer satisfaction through professionally developed drying ,mixing and granulating solutions. Erbang Drying constant faith is providing perfect products to customer , excellenting service to customer !
2. Medicine Table Dryer Features:
Medicine Tablet Drier features is low noise and stable operation, with automatically controlled temperature. The applied fields are wide and can be suitable for all kinds of raw materials. It is a comprehensive.
3. Medicine Tablet Oven Brief Introduction:

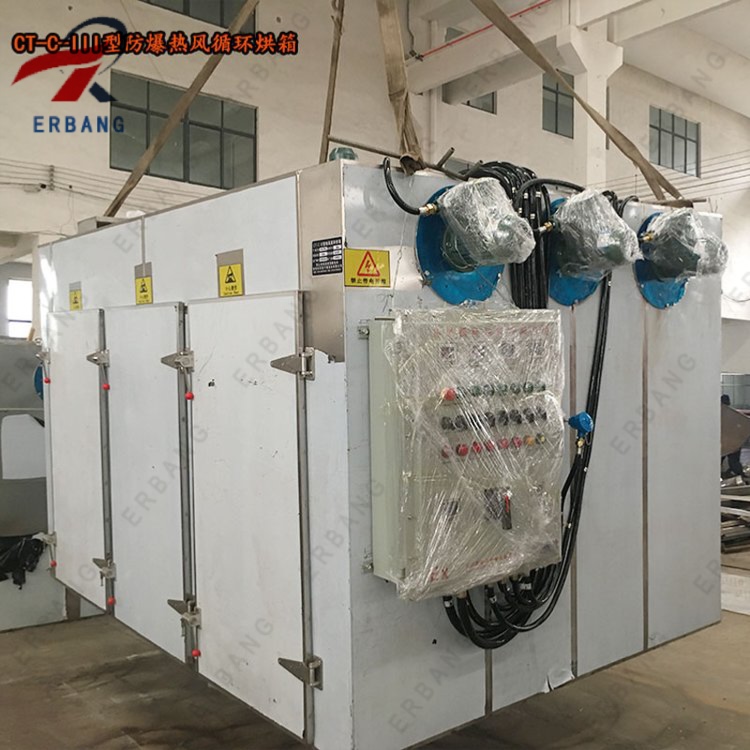

CT-C series Medicine Tablet Circle Drying Oven is equipped with low noise axial flow fan and automatic temperature control system.
The circle system is fully sealed, making the hot efficiency increased from 3-7% of traditional oven to 35-45%, even up to the maximum hot efficiency of 70%. The successful design of Medicine Tablet Drying Machine makes the Medicine Tablet Drying Equipment catch up the advanced level both at home and abroad.
4. Medicine Tablet Hot Air Oven Description:
Most of hot air is circled inside the dry oven, thus rendering hot efficiency very high and saving energy source. It is applied to intensify ventilation and equipped in the adjustable air distributing plate inside the dry oven. And Medicine Tablet Drying Machinery can use dried raw material and heat source, involving steam, hot water, electricity or far infrared.
Advantage
1. Most hot air is circulated in the oven. The heat efficiency is high and the energy is saved. By using the forced ventilating function, there are adjustable air distribution plates inside the oven, the materials can be dried uniformly.
2. The heating source might be steam, hot water, electricity and far infrared, with a wide selection.
3. The whole machine is low in the noise. The operation is in balance.
4. The temperature is controlled automatically. The installation and maintenance are easy. The application is wide.
5. The machine can be used for drying various materials.
Main Technical Parameter:
| Industry standard | Specification standard | Drying weight per batch (Kg) | Power (Kw) | Steam consumption (Kg/h) | Evaporation area (m2) | Air capacity (m3 /h) | Temperature error | Baking plate | Overall dimension (LxWxH) mm | Baking cart (set) |
| RXH-7-D | CT-C-O | 60 | 0.75 | 12 | 7.1 | 3450 | ±2 | 24 | 1400×1200×2000 | 1 |
| RXH-14-D | CT-C-I | 120 | 0.75 | 18 | 14.1 | 3450 | ±2 | 48 | 2300×1200×2000 | 2 |
| RXH-27-D | CT-C-II | 240 | 0.75x2 | 36 | 28.3 | 6900 | ±2 | 96 | 3300×2200×2000 | 4 |
| RXH-41-D | CT-C-III | 360 | 0.75x3 | 60 | 42.4 | 10350 | ±2 | 144 | 3550×2200×2000 | 6 |
| RXH-54-D | CT-C-IV | 480 | 0.75x4 | 80 | 56.5 | 13800 | ±2 | 192 | 4460×1000×2290 | 8 |
|
Mark |
It also design and manufacture base customer require. Welcome to contact us! | |||||||||
