Metal Powder Special Drying Machine

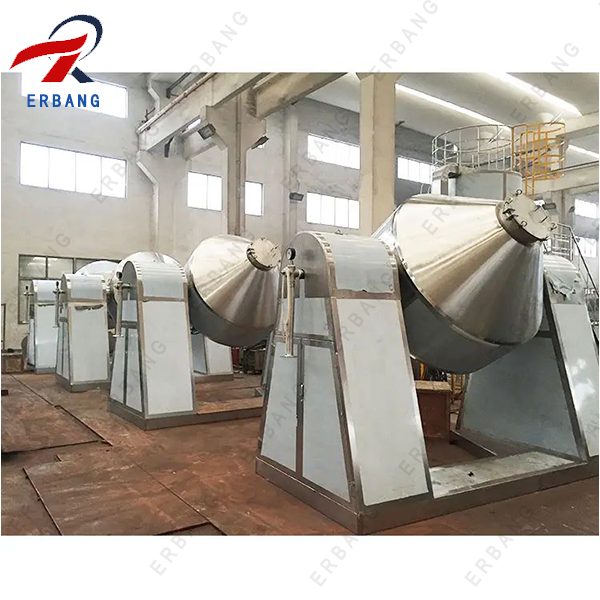

Erbang professional design and manufacture the Metal Powder Special Drying Machine. SZG double cone rotary vacuum drying machine (Ferrous Powder Dryer,Copper Powder Dryer,Lead Powder Dryer) for double cone of rotary tanks, tank in vacuum condition, to clip set inside the steam and hot water the heat,Heat through the wall and wet material contact. Wet materials after the evaporation heat absorption water vapor. Through the vacuum pump are pumping away after vacuum exhaust pipes. Because in a vacuum tank state, and make the material of the turn up continuously, turning inside and outside, so the speed up the drying speed material, improve the efficiency of dry, to reach even the purpose of dry.
Metal Powder Special Drying Machine Application
This Iron Powder Drying Machine can be widely used for drying or mixing powder or granule materials in pharmaceutical, chemical, foodstuff industries etc.
1.Themal sensitive raw materials that cannot be dried at high temperature.
2.Raw materials that is easy to oxidize and dangerous.
3.Raw materials that solvent and toxic gases are needed to recover.
4.Raw materials that have special requirement for crystal shape.
5. Raw materials that have special requirement for the content of residual colatile.
Main Technical Parameter:
| Type of the vacuum dryer | SZG-0.1 | SZG-0.3 | SZG-0.5 | SZG-1 | SZG-2 | SZG-3 | SZG-4 | SZG-5 |
| Volume(L) | 100 | 300 | 500 | 1000 | 2000 | 3000 | 4000 | 5000 |
| Material feed factor | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 | 0.4-0.6 |
| Max material feed weight(kg) | 50 | 120 | 200 | 400 | 800 | 1200 | 1600 | 2000 |
| Vacuum of the drying machine | Dg50 | Dg50 | Dg50 | Dg50 | Dg70 | Dg100 | Dg100 | Dg100 |
| Condensed water in the machine | G3/4" | G3/4" | G3/4 | G1" | G1" | G1" | G1 1/2" | G1 1/2" |
| Motor power(kw) for drying | 1.1 | 1.5 | 2.2 | 3 | 5.5 | 7.5 | 11 | 15 |
| Total weight(kg) | 650 | 1200 | 1450 | 2800 | 3580 | 5950 | 6450 | 7300 |
