Product details

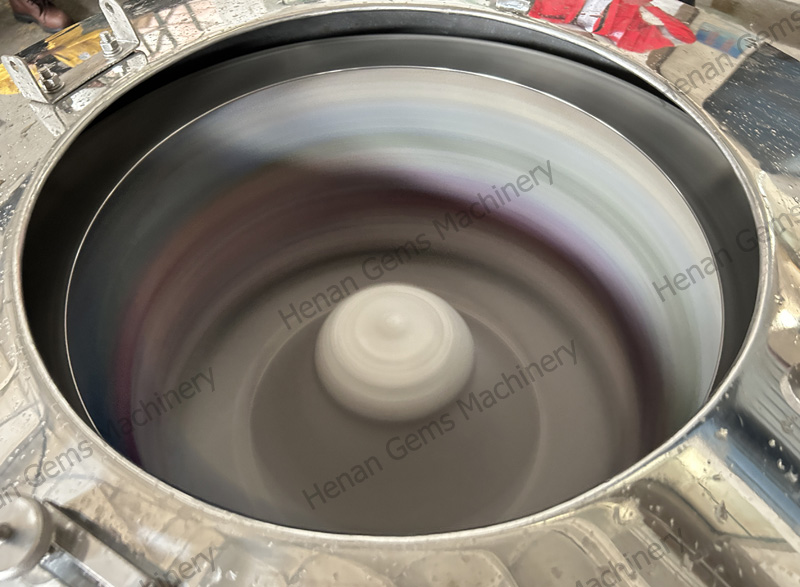

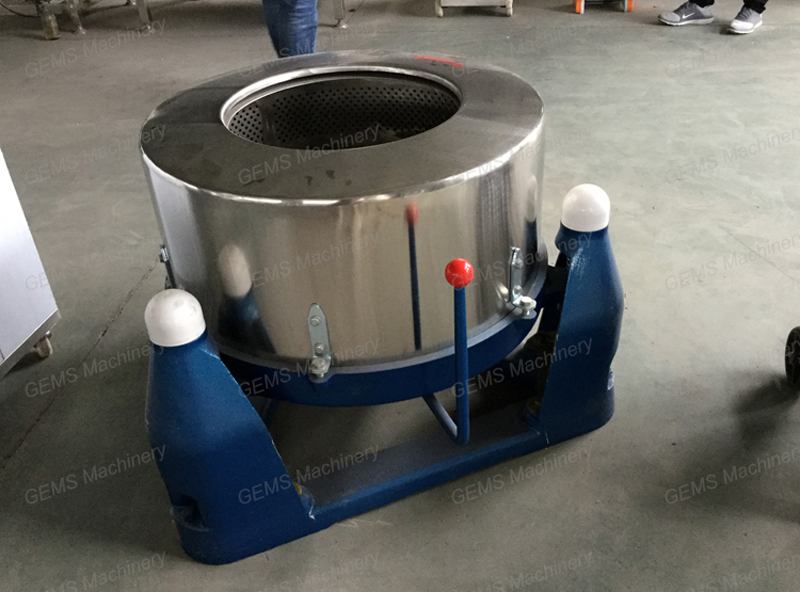

Our centrifuge machine is composed of triangular chassis, cast feet, round chassis, rotating drum, shell, motor and so on. The drum and shell are made of high-quality stainless steel. Driven by triangle belt, frequency conversion control motor drives the starting wheel to make the machine start slowly and reach the designed speed to ensure the smooth operation of the machine. There is a braking device in the machine with good braking performance, which can stop the machine in a short time.
The control part adopts imported frequency conversion speed control. Equipped with reasonable cloth in and out device with large capacity, low energy consumption and perfect anti-vibration, timing, automatic and safety control system.
The transmission part adopts triangular belt transmission, and the motor directly drives the centrifugal starting wheel, which can make the machine start slowly and gradually reach the design speed to ensure the smooth operation of the machine.
There is a brake opening and closing arm in the machine, which has good braking performance and can quickly stop the machine.
Technical Parameters:

Model Volume Load Capacity Rotation Power Dimenison Weight
GMS-LX300 8L 10kg 819rpm 0.75kw 800*620*500mm 130kg
GMS-LX450 20L 25kg 725rpm 1.5kw 980*720*630mm 200kg
GMS-LX800 98L 120kg 1200rpm 5.5kw 1740*1380*1000mm 1300kg
GMS-LX1000 140L 150kg 1000rpm 7.5kw 1950*1560*1050mm 1500kg
GMS-LX1200 200L 200kg 800rpm 11kw 2370*1600*1000mm 2030kg
centrifuge6dewatering machine 11

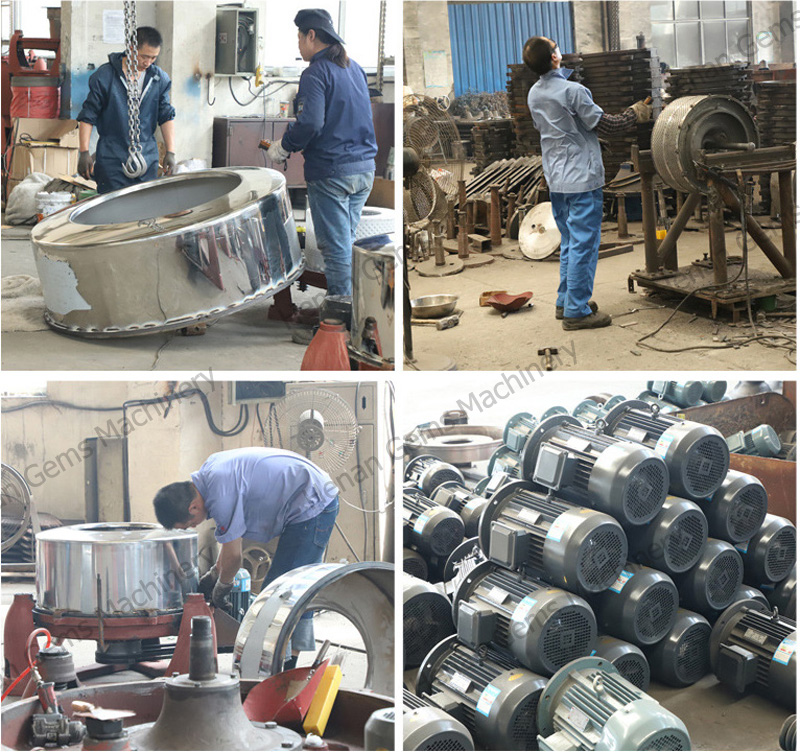

Warehouse:
dewatering machine 12
What is more, we also have the fruit vegetable washing machine,fruit vegetable crusher, fruit vegetable juice extrator and hydraulic press machine and filling machine to make fruits juice. For more details, please contact me:
