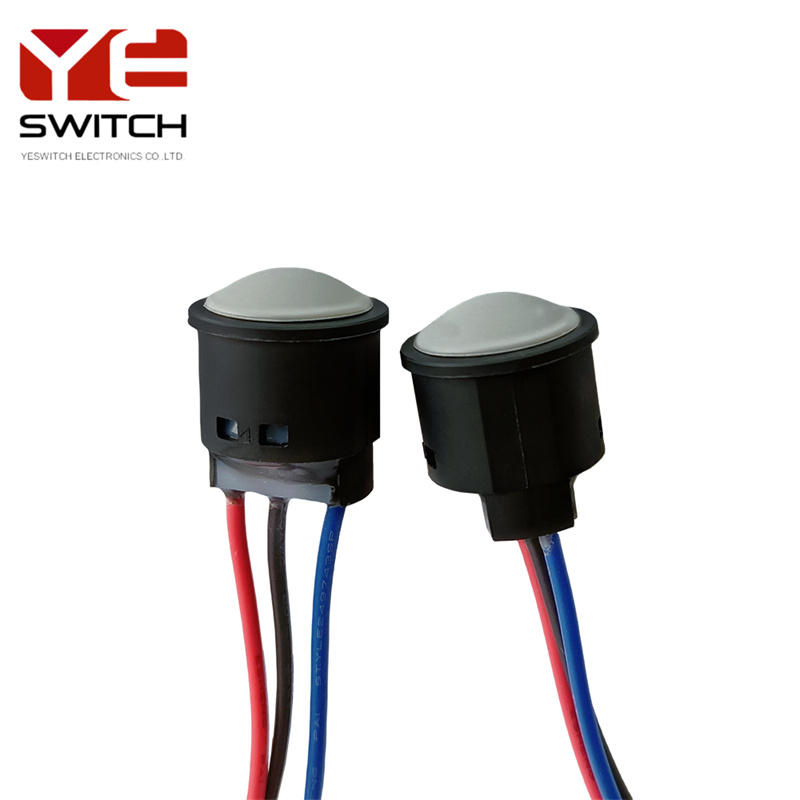

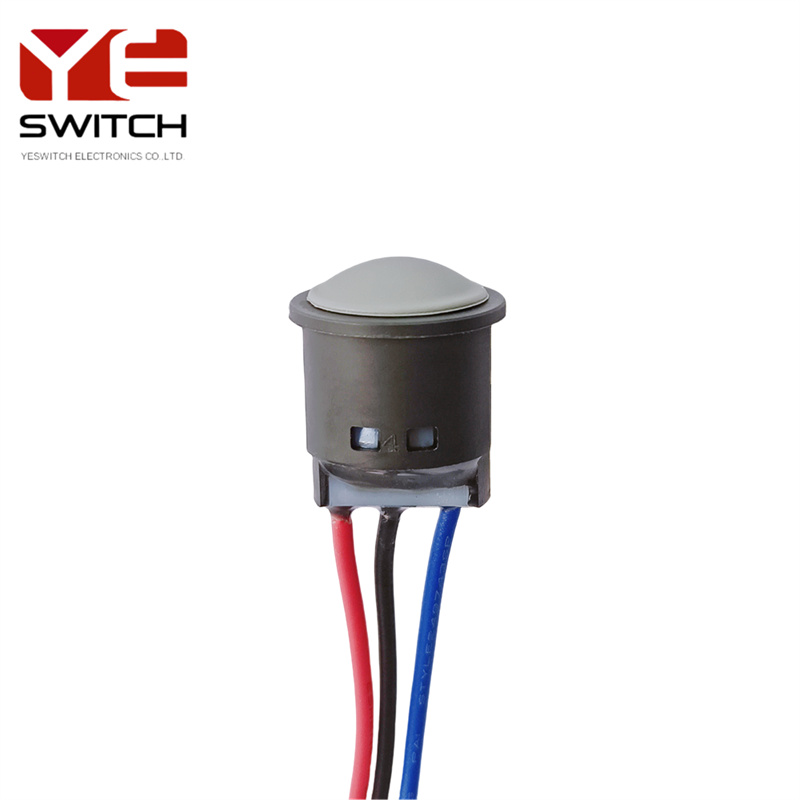

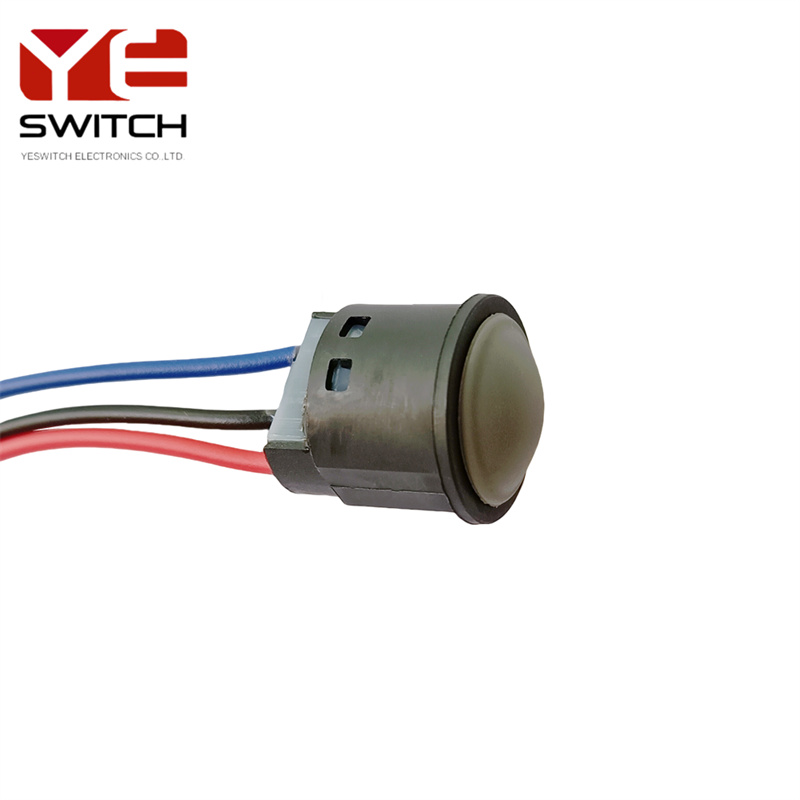

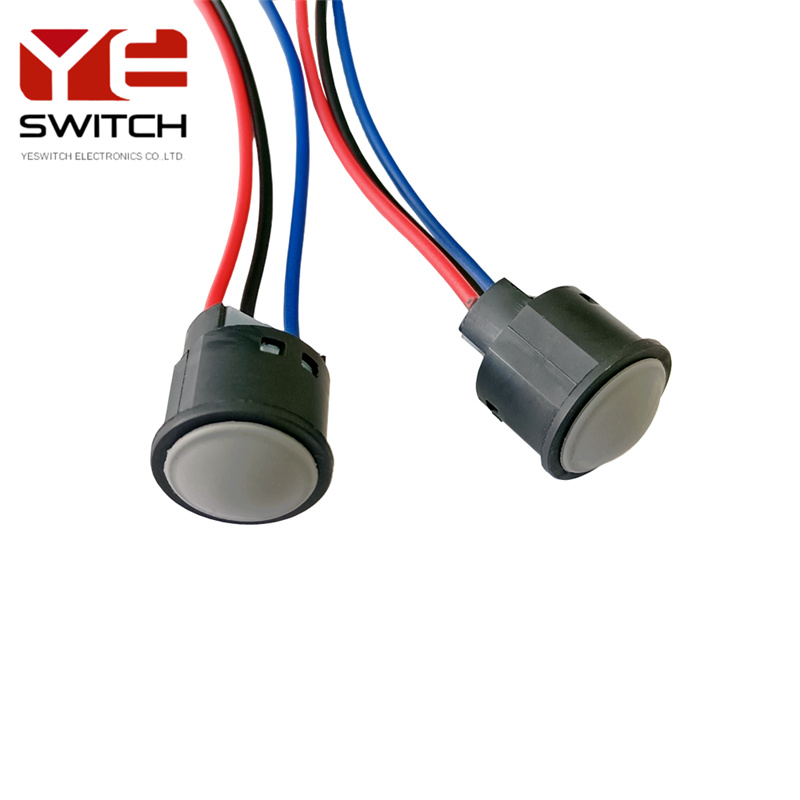

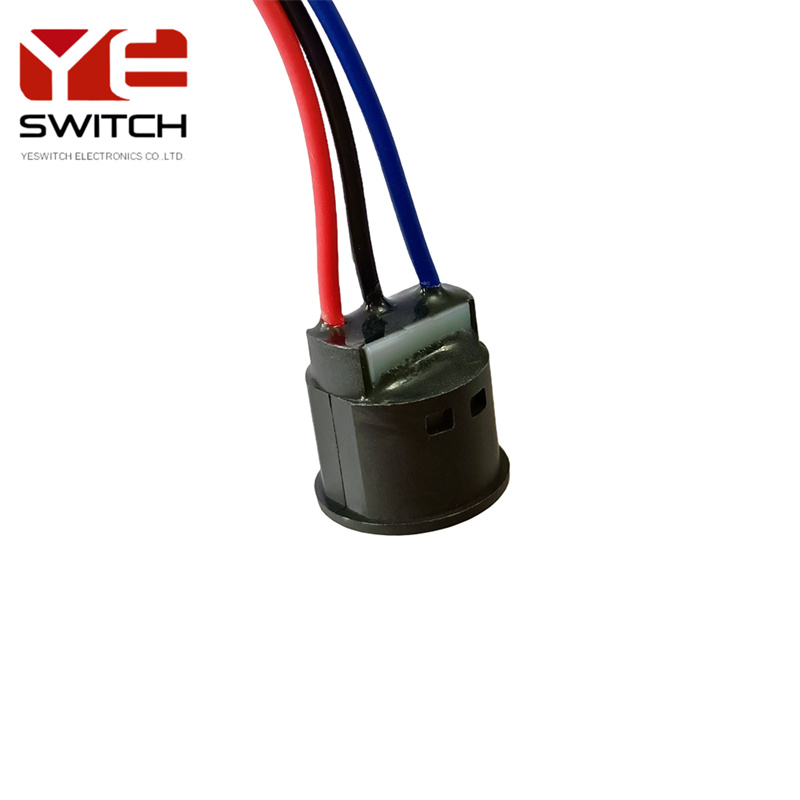

17mm IP68 3A Waterproof Momentary Push button Switches

The 17mm miniature waterproof push button switches, with a 3A current carrying capacity, micro momentary function, and an IP68 high-level waterproof rating, makes it highly suitable for harsh environments and applications requiring high reliability, such as construction vehicles, agricultural machinery, and handheld devices.

Compact Size (17mm):

The compact design allows this momentary push button switch to be easily installed in devices with limited space, without compromising overall layout and aesthetics.

3A Current Carrying Capacity:

A sufficiently high current carrying capacity means this waterproof push button switch can drive larger loads.

Micro-Action momentary Function:

The waterproof push button switch requires minimal force to activate, providing a light and easy operation; the tactile reset feature ensures the switch quickly returns to its initial state after being pressed, making it suitable for frequent operation scenarios.

IP68 Waterproof Rating:

This is currently the highest level of waterproof and dustproof rating, meaning the push button switch can withstand long-term submersion in water without being affected (within certain depth and pressure limits), making it ideal for outdoor, wet, or underwater working environments.

Application Scenarios

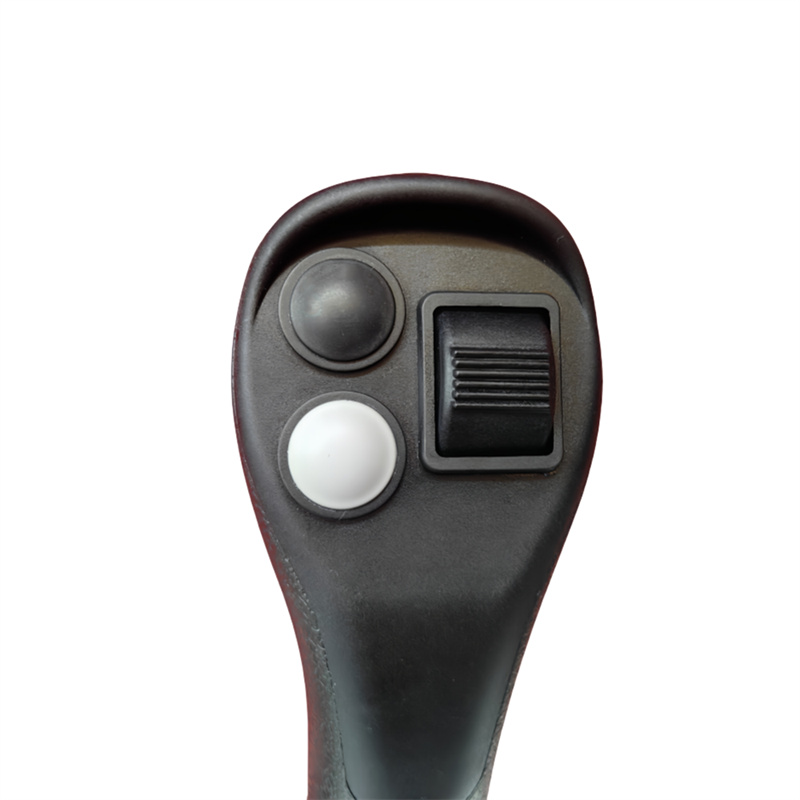

Construction Vehicles:

In construction vehicles such as excavators, loaders, and rollers, this switch can be used to control various lights, indicators, alarm devices, or small actuators, ensuring stable operation in harsh outdoor environments.

Agricultural Machinery:

In agricultural machinery such as tractors, harvesters, and seeders, this switch can be used to control start, stop, mode switching, and other critical operations, while withstanding the mud and wet conditions of farmland.

Handheld Devices:

In handheld devices such as radios, scanners, and detection instruments, this switch can be used to trigger measurements, recordings, signal transmissions, and other operations, while ensuring performance stability in rainy or damp environments.

SPECIFICATIONS

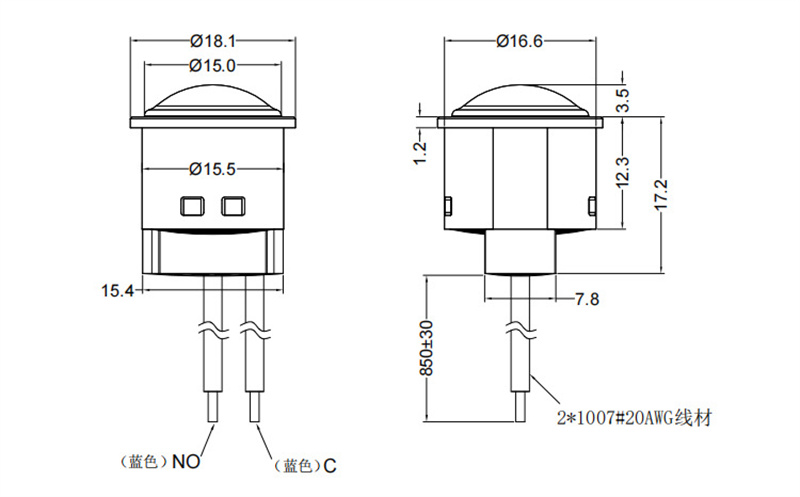

PB-17M Series
Panel Thickness: Ø17mm
Function:(ON)-OFF Momentary
Rating (Resistive load):3A 125V (AC) 3A 24V (DC)
Electrical life:25,000 cycles 200,000 cycles (0.2A 125V)
Mechanical life:1,000,000 cycles
Operating Pressure:700±100gf
Operating Stroke:0.6±0.2mm
Contact Resistance:50m ohm Max
Insulation Resistance:100M ohm Min
Dielectric Strength:1500VAC 1 minute
Operating Temperature:-20~80 Degrees
Relative Air Humidity:20%~85%
Protection Grade:TUV/IP68

MATERIAL

Base:PA66
Shell:PA66,black
Button:Silica Gel
