Subsoiler & Rotavator Combined Machine

4 month ago

0 0

Shandong Dahua Machinery Co.,Ltd

 7 year year

Product details

The Agrodahua Combined Machine of Subsoiler and Rotavator has a working width of 250 cm. It can be matched with tractors of 125 - 150 horsepower. The total weight of the whole machine is 1760 kg. The front-mounted equipment is the Subsoiler Pangolin 250 series, which is equipped with 6 small subsoiling shovels and can reach a tilling depth of 25 - 35 cm. The rear-mounted land preparation device is paired with the Rotary Tiller Hornbill 250 series, with a tilling depth of 8 - 18 cm. The soil covering and compaction device is equipped with a spike-tooth compaction roller. It can complete multiple operations such as stubble removal, rotary tilling, subsoiling, ridging and compaction in one pass, which greatly improves the working efficiency, reduces the number of times the tractor enters the field for operation, decreases the soil compaction, is beneficial to protecting the soil structure and maintaining the soil fertility, saves time and energy, and reduces the agricultural production cost.

3 point Subsoiler & Rotavator Combined Machine

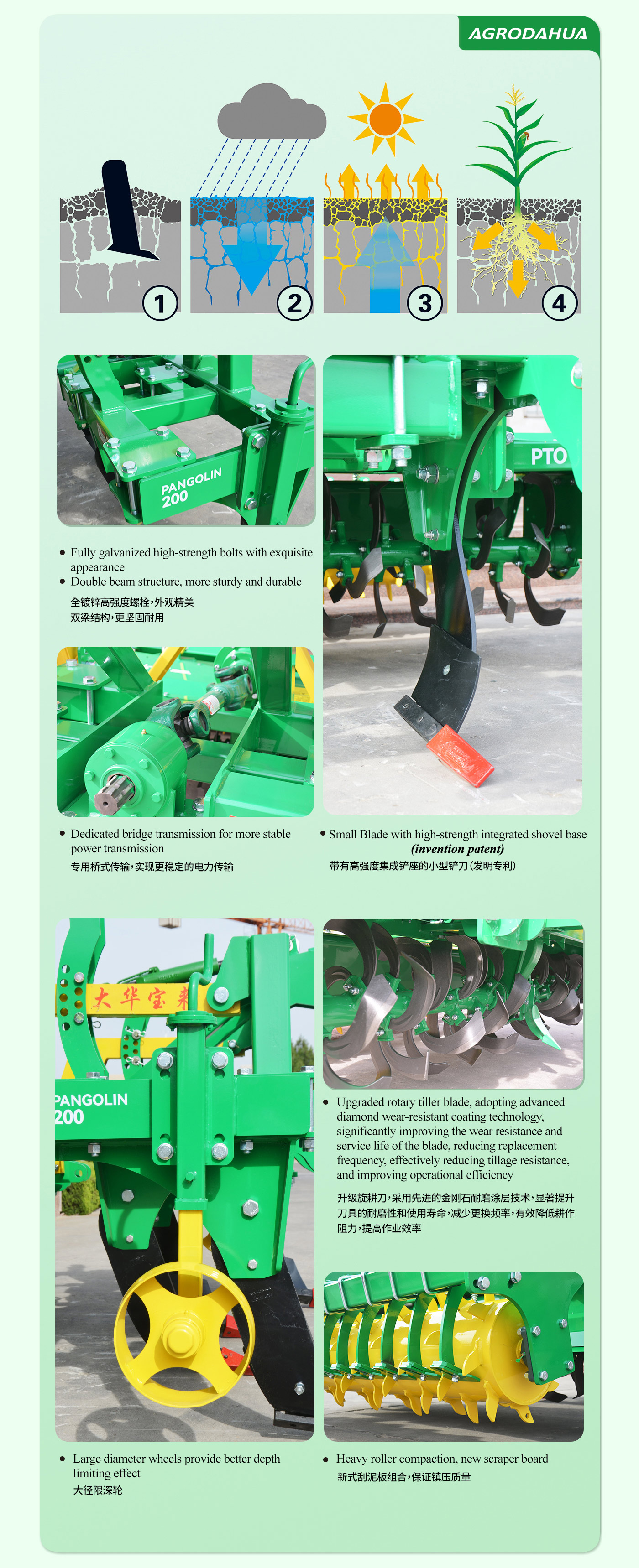

The Agrodahua Subsoiler & Rotavator Combined Machine is composed of a front subsoiler and a rear cultivator. The subsoiling shovel adopts a special curved-surface inverted trapezoidal design. During operation, it doesn't disrupt the soil layers or turn over the soil, achieving all-round subsoiling and forming "mouse channels" that run through the operation rows. It is applicable to the transformation of various types of medium and low-yield farmlands. The rear cultivator can carry out operations such as rotary tilling and leveling on the subsoiled soil, making the surface of the land flat and the soil loose, meeting the requirements of the seedbed. With just one operation, the two main processes of subsoiling and land preparation can be completed, reducing the farming costs for farmers.

Technical Specificaions			Subsoiler & Rotavator Combined Machine
Model		单位 Unit	DH-200PH	DH-230PH	DH-250PH	DH-250PH	DH-270PH	DH-300PH	DH-350PH	DH-420PH
Matching Power		kw	81.0~99.3	92~110.3	92~110.3	92~110.3	102.9~121.3	106.58~121.3	132.3~191.1	154.4~191.1
Total Width (W)		mm	2500	3040	3240	3240	3100	3840	3100	3100
Total Lenght (L)		mm	2850	2850	2850	2850	2850	2950	4400	5030
Total Height (H)		mm	1410	1430	1430	1430	1425	1530	1500	1515
Working Width		cm	200	230	250	250	270	300	350	420
Weight		kg	1460	1580	1680	1760	1900	2100	2250	2400
Structure type of subsoiling shovel		/	curved surface	curved surface	curved surface	curved surface	curved surface	curved surface	curved surface	curved surface
Shovel number		pcs	4	4	4	6	6	6	6	8
spacing		cm	55	60~65	55~60	45~50	45~50	52	55~70	55~60
Subsoiling depth	Small shovel	cm	25~35	25~35	25~35	25~35	25~35	25~35	—	—
	Middle shovel	cm	25~45	25~45	25~45	25~45	25~45	25~45	25~45	—
	Big shovel	cm	25~50	25~50	25~50	25~50	25~50	25~50	25~50	25~50
Ground preparation depth		cm	8~18	8~18	8~18	8~18	8~18	8~18	8~18	8~18
Operation efficiency		hm2/h	1~1.4	1.1~1.6	1.3~1.8	1.3~1.8	1.3~1.9	1.5~2.1	1.8~2.5	2.1~3

Delivery of the combined subsoiling and land preparation machine.
