S&S electronic jacquard machines are to utilize automatic controls to replace mechanical type jacquard weave machine. They simplify the process of manufacturing textiles with complex patterns. Our jacquard machines have advanced electric—Intelligence control system, embedded jacquard control panel, Multiloop control and CRC checkout ensure the data is accurate and correct. This series of electronic jacquard controller use industrial dedicated single chip is highly reliable and durable. The anti-interference ability of dedicated data link transmission and differential transmission is better. According to the configuration of user, connect and upgrade with the long-range control of Ethernet and Internet available.The SEJ249S series jacquard textile machines adopt Crank direct drive + chain drive, the main driving parts are all standard parts, the chain transmission efficiency is up to 96%, the enhanced self-lubricating chain bearing capacity and life is more than 5 times of the ordinary chain. The structure of S&S SEJ249S series electronic jacquard weaving looms are high efficiency, the concise shedding mechanism, simple shedding structure and minimal number of parts are convenient for adjustment, maintenance and repair, and the cost of maintenance and repair is low. The driven mechanism of our SEJ249S series digital jacquard looms have features of high speed, low torque, hollow core operating components, light inertia, more suitable for heavy-duty, high-speed heavy pattern weaving. The SEJ249S-10368 digital jacquard machine is suitable to make large and heavy patterns fabric and is applicable to various weaving looms, such as rapier loom , air jet loom, water jet loom, shuttle loom, projectile loom.
Applicable to：
Rapier loom, air jet loom, water jet loom, shuttle loom, projectile loom with any reed width.
Weaving Products:
Label, tie, upholstery fabric, curtain fabric, shading fabric, sofa cloth, bedding cloth, towel, carpet, velvet, dress fabric, saree fabric, silk fabric, lining fabric etc.
Hooks:10368
Shed Opening: 55-120mm
Max Speed: 550 rpm
Advantageous Features：

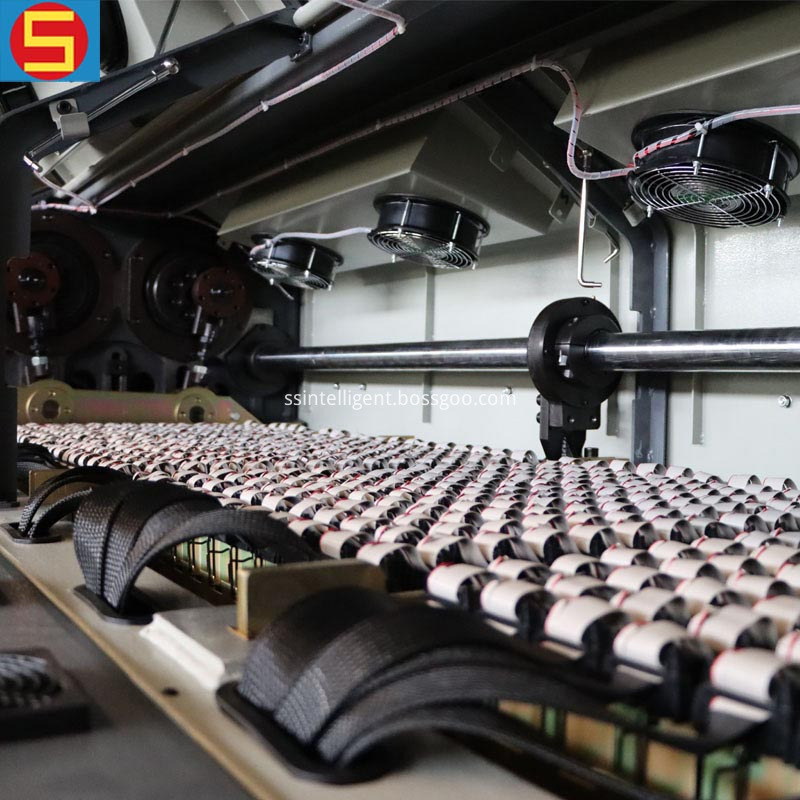

1. The low power axial-flow fans ensure stable working condition to electronic system.
Sealed fuselage, optimized filtration and ventilation system can effectively prevent flying flowers into the system.
2. Hollow type of core parts with light inertia, high speed and low torque are more suitable for making large and heavy design fabrics.

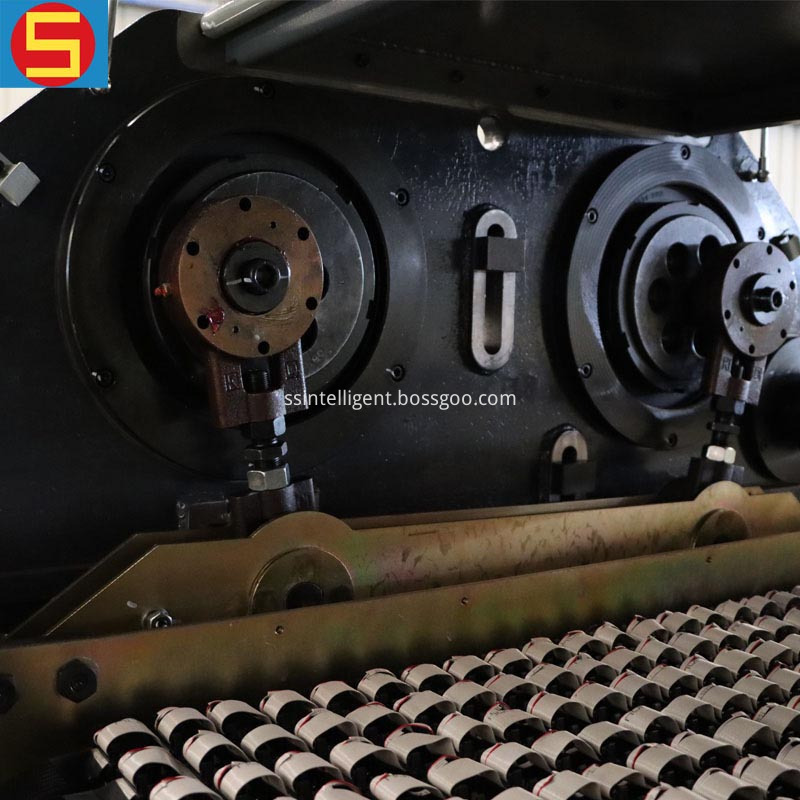

3. All main driving components of digital jacquard
machine are standard parts. The transmission efficiency of chain is as high as 96%. The bearing capacity and service life of enforced self-lubricating chain of jacquard weaving loom is 5 times than that of ordinary chain. The casting wallboard has a good mechanical properly. It helps to decrease the vibration and reduce the noise.
4.The core hook components of the jacquard loom machine use sealed and low-power consumption electromagnet. It saves energy and has high efficiency. All digital jacquard looms adopt high quality harness which have extreme wear-resistance and corrosion resistance. There are two types of pulley you could choose to use in the hook component. One is pulley with bearing, another is pulley without bearing. The bearing capacity of pulley with bearing is better and it is more suitable for high-speed weaving.
5. The maintenance of the electronic jacquard weaving loom is very easy because it has the most concise shedding mechanism and the fewest parts. The maintenance cost is also much lowered.

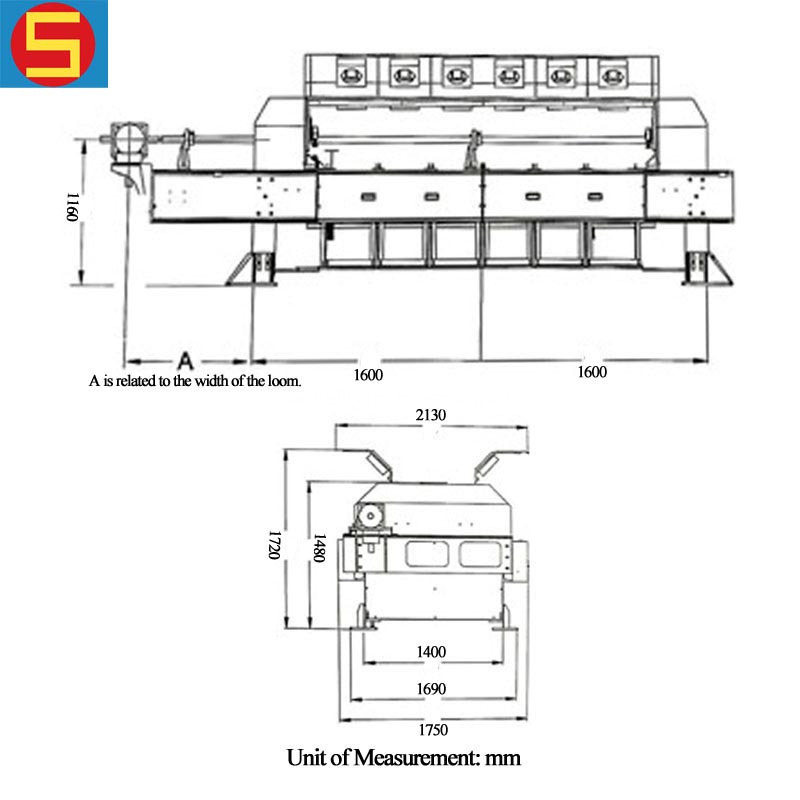

Size Parameter：
