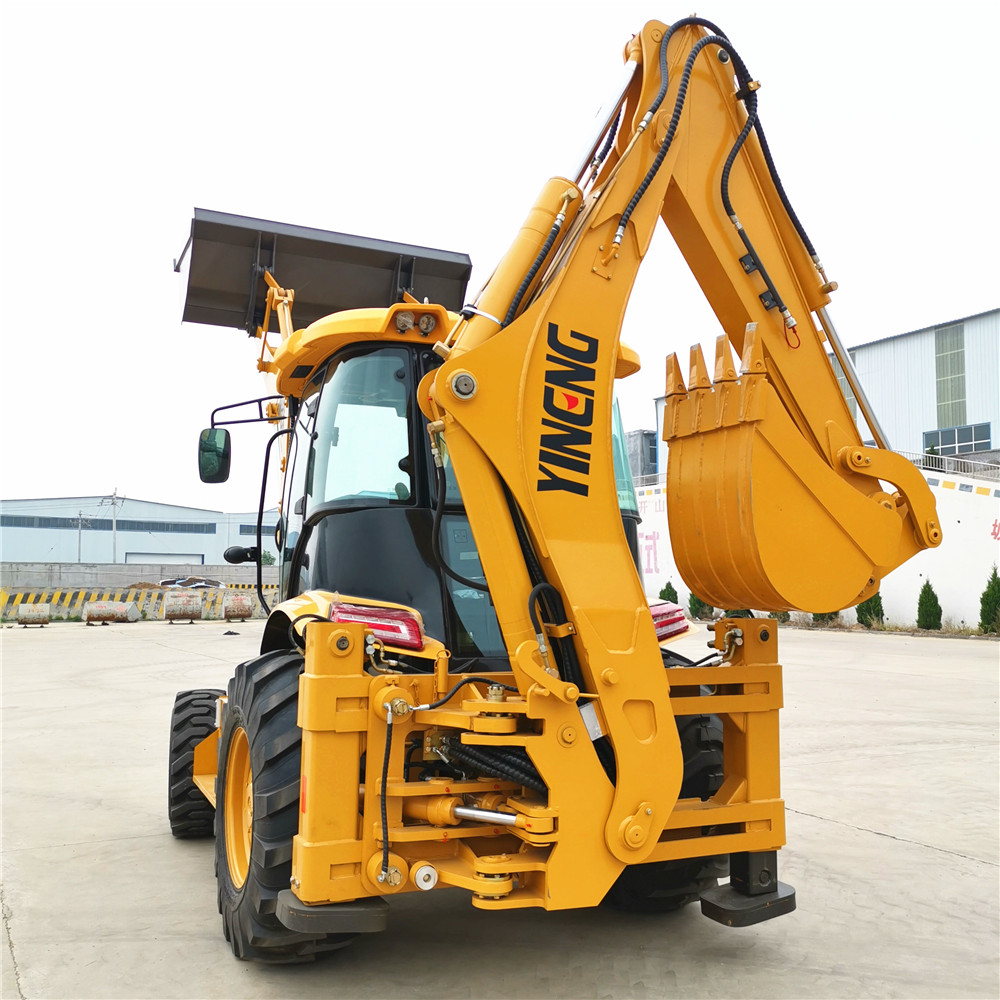

YN886 Front End Excavator Backhoe Loader Description:
1、 hydraulic walking, excavator boom to achieve translation, expanding the scope of excavation.
2、fully equipped with all the functions of small excavators and loaders.
3、superior machine performance, with extraordinary work efficiency.
4、can be equipped with a variety of options to meet the requirements of different users.

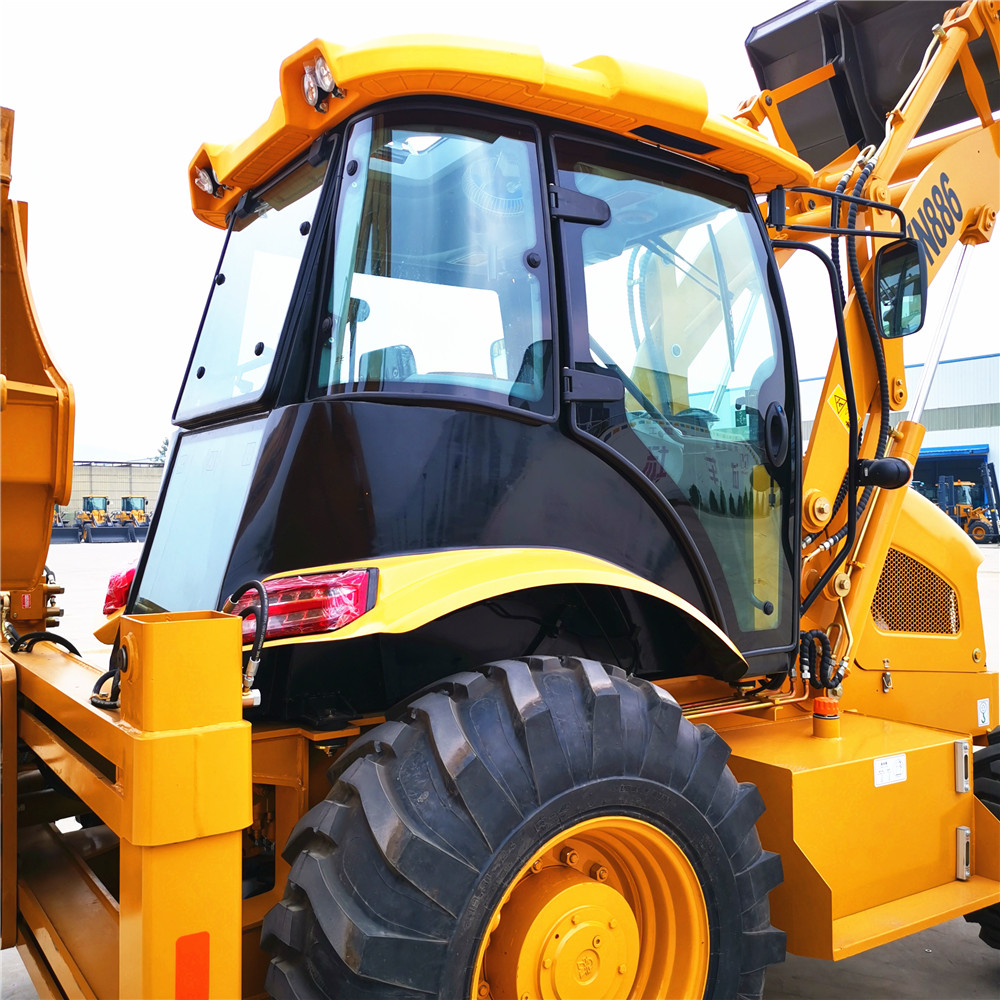

5、Increase the cab, arc safety glass, spacious and bright.
6、workbench: water temperature, oil temperature, current, at a glance.
7、the use of brand-name hydraulic parts, dual pump confluence, strong power; mining, loading to achieve hydraulic power mutual supply.

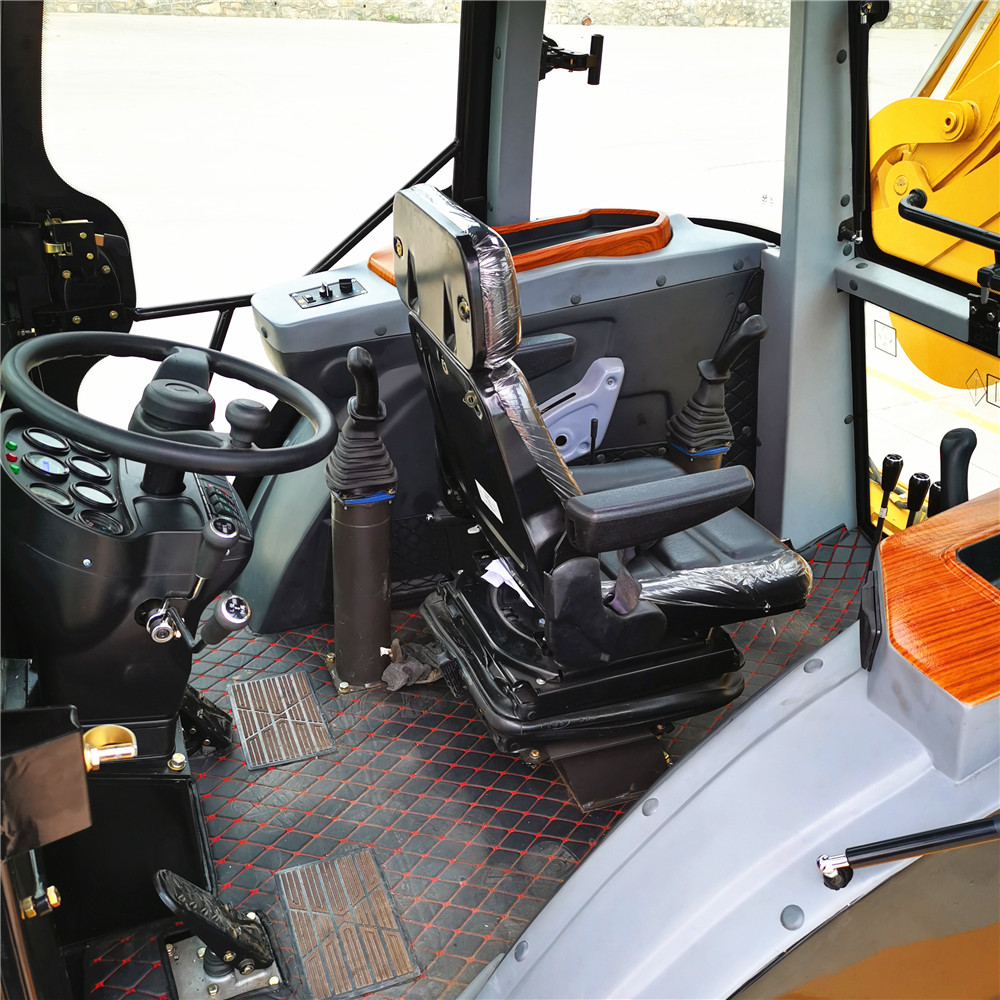

8、 adjustable seat, easy to use and comfortable.
9、 articulated front and rear frame, small turning radius, hydraulic steering, easy and convenient operation.
|
Overall Dimension |
|
|
Length * Width * Height |
7070*2300 * 3769(mm) |
|
Cab roof height |
2900(mm) |
|
Wheel base |
2250(mm) |
|
Track |
1640(mm) |
|
Min. ground clearance |
300(mm) |
|
Main Technical Specification |
|
|
|
|
|
load hydraulic system |
18Mpa |
|
dig hydraulic system |
20Mpa |
|
steering hydraulic system |
12Mpa |
|
system flow |
120L/min |
|
total operating weight |
7600kg |
|
maximum speed |
22Km/h |
|
maximum gradient capacity |
30° |
|
loading bucket capacity |
1.0 m3 |
|
rated loading |
2500KG |
|
maximum articulated height of bucket |
3400(mm) |
|
bucket discharge height |
2795(mm) |
|
bucket discharge distance |
1048(mm) |
|
loading lift capacity |
25KN |
|
bucket lift time |
6.8s |
|
bucket lower time |
2.5s |
|
bucket discharge time |
1.2s |
|
maximum tractive force |
39KN |
|
maximum breakout force |
38KN |
|
backacter bucket capacity |
0.3m3 |
|
backacter discharge height |
3878(mm) |
|
maximum digging depth |
4500(mm) |
|
maximum digging radius |
5688(mm) |
|
bucket slewing angle |
190° |
|
bucket digging capacity |
46KN |
|
bucket stick digging capacity |
31KN |
Company Profile
Founded in 1999, Shandong Yineng Heavy Industry Co., Ltd is a large-scale construction and agricultural equipment manufacturing enterprise integrating R&D, production and sales. The company has more than 400 employees, 8 senior engineers and 12 professional technicians. The products cover wheel loaders, underground mining machine, grass grabber, off-road forklift and etc, with 7 series, more than 100 models and equipment in total. Yineng has passed the ISO9001:2000 international quality management system certification and assessment of State Engineering Machinery Quality Supervision & Testing Center.
The company has been invited to participate in large-scale international exhibitions such as the Canton Fair, the Hanover Agricultural Machinery Exhibition in Germany, and the Bauma Fair for more than ten years. With first-class technical standards, top-notch manufacturing processes and personalized customization services, Yineng has established a broad customer network around the world, with customers all over Germany, Russia, Brazil, Iran, Saudi Arabia, Australia, Thailand, South Africa, etc. More than 40 Many countries and regions.
