Product details

Dust purifier
·Suitable for: welding fume, cutting fume dust, laser welding cutting fume, plasma cutting fume, polishing dust, drilling dust, mixing and cutting materials to produce

Performance description
· Integral structure with Fuma wheel at the bottom, flexible movement and fixing
· Anti-suction device to make the effect of ash cleaning more thorough
· Power supply condition monitoring: alarm of fault phase overvoltage and undervoltage to prevent motor and electrical components from damage
· Pressure condition monitoring:
alarm for low pressure of gas source to prevent incomplete dust cleaning.
· Pressure differential gauge shows the working state of filter element intuitively, and automatic pulse back blowing with excessive pressure difference

Recommended working condition
Welding Workstation (3m x 2.5m x 4m)
Artificial Welding Position *2
Grinding machine, intersecting wire cutting and oth er working conditions

Standard Configuration
· Filtration efficiency (> 99.9%) of main filter core (imported coated polyester fiber)
· Fault Phase Protection, Overload Protection, Air Pressure Monitoring and Temperature Monitoring Devices
· PLC Intelligent Control System
· Tricolor lamp
· Differential pressure gauge
· Observation window
· 30L Dust Collection Drawer
· Left and right air intakes (φ200)
· 5m Power cord
· Spark trap (large particle dust pre-filter)

Spare parts
· Frequency conversion system
· IO port (remote control)
· Explosion proof configuration
· Universal Flexible Arm(φ160)
· Suction duct(φ200)

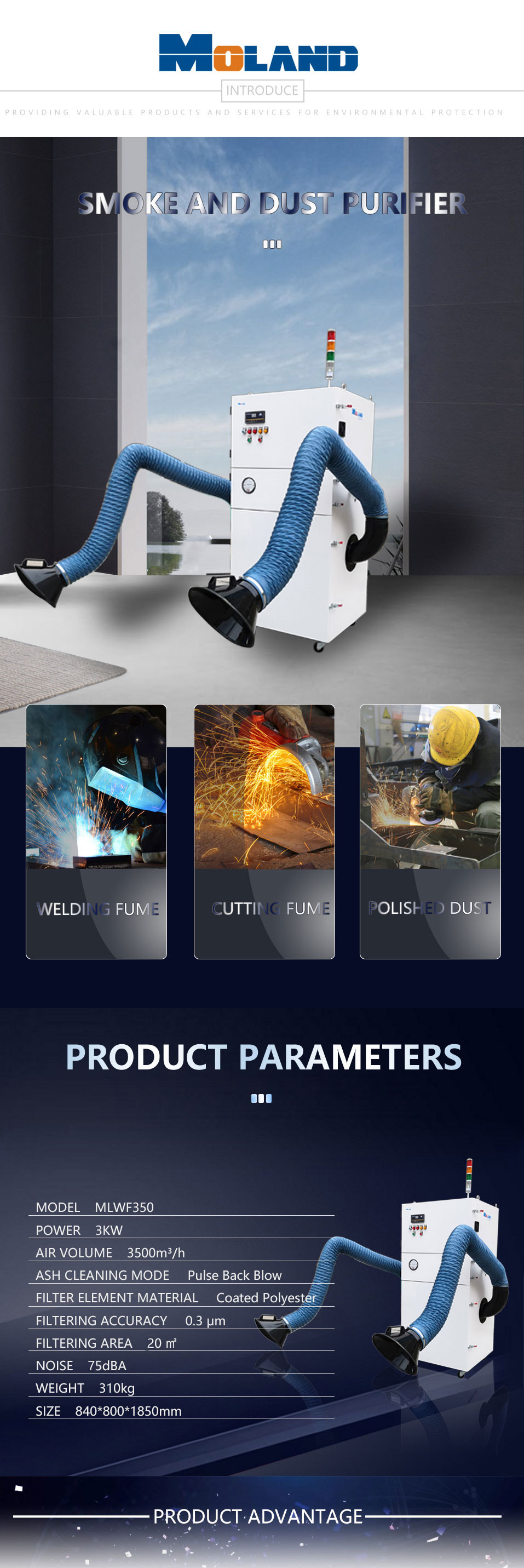

Model	MLWF280S	MLWF300A	MLWF350	MLWF400
Power	2.2kw	2.2kw	3.0kw	3.0kw
Voltage	220/380/415V 50Hz
Air Volume	2500-2800m³/h	2800-3200m³/h	3000-3500m³/h	3500-4500m³/h
Accuracy	0.3μm
Filter material	PTFE Cartridge Filter
Filter Area	10m²	20m²	20m²	40m²
Filter Size	∅325*660mm (1 branches)	∅325*660mm (2 branches)	∅325*660mm (2 branches)	∅325*660mm (4 branches)
Cleaning	Automatic Dedusting
Noise	75dBA
Size	630×650×1760mm	840×800×1850mm	840×800×1850mm	960×985×2080mm
Weight	230kg	300kg	310kg	320kg

Cost Effective Cutting Fume Removal System Welding Smoke Collector

Model	MLWF500-6T	MLWF500-9T	MLWF800	MLWF800-Ash Bucket
Power	5.5kw	5.5kw	7.5kw	7.5kw
Voltage	220/380/415V 50Hz
Air Volume	5000-7000m³/h	5000-7000m³/h	7000-10500m³/h	7000-10500m³/h
Accuracy	0.3μm
Filter material	PTFE Cartridge Filter
Filter Area	60m²	90m²	108m²	108m²
Filter Size	∅325*660mm (6 branches)	∅325*660mm (9 branches)	∅325*860mm (9 branches)	∅325*860mm (9 branches)
Cleaning	Automatic Dedusting
Noise	75dBA
Size	1240×1130×2200mm	1240×1470×2200mm	1240×1470×2400mm	1240×1470×2960mm
Weight	660kg	800kg	980kg	980kg
