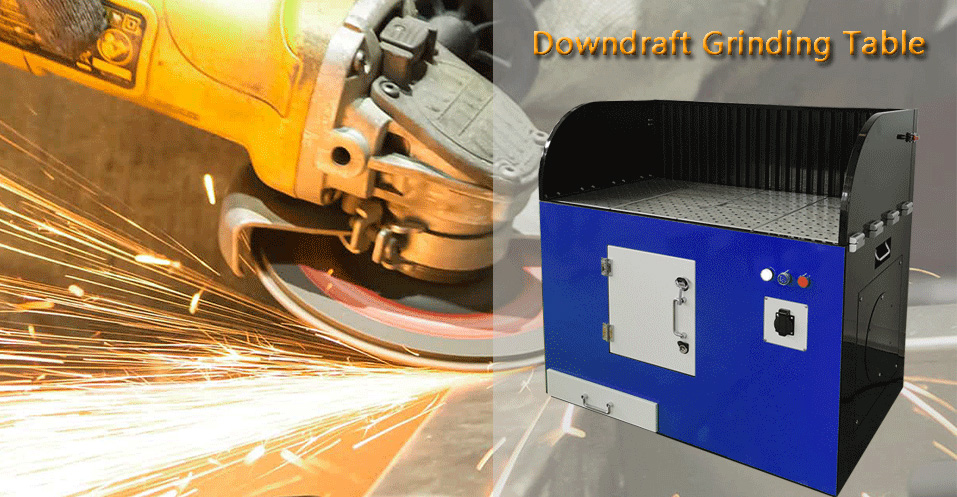

Structure characteristics of grinding table:
1. Integrate working table and dust removal function, remove dust directly at the source of dust.
2. Filter media can be selected according to the nature of dust treated by users to meet the requirements of dust removal of different nature.
3. There are suction outlets on the bottom, front and top of the worktable, which can effectively control the dust dispersion.
4. In order to prevent noise pollution, the fan is subjected to noise reduction treatment.
5. Compact structure, small occupation area, can double or more stations at the same time.
6. The filter cartridge has the advantages of long service life, stable performance and convenient replacement.
7. Equipped with new low noise fan, the suction volume is unchanged, and the noise is lower. Can protect the physical and mental health of the operator.
Performance description

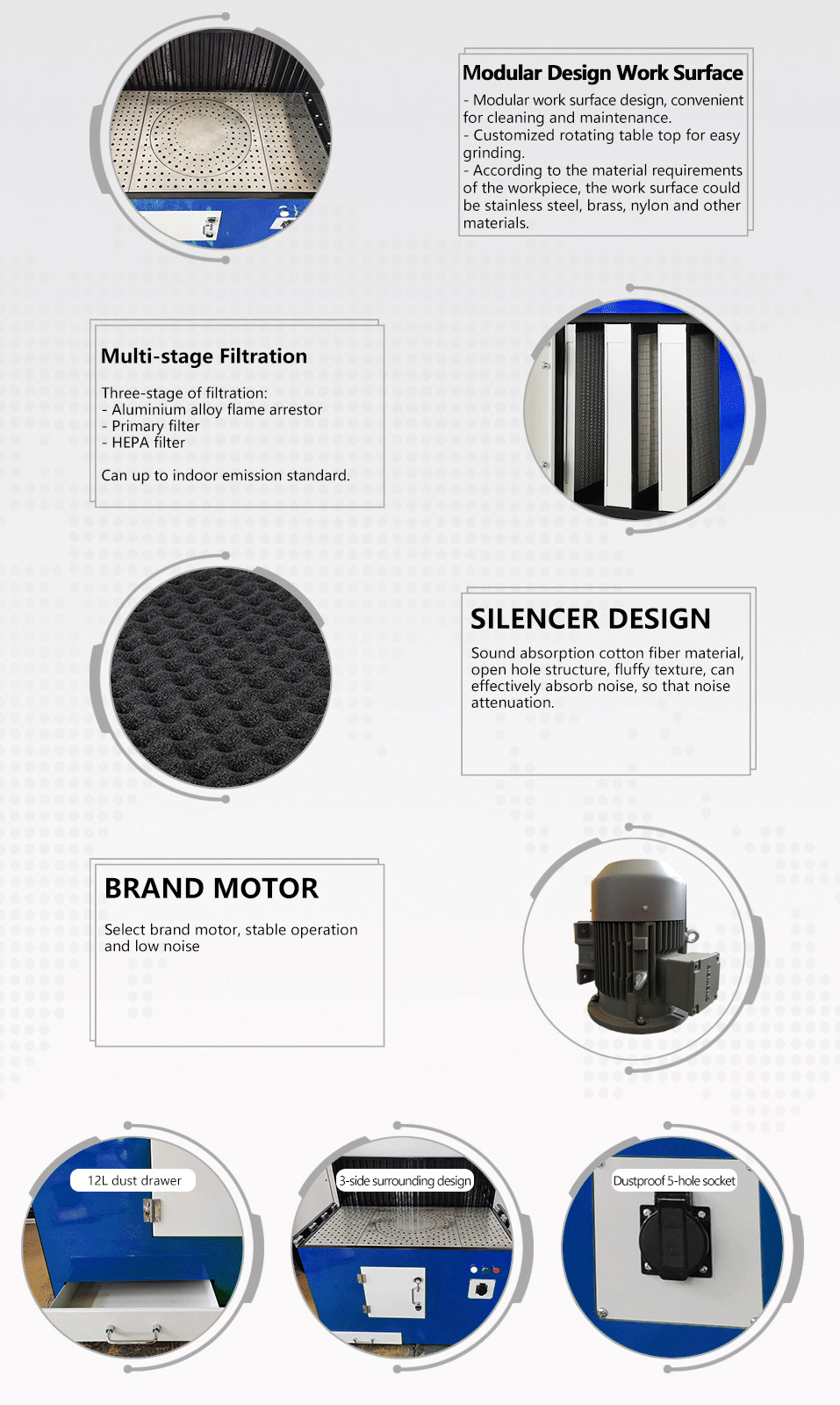

· Integral structure, beautiful appearance, small floor area, easy to move and fix with Fuma wheel installed at the bottom.
· Three sides surrounding design, effectively preventing the spread of dust.
· Multi-stage high efficiency filtration, up to emission standard.
· Drawer dust box, convenient and quick to pour dust.
· Dustproof 5-hole socket, convenient to connect with electric tools.
· Removable modular work surface
| MLWF100D | MLWF150D | MLWF200D | |
| Motor Power | 1.1KW | 1.5KW | 1.1KW*2 |
| Working Voltage | 220V 50Hz | 380V/50Hz | 380V/50Hz |
| Air Volume | 1500m^3/h | 2500m^3/h | 3000m^3/h |
| Filtering Accuracy | 0.3um | 0.3um | 0.3um |
| Filter Material |
Aluminium alloy flame arrestor, Primary filter, HEPA filter |
Aluminium alloy flame arrestor, Primary filter, HEPA filter |
Aluminium alloy flame arrestor, Primary filter, HEPA filter |
| Cleaning Mode | Manual | Manual | Manual |
| Noise Level | 75±3dBA | 75±3dBA | 75±3dBA |
| Dimension | 1000*600*1000mm | 1500*800*1000mm | 2000*800*1000mm |
| Weight | 105kg | 150kg | 260kg |
Optional Components
· Non-slip soft pad
· IO Port (remote control)
· Stainless steel custom machine structure
· Working surface can be designed as round hole, square hole, long hole.
