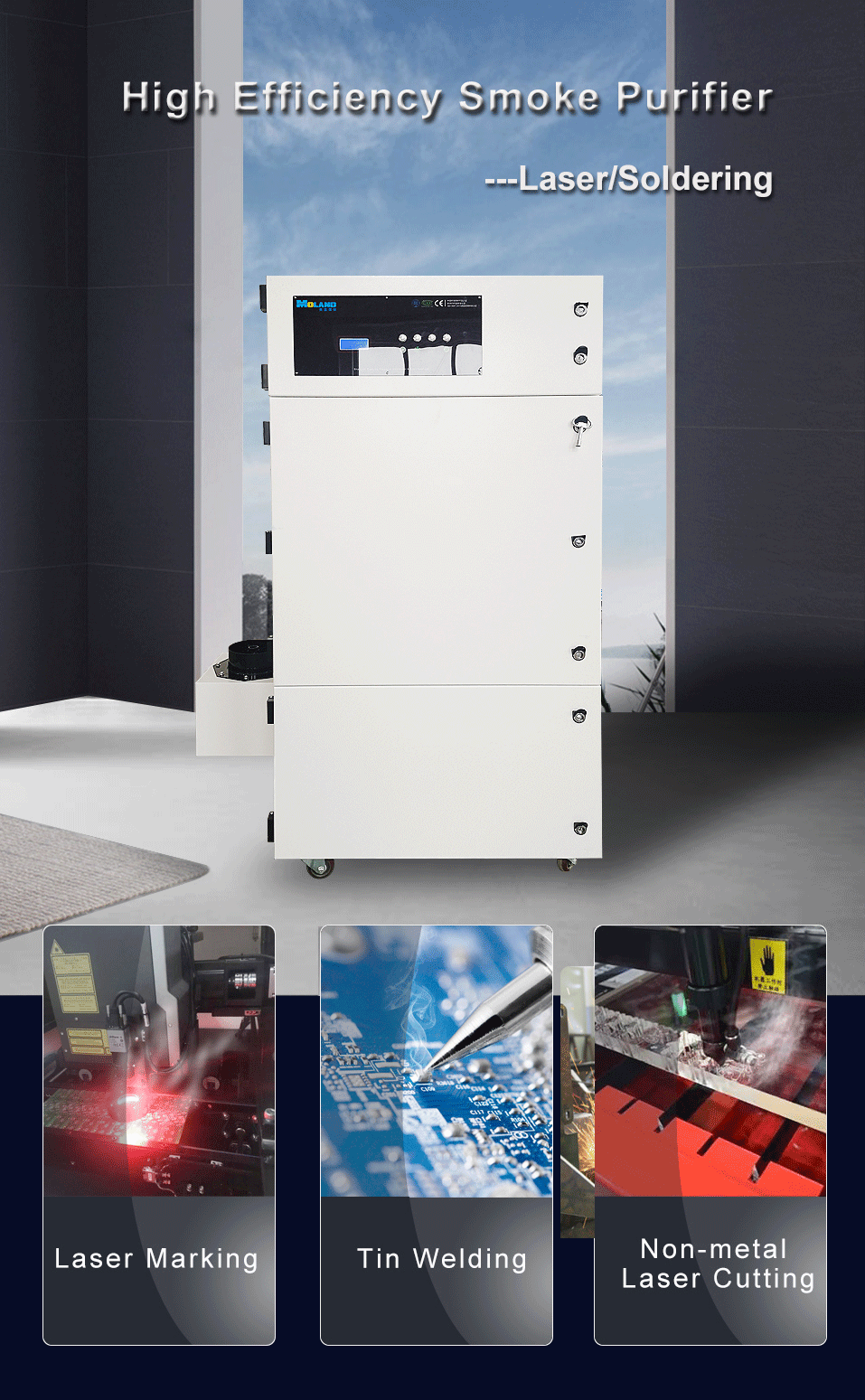

Suitable for laser cutting machine, soldering tin, laser marking, carving, cutting and other dust odor treratment.

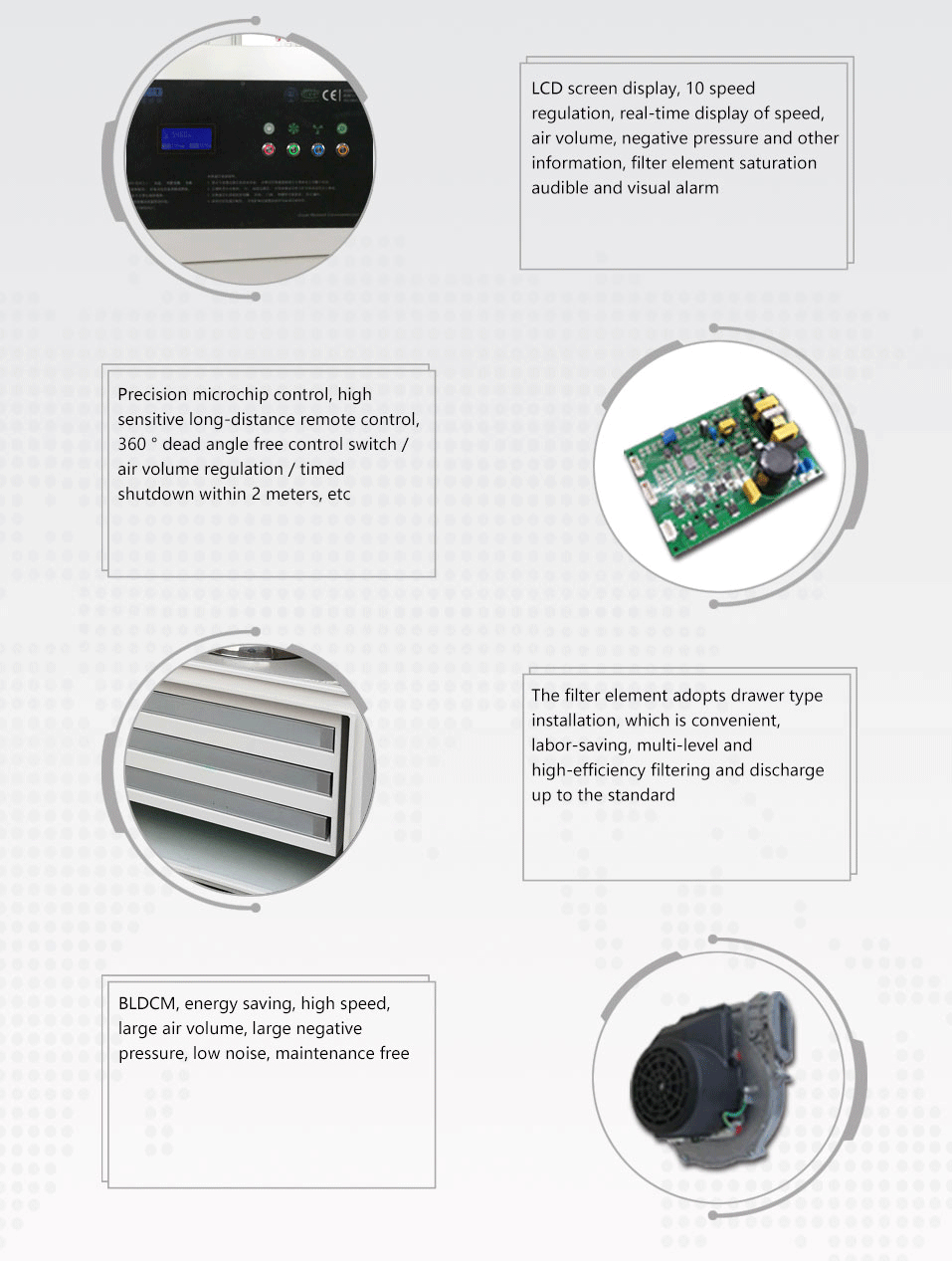

1- New LCD display, 10 speed control, real-time display of speed, air volume, negative pressure and other information, filter element saturation sound and ligh alarm.
2- Precise microchip control, highsensitive long-distance remote control, 360° dead angle free control within 2 meters, switch, air volume regulation, timing shut-down and other functions.
3- Equipped with flame arrester to realized Mars isolation and prevent fire hazards.
4- BLDCM, energy saving, high speed, large air volume, large negative pressure, low noise, maintenance free.
5- In the design of lower air inlet and upper air exhaust, the large particle dust settles in the filter bag under the action of gravity, and the small particle dust passes through the main filter element along wih the air flow, so as to prevent the filter element from blocking too fast.
6- The filter element adopts drawer type installation, which is convenient and labor-saving.
7- Multi stage high efficiency filtration, up to standard discharge.
1- Primary filter
2- Medium efficiency filter
3- Activated carbon filter
4- High efficiency filter
5- Air inlet a left and right sides (φ120mm)
6- Vacuum hose (φ120mm)
7- 5m power line
8- Remote control
1- Multifunctional laser cutting machine
2- Soldering of circuit board
3- Purification of peculiar smell and smoke from acrylic, PVC, rubber and leather materials by laser cutting
|
|
MLWF100 | MLWF360 |
| Power | 1.5KW | 2.2KW |
| Voltage | 220V 50Hz | 220V 50Hz |
| Air Volume | 700~1800m3/h (Adjustabe Air Voume) | 700~3600m3/h (Adjustable Air Volume) |
| Wind Pressure | 5000Pa | 5000Pa |
| Accuracy | 0.3um | 0.3um |
| Filter Material | Primary / Medium / High Efficiency / Activated Carbon Filter | Primary / Medium / High Efficiency / Activated Carbon Filter |
| Air Inlet | 2*φ120mm |
2*φ200mm |
| Noise | <=65dBA |
<=75dBA |
| Size | 680*640*1290mm |
840*800*1600mm |
| Weight | 95kg | 135kg |
Moland is a professtion manufacurer of industrial dust collection system. We mainly supply Mobile Fume Extractor, Centralized Fume Extraction Systems, CNC Cutting Fume Extraction Systems, Grinding And Polishing Dust Collector, Oil Fume Odor Purifier, etc. We have professional technical team to design the most suitable dust collection solution according to your workshop condition.
