The ELiTEDENT Q6-NLG is a fast-curing LED Curing Light. It emits typical light energy output at about 2,000 - 2,200 mW/cm². 3 seconds to cure most composite in the market with 2mm thickness. It also features:
► Multiple mode selection: High (fast curing), low and ramp up.
► All aluminum handpiece housing for improved durability. No more plastic to stain or crack.
► Two button easy operation.
► Quiet operation, fan-free design.
► Can be used both cordless and corded.
► Low battery warning; for urgent use, just insert power cord connector into Handpiece directly.
► Rechargeable lithium battery inside, capable of 200 x 10 sec curing cycles prior to recharging.
► Slim handpiece for most comfortable hand holding
► Curing tip rotates 270∘for curing at any position of mouth.
Package includes:
Charging Base Assembly
Hand piece Assembly
Eye shield
Wall Plug-in Power Adaptor
Instructions For Use
Initial set-up
NOTE: Upon receiving the LED Curing Light, check the packaging and parts for any possible damage
that may have occurred in transit. If damage is apparent, please contact your authorized Rolence distributor from which the light was purchased.
1. Remove the contents from the shipping package. Be careful not to drop or impact the Curing Light. Choose a flat, level, sturdy surface to place the charging base on. The light is shipped in a “sleep” mode, and no timer display. To wake the unit, press the On/Off button.
2. Before using for the first time, the Curing Light must be fully charged. For the first charge, this process will take about 6 hours. Use only the power supply furnished with the light system. Attempting to use another power supply source may cause injury or damage and will void the warranty.
3. Charging indicator on charging base illuminates orange light during recharging. It will turn off automatically after battery is fully charged.
NOTE: Power indicator on charge base illuminates blue light, which indicates the charging base is well connected to power supply. If power indicator is not lit when connecting power plug to charging base, please check the outlet plug is firmly connected or not.
4. Plug the connector of the power supply into the back of the charging base. Plug the other end of the power supply into the appropriate electrical outlet. As mentioned above, wait for at least 6 hours to completely charge the light before the first use.
NOTE: Verify the line plug of the power supply plug is properly rated for your facility, and that all connections comply with safe practices and all local requirements. Always use unit in conjunction with a properly grounded outlet.

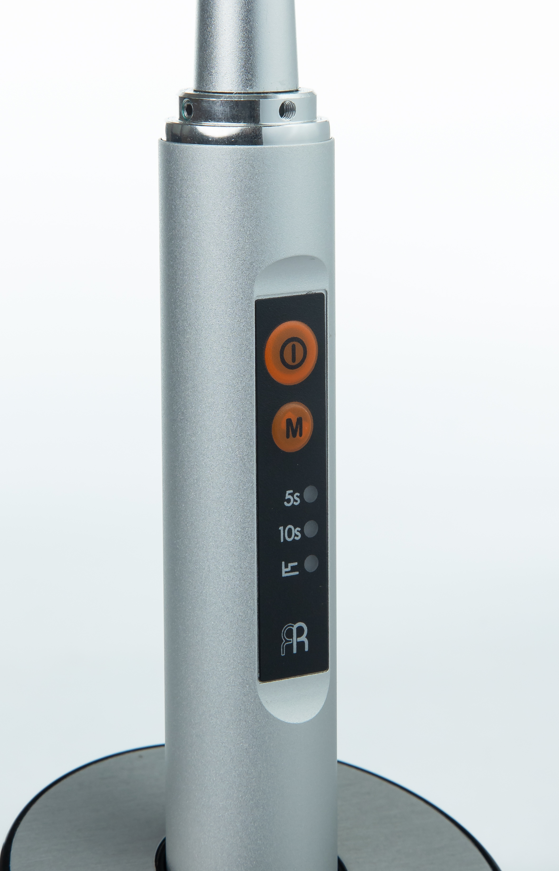

Keypad and modes
There are 2 buttons on the keypad for the mode/timer selection, and the on/off button. The on/off button is used to activate and deactivate the light. Push once to turn on the light and push it again if you need to turn it off at any time during the curing cycle.
There are 3 different modes to select from based on the procedure and the requirement.
- Select the exposure time by pressing the mode button briefly.
- While exposure is ongoing, the button for selection of the exposure time is inactive.
(3s or H) – This setting provides high power to the LEDs, helping them generate a higher power output up to 2,000mW/cm². Since the LEDs function at such high power level, only the 3 second curing cycle is provided to avoid premature LED failure. You can use multiple boost cycles in succession to obtain longer Boost curing.
(10s or L) – Provides low light energy exposure at 10 seconds exposure. Choose this setting for special lighter or darker shade curing requirement or when light energy declines after long time use.
(Ramp Up) - An initial 45 - 60% energy of high intensity and then switch to high intensity 2,000mW/cm² constant. Total 5 seconds (3 seconds low intensity + 2 seconds high intensity).
