4H230C-08 5/3 Way Airtac-Type Hand Lever Air Valve
The Airtac type 4H series hand lever air valve, which is a functional replacement for the SMC VZM400 series.
Product Features:
1. Manual operation, smooth actuation,and exact and reliable orientation;
2. Sliding column structure has good tightness and light weight and is easy to install and dismount;
3. Internal hole adopts special processing technology which has little attrition friction, long service life;
4. No need to add oil for lubrication;
5. Panel-mounting makes it convenient to install and apply.
Technical Data of 4H Series Hand Lever Air Valve:
Model
210-06
230-06
210-08
230-08
310-08
330-08
310-10
330-10
Fluid
Air (to be filtered by 40μm filter element)
Operating
Manual control direct acting type
Port Size
In=Out=
In=Out=1/4'',
In=Out=
In=Out=3/8'',
Exhaust=1/8''
Exhaust=1/8''
Exhaust=1/4''
Exhaust=1/4''
Orifice Size (Cv)
4H210-08: 17.0 mm² (Cv=1.0)
4H310-08: 28.0 mm² (Cv=1.65)
4HA230C-08: 13.6 mm² (Cv=0.8)
4HA330C-08: 21.3 mm² (Cv=1.25)
Valve Type
5/2 way
5/3 way
5/2 way
5/3 way
5/2 way
5/3 way
5/2 way
5/3 way
Pressure Range
0 to 1.0 MPa (0 to 145 psi)
Proof Pressure
1.5 MPa (215 psi)
Temperature
-20 to +70℃
Body Material
Aluminum Alloy
Operating Angle
±15°
±8.5°
±15°
±8.5°
±18°
±10°
±18°
±10°

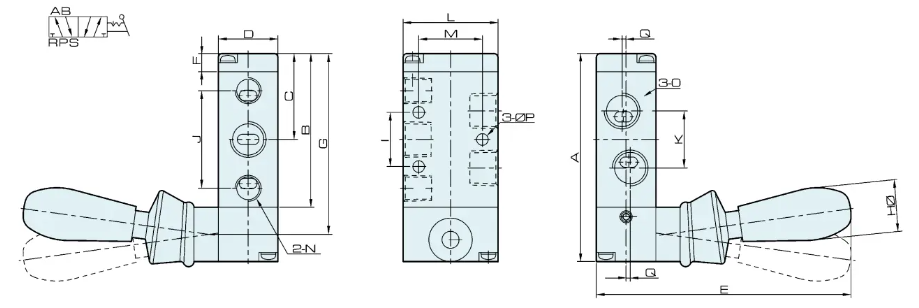

Main Dimension of 4H230C-08 Hand Lever Air Valve:
Production Video of Pneumatic Valve:
