Side Type Breaker Product Description

What is the difference among side type,box type and top type rock breakers?

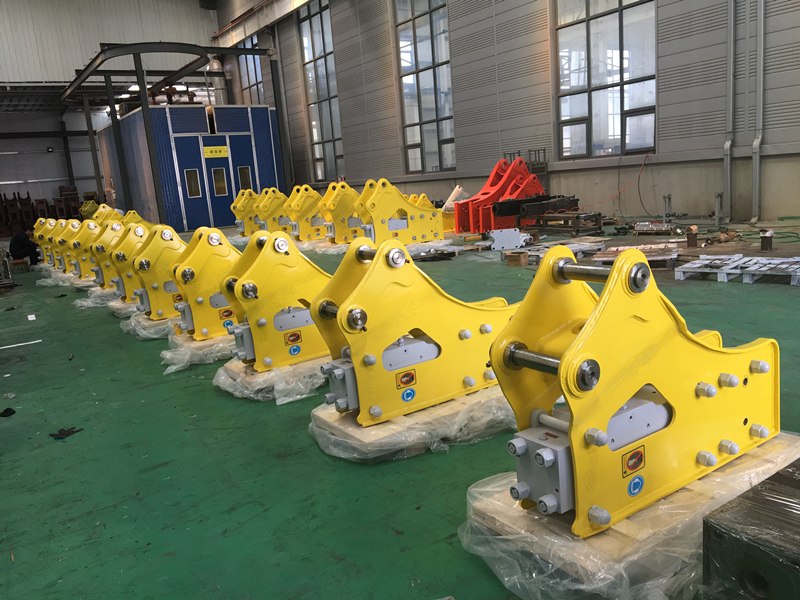

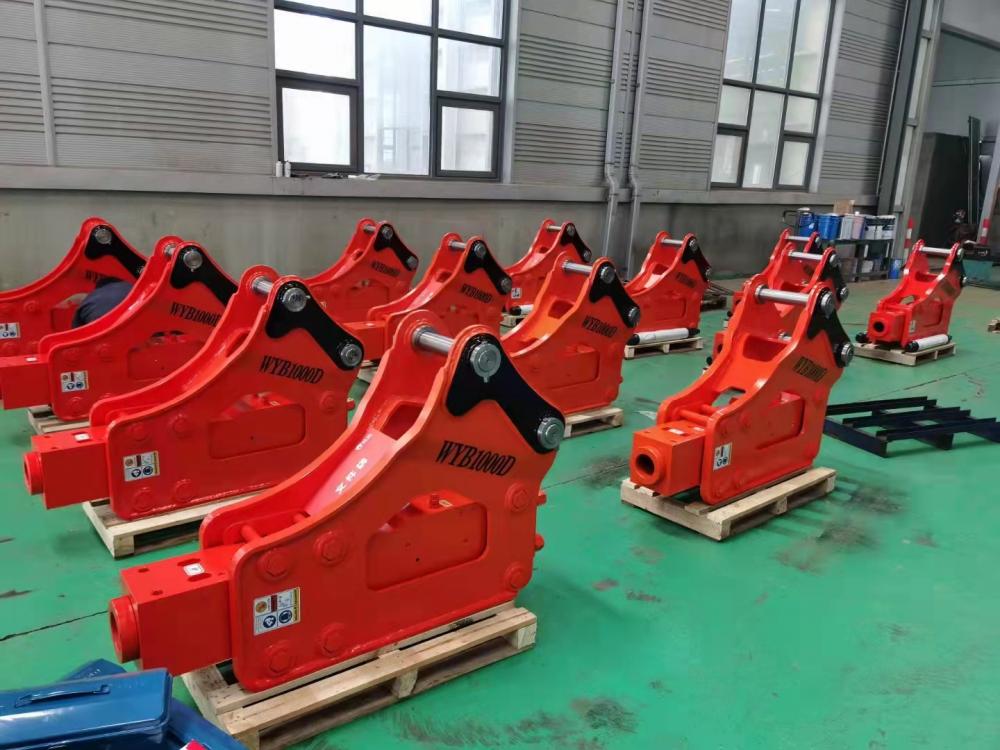

For Side type, the installation pins are on the side of the breaker.
For Top type , the installation pins are on the top of the rock breaker.
And for box type, the rock breaker bracket is full sealed like a box,and it equiped with rubber cushion inside of the bracket to keep lower noise. So it is also called silence type rock breaker.The installation pins are also on the top for silent type rock breaker, same as top type installation way on the excavtors. Both side type and top type breakers are with opening bracket, which is easy for maintenance and parts exchanging. But for box type rock breaker, it has to open the box and move out the main body to do maintenance job.

How is the quality?
We are offering OEM service for some famous brands from Italy, Germany,Turkey .South Korea etc.who are selling our hydraulic breakers with their brands all over the world.

How is the price?
Factory direct price, Not the lowest,but reasonable and acceptable,so we are manufacturing and selling and shipping in a very large quantity .
You are welcome to visit our grand factory.

Technology Parameters:

1)STB WYB SB series hydraulic hammers

Decription/Model			SB10	SB20	SB30	SB40	SB43	SB45	SB50	SB60	SB70	SB81	SB100	SB121	SB131	SB151
Operating Weight	Side Type	kg	101	113	175	267	368	505	776	1,364	1,487	1,737	2,150	2,503	3,096	3,735
	Top Type		96	110	223	296	404	647	865	1,447	1,575	1,920	2,478	2,544	2,728	4,015
	Box Type		129	148	206	337	425	697	865	1,239	1,497	1,756	1,960	2,350	2,780	3,685
Operating Pressure		bar/psi	90-120	90-120	90-120	110-140	120-150	130-160	150-170	150-170	160-180	160-180	160-180	160-180	160-180	160-190
Setting Pressure		bar/psi	150	150	150	170	180	190	210	210	210	220	230	230	230	230
Required oil flow		l/min	15-30	20-40	20-50	40-70	50-90	60-100	80-110	90-120	100-150	120-180	130-190	180-240	200-260	210-290
Working Tool	Diameter	mm	40	45	53	68	75	85	100	125	135	140	150	155	165	175
Working Tool	Weight	kg	7	8	9	16	21	30	55	103	127	134	170	183	220	260
Impact Rate		bpm	800-1100	700-1200	600-1100	500-900	400-800	400-800	350-700	350-650	350-600	350-500	300-450	350-450	250-400	200-350
Hydraulic Hose		inch	1/2	1/2	1/2	1/2	1/2	3/4	3/4	1	1	1	1 1/4	1 1/4	1 1/4	1 1/4
Suitable Excavator		tons	0.8~2.5	1.2~3	2.5~4.5	4 ~ 7	6 ~ 9	7~14	11 ~ 15	15-18	18 ~ 21	20 ~ 26	25 ~ 28	28 ~ 35	30 ~ 40	40 ~ 55

2)Furukawa HB series hydraulic hammers

Model No.	Chisel diameter	Weight(kg)	Working flow(l/min)	Impact rate(bmp)	Hose diameter(inch)	Tons	Applicabel excavator
HB20G	135mm	2000	1250-150	400-800	1	18-25	any brand
HB30G	150mm	2800	150-190	300-750	1	25-30	any brand
HB40G	160mm	3500	190-250	250-500	5/4	35-45	any brand

PICTURES

What accessories come together with the hydraulic breaker?
1). 2 pcs in/out hydraulic hoses
2). 2 pcs moil type chisel tools.(Using 42crmo good material, 2-3 times longer life than normal)
3). 1 pc nitrogen gas bottle.
4). 1 sets nitrogen charge guage kits.
5). 1 set tool box.(including the maintenance tool)
6). 1 set product brochure,hydraulic breaker manual book and parts book
ALL THE PRICE WITH SPARE PARTS ABOVE

Packing and delivery time
1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.

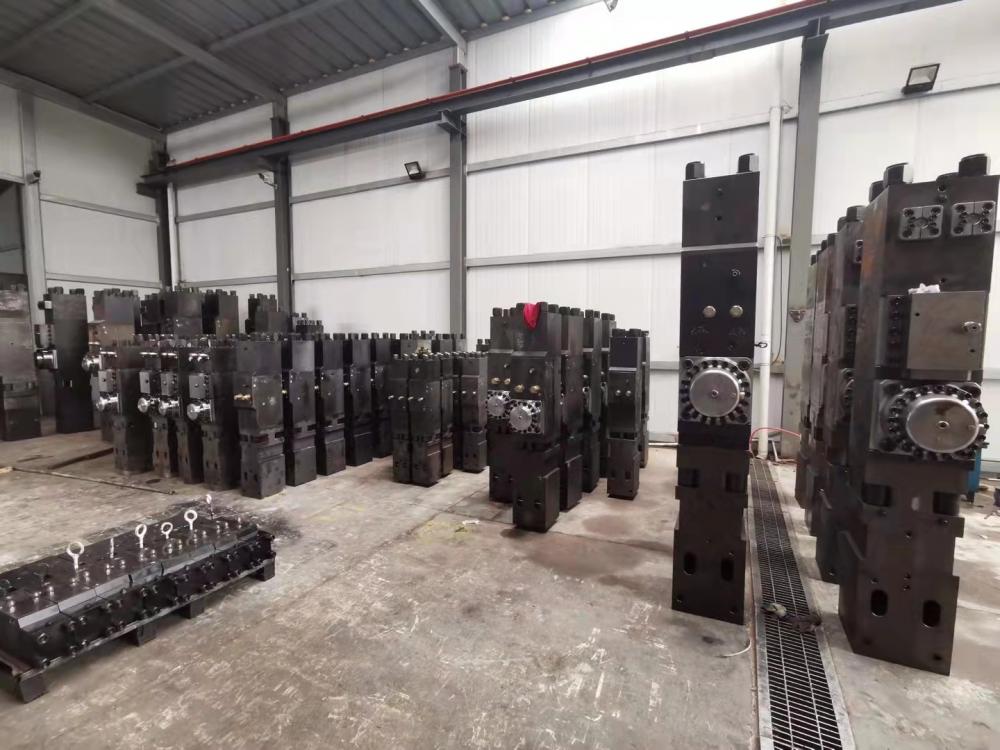

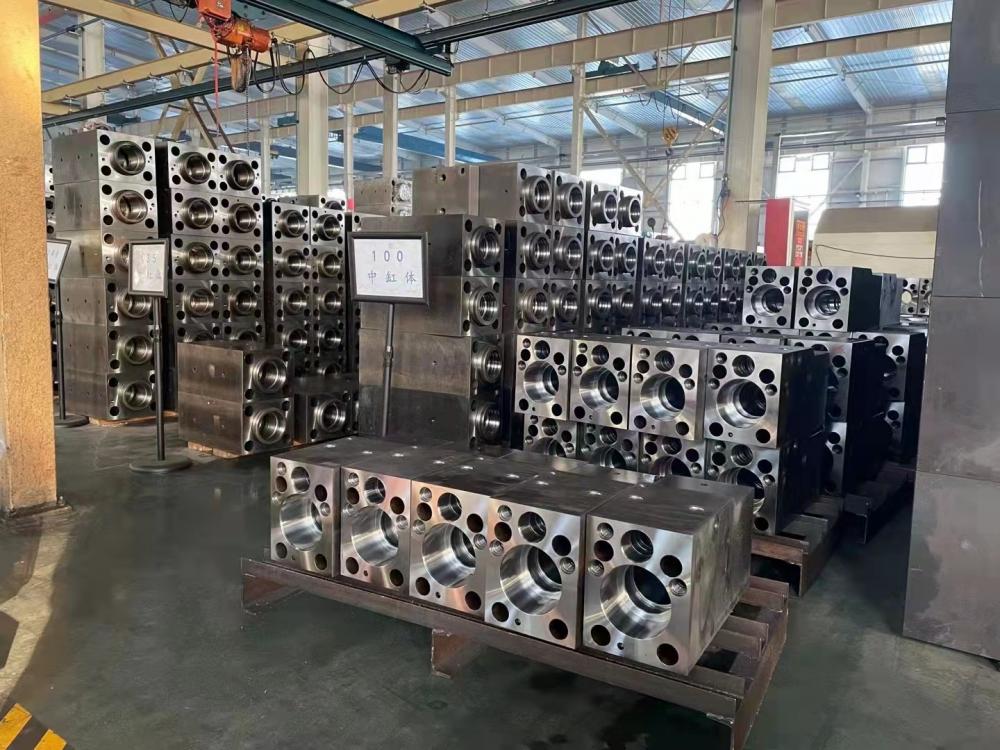

Hydraulic Breaker Assembly Site
