Product details

Box Type Hammer Product Description

STB Hydraulic Hammer Features:

• Available for 0.8 - 55 Ton any brand excavators.

• Simplicity in construction, easy to use and maintain

• Most advanced processing equipment and technology

• One to two-year warranty

• Long service life

• 24 hours online after-sales service
• Application
Mining------------Mining,Second-time breaking
Metallurgy-------Clearing slag,Demolition of furnace and foundation
Road------------- Repairing,Breaking,Foundation work(asphalt road)
Railway----------Tunneling,Demolition of bridge
Construction----Demolition of building and reinforced concrete
Ship repairing--Clearing clam and rust from the hull
Others----------- Breaking frozen mud

Technology Parameters:

1)STB series hydraulic hammers

Decription/Model			STB40	STB45	STB53	STB68	STB75	STB85	STB100	STB125	STB135	STB140	STB150	STB155	STB165	STB175
Operating Weight	Side Type	kg	101	113	175	267	368	505	776	1,364	1,487	1,737	2,150	2,503	3,096	3,735
	Top Type		96	110	223	296	404	647	865	1,447	1,575	1,920	2,478	2,544	2,728	4,015
	Box Type		129	148	206	337	425	697	865	1,239	1,497	1,756	1,960	2,350	2,780	3,685
Operating Pressure		bar/psi	90-120	90-120	90-120	110-140	120-150	130-160	150-170	150-170	160-180	160-180	160-180	160-180	160-180	160-190
Setting Pressure		bar/psi	150	150	150	170	180	190	210	210	210	220	230	230	230	230
Required oil flow		l/min	15-30	20-40	20-50	40-70	50-90	60-100	80-110	90-120	100-150	120-180	130-190	180-240	200-260	210-290
Working Tool	Diameter	mm	40	45	53	68	75	85	100	125	135	140	150	155	165	175
Working Tool	Weight	kg	7	8	9	16	21	30	55	103	127	134	170	183	220	260
Impact Rate		bpm	800-1100	700-1200	600-1100	500-900	400-800	400-800	350-700	350-650	350-600	350-500	300-450	350-450	250-400	200-350
Hydraulic Hose		inch	1/2	1/2	1/2	1/2	1/2	3/4	3/4	1	1	1	1 1/4	1 1/4	1 1/4	1 1/4
Suitable Excavator		tons	0.8~2.5	1.2~3	2.5~4.5	4 ~ 7	6 ~ 9	7~14	11 ~ 15	15-18	18 ~ 21	20 ~ 26	25 ~ 28	28 ~ 35	30 ~ 40	40 ~ 55

2)Furukawa HB series hydraulic hammers

Model No.	Chisel diameter	Weight(kg)	Working flow(l/min)	Impact rate(bmp)	Hose diameter(inch)	Tons	Applicabel excavator
HB20G	135mm	2000	1250-150	400-800	1	18-25	any brand
HB30G	150mm	2800	150-190	300-750	1	25-30	any brand
HB40G	160mm	3500	190-250	250-500	5/4	35-45	any brand

PICTURES

Rock Hammer For 2 5 4 5 Ton Doosan Excavator4

What accessories come together with the hydraulic breaker?
1). 2 pcs in/out hydraulic hoses
2). 2 pcs moil type chisel tools.(Using 42crmo good material, 2-3 times longer life than normal)
3). 1 pc nitrogen gas bottle.
4). 1 sets nitrogen charge guage kits.
5). 1 set tool box.(including the maintenance tool)
6). 1 set product brochure,hydraulic breaker manual book and parts book
ALL THE PRICE WITH SPARE PARTS ABOVE

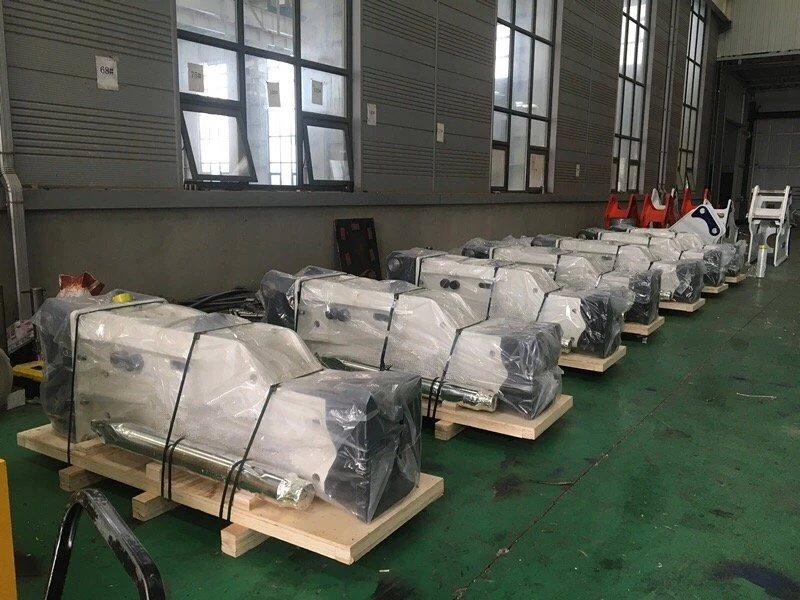

Packing and delivery time
1)Inner is stretch film or breaker coat, outside is export wooden case or pallets as customer's request
2).Delivery time:Usually 3-7days (1-5sets) after down payment and drawing confirmation.
3).We can arrange ocean or air transportation according to your request from any port of China.

HOW TO CHOOSE OUR BREAKER ?
1. PLEASE LET US KNOW YOUR EXCAVATOR MODEL NUMBER OR WEIGHT OF MACHINE.
2.PLEASE LET US KNOW WHAT COLOR DO YOU NEED FOR BREAKER .
3.PLEASE CHECK THE" A B C D E "SIZE AS FOLLOWING FOR US:ARM EAR WIDTH ,PIN DIAMETER AND PIN CENTER TO PIN CENTER SIZE . Hydraulic Breaker Installation Size

How to install the breaker to excavators?
If you want to install hydraulic breaker to your excavator, you need to check some dimensions of your excavator. We will make the breaker dimensions matching to your excavators, so that you can install immediately while you get the breaker from us.
Please check the above dimensions in the picture. Pin Hole Diameters: C D ;Arm and Link Width: A B ;
Note: To most of excavators A=B, C=D but some excavators or backhoes have different A,B,C,D If you want to add quick coupler to exchange the attachments quickly.You aslo need to check the pins distance too.Please check the above picture.
Pins Distance E.
