Fast Recovery Diode YZPST-RU50 KAK U1620G

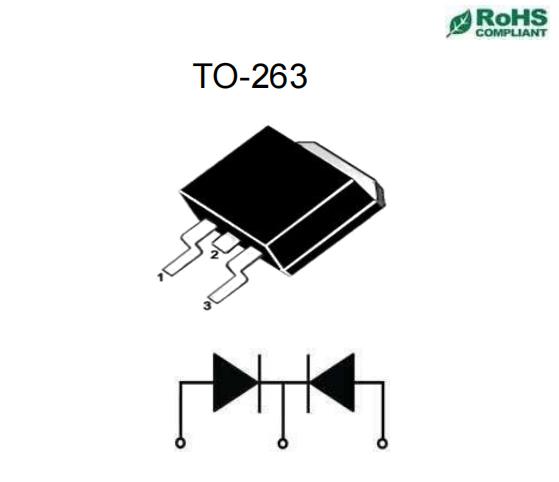

High surge capacity TO-263 Fast Recovery Diode MUR1620CTR
MUR1610CTR-MUR1660CTR
Features:
High surge capacity
Low Forward Voltage Drop.
High Current Capability .
Super Fast Switching Speed For High Efficiency
Absolute Maximum Ratings (Ta=25C unless otherwise noted)
|
Parameter |
Symbol |
MUR 1610 CTR |
MUR 1615 CTR |
MUR 1620 CTR |
MUR 1640 CTR |
MUR 1660 CTR |
Unit |
||
|
Peak Repetitive Reverse Voltage |
VRRM |
100 |
150 |
200 |
400 |
600 |
V |
||
|
Working Peak Reverse Voltage |
VRW M |
70 |
105 |
140 |
280 |
420 |
V |
||
|
DC Blocking Voltage |
VR(DC) |
100 |
150 |
200 |
400 |
600 |
V |
||
|
Average Rectified Forward Current |
Per Leg Total Device |
IF(AV) |
8 16 |
A |
|||||
|
Peak Rectified Forward Current Per Diode Leg (Rated VR, Square Wave, 20 kHz) |
IFM |
16 |
A |
||||||
|
Nonrepetitive Peak Surge Current(Surge applied at rated load conditions half wave, single phase, 60 Hz) |
IFSM |
180 1.Cathode 2.Anode 3. Cathode |
A |
||||||
|
Operating Junction Temperature and Storage Temperature |
TJ, Tstg |
-55 to +150 |
C |
||||||
|
Maximum Thermal Resistance, Junction−to−Case(Per Leg) |
R θJC |
3.0 |
2.0 |
C/ W |
|||||
ELECTRICAL CHARACTERISTICS (Per Diode Leg)
|
Parameter |
Symbol |
MUR 1610 CTR |
MUR 1615 CTR |
MUR 1620 CTR |
MUR 1640 CTR |
MUR 1660 CTR |
Unit |
|
Forward Voltage (Note 1)(IF = 8.0 A, TC = 25°C) |
VF |
1.0 |
1.3 |
1.7 |
V |
||
|
Maximum Instantaneous Reverse Current (Note 1) (Rated DC Voltage, TC = 125°C) (Rated DC Voltage, TC = 25°C) |
IR |
250 10 |
500 10 |
μ A |
|||
|
Maximum Reverse Recovery Time (IF = 0.5 A, IR = 1.0 A, IREC = 0.25 A) |
TRR |
35 |
35 |
ns |
|||
