Product Name

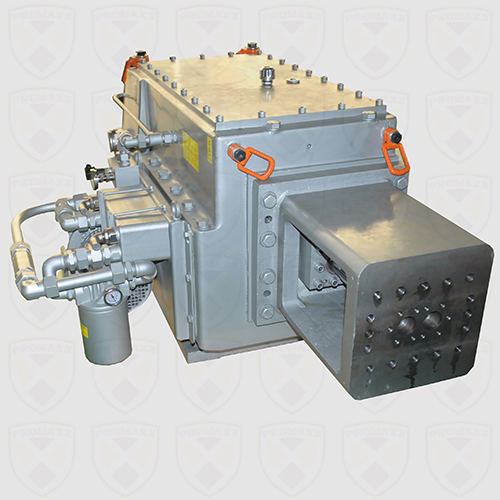

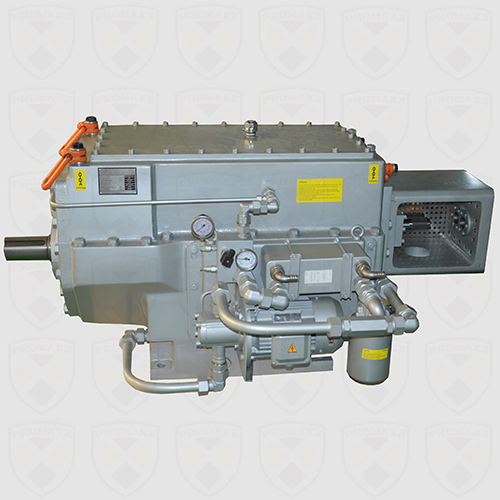

Gear Box Of SP13.5Series Twin Screw Extruder
Performance

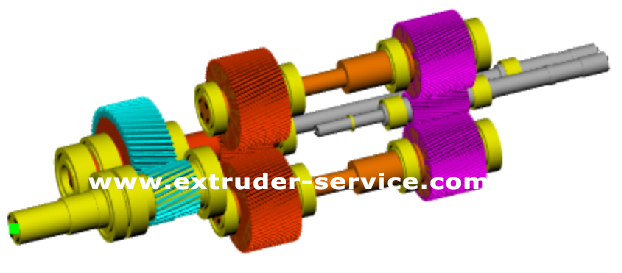

1. Unique power split technology to achieve high torque and high output speed;
2. Excellent mixing, dispersing and plasticizing properties;
3. High efficiency transmission, energy saving, reliable safety factor;
4. High-precision gears, professional grinding and reshaping;
5. Smooth operation, low vibration, noise level < 75 decibels;
Technical Features

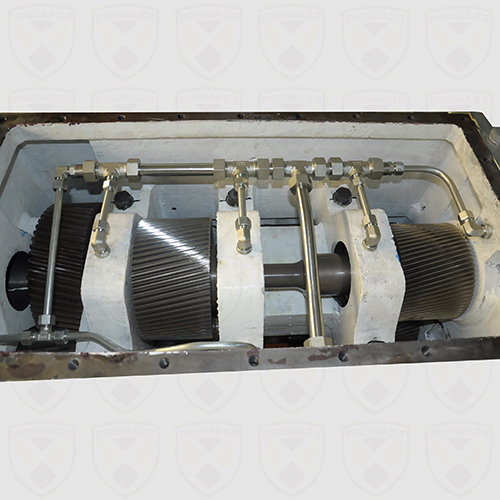

High torque gear shaft (Extruder Shaft) imported from Europe. Professional software design and correction to ensure stable bending,
torsion and thermal deformation performance during high-speed operation；
Gear materials imported from Europe. Professional software design, simulation analysis,
performance verification and modification；
Precision casting box with stable performance and reliable precision；
Imported bearings, extra long service life；
High-quality lubrication and instrumentation system with optional online vibration and oil monitoring.
Gearbox Technical Parameters
Output Power Range：60 - 4410 KW
Output Speed Range：150 - 900 rpm
Speed Ratio：1 - 6
Lubrication Cooling System：Forced lubrication
Screw Back Pressure：MAX 200 bar
Screw Diameter：Ø65 - 150mm
Bearing Service Life：Above 30000h
Size
65
75
85
95
105
120
135
150
Center distance
52
60
67.8
78
86
97
110
120
Out torque T2/shaft
1900
2900
4200
6400
8600
12400
18000
23400

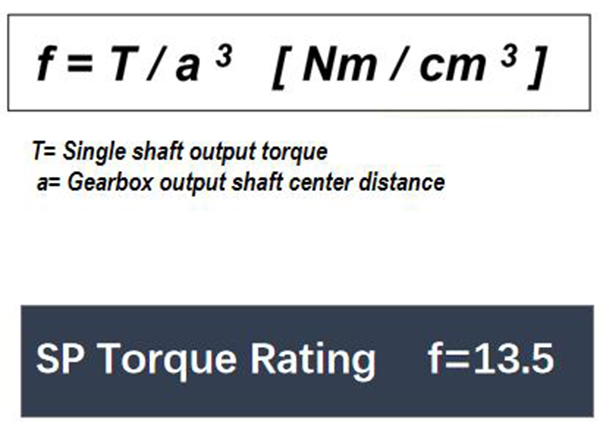

Torque facror Tf
13.51
13.43
13.48
13.49
13.52
13.59
13.52
13.54
Out speed rpm
Gear Units Power Ratings KW
150
60
91
132
201
270
390
565
735
200
80
121
176
268
360
519
754
980
300
119
182
264
402
540
779
1131
1470
400
159
243
352
536
720
1039
1508
1960
500
199
304
440
670
901
1298
1885
2450
600
239
364
528
804
1081
1558
2262
2940
700
279
425
616
938
1261
1818
2639
3430
800
318
486
704
1072
1441
2077
3016
3920
900
358
547
792
1206
1621
2337
3393
4410

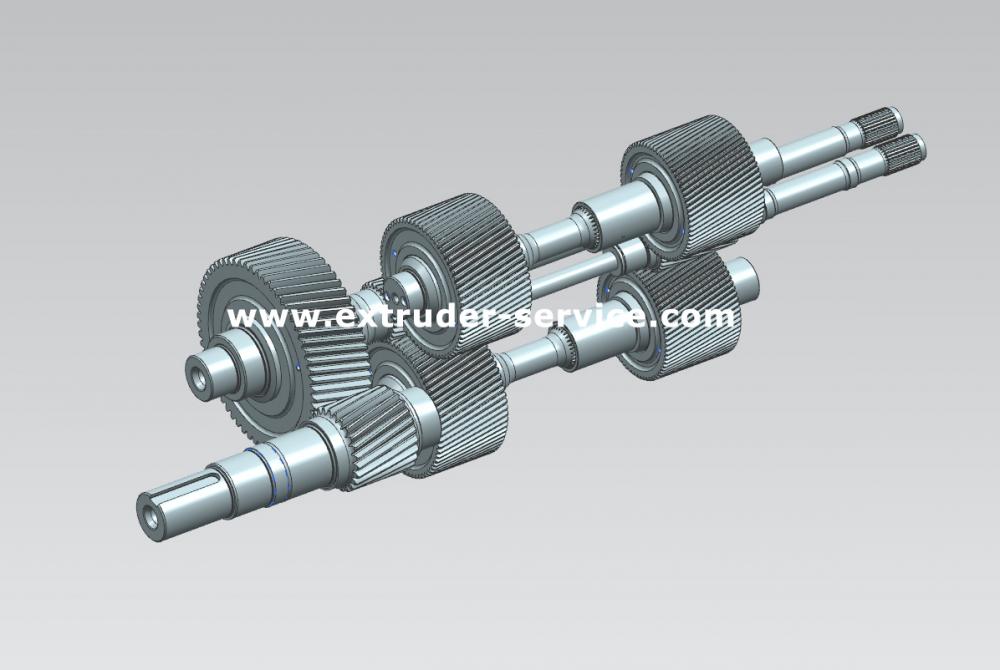

Professional R&D and Analytical Computing Capabilities
Rich experience in the design of Twin Screw Extruder Gear Box, we can provide a variety of drive
solutions according to customer needs and application industries.
High specific torque and ultra-high specific torque drive T/a3 > 10
Global first-line brand accessories

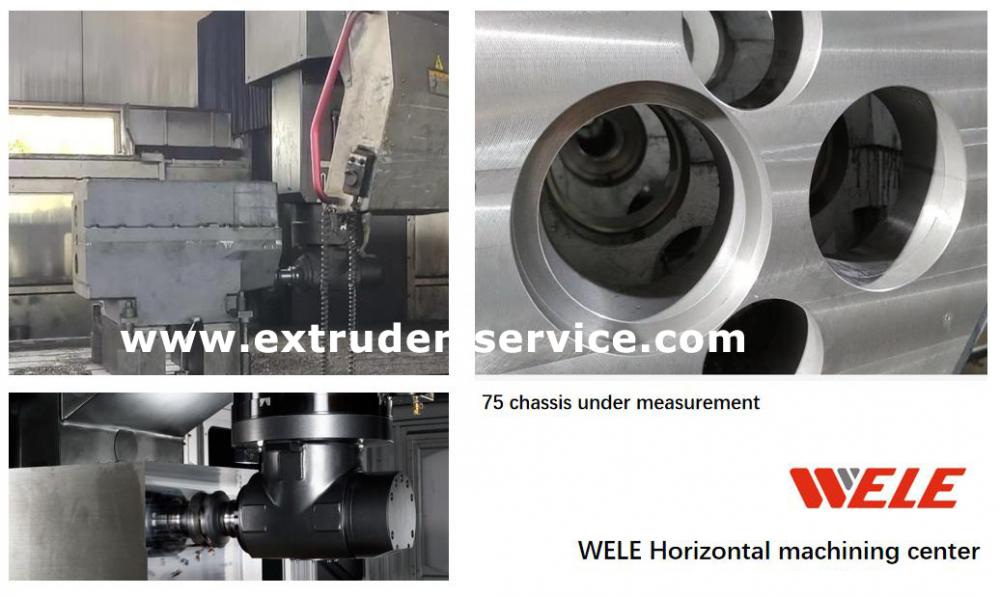

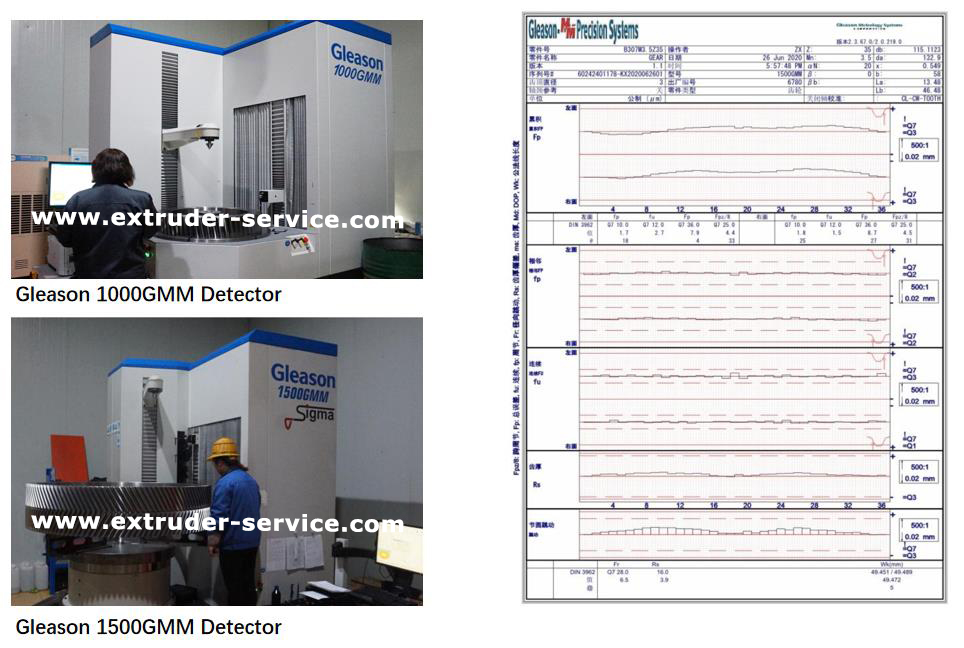

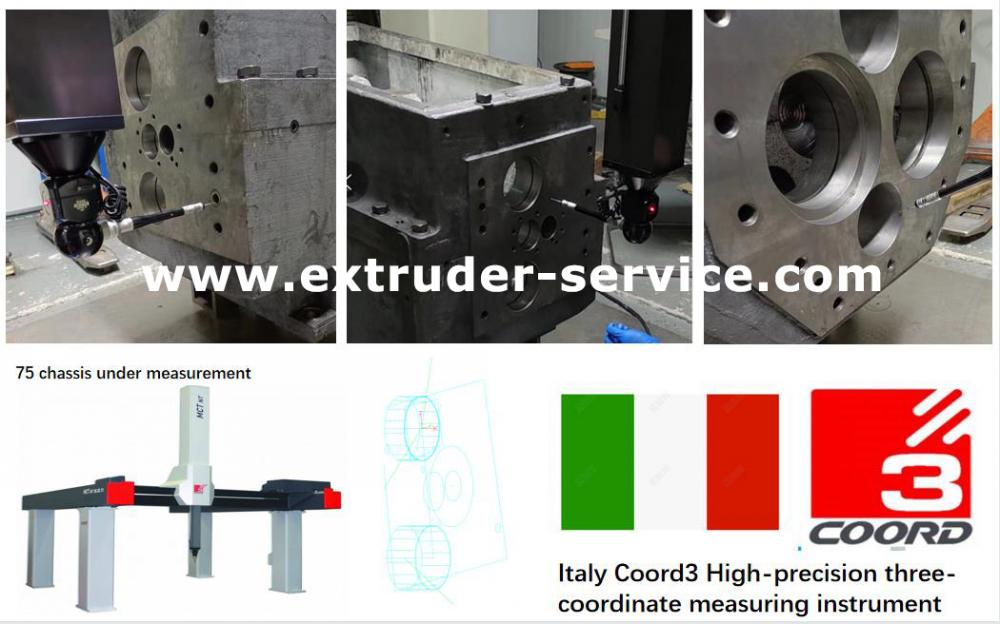

Total imported processing and testing equipment

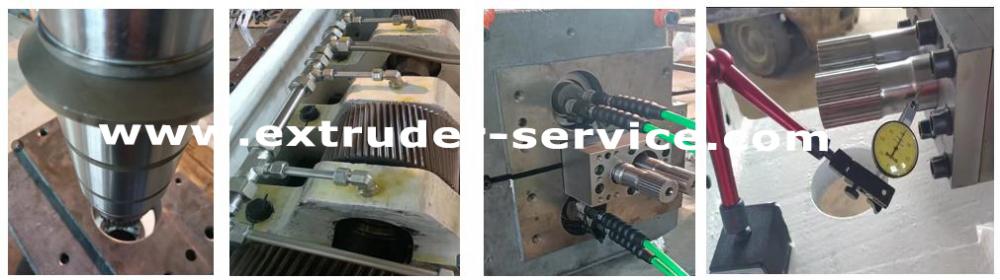

Professional assembly and debugging process
Strict complete machine factory inspection
Application
