Product details

H-TC1224K Pneumatic cylinder hot stamping machine //

Usage and characters

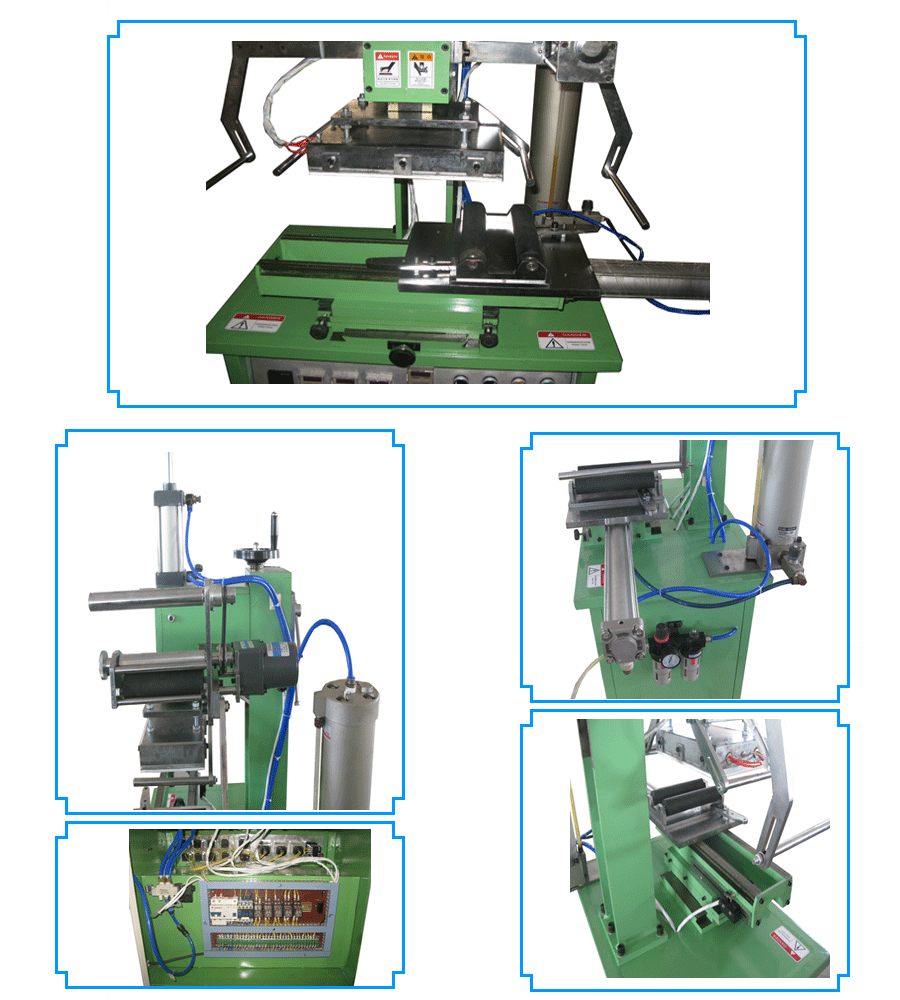

For soft-tube

Hot stamping on cylindrical products such as bottle caps, cups, hoses, bottles and other products requires a curved surface stamping machine. The workbench of the curved surface stamping machine adopts the shuttle movement way to drive the product to rotate at a constant speed. The ironing plate of the curved surface stamping machine adopts a flat ironing plate, which can be installed with copper plates, zinc plates, and silica gel plates. When the ironing plate is pressed down, the stamping paper will be tightened. Pressed tightly on the surface of the product, the rolling process of the product will form a bronzing pattern in the circumferential direction.
There are many types of curved surface hot stamping machines according to the diameter of the hot stamping product. The larger the size of the hot plate, the larger the diameter of the hot stamping product. Most of the curved surface stamping machines are driven by cylinders to move the shuttle table, and hot stamping machines with higher requirements use oil-gas conversion cylinders to drive the movement of the shuttle table. The speed of curved surface stamping machines is generally slow, and the market oil for automated curved surface stamping machines has increased significantly in recent years.

285

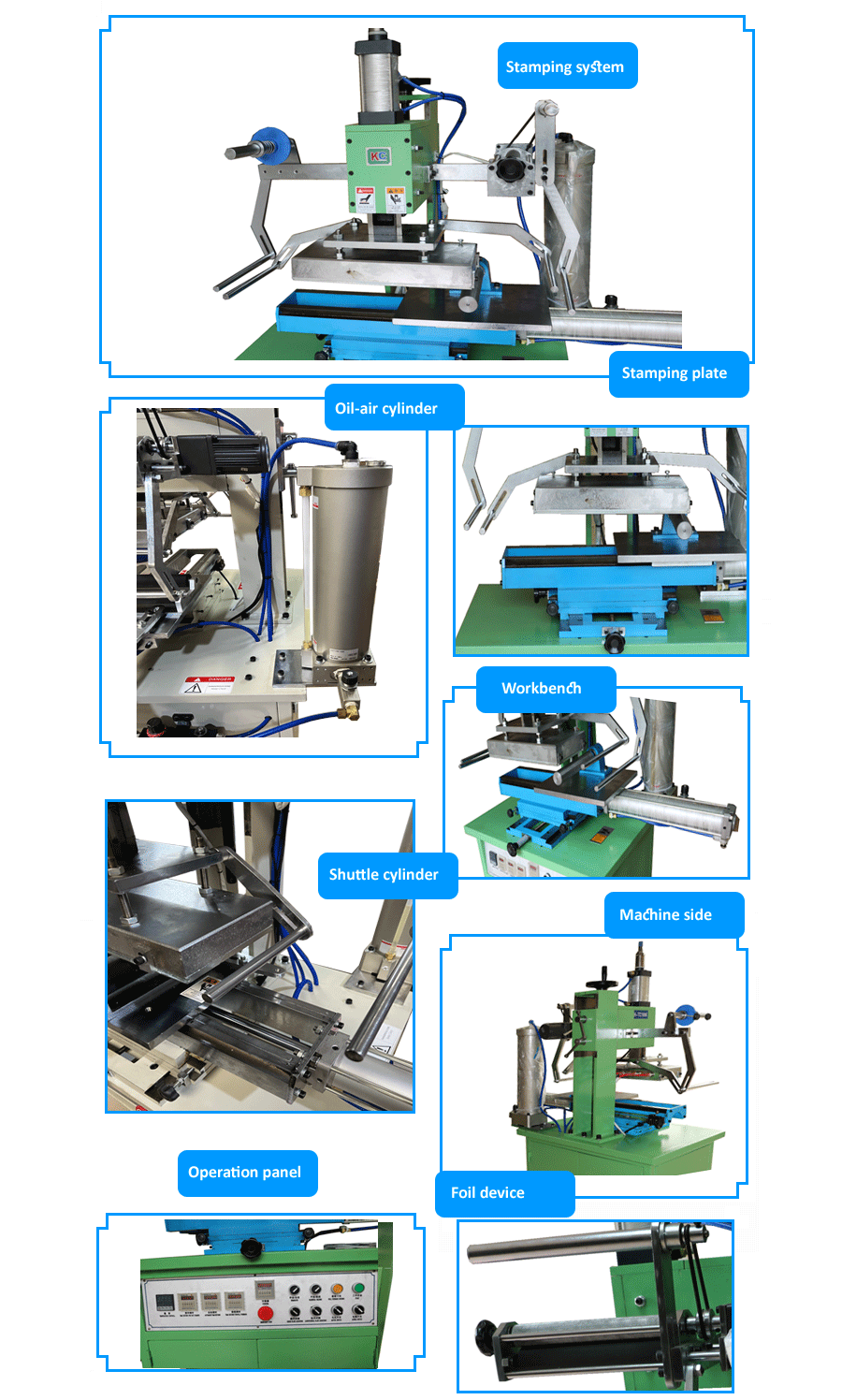

Table can be up and down, around, before and after the precision adjustment, to facilitate the adjustment of the precise location of the gilt;
Relays for process control, stable operation, easy maintenance;
The use of advanced temperature control system, the temperature can be set freely, high precision temperature control, with automatic temperature control;
leveraged cylinder pressure, the pressure is uniform and strong;
The basic parameters of the hot stamping process; temperature, pressure, hot pressure, the rolls of time in accordance with the process requirements of the flexible adjustment;
Motor to control the delivery of the gold foil , resin length can be flexibly adjusted according to the size of the stamping area;
Using high strength steel, gilt plate and table, has a very high flatness;
Heating tube for heating, heat supply is stable, easy to replace;
Safe protection device installed;
The stamping head height adjustable;
Shuttle stable shift ensure stamping cylindrical workpiece;
Stamping flat workpiece while uninstall the shuttle.

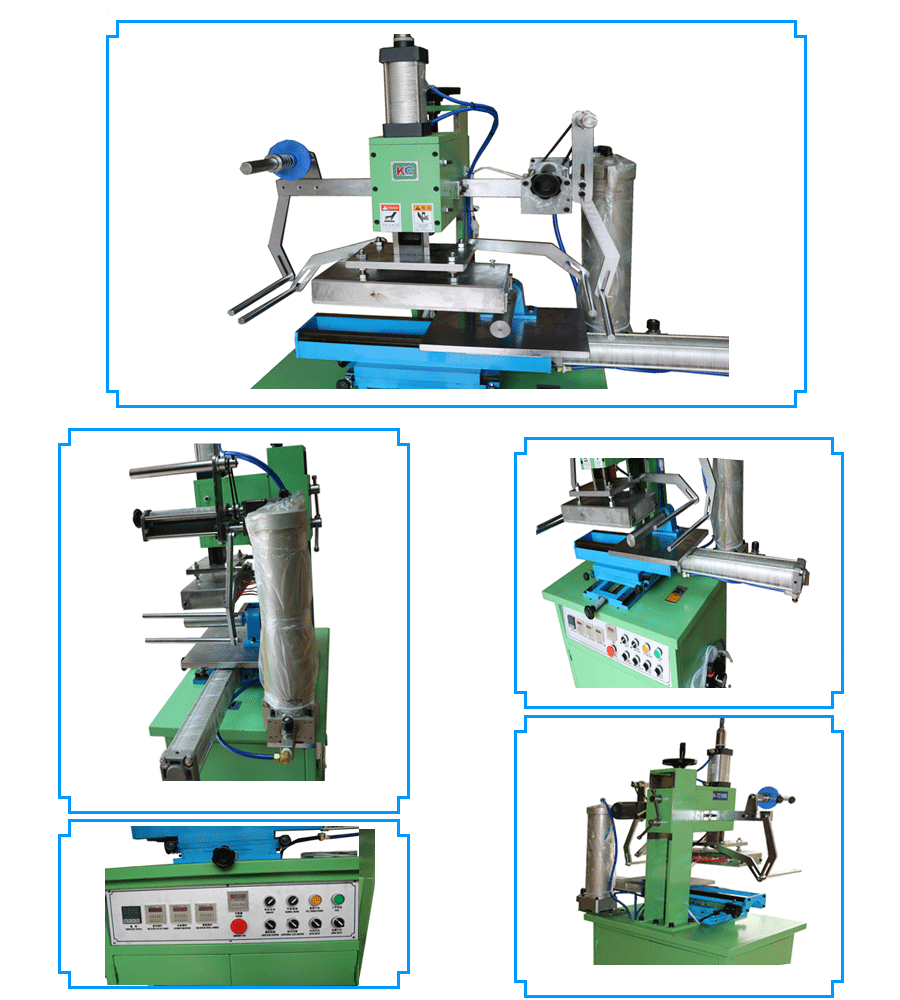

For glass bottles

284

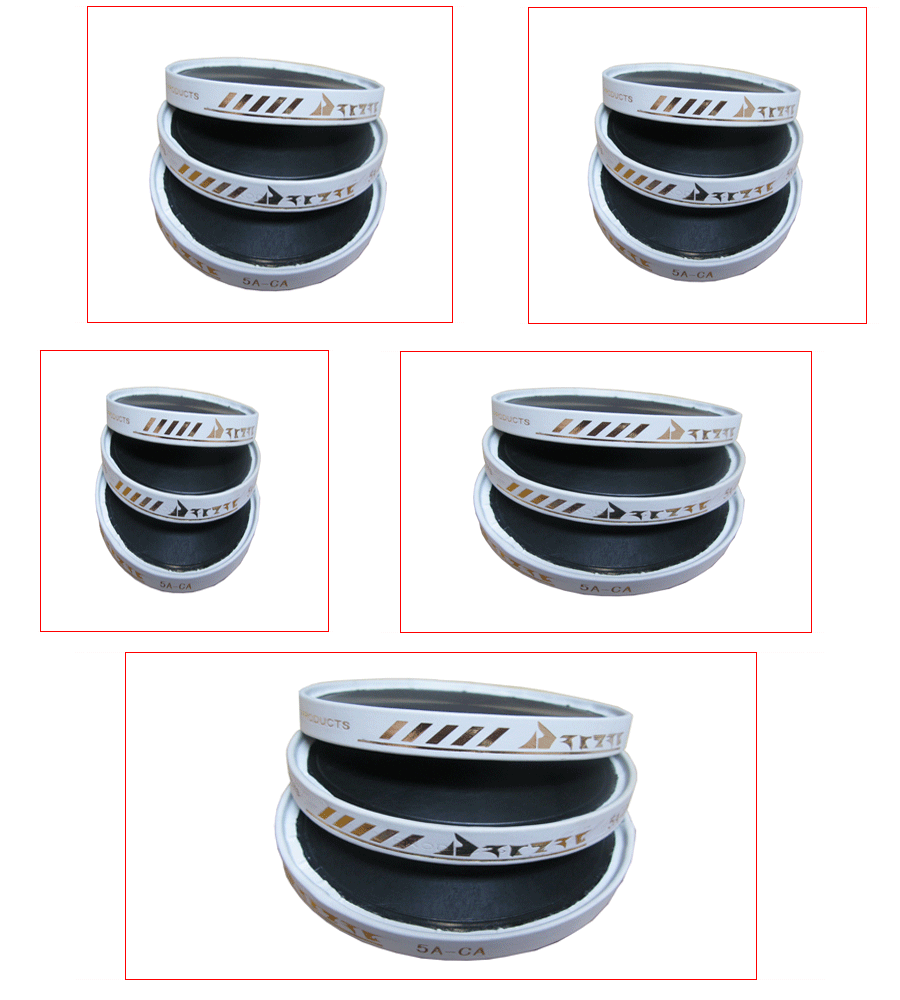

Samples-Jewelry cover

283

H-TC1224K Pneumatic cylinder hot stamping Machine //Parameter

- Size of stamping plate: 120×240 mm;
- Heater Wattage: 1000 W;
- Stamping height adjustable range =180 mm;
- Max. stamping diameter: For whole circle: 70mm For partial circle: 240mm;
- Stamping temperature adjustable range: 0 - 400oC;
- Stamping foil pulling length: =240 mm;
- Stroke of stamping plate: 70 mm;
- Max. stamping pressure: 200 kgf (7bar);
- Max. stamping speed: 800 pcs/h;
- Power: 110/220V, 60/50Hz;
- Air consumption: 100 litre/min;
- Dimensions: 640 x 580 x 1060 mm;
- Weight: 153 Kg;
- Table stroke: 120*240mm
- Works supply: 110V-220V Power supply;5-7 Bar compress air
- Package 0.820*0.740*1.560 m;
- Gross weight: 165 kg;
- CBM : 0.946608
- H.S.Code : 8443198000
- Certificate : CE
