Waste bin screen printing machine

3 year ago
123 0
Product details

 Flat screen printing machine for wasten bin

158

Data

PS-4060PTB Precision screen printing machine for wasten bin //Structure

Working table

Manual slide table

Actions

Up-down of screen plate

To be printed

  • Crash can, Wasten bin

Squeegee stroke

 500mm

PS-4060PTB  Precision screen printer for wasten bin  //Usage and characters

Guide

  • It is a flat screen printing machine with Manual slide table, which can realize  waste bin and crash can .
  • The product is placed on the table, and the table can bring the product to the printing position, printing, and then take out.

Application

  • Crash cans, Wasten bins, Transport crates

PS-4060PTB  Flat screen printing Machine FOR Crash can //Parameters

Technical parameters

PS-4060PTB  High-precision screen printer for crash cans

  • Worktable area:400×1000mm
  • Max printing area:300×500mm
  • Max size of frame: 500×750mm
  • Net weight:356kg.
  • Colour Number: 1;
  • Operating: PLC;
  • Max object Height: 800mm;
  • Range adjustment of working table: +-10mm.

Works supply

  • 110V-220V Power supply.

Shipment parameters

  • Outer dimension:2150×1760×2000mm;
  • Net weight: 286KG;
  • Pakcage dimension:2200×1450×2100mm;
  • Gross weight: 356KG;
  • CBM: 6.8184

H.S.CODE

8443192190

Certificate

CE

PS-4060PTB Flat Manual screen printing Machine for crash can //Advantage

Function

  • Manual slide table, suitable for Crash can and wasten bin .
  • Aluminum alloy frame, light and strong structure.
  • Precise screen frame device ensure precise adjustment of mesh distance and ensure product stability.
  • PLC and touch screen operating system

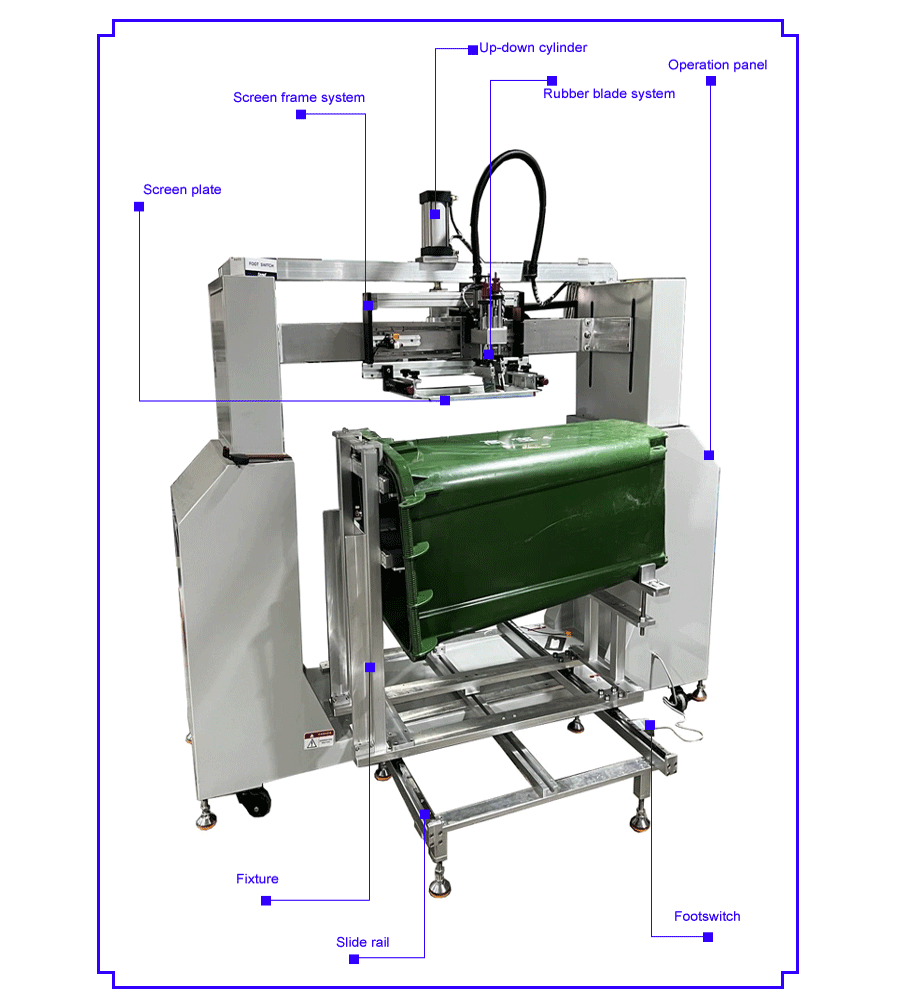

Structure

159
