Automatically bottle screen printing machine

Automatic screen printer with image recognition system is an advanced equipment that integrates image recognition technology and automated printing technology.

Description

Automatic screen printing machine;
Designed specifically for the printing of hollow plastic bottle design independent feeder, efficient printing, and other containers can be converted mold printing, simple operation, save a lot of manpower to provide complete solutions for the plant productivity is low.
Market fully automatic screen printing machine in bottles all the connection type screen printing system, bottle finished the first color, into the second printing unit to the second color screen printing. Tolerance in the length direction, the type of screen printing machine can do a 5-color to six colors.

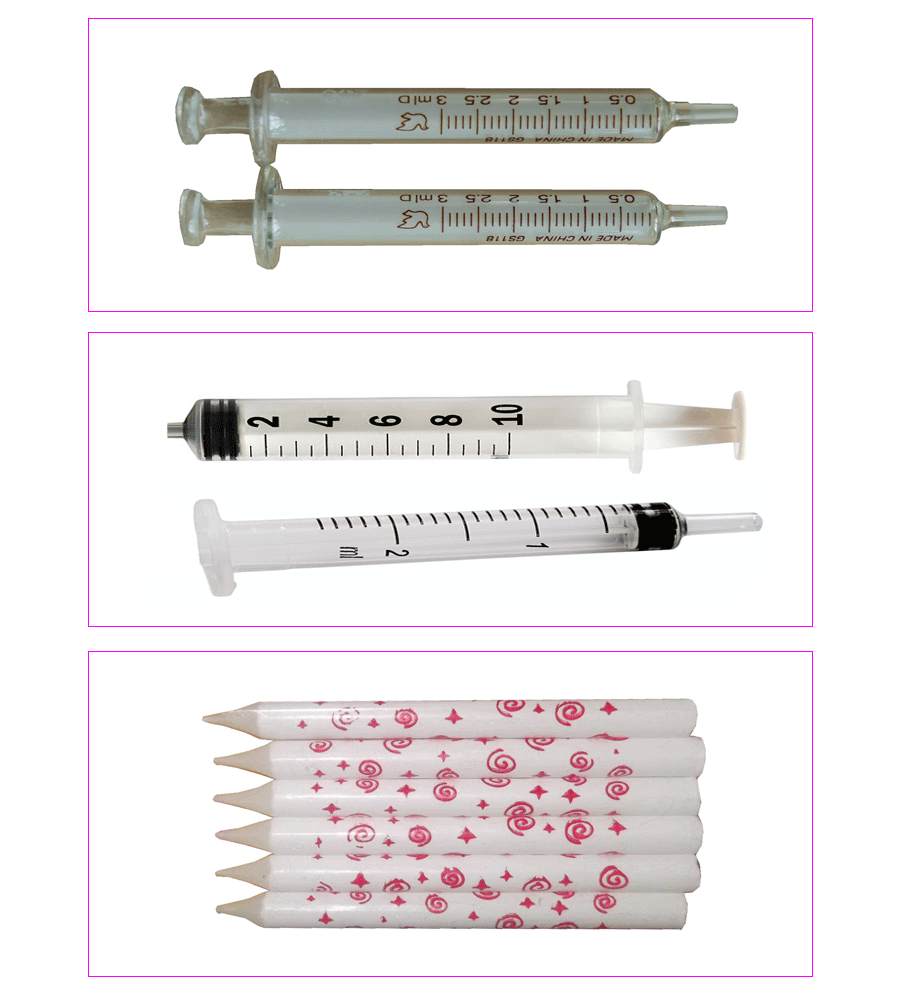

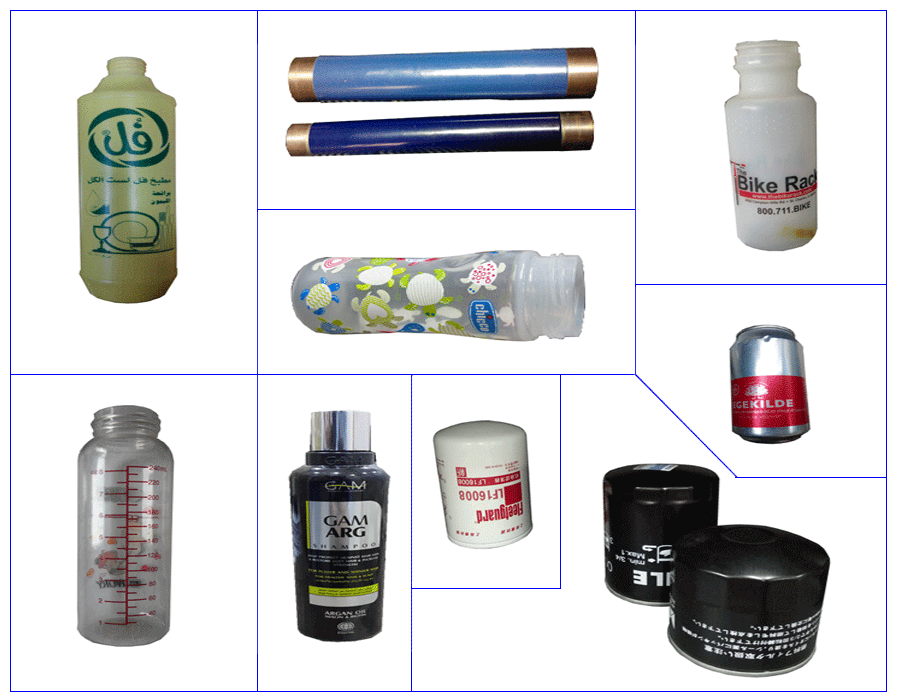

Cosmetics, pharmaceuticals and food industry within the round, flat, square container on the surface of the printing of various patterns, such as cosmetic bottles, detergent bottles, beverage bottles, milk bottles, space cups, filters, jars and other high-speed screen printing

Plastic packaging, oil industry, cosmetics industry, commodity manufacturing industries;
Automotive filters, cylindrical products with positioning points;
Various hollow containers, some hoses, some open type containers;
Some have smooth sides of the cap.

Technical parameters

Round-object Max printing stroke: 300mm;
Oval-object Max Printing stroke: 120mm;
Round-object Max Printing speed: 4000pc/h;
Oval-object Max Printing speed: 4500pc/h;
Work piece size(Round): Diameter:25-100mm;Length:60-300mm;
Work piece size( Oval): Width:25-260mm, Length:60-300mm;
Power supply: AC380V,3Phase ,45A/(1-3Colour),100A/(4-5Colour);
UV Lamp wattage: 4KW/pc;
UV Exhaust fan wattage: 0.2KW;
Exhaust rate: 11.6 m3/min;
Motor Wattage: 0.75KW;
Reduction gearbox : 1:7.5;
Feeding motor wattage : 0.75KW;
Fixture motor wattage : 0.5KW;
Vacuum Pressure : 500 mm/Ag;
Flame gas: Liquefied Petroleum gas( LPG);
Air : 6 Bar;
Air rate of flow : 1500Lit/M.

1、 Characteristics

High precision image recognition: This device adopts advanced image recognition algorithms and high-definition cameras, which can achieve precise recognition and positioning of printing objects, ensuring the accuracy and consistency of printing.

High degree of automation: The equipment is equipped with an automation control system, which can automatically complete processes such as feeding, positioning, printing, and drying, reducing manual operations and improving production efficiency.

Strong flexibility: The equipment can flexibly adjust printing parameters to adapt to printing objects of different sizes, shapes, and materials, meeting diverse printing needs.

Stable and reliable: The equipment uses high-quality materials and advanced manufacturing processes to ensure stable printing quality and performance during long-term operation.

2、 Function

Image recognition and positioning: Through the image recognition system, the equipment can automatically recognize and locate the printing object, ensuring that the position and angle of each printing are accurate and error free.

Automated printing: The equipment can automatically complete the printing process based on preset printing parameters and image recognition results, including ink application, print head movement, etc.

Multi color printing: The equipment supports multi-color printing, and by replacing the screen and ink, rich and colorful printing effects can be achieved.

Ink drying and curing: The equipment is equipped with an ink drying system, which can quickly dry the ink after printing is completed, avoiding ink flow or adhesion, and ensuring the quality of printed products.

Data management and tracking: Some high-end devices also have data management and tracking functions, which can record various parameters and data during the printing process, facilitating subsequent quality control and traceability.

3、 Application Fields

Packaging industry: This equipment can be used for printing various packaging materials, such as paper boxes, plastic bottles, metal cans, etc. By printing exquisite patterns and text, it enhances the brand image and market competitiveness of products.

Electronics industry: In the electronics industry, this equipment can be used for identification and labeling of printed circuit boards, components, and other products, ensuring product traceability and recognition.

The automotive industry requires a large number of markings and labels during the manufacturing process. This equipment can be used to print identification and warning signs for automotive components, improving product safety and recognition.

Advertising industry: Advertisers can use this device to print advertising materials such as posters, banners, display boards, etc., and attract consumers' attention by printing creative advertising content.

Other industries: This device can also be applied to other fields that require high-precision and automated printing, such as daily necessities, stationery, toys, etc.
