Product details

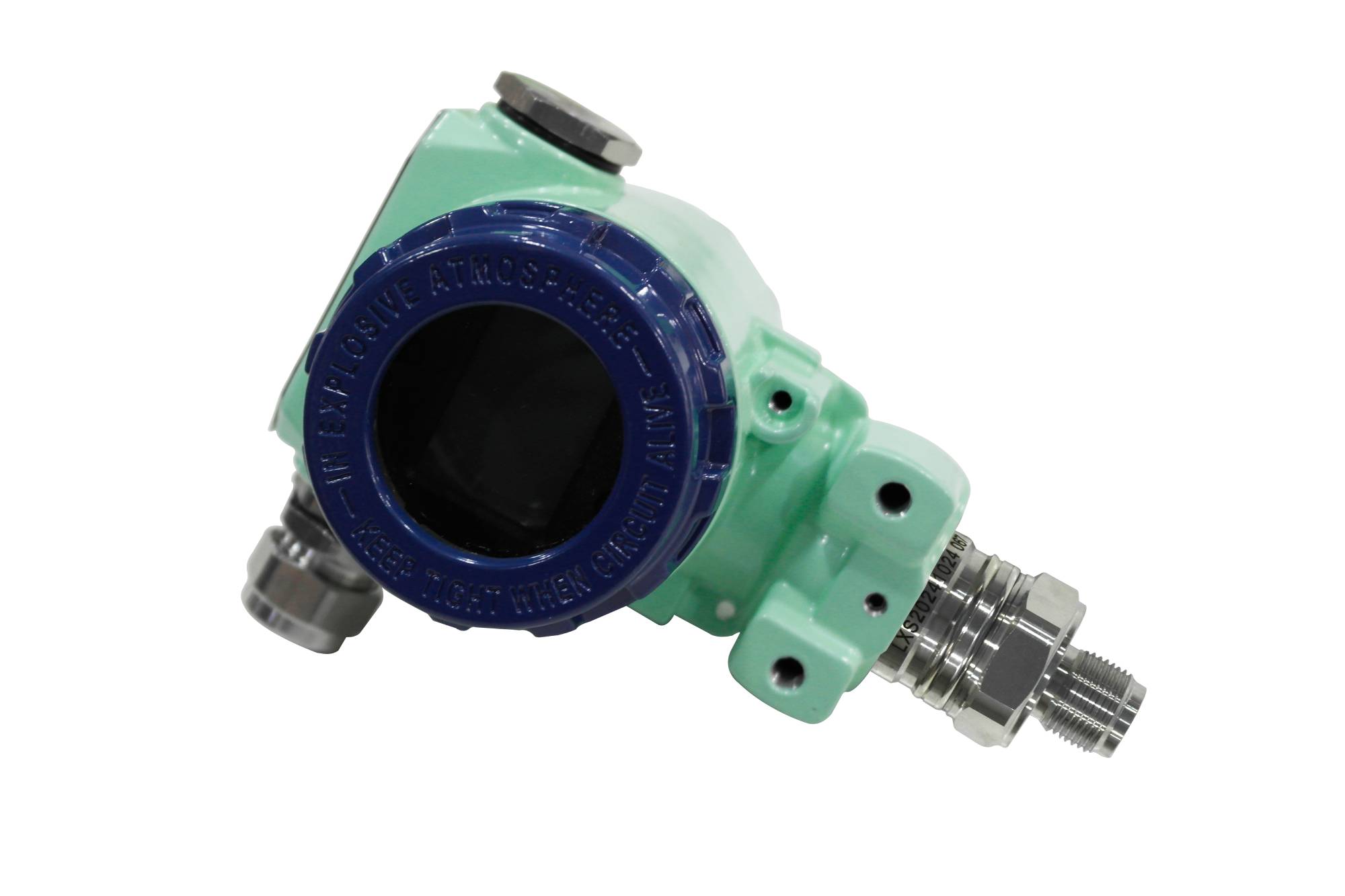

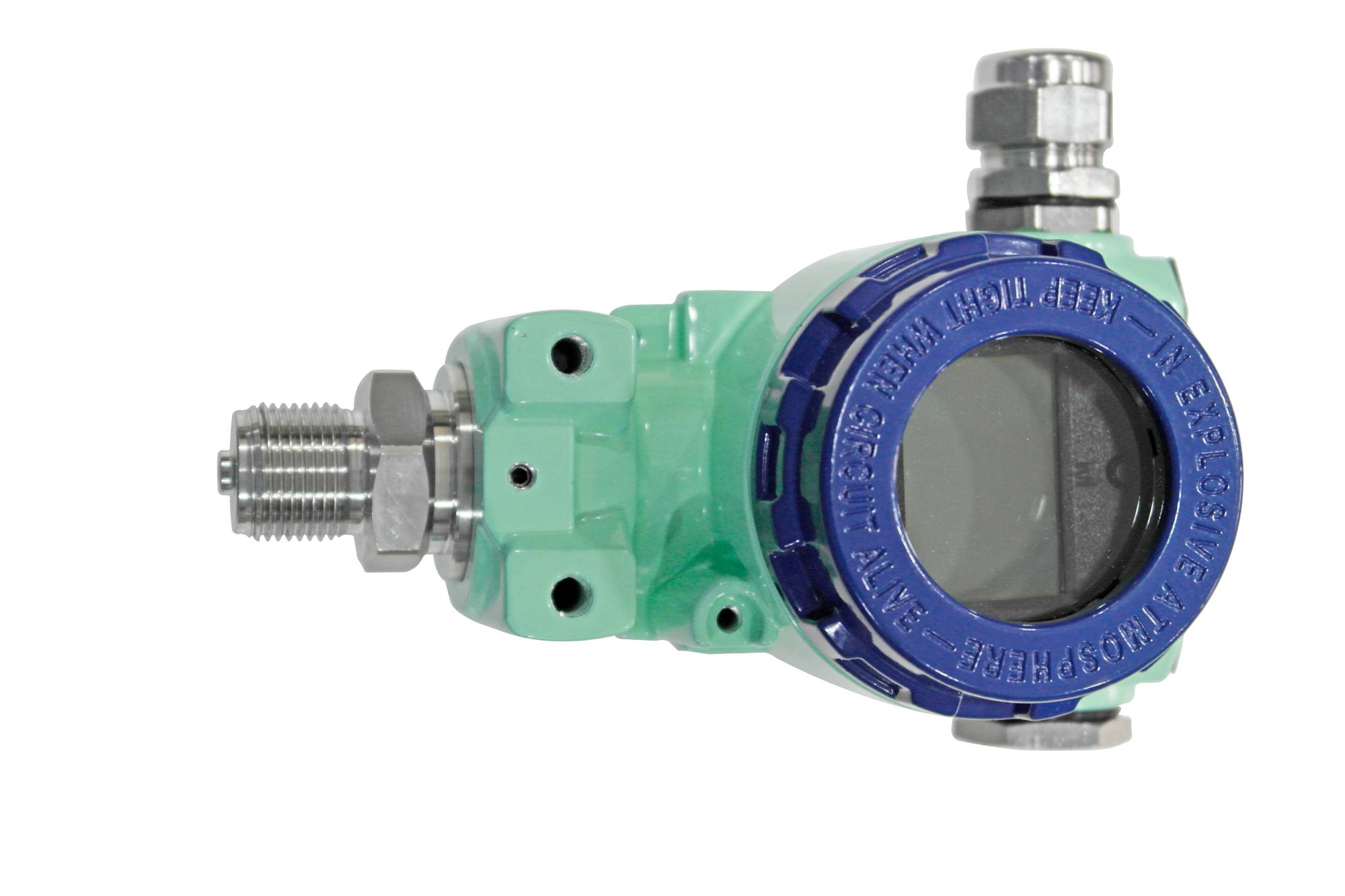

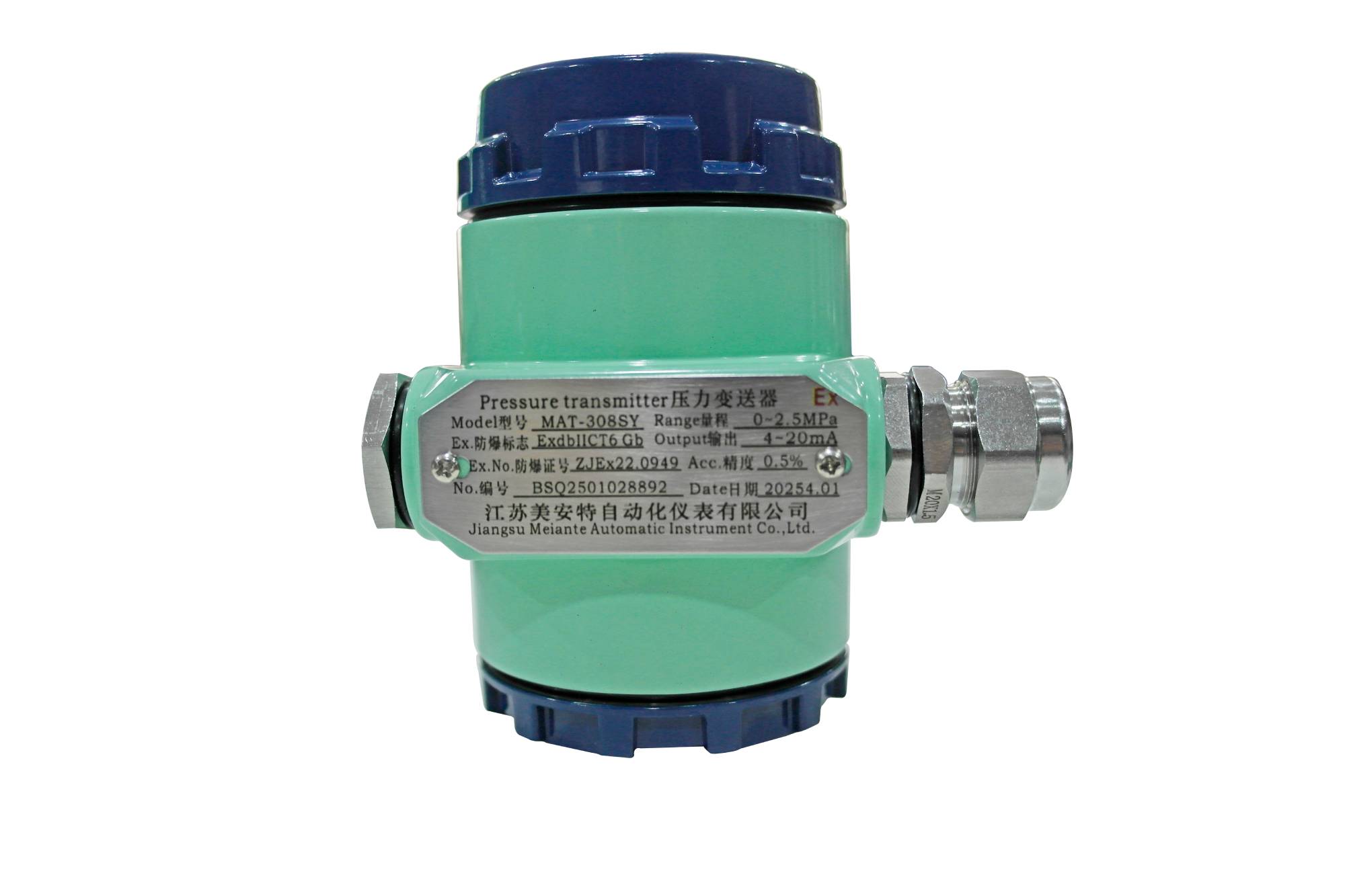

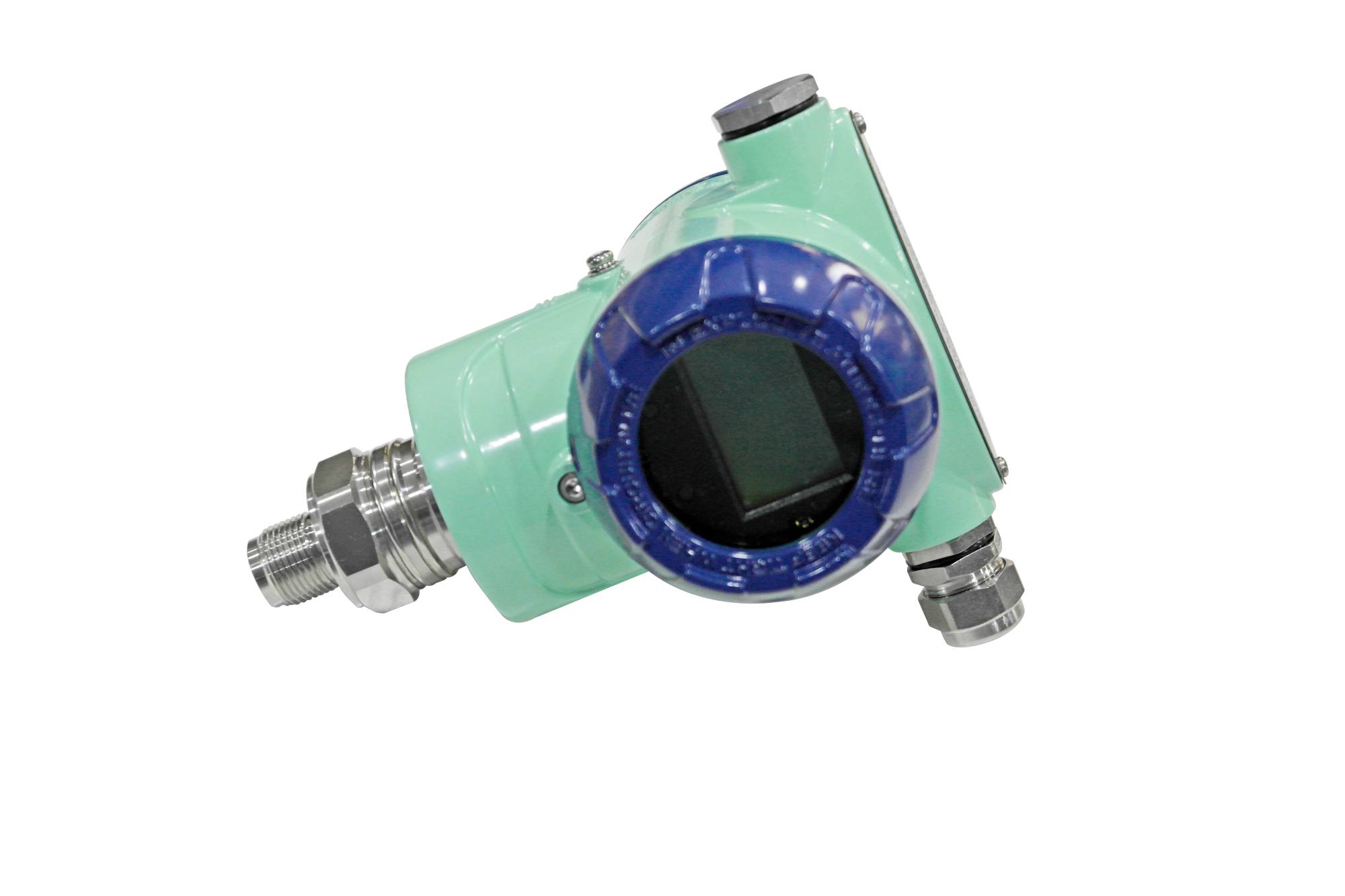

The explosion-proof pressure transmitter is designed for industrial sites with dangerous environments such as flammable and explosive gases and dust. Its appearance has a strict explosion-proof shell and is manufactured in strict accordance with relevant explosion-proof standards, such as Ex d IIC T6 Gb and other explosion-proof grades. The shell material is mostly made of high-strength stainless steel, which is processed by a special sealing process to ensure that there is no explosion hazard due to factors such as electrical sparks in dangerous environments.
Its biggest advantage is its excellent explosion-proof performance, which can work safely and stably in an environment full of flammable gases or dust. It adopts an intrinsically safe circuit design. Even when the circuit fails, the energy generated is limited to a safe range and will not ignite the surrounding flammable and explosive materials. In terms of performance, it also has high-precision measurement capabilities, with an accuracy of up to ±0.2% FS, and the measurement range can be customized according to actual working conditions. The sensor part has been specially optimized, with high sensitivity to pressure changes and fast response speed. Signal transmission uses isolation technology to prevent signal interference and ensure the accuracy and reliability of data transmission. The transmitter is also equipped with a comprehensive fault diagnosis function, which can monitor its own working status in real time. Once an abnormality occurs, it will immediately issue an alarm to remind staff to deal with it in time, ensuring the safe operation of industrial production in dangerous environments.

Jiangsu Meian Automation Instrument Co., Ltd.'s leading products cover five major categories of products, including liquid level meters, temperature meters, flow meters, calibration instruments, and pressure meters. Among them, liquid level meters, pressure meters, flow meters, and temperature meters have passed the SIL safety certification, and the two categories of products, liquid level meters and pressure meters, have obtained explosion-proof certificates. They are favored by many domestic dealers and users, laying a solid foundation for the long-term development of Meian Instruments.

Product Attributes:

Measuring medium	Gas, liquid, oil and other media compatible with the contact part material
Measuring range:	-0.1...0~0.001...60MPa
Overload capacity:	2 times the range
Pressure type:	gauge pressure, absolute pressure or sealed reference pressure
Accuracy:	minimum ±0.1%FS, typical ±0.25%FS, maximum ±0.5%FS
Long-term stability:	±0.1% FS/year
Working temperature:	-30~80℃
Power supply:	12.5~36VDC
Output signal:	4~20mA (two-wire) 0~10/20mA (three-wire) 0/1~5/10V (three-wire)
Load resistance:	≤(U-15)/0.02Ω ≤(U-15)/0.02Q >5k
Media compatibility:	sensor housing: stainless steel 1Gr18Ni9Ti, diaphragm: stainless steel 316L, electronic housing: low copper aluminum alloy
Sealing form:	fluororubber "O" ring or fully welded
Protection level:	IP65

Detail Pictures:
