Product description

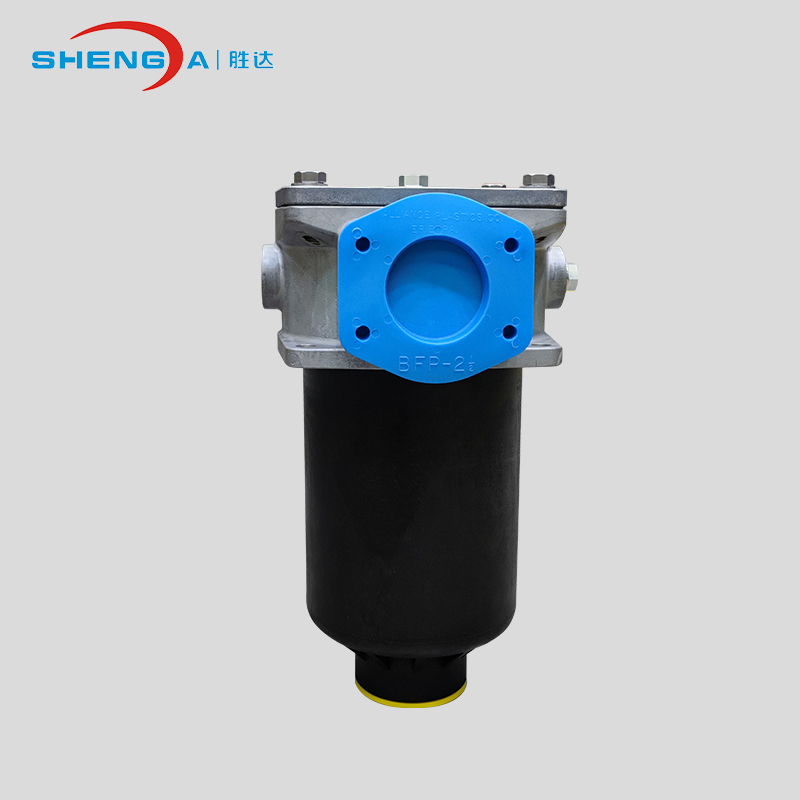

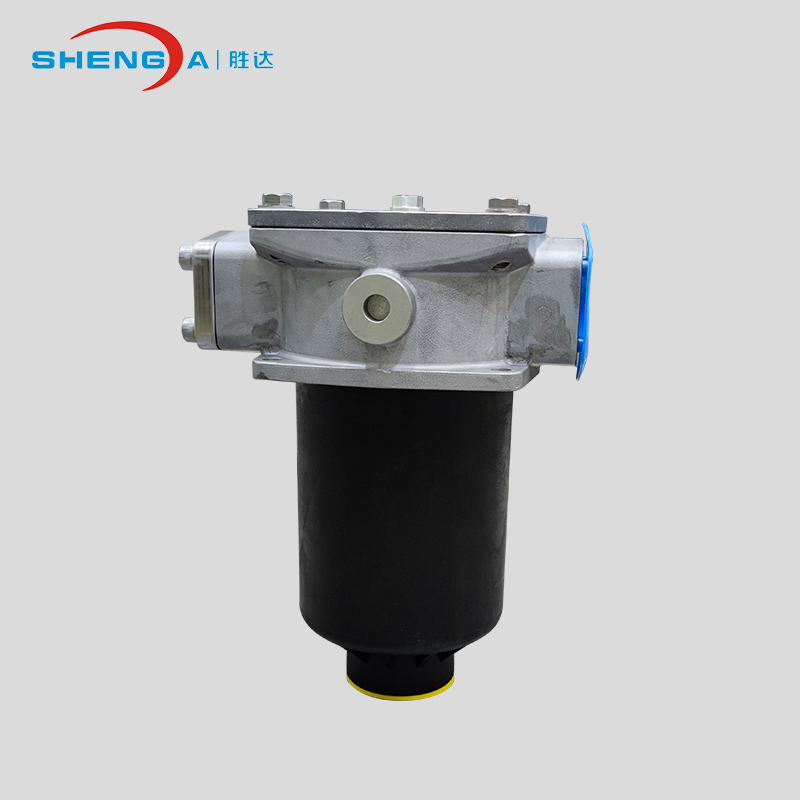

Hydraulic Return Line Oil Filter Assembly(SDRFM)
---up to 850 l/min
---up to 10 bar
---material: aluminum/ steel/ engineering plastics
1. Introduction:
Oil tank top filter (SDRFM type) is mainly installed on the top of oil tank, to remove the impurities like abrasives from the pipeline, in that way, to protect the oil tank, and prolong the life time.
It consists of a filter housing with inlet and housing.
2. Filter Element
• Max. Allowable DP:
BN/ HC – 20 bar P/HC – 10 bar W/HC – 20 bar
3. Description
Mounting As tank-top filter
Temperature range -30℃~ +100℃ (short term -40℃)
Pressure setting of clogging indicator △Pa= 2 bar – 0.2bar (others on request)
Bypass cracking pressure △Po= 3 bar ＋0.5 bar (others on request)
4. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

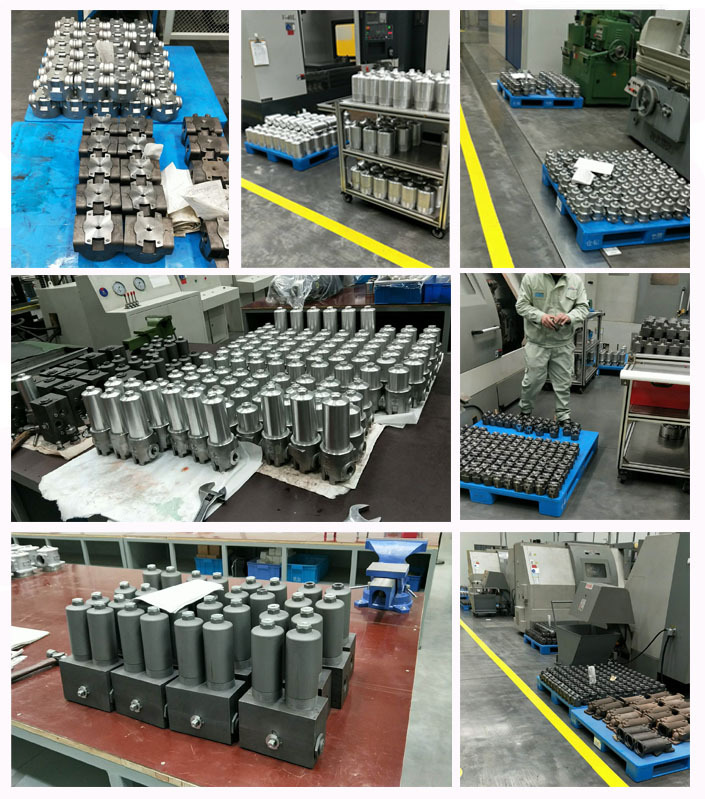

5. Photos
6. Optional Models
| SDRFM ON 75 BB 10 A 1.X |
| SDRFM ON 75 BC 10 A 1.X |
| SDRFM ON 75 BD 10 A 1.X |
| SDRFM ON 90 BC 10 A 1.X |
| SDRFM ON 150 BC 10 A 1.X |
| SDRFM ON 165…10 A 1.X |
| SDRFM ON 165 BB 10 A 1.X |
| SDRFM ON 165 BC 10 A 1.X |
| SDRFM ON 165 BD 10 A 1.X |
| SDRFM ON 185…10 A 1.X |
| SDRFM ON 185 BB 10 A 1.X |
| SDRFM ON 185 BC 10 A 1.X |
| SDRFM ON 185 BD 10 A 1.X |
| SDRFM ON 210…10 A 1.X |
| SDRFM ON 210 BD10 A 1.X |
| SDRFM ON 210 BE10 A 1.X |
| SDRFM ON 210 BF10 A 1.X |
| SDRFM ON 270…10 A 1.X |
| SDRFM ON 270 BD10 A 1.X |
| SDRFM ON 270 BE10 A 1.X |
| SDRFM ON 270 BF10 A 1.X |
| SDRFM ON 330…10 A 1.X |
| SDRFM ON 330 BF 10 A 1.X |
| SDRFM ON 330 BK 10 A 1.X |
| SDRFM ON 500…10 A 1.X |
| SDRFM ON 500 BF 10 A 1.X |
| SDRFM ON 500 BK 10 A 1.X |
| SDRFM ON 661…10 A 1.X |
| SDRFM ON 661BM10 A 1.X |
| SDRFM ON 851…10 A 1.X |
| SDRFM BN/HC 75…10 A 1.X |
| SDRFM BN/HC 90…10 A 1.X |
| SDRFM BN/HC 150…10 A 1.X |
| SDRFM BN/HC 165…10 A 1.X |
| SDRFM BN/HC 185…10 A 1.X |
| SDRFM BN/HC 210…10 A 1.X |
| SDRFM BN/HC 270…10 A 1.X |
| SDRFM BN/HC 330…10 A 1.X |
| SDRFM BN/HC 500…10 A 1.X |
| SDRFM BN/HC 661…10 A 1.X |
| SDRFM BN/HC 851…10 A 1.X |
