Inline Oil Filter Cartridge
Structure
As the core of the filter, hydac oil filter cartridge replacement is the filter element which performs the actual filtration and/or dewatering function in the housing.
They consist of several pleated filtration and support layers which are placed as a cylinder around or inside the stabilizing support tube. These mesh packs are sealed by the endcaps.
Regardless of the type of filter, flow direction through the filter elements is from out to in.
Depending on the filter material, the filter mesh pack is encased in an additional outer plastic sleeve.
Description
Direction of flow---------------------------from out to in
Element description---------------------with or without valve
Element type-------------------------------D, R
Advantages
High contamination retention capacity
High pressure stability values
Good flow fatigue strength
Low initial differential pressure
Low cost with high quality
Test standard
ISO2942-ISO16889-ISO3968-ISO3724-ISO3723-ISO2943-ISO2941
Filtration rating:
W/HC: 25, 50, 100, 200 µm
Size
0030, 0035, 0055, 0060, 0075, 0110, 0140, 0160, 0240, 0280, 0330, 0500, 0660, 0990, 1320
Available pressure stability:
W/HC: 20 bar
Applicable Test
DIN ISO 2941 Collapse Burst Pressure
DIN ISO 2943 Material Compatibility With Fluids
ISO 3723 End Load Test
ISO 3724 Flow Fatigue Characteristics
ISO 3968 Pressure Drop VS Flow Rate Test
ISO 16889 Multi Pass Test
ISO 2942 Bubble Point Test
COMPATIBILITY WITH HYDRAULIC FLUIDS ISO 2943
Hydraulic oil H to HLPD DIN 51524
Lubrication oil DIN 51517, API, ACEA, DIN 51515, ISO 6743
Compressor oil DIN 51506
Supplementary details
W=NBR seals, suitable for HFA and HFC emulsions
Application
1) Hydraulic Engineering Systems Industry;
2) Mining and Metallurgical Equipment Industry;
3) Construction, engineering machinery industry;
4) Machine Tool Industry;
5) Agricultural machinery industry;
6) Plastic machinery industry;
7) Petrochemical industry;
8) Ship and marine engineering equipment industry.

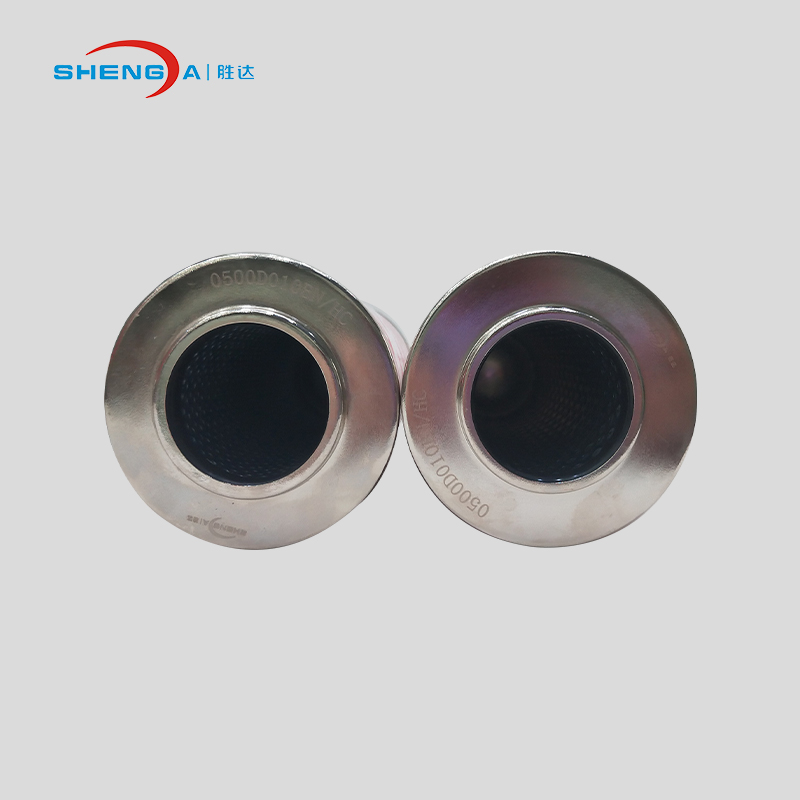

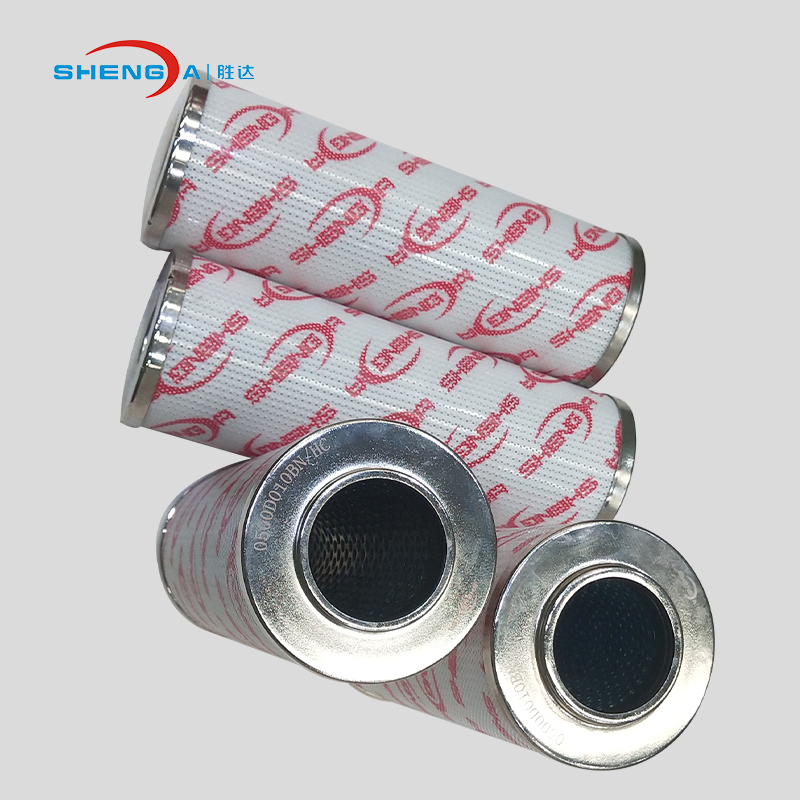

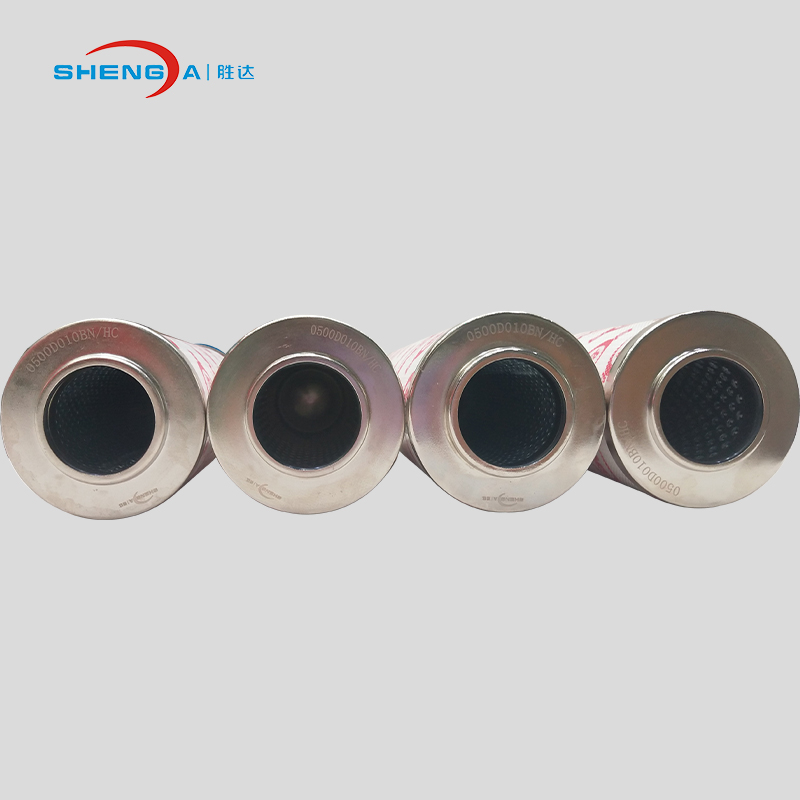

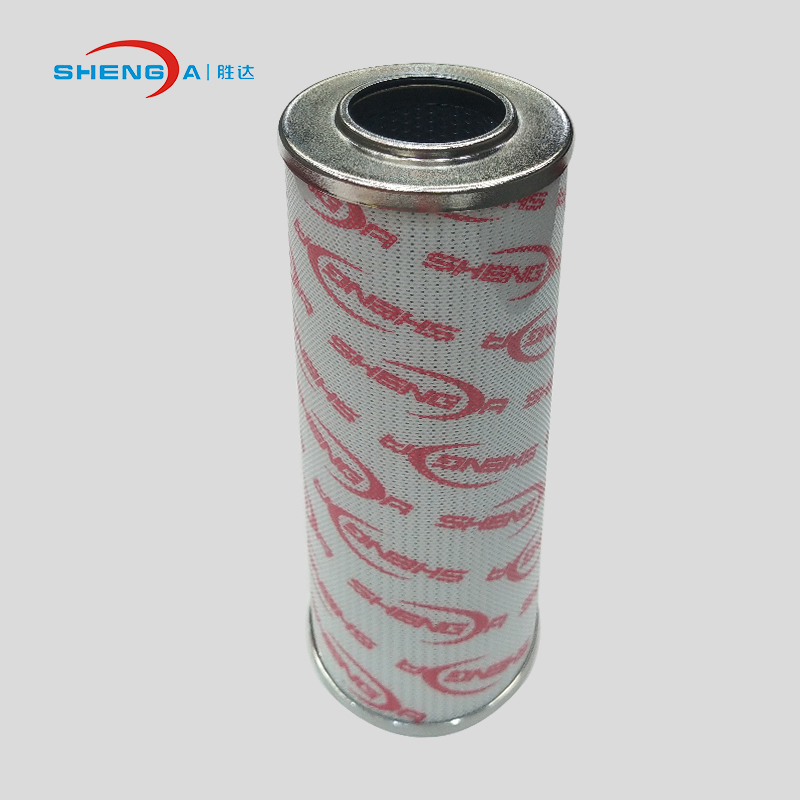

Photos
