Double Housing Hydraulic Inline Oil Filter (SDFLND)
---DIN 24550
----up to 400 L/min
---up to 63bar
---material：aluminum
1. Technical Specifications
1.1 Filter Housing
Construction
Double Housing Hydraulic Inline Oil Filters are designed in accordance with international regulations. They consist of a filter head with built-in change-over valve and screw-in filter bowls.
Standard equipment:
* without bypass valve
* connection for a clogging indicator
* oil drain plug (FLND 160 to 400)
1.2 Filter Elements
Max. Allowable D.P.:
BN/HC：20bar； W/HC: 20bar
2. Description
Mounting as inline oil filter
Temperature range - 30 ℃ ~ + 100 ℃
Pressure setting of clogging indicator △ Pa= 5bar -0.5bar (others on request)
Cracking pressure of bypass valve △ Po=7 bar±0.5bar (others on request)
Seals NBR (=Perbunan) /Nitrile Butadiene Rubber
3. Notes
* Filter housings must be earthed.
* When using electrical clogging indicators, the electrical power supply to the system must be switched off before removing the clogging indicator connector.
* Filters with switching valve are designed to have a permissible leakage depending on the operating medium.
4. Application
It can be used for mineral oils, lubrication oils, non-flam fluids, synthetic and rapidly biodegradable fluids.

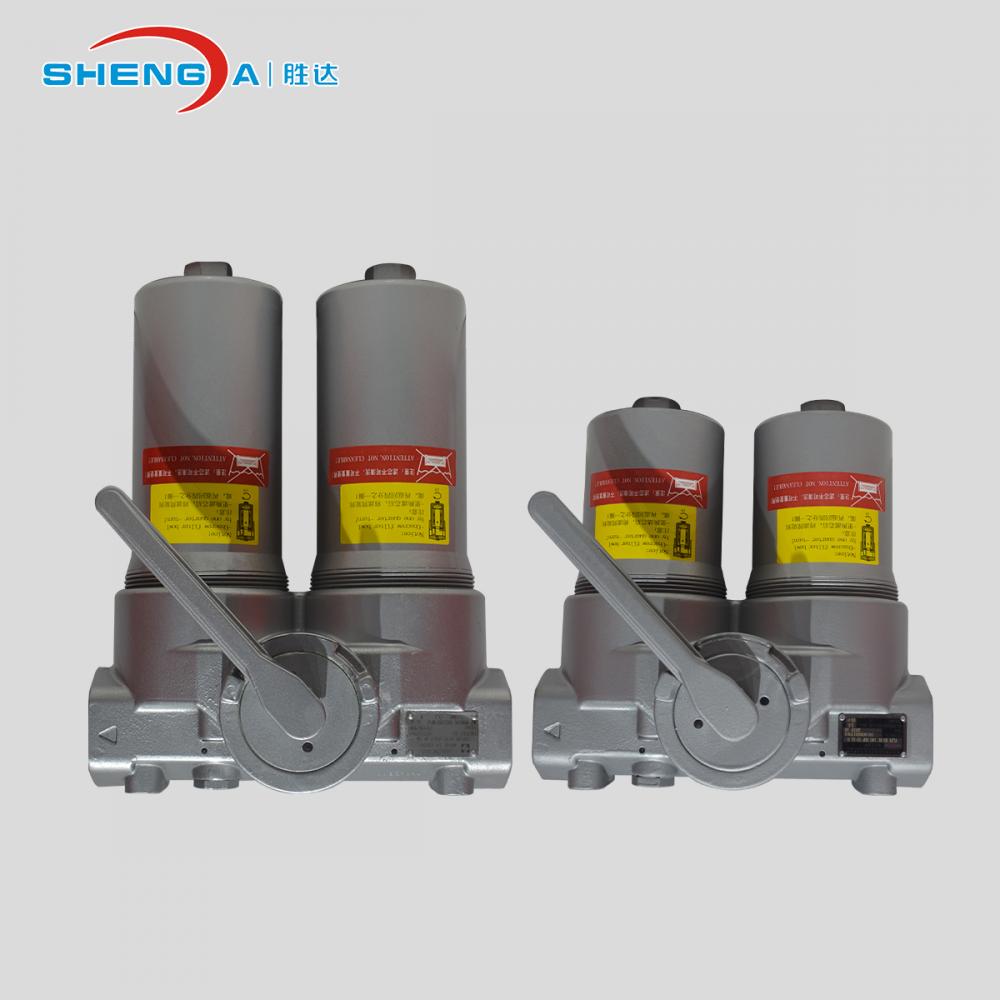

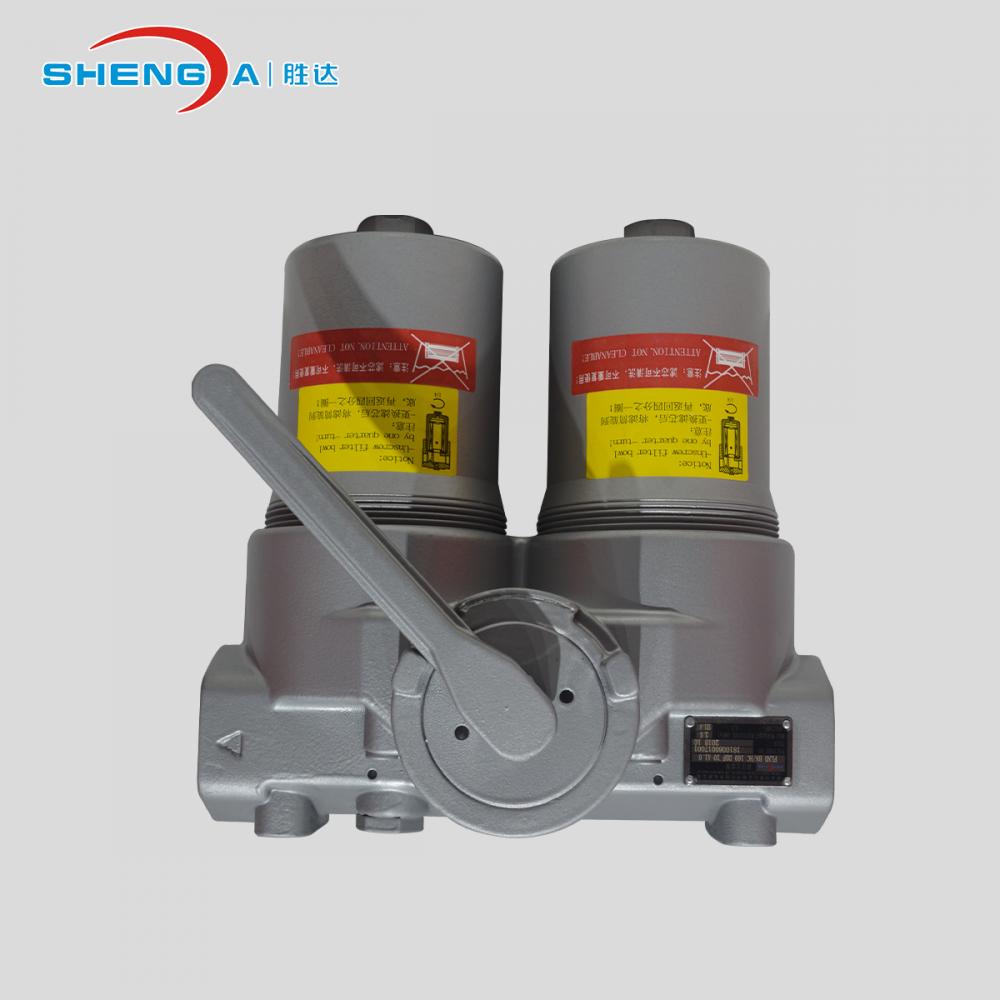

5. Photos
If you are interested in the product, contact 2bvideo.com for more information for more information
