Advantages of Micro Diaphragm Water Pump in Indoor Plant Irrigation
Small size and flexible installation: The mini water pump has a small volume, making it easy to install in indoor plant irrigation systems without taking up too much space.
Strong self priming ability: Its self priming height can reach 5 meters, making it easy to transport water from low level water tanks to high level plant areas.
Low noise operation: suitable for indoor environments and will not cause interference to residents.
Precise control: timed and quantitative irrigation can be achieved through controllers and sensors to meet the water requirements of different plants
Product Features
Low noise: Adopting flexible diaphragm and optimized design, the operating noise is low.
Corrosion resistance: The pump body and diaphragm are usually made of corrosion resistant materials, suitable for various chemical media.
High pressure: A well designed diaphragm structure enables it to provide high output pressure.
Strong self priming ability: The self priming height can reach 5 meters.
No leakage: The diaphragm completely isolates the fluid from the transmission components, to make sure no leakage.
Multifunctionality: Some models can be used for both liquid and gas transmission simultaneously
Technical Specification
| Model | DSB130-B | Voltage | DC5V |
| Current | 65mA | Flow | 400mLPM |
| Media | Water | Life cycle | 100000 cyclces |
| Neight weight | 50g | Noise | 60dB |
Why can micro water pump be used for both liquid and gas transmission simultaneously?
Pressure difference drive: Whether it is liquid or gas, mini dc water pump drives their transmission by creating a pressure difference. thus,only the medium can be effectively sucked in and discharged, micro diaphragm water pumps can be used for both liquid and gas transmission.
Material compatibility: The material of micro diaphragm water pumps usually has good chemical stability and corrosion resistance, and can adapt to the transmission needs of various liquids and gases. This has led to the widespread application of micro diaphragm water pumps in industries such as chemical, pharmaceutical, and food.
Compact structure: The self priming micro water pump has a small structure, small volume, and is easy to install and maintain. This enables efficient liquid and gas transport within a limited space.
Dimension Drawing
DC diaphragm water pump’s gas transmission principle
Micro diaphragm water pump,as a type of mini vacuum pump, with an inlet suction nozzle and outlet exhaust nozzle. It’s principle is that the motor drives the transmission mechanism, making the diaphragm inside the pump to perform reciprocating motion. This movement makes a change in the volume inside the pump chamber, resulting in a vacuum or negative pressure at the suction port and a slight positive pressure at the exhaust nozzle. Under the pressure difference, gas is drawn into the pump chamber and discharged from the exhaust port

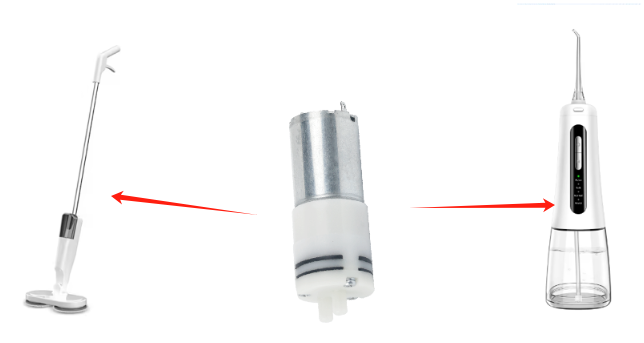

DYX Mini Pumps And Solenoid Valves Application
There are two main working modes for mini water pump in gas transmission:
The first mode: The circular motion of the motor causes the diaphragm inside the pump to perform reciprocating motion through a mechanical device, thereby compressing and stretching the air inside the pump chamber to form negative and positive pressure, to achieve gas suction and discharge.
The second mode (suitable for specific types of micro diaphragm water pumps): uses the rotation of the screw stem to suction and discharge gas. The middle screw is the active screw, which is driven to rotate by the prime mover, while the screws on both sides are the passive screws, which rotate in the opposite direction with the active screw. The mutual meshing of each screw and the tight fit between the screw and the inner wall of the liner create one or more sealed spaces between the suction and discharge ports of the micro diaphragm pump. As the screw rotates and meshes, these sealed spaces are continuously formed at the suction end of the pump, sealing the gas in the suction chamber and continuously moving from the suction chamber along the axial direction of the screw to the discharge end, continuously discharging the gas enclosed in each space.
If you are interested in the product, contact 2bvideo.com for more information for more information
