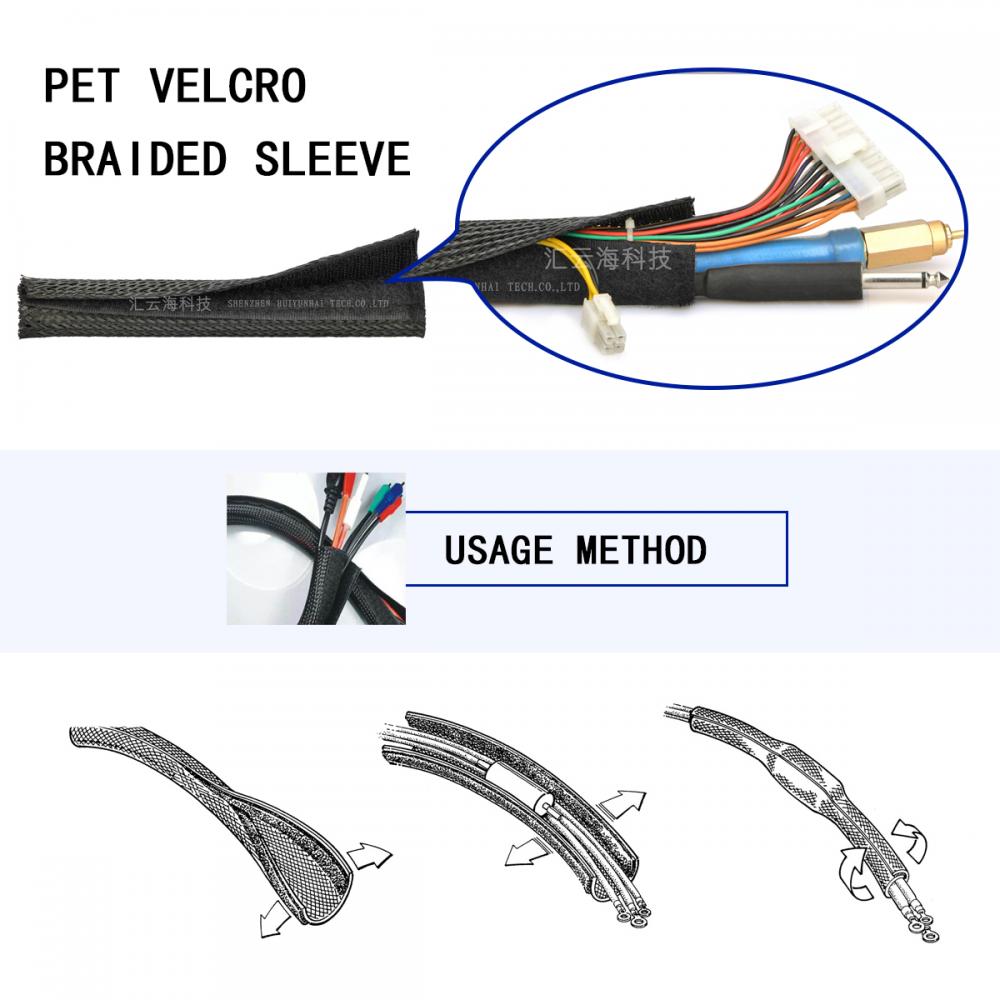

Velcro Braided sleeve is made of PET polyester single-layer mesh and Velcro, with good heat dissipation and wear resistance. The utility model has the advantages of simple operation, easy installation on various wire harnesses of different sizes, and convenient disassembly. PET braided sleeve is a kind of network pipe with good performance that integrates flame retardancy and halogen-free. According to the selection of PET, it is woven with good flexibility, flame retardant grade, abrasion resistance and fire resistance. It can also be woven with different patterns and colors of PET Velcro braided sleeve according to user needs.
Technique Data-Sheet
Material:
PET、Elastic fiber, etc
Working Temperature:
-50℃---150℃
Melting Point:
250℃
Flammability:
VW-1
Certified:
RoHS、REACH
Standard Colors:
Black, Grey
Application:
The products are widely used in the harness protection of A/V cables, power cables, external connecting cables of computer and TV, mechanical equipment, high-speed railway, industrial equipment, automobile and other industries.

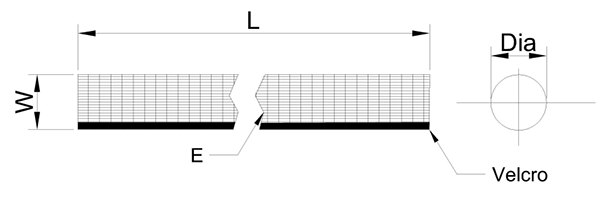

Product Drawing
|
Size specification |
||||
|
Model No. |
Natural Width（W） |
Velcro Width |
Max cover width |
Packing(L) |
|
VCW-013 |
13 |
10 |
10 |
25m/Roll |
|
VCW-019 |
19 |
10 |
15 |
|
|
VCW-032 |
31 |
20 |
20 |
|
|
VCW-051 |
51 |
20 |
30 |
|
|
VCW-064 |
64 |
20 |
45 |
|
Unit：mm
Remarks:
1. Inner diameter refers to the circular diameter of the sleeve, not the folded diameter.
2. Special packaging, special colors, etc. can be customized according to customer requirements.
3. Please make the confirmation refer to the sample acknowledgement for detailed product parameters.
